Grinding balls, also known as grinding media or ball mill balls, are the media used to grind materials in ball mills. In actual use, steel balls, materials, and barrel walls constantly collide and rub, and the steel balls themselves will also be consumed. We specialize in the production of cast grinding balls, ball mill forged steel balls, wear-resistant steel balls, grinding steel balls, forged steel balls, and forged balls. Our grinding balls are mainly used in mining, power plants, cement, chemical and other industries to save production costs and improve economic benefits for users. Our grinding balls have high hardness, no loss of roundness, wear resistance, and no breakage. The size ranges from φ20-φ150mm. The final size of the ground sample depends on the size and number of grinding balls used. In general, the larger the ball, the coarser the product, and the smaller the ball, the finer the product. It is not recommended to put balls of different sizes into the jar together with the sample. The choice of ball size and number for a specific application is best determined by user trials. In general, using more balls will reduce grinding time and produce a finer size distribution until the optimal load point is reached. However, it is recommended not to fill the bowl with balls and samples to more than two-thirds of its total capacity. One third of the bowl capacity should be left for effective grinding action. It is recommended to use grinding bowls and balls made of harder material than the sample to be processed. For particularly hard samples, using tungsten carbide balls in a steel bowl or zirconium oxide balls in a corundum bowl can improve grinding efficiency.
Uses of one cast high chrome grinding balls
One cast high chrome Grinding balls are essential for reducing the size of raw materials, facilitating handling, and increasing the efficiency of chemical reactions. Their main functions include:
- Size Reduction: Grinding balls help break down large pieces of raw material into smaller, more manageable sizes. This is particularly important in mining and mineral processing, where ore needs to be crushed and ground to release valuable minerals from the surrounding rock.
- Homogenization: Achieving a uniform particle size distribution is critical in many manufacturing processes. Grinding balls ensure that particles are evenly ground, resulting in consistent product quality.
- Surface Area Enhancement: Finer particles have a greater surface area, which can significantly increase the efficiency of chemical reactions. This is critical in industries such as cement production, where reactions between raw materials such as limestone and clay must be optimized.
- Grinding Process Efficiency: Grinding balls are an integral part of various grinding processes, including ball mills, which are widely used in mineral processing, ceramics, and fireworks manufacturing. The balls act as a grinding medium that helps to pulverize the processed material.
Grinding ball material
Grinding balls are widely used as grinding media in ore dressing plants, cement plants, thermal power plants, refractory materials plants and other grinding industries. Buyers should carefully compare the materials and adopt scientific proportions when purchasing. Common grinding ball materials for ball mills include ordinary carbon steel balls, alloy steel balls, stainless steel balls, ceramics, etc.
Ordinary carbon steel ball
Ordinary carbon steel ball is one of the most widely used steel ball materials in ball mill. It is made of high-quality carbon structural steel material and processed by forging and surface hardening. This type of steel ball is cheap and has low production cost. It is widely used in powder grinding operations in building materials, chemical industry, metallurgy and other industries.
Alloy steel ball
Alloy steel ball is made by adding alloy elements to ordinary carbon steel ball. Due to its high hardness and good wear resistance, it is suitable for abrasive processing projects with higher requirements. At the same time, the service life of alloy steel ball is long, so it is widely used in some fields where grinding tools need to be replaced frequently, such as mining, mineral processing and other heavy industries.
Stainless steel ball
The stainless steel ball in the ball mill is mainly made of 18-8 stainless steel or other stainless steel materials. In the chemical pharmaceutical, food processing and other industries, the material requirements for abrasives are very high. Stainless steel balls are widely used in these industries because of their rust-proof, not easy to rust, and no printing pile phenomenon.
Cast iron
Cast iron grinding balls are known for their durability and cost-effectiveness. They are usually used in applications where medium wear resistance is sufficient.
Ceramic
Ceramic grinding balls are typically made of aluminum oxide or zirconium oxide and are highly wear-resistant and chemically inert. They are ideal for applications in the pharmaceutical, food and chemical industries where contamination must be minimized.
Forged steel
Forged steel grinding balls are made by heating steel and shaping it into a sphere through a forging process. These balls have excellent toughness and wear resistance, making them ideal for high-impact grinding applications.
Other materials
Depending on the specific requirements of the application, grinding balls can also be made of other materials such as tungsten carbide, silicon carbide or even plastic.
Grinding ball specifications
Generally, the diameter of ball mill steel balls is between 20-125mm, which are divided into large balls, medium balls and small balls, but the diameter of steel balls used in super large ball mills is 130-150mm.
- Large ball: 100/120mm
- Medium ball: 60/80mm
- Small ball: 20/60mm
| Ball Diameter (mm) | Weight per Ball (kg) | Quantity per Ton |
| φ20 | 0.034 | 31,056 |
| φ25 | 0.063 | 15,873 |
| φ30 | 0.11 | 9,091 |
| φ40 | 0.26 | 3,891 |
| φ50 | 0.51 | 2,000 |
| φ60 | 0.86 | 1,153 |
| φ70 | 1.37 | 729 |
| φ80 | 2.05 | 487 |
| φ90 | 2.9 | 345 |
| φ100 | 4 | 250 |
| φ110 | 5.3 | 188 |
| φ120 | 6.8 | 147 |
| φ125 | 7.75 | 129 |
| φ130 | 8.74 | 74 |
Manufacturing Process
Manufacturing of grinding balls involves several steps to ensure their quality and performance. These steps include:
- Material Selection: The first step is to select the right material for the intended use. Factors such as hardness, wear resistance and impact strength are considered.
- Melt and Cast: For cast iron and some steel grinding balls, the selected material is melted in a furnace and poured into a mold to form a spherical shape. The casting process produces balls with consistent size and performance.
- Forging: Forged steel grinding balls are made by heating a steel billet and shaping it into a sphere using a mechanical forging press. This process enhances the toughness and impact resistance of the ball.
- Heat Treatment: After casting or forging, the grinding balls undergo heat treatment processes such as quenching and tempering. This step increases the hardness and wear resistance of the grinding balls, ensuring that the grinding balls can withstand the rigors of grinding operations.
- Quality Control: Throughout the manufacturing process, we implement strict quality control measures to ensure that the grinding balls meet industry standards. This includes testing for hardness, impact resistance and dimensional accuracy.
Applications of high chromium Grinding Balls
Grinding balls are used in a wide range of industries, each requiring specific characteristics for optimal performance. Some of the key applications include:
- Mining and Mineral Processing: In the mining industry, grinding balls are used in ball mills to grind ore into a fine powder, thereby aiding in the extraction of valuable minerals. They are essential in processes such as mineral processing, which aims to separate valuable minerals from waste rock.
- Cement Production: Grinding balls are used in the production of cement to grind clinker into a fine powder. This process is essential to achieve the required fineness of the final product, which affects the quality and strength of the cement.
- Chemical Processing: In the chemical industry, grinding balls are used to grind and blend raw materials for the production of various chemicals. The wear resistance and chemical inertness of the grinding balls are essential to prevent contamination and ensure product purity.
- Power Generation: In power plants, grinding balls are used in coal mills to grind coal into a fine powder for combustion in boilers. The efficiency of this process directly affects the overall performance and efficiency of the power plant.
- Pharmaceutical and Food Processing: In the pharmaceutical and food industries, ceramic grinding balls are used to achieve ultra-fine grinding and blending of ingredients. Its non-reactive nature ensures that the final product will not be contaminated.
- Other Applications: Grinding balls are also used in industries such as paint manufacturing where they help disperse pigments and achieve uniform particle size. In addition, they are also used in the production of ceramics, glass, and various other materials.
Cast vs. forged grinding balls: making the right choice
Grinding balls play a key role in industrial operations, particularly in mining and cement production. These spherical tools play a key role in the grinding process, tasked with grinding materials to the desired fineness, thus facilitating efficient processing and extraction. Whether to choose cast or forged grinding balls is a critical decision that affects not only the efficiency of the grinding operation, but also factors such as energy consumption and overall cost.
Cast grinding balls are praised for their cost-effectiveness in high-volume applications, while forged grinding balls are praised for their superior durability and wear resistance, making them ideal for tasks requiring high impact and precision.
Introduction to Casting Grinding Balls
Cast grinding balls have been the cornerstone of various industrial processes for decades, with their origins dating back to early milling and grinding operations. Their evolution is closely tied to advances in casting technology and materials science, enabling the production of balls that meet the stringent requirements of modern industrial applications. Initially, casting methods were rudimentary, focusing on forming molten metal into spherical shapes using simple techniques. However, as industry evolved, casting processes also evolved, with more sophisticated methods being used to improve the uniformity, durability, and performance of grinding balls.
The materials used to manufacture cast grinding balls primarily include high carbon steel, chrome steel, and various alloy steels. These materials are selected for their ability to withstand the high impact and wear encountered during the grinding process. zjtl plays a key role by providing high-quality alloys that significantly increase the hardness and wear resistance of these balls. The casting process involves pouring molten metal into a mold, which then solidifies into the desired spherical shape. Modern advances in cooling and solidification techniques have further improved the quality of cast grinding balls, ensuring they meet the stringent standards required for efficient and reliable grinding operations. Through continued innovation in materials and manufacturing processes, cast grinding balls have become more durable and effective, meeting the diverse needs of a wide range of industries around the world.
Forged Grinding Balls Introduction
Forged grinding balls have a rich history, with their origins dating back to ancient blacksmithing techniques, when the forging process was key to producing tools and weapons with unparalleled durability and precision. This historical strength has evolved into modern industrial applications, with forged grinding balls being indispensable in processes that require high impact resistance and precision.
These balls are typically made from high carbon steel or alloy steel, and the forging process enhances the material’s physical properties, resulting in a host of benefits. The process involves heating the steel to high temperatures and then hammering or pressing it into shape, effectively adjusting the metal’s grain structure. This adjustment increases the ball’s strength and wear resistance, making it ideal for the rigors of mining and ore processing.
The forging process is critical to ensuring the ball’s performance. High-quality steel is selected for its ability to withstand the rigors of grinding applications, ensuring forged grinding balls offer exceptional durability. The forging process itself is lauded for producing grinding balls that not only meet, but exceed the requirements of high impact and precision grinding tasks, setting a high standard for efficiency and reliability in industrial milling operations.

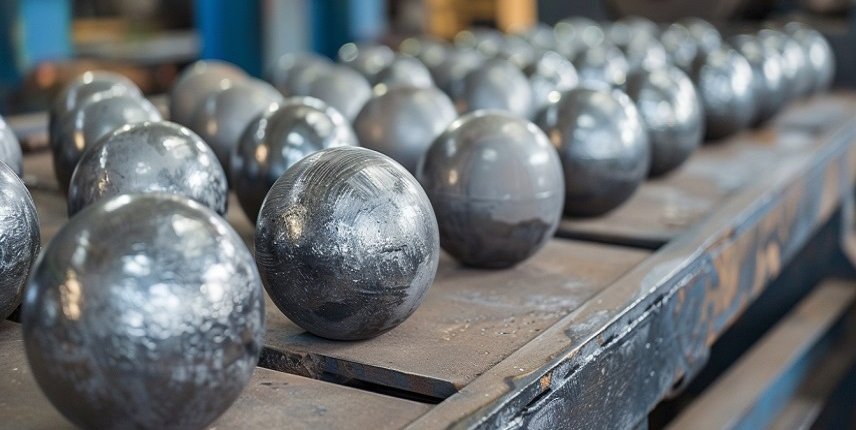

Key Differences Between Cast Grinding Balls and Forged Grinding Balls
1. Material Composition
Cast grinding balls are primarily made of high-carbon steel, chrome steel, and occasionally alloy steel, which provide high hardness and wear resistance. The casting process involves melting these materials and pouring them into a mold to form the ball. Forged grinding balls, while also made of similar types of steel, are formed under high temperatures and pressures, resulting in a different final composition that emphasizes the steel's inherent strength and ductility.
2. Microstructure and Density
The microstructure of cast grinding balls tends to be more non-uniform due to the nature of the cooling process after casting, which can result in a less uniform distribution of internal stresses. In contrast, the forging process makes the steel's grain structure consistent, resulting in a denser, more uniform microstructure. This uniformity improves the overall strength and durability of the forged balls, making them less susceptible to microcracks and wear over time.
3. Hardness and Wear Resistance
Generally speaking, forged grinding balls have higher hardness and superior wear resistance than cast grinding balls. This is primarily due to the intense pressing and heat treatment applied during the forging process, which improves the steel's mechanical properties. Cast balls, while still hard and wear-resistant, may not achieve the same level of performance, especially under extreme grinding conditions where extreme durability is required.
4. Impact Toughness and Breakage Rate
Impact toughness is where forged grinding balls clearly outperform cast balls. The forging process increases the toughness of the ball, making it more capable of absorbing high impact forces without breaking. As a result, forged balls have lower breakage rates under the rigors of grinding operations. Cast balls, while cost-effective in certain applications, are more susceptible to breakage under high impact, affecting operational efficiency and increasing the need for replacement.
5. Cost Considerations
Initially, cast grinding balls cost less to produce than forged balls because the casting process is less labor-intensive. However, forged balls have a longer service life and lower breakage rates and may be more cost-effective in the long run, especially in operations where downtime and replacement costs are high. Therefore, choosing between cast and forged balls involves not only an evaluation of upfront costs, but also an analysis of long-term operating expenses.
This table summarizes the fundamental differences between cast and forged grinding balls in terms of material composition, microstructural integrity, mechanical properties, and economic factors to help make decisions when applying in a variety of industrial settings.
| Criteria | Cast Grinding Balls | Forged Grinding Balls |
| Material | High carbon steel, chrome steel, and alloy steel | Similar materials, but with enhanced strength |
| Microstructure | Uneven stress distribution | Uniform and dense, reducing microcracks |
| Hardness & Wear | Relatively high, but may be lower than forged | Superior, due to processing |
| Impact & Breakage | Lower toughness, higher breakage rate | Higher toughness, lower breakage rate |
| Cost | Lower initial cost | Higher initial cost, but lower long-term cost |
Casting or Forging: How to Choose?
Choosing between cast and forged grinding balls requires a detailed understanding of your specific application requirements, operating costs, and the importance of material quality. This decision can significantly impact the efficiency, lifespan, and cost-effectiveness of grinding operations in industries such as mining and cement manufacturing. Here is a comprehensive guide to help you make the right choice:
Application Requirements
- Impact and wear levels: Assess the level of impact and wear the grinding balls will be exposed to. For high-impact environments, such as SAG mills and ball mills in mining operations, forged grinding balls are preferred due to their excellent impact toughness and low breakage rates. For applications with lower impact forces but higher wear, cast grinding balls may be sufficient.
- Grinding efficiency needs: Consider the efficiency required for the grinding process. Forged balls have a higher density, uniform microstructure, and greater control and precision, making them suitable for tasks that require high grinding efficiency. Cast balls may be more suitable for batch processing where cost is the main consideration.
Operating Costs and Lifespan
- Initial vs. Long-Term Costs: Cast grinding balls have a lower initial cost, but forged balls may provide more value over time. The durability and lower breakage rate of forged balls can reduce downtime and replacement costs, potentially lowering the total cost of ownership.
- Energy Consumption: Forged grinding balls can also reduce energy consumption by increasing grinding efficiency. Consider potential energy cost savings when choosing between cast and forged options.
Material Quality
The quality of the material used for grinding balls has a significant impact on their performance and life. Whether cast or forged, high-quality materials improve the hardness, wear resistance, and impact toughness of the grinding balls. Working with a reputable supplier like Stanford Advanced Materials (SAM) ensures that you receive quality materials that will improve the performance and life of your grinding balls.
Make a decision
- Expert Consulting: Work with material and grinding process experts to evaluate the best options for your specific needs. Their insights can guide you through the complex issue of selecting the right grinding ball type.
- Trial and Evaluation: If possible, conduct trials of cast and forged balls in your operation. This direct comparison can provide valuable data on performance, wear rates, and overall cost-effectiveness to help make a more accurate selection.
This table provides a structured approach to evaluating the key factors in selecting cast or forged grinding balls, including the importance of application requirements, cost, and material quality. It suggests practical steps in the evaluation, such as consulting experts and conducting trials, to make an informed choice.
| Consideration | Cast Grinding Balls | Forged Grinding Balls | Evaluation Tips |
| Impact & Wear | Suitable for low to medium impact and high abrasion | Ideal for high impact and low abrasion | Assess grinding conditions and material being processed |
| Grinding Efficiency | Efficient in cost-focused bulk processing | Enables more efficient and precise grinding control | Consider required precision and efficiency of the grinding process |
| Cost | Lower initial cost | Higher initial cost, but lower long-term cost due to durability | Compare upfront purchase cost with potential savings on replacements and downtime |
| Energy Consumption | May require more energy due to lower efficiency in some applications | Improved efficiency can reduce energy costs | Estimate energy cost impact based on ball performance |
| Material Quality | Quality affects wear resistance and lifespan | High-quality materials enhance performance and lifespan | Ensure both options use high-quality materials from reputable suppliers |
Ceramic vs. Steel Grinding Balls: A Comprehensive Comparison for Industrial Uses
Grinding balls are integral components in milling and grinding operations in industrial processes, where they play a key role in reducing particle size and refining material texture. Varying in material composition, size, and density, these balls are central to a wide range of industries, from mining to pharmaceuticals, impacting product quality, efficiency, and operating costs.
Of these materials, ceramic and steel balls stand out for their unique properties and applications. Known for their hardness and durability, ceramic grinding balls offer precision and minimal contamination, making them ideal for high-purity processes. Steel balls are valued for their robustness and cost-effectiveness, excelling in heavy-duty milling operations. This article provides a comprehensive comparison of the two types of grinding balls, designed to illuminate their strengths, limitations, and best use cases in industrial settings.
Composition and Manufacturing
Grinding balls are key in the grinding and grinding processes in a variety of industries, including mining, metallurgy, cement, and pharmaceuticals. These balls break down solid materials into finer particles through impact and abrasion, significantly affecting the efficiency, quality, and cost of the production process. Ceramic and steel grinding balls represent two major categories, each with different compositions, manufacturing processes, and properties that make them suitable for different applications. This section introduces these materials to provide a basis for a comprehensive comparison of their use in industrial settings.
Ceramic Grinding Balls
Ceramic balls are made from a variety of materials, including silicon nitride, aluminum oxide, zirconium oxide, and others, which are selected for their hardness, wear resistance, and chemical inertness. The manufacturing process involves high-temperature kiln firing of the selected ceramic powder, which is then precision ground to achieve the desired size and shape. These balls are characterized by extremely high hardness, low density, and resistance to high temperatures and chemicals, making them ideal for applications that require minimal contamination and high grinding efficiency
Steel Grinding Balls
Steel grinding balls are typically forged or rolled from carbon steel, alloy steel, or stainless steel. The choice of steel grade affects the ball's hardness, elasticity, and wear and corrosion resistance. Production methods vary but generally involve heating the steel to high temperatures and then forming it into balls by forging or rolling, which are then heat treated to achieve the desired mechanical properties. Steel balls are known for their high impact strength, weight and ability to withstand enormous loads, making them ideal for heavy grinding operations where abrasiveness and mechanical wear are significant factors.
Performance in grinding applications
Efficiency & Benefits
The smooth surface and low density of ceramic balls speed up the grinding process by reducing friction and wear on mill parts, resulting in shorter processing times and lower energy consumption. The inertness of ceramic balls also minimizes the risk of chemical reactions with the material being ground, ensuring the purity and quality of the final product. In contrast, steel balls are more effective at breaking down harder materials due to their higher density and impact strength, making them indispensable in industries such as mining and cement manufacturing.
Wear Resistance & Durability
Ceramic grinding balls have excellent wear resistance, which significantly extends their service life and reduces the need for frequent replacement. This durability also means less contamination of the ground material, a key factor in pharmaceutical and food processing. Steel balls, while durable, wear faster in high-impact environments, which can lead to increased operating costs over time due to more frequent replacement and maintenance.
Impact on Ground Materials
The material composition of the grinding balls affects the purity and characteristics of the ground material. Ceramic balls are chemically inert to prevent any risk of contamination, which is particularly important in electronics, pharmaceuticals and food manufacturing. While generally safe, steel balls can introduce metal contamination in certain circumstances, especially when grinding acidic or alkaline materials, which may be unacceptable in certain applications.
Operational Considerations
The success of the grinding process depends largely on whether the grinding media is suitable for the specific operating conditions and requirements. This requires careful consideration of the type of grinding operation and the environmental factors that may affect the performance and durability of ceramic and steel grinding balls.
Application Suitability
Ceramic grinding balls are particularly advantageous in high-precision applications that require minimal contamination, such as the pharmaceutical, food processing and semiconductor industries. Ceramic grinding balls are abrasive and chemically inert, making them ideal for dry and wet grinding operations where purity and precision are critical.
Steel grinding balls, on the other hand, are more suitable for heavy-duty operations involving grinding hard materials, such as mining and cement production. Steel grinding balls have excellent impact strength and durability, making them the preferred choice for both dry and wet grinding, where the sturdiness of steel grinding balls can withstand the high impact forces of the material, and the weight of steel grinding balls helps to break down the material efficiently in wet grinding.
Environmental Factors
The performance of grinding balls is also affected by environmental conditions such as temperature and humidity. Ceramic balls are resistant to high temperatures and corrosion, maintaining their integrity and performance in a wider range of environmental conditions, including high temperatures and corrosive environments. Steel balls, while generally strong and durable, may be more susceptible to corrosion in wet or corrosive environments unless they are specially treated or manufactured from corrosion-resistant alloys.
Therefore, the choice between ceramic and steel grinding balls should also take into account environmental conditions to ensure optimal performance and longevity of the grinding media.
Economic Factors
Economic factors play a vital role when selecting grinding balls for industrial applications. The choice between ceramic and steel grinding balls should not only be evaluated for their initial purchase price, but also for their long-term cost-effectiveness, taking into account maintenance and replacement needs.
Cost Analysis
Initially, the purchase price of ceramic grinding balls is generally higher than that of steel balls due to the more complex manufacturing process and higher raw material costs. However, their superior durability and lower wear rate often mean a lower total cost of ownership over time. Ceramic balls can operate for long periods of time without replacement, making them a cost-effective choice for processes where minimal contamination and high purity are critical.
Maintenance and Replacement
Ceramic grinding balls require significantly less maintenance than steel balls, primarily due to their resistance to wear, corrosion, and thermal changes. This reduces maintenance downtime and the frequency of ball replacement, helping to reduce long-term operating costs. Steel balls, while initially cheaper, may need to be replaced more frequently in harsh environments or high-impact applications, resulting in increased maintenance costs and potential production delays.
Ultimately, the economic viability of using ceramic or steel balls depends on a comprehensive analysis that considers the initial investment, the expected life of the balls, the maintenance schedule, and the impact of downtime on production efficiency. By carefully weighing these factors, the industry can make informed decisions to optimize the cost-effectiveness and operational efficiency of their grinding operations.
Below is a comparison table summarizing the main aspects of industrial ceramic and steel grinding balls:
| Aspect | Ceramic Grinding Balls | Steel Grinding Balls |
| Composition | Silicon nitride, alumina, zirconia | Carbon steel, alloy steel, stainless steel |
| Manufacturing Process | High-temperature kiln firing, precision grinding | Heating, forging or rolling, heat treatment |
| Efficiency & Performance | Higher due to lower density and smooth surface; reduces friction and wear | Effective for breaking down harder materials due to higher density and impact strength |
| Wear Resistance & Durability | Excellent wear resistance; extended service life | Durable, but may wear faster in high-impact environments |
| Impact on Ground Material | Chemically inert, prevents contamination; ideal for high-purity applications | May introduce metal contamination under certain conditions |
| Application Suitability | High-precision applications (pharmaceuticals, food processing) | Heavy-duty operations (mining, cement production) |
| Environmental Factors | Resistant to high temperature and corrosion; suitable for diverse conditions | More prone to corrosion if untreated; performance may vary with environment |
| Cost Analysis | Higher initial cost; superior durability and low wear rate provide long-term savings | Lower initial cost; higher operating costs due to frequent replacement |
| Maintenance & Replacement | Significantly lower; resistant to wear, corrosion, and thermal changes | Requires more frequent replacement in harsh or high-impact environments |
Case Studies and Industry Applications
In the field of industrial grinding and milling, the choice between ceramic and steel balls often depends on the specific needs of the application and the materials being processed.
Ceramic Balls
In the pharmaceutical industry, ceramic balls are the preferred choice for grinding active pharmaceutical ingredients due to their inertness, lack of contamination, and ability to maintain compound purity. Similarly, in the electronics industry, semiconductor manufacturing utilizes ceramic balls to finely grind silicon wafers, where even tiny impurities can impair the function of semiconductor devices.
Steel Balls
In contrast, the mining industry relies heavily on steel grinding balls to process ores. The robustness and excellent impact strength of steel balls make them ideal for crushing hard materials such as metals and minerals. In cement manufacturing, steel balls are used extensively to grind clinker into a fine powder, and their durability and cost-effectiveness are highly valued.
Frequently Asked Question(FAQ) of Ball Mill Grinding Media:
Material: The prices of ball mill steel balls of different materials vary greatly. For example, high manganese steel balls are more affordable because of their relatively simple process and low cost; high chromium cast iron balls are usually more expensive because of their high chromium content, complex production process, and good wear resistance; rare earth special alloy steel balls have superior performance due to the addition of special elements such as rare earth, and the price will also be higher.
Specifications: The price of steel balls varies depending on the diameter and weight. Generally speaking, steel balls with large diameters and heavy weights require more raw materials and higher processing costs during production, and the price will be relatively high. For example, the price of a steel ball with a diameter of 100mm will be higher than that of a steel ball with a diameter of 50mm.
Production process: Steel balls produced using advanced production processes have more stable quality, better performance, and correspondingly higher prices. For example, steel balls produced using precision casting processes have high dimensional accuracy, good surface quality, and dense internal structure, and the price is higher than that of steel balls produced using ordinary casting processes. At the same time, some steel balls that have undergone special heat treatment processes, such as quenching and tempering, can improve the hardness and toughness of steel balls. The cost of the production process increases, and the price will also be affected.
Market supply and demand relationship: When the demand for ball mill steel balls in the market is greater than the supply, the price tends to rise; conversely, when the supply is greater than the demand, the price will fall. For example, in the peak season of the mining industry, the demand for ball mill steel balls increases greatly. If the production capacity of steel ball manufacturers cannot meet market demand, the price of steel balls may rise.
Brand and quality: Steel balls of well-known brands usually have better guarantees in terms of quality control and after-sales service, and their prices will also be higher. These brand companies pay attention to product quality, use high-quality raw materials and advanced production equipment, and the wear resistance, hardness and other indicators of the products are better, and the service life is long. Although the unit price is higher, the comprehensive use cost may be more advantageous.
Raw material price: The main raw materials of ball mill steel balls are various steels. The fluctuation of steel prices will directly affect the cost and price of steel balls. For example, when the market price of steel rises, the raw material procurement cost of steel ball manufacturers increases. In order to ensure a certain profit margin, the sales price of steel balls will also increase accordingly.
1. Function
Crushing materials: When the ball mill is working, the steel balls rotate with the cylinder. After being lifted to a certain height, they fall under the action of gravity, exerting a strong impact force on the materials, crushing large pieces of materials and gradually reducing their size.
Grinding materials: There is relative movement between the steel balls and between the steel balls and the liner of the ball mill. After the materials are crushed to a certain extent, this relative movement of the steel balls produces a grinding effect on the materials, further refining the material particles to meet the required particle size requirements.
2. Principle
Impact force principle: When the cylinder of the ball mill rotates, the steel balls rotate and rise with the cylinder due to the friction and centrifugal force with the inner wall of the cylinder. When the steel balls rise to a certain height, the centrifugal force is less than gravity, and the steel balls begin to fall and hit the materials in the cylinder at a certain speed. According to the momentum theorem, the larger the mass of the steel balls and the faster the falling speed, the greater the impact force generated, and the better the crushing effect on the materials. This impact force can overcome the cohesive force and intermolecular force of the materials, causing the materials to break and crush.
Friction principle: During the operation of the ball mill, there is a complex relative motion between the steel balls and between the steel balls and the liner, which generates friction. The material is squeezed and rubbed between the steel balls and between the steel balls and the liner, and is subjected to shear force and grinding force. These forces cause the particles on the surface of the material to be continuously peeled off, and the material particles gradually become smaller, while also making the surface of the material smoother, achieving the grinding effect.
1. Material characteristics
Hardness: Material hardness is an important basis for selecting steel balls. For materials with higher hardness, such as quartz stone, iron ore, etc., steel balls with higher hardness and better wear resistance, such as high-chromium cast iron balls or high-carbon high-manganese alloy steel balls, should be selected to ensure that the steel balls have sufficient wear resistance, reduce wear and breakage, and improve grinding efficiency. For materials with lower hardness, such as limestone, gypsum, etc., high-manganese steel balls or low-carbon alloy steel balls can be selected, which can not only meet the grinding requirements but also reduce costs.
Humidity: Materials with high humidity are prone to cause materials to adhere to the surface of the steel balls, affecting the grinding effect and even causing the steel balls to rust. For materials with high humidity, steel balls with smooth surfaces and not easy to adhere to materials, such as steel balls with special surface treatment, can be selected. At the same time, the corrosion resistance of the steel balls should be considered to extend their service life.
Particle size: If the initial particle size of the material is large, it is necessary to select steel balls with larger diameters and stronger impact forces in order to effectively crush the materials. For materials with smaller initial particle sizes, the diameter of the steel balls can be appropriately reduced, the number of steel balls can be increased, and the grinding effect can be improved.
2. Ball mill model
Specifications: Large ball mills require steel balls with larger diameters due to their large cylinder diameter and relatively low rotation speed to ensure that the steel balls can obtain sufficient impact force in the cylinder. Small ball mills are suitable for steel balls with smaller diameters, which can increase the contact area between the steel balls and the material and improve the grinding efficiency. For example, large ball mills with a diameter of more than 3 meters can use steel balls with a diameter of 80-125mm; small ball mills with a diameter of 1-2 meters are suitable for steel balls with a diameter of 30-60mm.
Speed: The speed of the ball mill affects the movement state and grinding effect of the steel balls. For ball mills with higher speeds, the centrifugal force of the steel balls is greater, so it is necessary to select steel balls with lighter mass and smaller diameter to avoid excessive attachment of the steel balls to the cylinder wall, which affects the grinding efficiency. For ball mills with lower speeds, steel balls with larger mass and larger diameter can be selected to make full use of the gravitational potential energy of the steel balls and increase the impact force.
Power: A ball mill with a larger power can provide greater power, and a larger and heavier steel ball can be selected to give full play to the grinding capacity of the ball mill. For a ball mill with a smaller power, a steel ball of appropriate specifications should be selected to avoid excessive load on the ball mill due to excessive weight of the steel ball, which will affect the normal operation of the equipment.
3. Production process requirements
Output: If the production process requires a higher output, it is necessary to select steel balls with high grinding efficiency and good wear resistance to ensure that more materials can be processed per unit time. The output can be increased by increasing the loading capacity of the steel balls and optimizing the grading of the steel balls.
Product particle size requirements: For processes that require finer product particle size, it is necessary to select steel balls with smaller diameters and reasonable grading to increase the grinding effect so that the materials can be fully refined. For example, in cement production, if the particle size of the cement product is required to reach a certain fineness, it is necessary to select appropriate steel ball grading according to the specific situation of the ball mill to meet the product particle size requirements.
4. Cost factors
On the premise of meeting the material grinding requirements and production processes, cost is also a factor that needs to be considered. The prices of steel balls of different materials and specifications vary greatly, and the comprehensive cost should be calculated by comprehensively considering factors such as the price, service life, and grinding efficiency of the steel balls. For example, although the price of high-chromium cast iron balls is higher, they have good wear resistance and long service life. When processing high-hardness materials, the comprehensive cost may be lower than that of steel balls of other materials.
1. High manganese steel ball
Ingredients: The main component is manganese, and the manganese content is usually around 11% - 14%. It also contains a certain amount of carbon, silicon, phosphorus, sulfur and other elements.
Features: It has good toughness and work hardening characteristics. During the operation of the ball mill, when the surface of the steel ball is impacted and rubbed, it will quickly harden, improve the surface hardness and wear resistance, while the inside still maintains good toughness and is not easy to break.
Application: It is suitable for processing materials with medium hardness, such as limestone, dolomite, coal, etc. It is widely used in ball mills in cement, mining, power and other industries.
2. High chromium cast iron ball
Ingredients: The chromium content is high, generally between 12% - 30%, and it also contains appropriate amounts of alloy elements such as carbon, molybdenum, copper, and nickel.
Features: It has high hardness and wear resistance, and its hardness can generally reach HRC58 - 65. High chromium cast iron balls perform well in wear resistance, can effectively resist material wear, and extend service life, thereby reducing the operating cost and maintenance frequency of the ball mill. But the toughness is relatively poor. Avoid excessive impact loads during use to prevent breakage.
Application: Mainly used for grinding high-hardness materials such as iron ore, quartz stone, corundum, etc. It is widely used in mining, building materials, refractory materials and other industries.
3. Medium chromium alloy steel ball
Composition: The chromium content is generally between 4% and 10%, and other alloy elements such as molybdenum, manganese, silicon, etc. are added to improve the comprehensive performance of the steel ball.
Features: The hardness and toughness of the medium chromium alloy steel ball are between high manganese steel balls and high chromium cast iron balls. It has good wear resistance and certain toughness, and can withstand a certain degree of impact load. Compared with high chromium cast iron balls, its production cost is lower and the cost performance is relatively high.
Application: It is suitable for grinding a variety of materials, including some materials with high hardness but not particularly strong impact, such as ceramic raw materials, glass raw materials, etc., and has certain applications in ceramics, glass, chemical and other industries.
4. Low chromium alloy steel ball
Composition: The chromium content is usually around 1% - 3%, and a small amount of other alloying elements such as manganese, silicon, molybdenum, etc. are added.
Features: It has a certain hardness and wear resistance, and the price is relatively low. Its hardness is generally between HRC45 - 55, which can meet the grinding needs of some materials that do not require extremely high wear resistance. The toughness is better than that of high chromium cast iron balls and is not easy to break.
Application: It is often used to grind softer materials such as clay, shale, coal powder, etc. It has certain applications in raw material mills in cement production and powder making systems in power plants.
5. Carbon steel ball
Composition: The main components are iron and carbon, and the carbon content is generally between 0.4% - 0.8%. It also contains a small amount of impurity elements such as silicon, manganese, phosphorus, and sulfur.
Features: It is cheap and easy to process and manufacture. However, the hardness and wear resistance are relatively low. When used in a ball mill, it wears faster and has a shorter service life.
Application: Suitable for occasions with low requirements for material grinding and low hardness, such as small laboratory ball mills or for grinding some very soft materials.
6. Stainless steel ball
Composition: Contains high alloy elements such as chromium and nickel. Common ones include 304 stainless steel balls and 316 stainless steel balls. The chromium content of 304 stainless steel balls is about 18% - 20%, and the nickel content is about 8% - 10.5%; 316 stainless steel balls add molybdenum elements on the basis of 304, and the molybdenum content is about 2% - 3%.
Features: It has good corrosion resistance and oxidation resistance, and can be used in some special working environments, such as grinding materials under humid and corrosive media conditions. Its surface is smooth and not easy to adhere to materials, which helps to improve grinding efficiency. However, the hardness and wear resistance of stainless steel balls are generally not as good as high-chromium cast iron balls and high-manganese steel balls, and the price is higher.
Application: Mainly used in industries that have high requirements on product quality and do not allow impurity contamination, such as food, medicine, chemical industry and other industries to handle corrosive materials or materials sensitive to iron impurities.
Diameter 20mm: It is a smaller steel ball, suitable for processing materials with smaller particle size and lower hardness, or for fine grinding in some small ball mills.
Diameter 30mm: It is also a commonly used small steel ball, which can be used in small laboratory ball mills, or in production to process softer and smaller materials, which can increase the contact points with the materials and improve the grinding effect.
Diameter 40mm: It can better balance the impact force and grinding capacity, suitable for grinding a variety of materials, and is more commonly used in some ball mills that process medium hardness materials and medium particle size.
Diameter 50mm: It is a relatively moderate specification with a certain weight and impact force. It has a good crushing and grinding effect on materials with slightly higher hardness and medium particle size. It is often used in ball mills in cement, mining and other industries.
Diameter 60mm: It has a large weight and impact force, suitable for materials with higher hardness and larger particle size. It can effectively crush large pieces of material in the ball mill, laying the foundation for the subsequent grinding process.
Diameter 80mm: It is a larger steel ball, mainly used in large ball mills to process materials with high hardness and large particle size, such as iron ore, quartz stone, etc. It can crush large pieces of material into smaller particles with its large mass and impact force.
Diameter 100mm: It is usually used in large mining ball mills or occasions with high requirements for material crushing force. It can effectively crush materials with high hardness and large particle size. It is an important specification for processing hard ores and other materials.
Diameter 125mm: It is a larger steel ball specification, generally used in some extra-large ball mills. It can provide strong crushing force for extremely hard and very large particle size materials, but it is not suitable for some small ball mills or ball mills that process softer materials.
The grading of steel balls in the ball mill should form a reasonable particle size distribution in the cylinder. Large-diameter steel balls have greater impact force and are mainly used to crush large pieces of materials; small-diameter steel balls can increase the contact area with the materials and focus on grinding small pieces of materials. By reasonably matching steel balls of different specifications, the ball mill can achieve a balance in the crushing and grinding process to improve the grinding efficiency and product quality.
1. Material characteristics
Particle size: If the initial particle size of the material is large, the proportion of large-diameter steel balls should be increased. For example, when processing raw iron ore, the particle size is large, and more 80mm and 100mm steel balls can be used for crushing. If the material particle size is small, such as limestone powder, the proportion of small-diameter steel balls can be increased to enhance the grinding effect.
Hardness: For high-hardness materials, such as quartz stone, high-hardness and large-diameter steel balls are required, and the proportion of large balls should be high to ensure the crushing force. For soft materials such as gypsum, the hardness and diameter requirements of steel balls are relatively low, and the proportion of small and medium-diameter steel balls can be increased.
Humidity: Materials with high humidity are prone to adhesion between steel balls and materials, affecting the grinding effect. At this time, the proportion of large-diameter steel balls can be appropriately increased, and their greater impact force can be used to overcome the viscosity of the material. At the same time, the total loading capacity of the steel balls can be reduced to avoid excessive load on the ball mill due to material adhesion.
2. Ball mill parameters
Specifications: Large ball mills require large diameter steel balls to obtain sufficient impact force due to their large cylinder diameter and large material processing volume, and a certain proportion of small and medium diameter steel balls are used for grinding. Small ball mills mainly use small and medium diameter steel balls to ensure that the steel balls can fully contact the materials in a limited space.
Speed: For ball mills with high speed, the centrifugal force of the steel balls is large and the lifting height is low. The proportion of large diameter steel balls should be reduced, the number of small and medium diameter steel balls should be increased, and the contact frequency should be increased. For ball mills with low speed, the lifting height of the steel balls is high and the impact force is large, so the proportion of large diameter steel balls can be appropriately increased.
1. Cement production: For cement ball mills that process mixed materials such as limestone, clay, and iron ore, if the ball mill specification is Φ3.0×11m, a common steel ball grading scheme is: 100mm steel balls account for 20%, 80mm steel balls account for 30%, 60mm steel balls account for 30%, and 40mm steel balls account for 20%. This grading can better adapt to the characteristics of materials in cement production and the working requirements of ball mills, while ensuring material crushing, achieving good grinding effects, and making the particle size distribution of cement products meet the requirements.
2. Mineral processing: In the ball mill for processing iron ore, if the ball mill is larger, such as Φ5.5×8.5m, the following grading can be used: 125mm steel balls account for 15%, 100mm steel balls account for 30%, 80mm steel balls account for 30%, 60mm steel balls account for 20%, and 40mm steel balls account for 5%. Due to the high hardness of iron ore, the proportion of large-diameter steel balls is relatively high to provide sufficient crushing force to grind the ore particles to a suitable particle size for subsequent mineral processing.
3. Ceramic raw material processing: For ball mills that process ceramic raw materials, since ceramic raw materials are usually of low hardness and require finer finished product particle size, a solution with smaller diameter steel balls and relatively dispersed grading can be used. For example, in a Φ2.4×4.5m ball mill, 60mm steel balls account for 10%, 50mm steel balls account for 20%, 40mm steel balls account for 30%, 30mm steel balls account for 30%, and 20mm steel balls account for 10%. This gradation can increase the contact area between the steel balls and the raw materials, achieve fine grinding, and meet the requirements of ceramic raw materials for particle size and purity.
1. Low chromium cast balls: When grinding materials of normal hardness, such as limestone, clay, etc., and the operating parameters of the ball mill are relatively reasonable, the service life is usually about 3-6 months. If it is used to grind materials with higher hardness, such as iron ore, the service life may be shortened to 2-4 months.
2. Medium chromium cast balls: When used to grind medium hardness materials such as cement raw materials, its service life is about 6-9 months. In some cement plants with better working conditions, its service life may reach 10-12 months. If it is used to grind ores with higher hardness, the service life may be reduced to 4-6 months.
3. High chromium cast balls: In the dry ball mill of the cement industry, when used to grind harder materials such as clinker, the service life of high chromium cast balls is generally 8-12 months. In some large cement companies, by optimizing the operating parameters of the ball mill and the grading of the steel balls, the service life of high chromium cast balls can reach 12-15 months. For the mining industry grinding high-hardness ores such as quartz stone, iron ore, etc., the service life of high-chromium cast balls is usually 6-10 months.
4. Forged steel balls: Under the same working conditions, the service life of low-carbon alloy steel forged steel balls is more than 1 times that of low-chromium cast balls. If used for wet grinding of iron ore, its service life may be 6-10 months; for grinding softer materials such as limestone, the service life may reach 10-15 months. The service life of high-manganese steel forged steel balls in mining ball mills subjected to large impacts is generally 5-8 months; in some working conditions with less impact loads, such as raw material mills in cement plants, the service life may be extended to 8-10 months. Under the same working conditions, the service life of high-carbon and high-manganese alloy steel forged steel balls is at least 1 times longer than that of high-manganese steel balls. When grinding hard ores in a mining ball mill, its service life may be 10-16 months; in a ball mill in the cement industry, the service life may reach 12-20 months.
1. Low chromium cast iron steel balls: The price is generally around 400-600 USD/ton. Its production process is relatively simple, and the material cost is low. It is suitable for occasions where grinding accuracy and wear resistance are not required.
2. Medium chromium cast iron steel balls: The price is usually around 600-800 USD/ton. The performance is between low chromium and high chromium cast iron steel balls, and the price is also at a medium level. It can be used for raw material grinding in cement production and other working conditions.
3. High chromium cast iron steel balls: The price is relatively high, generally around 800-1200 USD/ton, or even higher. Because of its high hardness, high wear resistance and good corrosion resistance, it is suitable for grinding high hardness materials. The production process requirements are high, so the price is relatively high.
4. Forged steel balls: Ordinary forged steel balls such as 45# steel may cost around 500-700 USD/ton. The price of forged steel balls made of high-quality alloy steel, such as 75mncr, may reach about 900-1400 US dollars per ton. Forged steel balls are produced through forging technology, with dense structure, good toughness and strong wear resistance. Forged steel balls made of high-quality alloy steel have better performance and higher prices.
5. Stainless steel balls: The price is relatively high, such as 304 stainless steel balls, which may cost more than 1200-2400 US dollars per ton. The specific price depends on the specifications and quality of the steel balls. Stainless steel balls have good corrosion resistance and high hardness, and are suitable for some occasions with special requirements for the environment, but due to the high cost of stainless steel, their price is also relatively high.
1. Low chromium cast iron steel balls: The chromium content of low chromium cast iron steel balls is low, generally around 1% - 3%. Its hardness is relatively low, usually between HRC40 - 50. During the operation of the ball mill, when facing materials with higher hardness, the wear rate is relatively fast. For example, when processing ordinary ore materials, after a short period of grinding, the diameter of the steel ball may show a significant reduction in wear, and more wear marks will appear on the surface, resulting in relatively poor wear resistance and short service life.
2. Medium chromium cast iron steel balls: The chromium content of medium chromium cast iron steel balls is generally between 3% - 7%, and the hardness is increased, about HRC50 - 55. Due to the increase in chromium content, the number of carbides in its structure increases and is more evenly distributed, so the wear resistance is improved to a certain extent compared with low chromium cast iron steel balls. Under the same ball mill working conditions and material conditions, the wear rate of medium chromium cast iron steel balls is relatively slow, and they can maintain a good shape and size, and the service life is relatively long.
3. High chromium cast iron steel balls: The chromium content of high chromium cast iron steel balls is usually 10% - 30%, with very high hardness, generally up to HRC58 - 65. The chromium element in high chromium cast iron forms a large number of high-hardness carbides, which can effectively resist the wear of materials during the use of steel balls, making them have excellent wear resistance. Compared with low chromium and medium chromium cast iron steel balls, high chromium cast iron steel balls have significantly lower wear rates when grinding high-hardness materials, and can maintain the shape and size of steel balls for a long time, greatly extending their service life. For example, in the clinker grinding process in cement production, the wear resistance advantage of high chromium cast iron steel balls is very obvious, which can significantly reduce the replacement frequency and production cost of steel balls.
4. Forged steel balls: Ordinary forged steel balls such as 45# steel have a hardness of about HRC40-45, and their wear resistance is similar to that of low-chromium cast iron steel balls. Forged steel balls made of high-quality alloy steel, such as 60Si2Mn, 70Mn, etc., can reach a hardness of HRC55-62 after appropriate heat treatment. The internal structure of high-quality forged steel balls is dense and uniform, and there are no defects such as pores and slag inclusions that may appear in cast steel balls. When subjected to impact and friction, they can better maintain the integrity of the surface, so they have better wear resistance. Especially in some working conditions that require higher toughness of steel balls, the wear resistance of forged steel balls is more prominent.
5. Stainless steel balls: Common 304 stainless steel balls generally have a hardness of about HRC28-32, which is relatively low in hardness and poor in wear resistance. However, in some special working environments, such as grinding materials containing corrosive media, 304 stainless steel balls have good corrosion resistance and can resist the erosion of the corrosive media on the surface of the steel balls, thus making up for its lack of wear resistance to a certain extent. If the steel balls are made of high-strength stainless steel, the hardness can be increased to around HRC50-55 after special treatment, and its wear resistance will also be improved accordingly, so they can be used in some occasions that require both certain wear resistance and corrosion resistance.
1. Material characteristics: If the material has high hardness, such as quartz stone, iron ore, etc., the wear rate of the steel ball will be accelerated, and the replacement cycle may be shorter, generally about 1-3 months. For materials with lower hardness, such as limestone, clay, etc., the wear of the steel ball is relatively slow, and the replacement cycle may be extended to 3-6 months, or even longer.
2. Steel ball material: Steel balls of different materials have different wear resistance. Low-chromium cast iron steel balls have poor wear resistance and may need to be replaced in 1-2 months; high-chromium cast iron steel balls and high-quality forged steel balls have good wear resistance, and the replacement cycle can be extended to 3-6 months, or even 8-12 months.
3. Ball mill working parameters: The speed, load and working time of the ball mill will affect the wear of the steel ball. If the speed is too high, the load is too large or the continuous working time is long, the wear of the steel ball will be aggravated and the replacement cycle will be shortened. For example, at high speeds, the collision and friction between the steel balls and the materials, and between the steel balls and the inner wall of the ball mill are more intense, which may shorten the replacement cycle of the steel balls from the normal 3-6 months to 2-4 months.
4. Production process requirements: For some production processes that have strict requirements on product particle size, when the steel balls are worn to a certain extent and cannot meet the product particle size requirements, they need to be replaced in time. For example, in cement production, the particle size of the finished cement is required to reach a certain fineness. If the steel balls cannot grind the materials to the specified fineness after being worn, even if the steel balls have not completely failed, they may need to be replaced in advance. In this case, the replacement cycle may be 3-5 months. For some production processes with relatively loose particle size requirements, the steel balls can be used until they are more severely worn and then replaced, and the replacement cycle may be 5-8 months.
1. Observe the appearance of the steel balls
Wear degree: Open the ball mill regularly to observe the steel balls. If the surface of the steel balls is found to be severely worn, with obvious pits, grooves or a diameter reduction of more than 10% - 20% of the original diameter, it usually means that the grinding efficiency of the steel balls will be significantly reduced and replacement is required.
Surface cracks: If there are cracks on the surface of the steel balls, continued use may cause the steel balls to break, which will not only affect the grinding effect, but also damage the internal components of the ball mill. At this time, they should be replaced in time.
Out-of-round situation: Normal steel balls are round. If the steel balls are obviously out of round due to wear, it will affect their movement trajectory and impact force in the ball mill, reduce the grinding efficiency, and need to be replaced when the degree of out-of-roundness is large.
Detect the hardness of steel balls: Use professional hardness testing equipment, such as Rockwell hardness testers, to regularly test the hardness of steel balls. With use, the hardness of steel balls will change due to factors such as wear and work hardening. If the hardness of the steel balls drops below 80% - 90% of the initial hardness, its wear resistance will drop significantly and may need to be replaced.
2. Analyze the grinding effect of materials
Product particle size: Use a particle size analyzer to detect the particle size distribution of the material after grinding. If the product particle size becomes significantly coarser and cannot reach the fineness required by the production process, and other factors (such as changes in material properties, adjustment of ball mill parameters, etc.) are excluded, it is likely that the steel balls are severely worn and need to be replaced.
3. Production efficiency:
When other working parameters of the ball mill remain unchanged, if the production efficiency drops significantly, such as a decrease in the amount of material processed per unit time, or an increase in the time required to achieve the same grinding effect, it may be that the grinding capacity of the steel balls is insufficient, and replacement of the steel balls is necessary.
4. Listen to the running sound of the ball mill:
When the ball mill is operating normally, the sound is relatively stable and regular. If you hear abnormal impact or friction sounds, it may be caused by uneven wear of the steel balls, breakage, or changes in the gap between the steel balls and the inner wall of the ball mill. At this time, you should stop the machine to check the condition of the steel balls and determine whether they need to be replaced.
5. Monitor the power of the ball mill:
Use power monitoring equipment to monitor the operating power of the ball mill. When the steel balls are worn to a certain extent, the load of the ball mill will change, resulting in abnormal power fluctuations. If the power drops significantly, it may mean that the grinding ability of the steel balls has weakened and the steel balls need to be inspected and evaluated to determine whether they should be replaced.
The working parameters of the ball mill include speed, loading capacity, working time, etc. The following is a method to adjust the replacement cycle of steel balls according to these parameters:
Speed
1. Too high speed: Too high speed of the ball mill will make the steel balls obtain greater centrifugal force and impact force, resulting in more collision and friction between the steel balls and the materials, and between the steel balls and the inner wall of the ball mill, and the wear rate of the steel balls will be accelerated. In this case, the replacement cycle of the steel balls should be appropriately shortened. For example, when the speed of the ball mill is 10% - 20% higher than the normal speed, the replacement cycle of the steel balls may need to be shortened from the normal 3 - 6 months to 2 - 4 months.
2. Too low speed: When the speed is too low, the steel balls cannot obtain sufficient lifting height and impact force, the grinding efficiency is reduced, and the sliding friction of the steel balls in the material increases, which will also affect the wear of the steel balls. At this time, according to the actual wear condition, consider appropriately extending or shortening the replacement cycle. If the surface of the steel ball is evenly worn but the amount of wear is small, the replacement cycle can be appropriately extended; if there are abnormal conditions such as severe local wear, the replacement cycle needs to be shortened.
3. Loading capacity
Excessive loading capacity: If the steel ball loading capacity is too large, the mutual extrusion and friction between the steel balls in the ball mill and between the steel balls and the materials will increase, and the wear of the steel balls will be aggravated. Generally speaking, when the steel ball loading capacity exceeds 10% - 20% of the designed loading capacity of the ball mill, the replacement cycle of the steel ball may need to be shortened by 1 - 2 months. For example, the original 6-month replacement cycle may need to be adjusted to 4 - 5 months.
Loading capacity is too small: If the loading capacity is too small, the grinding capacity will be insufficient, the movement space of the steel ball in the ball mill will be too large, the number of impacts will be relatively reduced, but the impact force of a single steel ball may increase. If it is found that the wear of the steel ball is mainly concentrated in a local area and the wear speed is fast, the replacement cycle should be appropriately shortened; if the wear is relatively uniform and the wear is not large, the replacement cycle can be appropriately extended according to the actual situation.
4. Working time
Long continuous working time: The ball mill works continuously for a long time, and the steel balls are constantly in a state of wear. Without sufficient cooling and rest time, the wear of the steel balls will be accelerated. For ball mills that work continuously for more than 20 hours a day, the steel ball replacement cycle may need to be shortened by 1-3 months compared to ball mills that work 8-12 hours a day. For example, for a ball mill that works continuously for 24 hours, the steel ball replacement cycle may be shortened from the normal 3-6 months to 2-4 months.
Intermittent work: For ball mills that work intermittently, the steel balls have a certain cooling and recovery time, and the wear is relatively slow. If the intermittent time is reasonable, the steel ball replacement cycle can be appropriately extended. However, if the intermittent time is too long, the steel balls may be affected by corrosion and other factors during the downtime. At this time, it is necessary to adjust the replacement cycle according to the actual condition of the steel balls. If signs of corrosion are found, the steel balls should be replaced in time.
1. Choose steel balls according to material hardness
The material hardness is between 1-5 on the Mohs scale, such as talc, gypsum, limestone and other low-hardness materials. Low-chromium cast iron steel balls can be selected, with a chromium content of 1%-3% and a hardness of HRC≥45. The price is relatively low and can meet basic grinding needs. The consumption per ton is about 1 - 1.2kg. Medium-chromium cast iron steel balls can also be selected, with a chromium content of 4%-6% and a hardness of HRC≥47. The wear resistance is better than that of low-chromium balls, and it is suitable for scenes with certain requirements for grinding efficiency.
For materials with a hardness between 5-9 on the Mohs scale, such as orthoclase and pyrite. Medium-chromium cast iron steel balls can be used, with a chromium content of 7%-10% and a hardness of HRC≥48, which can withstand certain impact and wear. If the product particle size is required to be finer, high-chromium cast iron steel balls can also be selected, with a chromium content of ≥10%-14% and a hardness of HRC≥58. The grinding efficiency is high and the product particle size can be ensured to be uniform.
When the material hardness is greater than Mohs hardness 9, such as corundum, diamond, etc. (such high hardness materials are rarely seen in actual production). High-chromium cast iron steel balls or high-quality forged steel balls must be used. High-quality forged steel balls have good strength and toughness, and are not easy to break when grinding high-hardness materials, which can effectively ensure the grinding effect and the service life of the steel balls.
2. Select steel balls in combination with ball mill specifications
Small ball mills, such as ball mills with a diameter of less than 1500mm, have a small processing capacity. If you are processing materials of ordinary hardness, you can choose steel balls with a smaller diameter, such as 40mm, 60mm, and the steel ball material can be medium-chromium cast iron or low-chromium cast iron. If you are processing materials with higher hardness, you can appropriately add some 80mm diameter steel balls, and the material can be high-chromium cast iron or forged steel balls. The ball loading capacity is generally around 3-5 tons.
Large ball mills, such as ball mills with a diameter of more than 2500mm, have large processing capacity and long grinding time. For materials with high hardness, it is necessary to select forged steel balls or high-chromium cast iron steel balls with high strength and good wear resistance. The diameter of the steel balls can be selected in larger sizes such as 100mm and 120mm, and the ball loading may reach dozens of tons. Taking the MQG1500×3000 ball mill (processing capacity 100-150 tons) as an example, the maximum ball loading is 9.5-10 tons. When adding steel balls for the first time, large balls (φ120㎜ and φ100㎜) account for 30%-40%, medium balls 80㎜ account for 40%-30%, and small balls (φ60 and φ40㎜) account for 30%.
3. Select steel balls according to production process requirements
Strict requirements for product particle size, such as fine grinding scenarios requiring the discharge particle size to reach less than 0.01mm, such as electronic materials, high-end ceramics and other industries. In addition to choosing the right grinding process, you should use steel balls with high hardness and high wear resistance, such as high chromium cast iron steel balls or zirconia balls, and use steel balls with smaller diameters, such as 20-40mm steel balls, to better achieve fine grinding and precise control of particle size.
Industries that require high product purity, such as food and medicine, should use steel balls with low impurity content, such as forged steel balls that have undergone special refining treatment. The impurity content can be controlled at a very low level, which can effectively prevent impurities from mixing into the material during the grinding process and affecting product quality.
Conclusion
A comparison of ceramic and steel grinding balls shows that each material offers unique advantages for specific industrial needs. Ceramic balls excel in high-precision, high-purity applications such as pharmaceuticals and electronics, with durability and minimal contamination. Steel balls are favored for their robustness and cost-effectiveness, and are essential in heavy-duty tasks such as mining and cement manufacturing.
Therefore, the choice between ceramic and steel should be guided by the specific needs of the grinding operation, including material properties, operating environment and economic considerations. Ultimately, understanding these factors ensures the selection of the most appropriate grinding balls to optimize performance, life and cost-effectiveness in industrial grinding and lapping processes.
