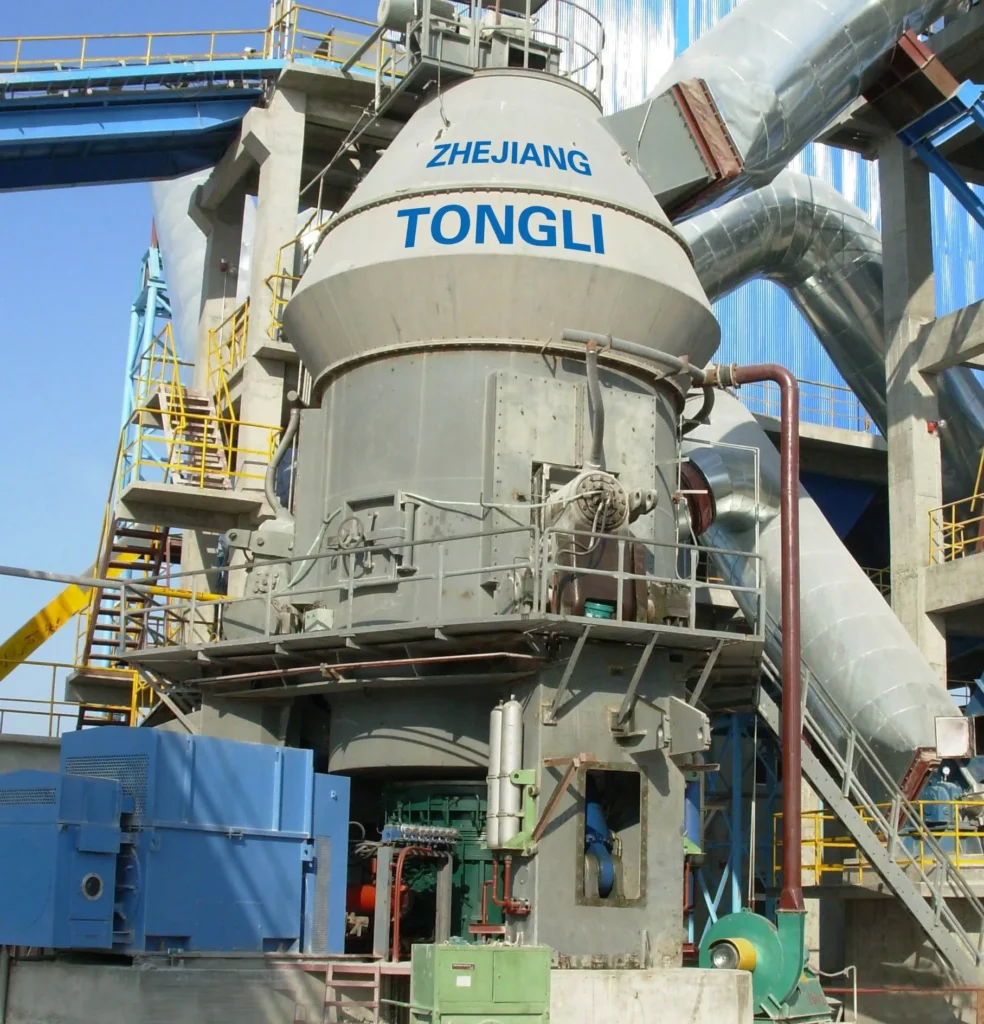

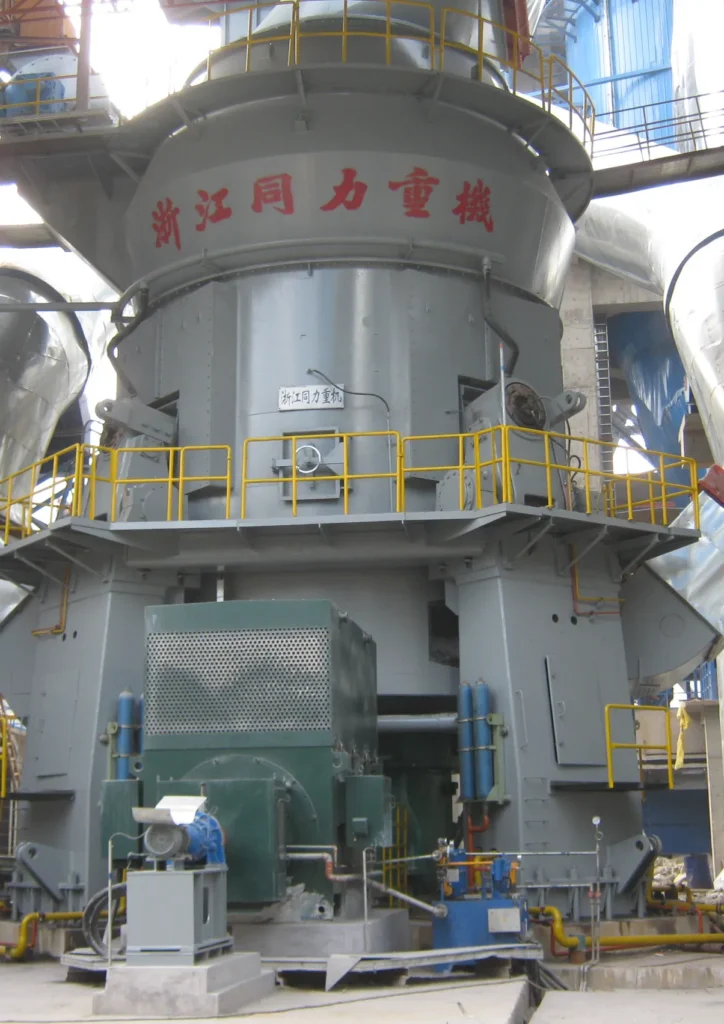

ZJTL series raw material vertical roller mill is a multifunctional grinding equipment developed for materials with different hardness, moisture and grindability. Raw material vertical mill is commonly used for grinding limestone, clay, iron ore, slag, steel slag and kaolin. It can achieve two grinding functions in one device, and can be used alternately for ultrafine powder processing of medium and low hardness, non-flammable and explosive brittle materials with Mohs hardness level 6. Raw material vertical mill is equipped with dynamic powder classifier, which can classify in time and avoid over-grinding of materials. Therefore, it has high grinding efficiency and low power consumption (saving more than 30% power than ball mill).
One machine, two jobs
A MACHINE YOU CAN DEPEND ON!
The cement raw meal vertical mill adopts efficient roller surfacing and disc surfacing design, which is suitable for fine grinding of raw meal in cement production process. Its three-level powder selection structure can effectively reduce energy consumption, improve material passing rate, and ensure the stability and high quality of cement raw meal grinding.
Unlike traditional ball mills, vertical mills do not rely on the impact force between the steel balls and the cylinder to grind materials during operation. Due to the lack of this mechanical impact, the operating noise of the vertical mill is significantly reduced, usually around 80-85 decibels, while the noise of traditional ball mills is usually as high as more than 100 decibels.
The structural design of the vertical mill closely integrates the feeding, grinding, drying and discharging processes of raw materials, and the entire system is highly integrated. When it is necessary to switch raw materials, the vertical mill can quickly adjust grinding parameters, such as grinding roller pressure, powder separator speed, air volume adjustment, etc., to adapt to the physical properties of different materials. Normally, the vertical mill can complete the switch from one raw material to another within a few hours, greatly shortening the downtime of the production line.
During the operation of the cement vertical mill, the material is ground through the grinding between the grinding disc and the grinding roller. It does not rely on the impact and friction between the grinding bodies like the traditional ball mill, so the dust problem is well solved. control. In addition, the grinding and conveying systems of the vertical mill are operated under negative pressure. This means that the pressure inside the equipment is lower than the external pressure, preventing dust from spreading outwards. Equipped with an efficient dust removal system, such as bag dust collector or electrostatic precipitator, the dust emission can be controlled below 20mg/m³
Model | Capacity (t/h) | Material Size (mm) | Material Moisture (%) | Product Fineness (R0.08) | Product Moisture (%) | Main Motor Power (KW) | Inlet Air Temperature (°C) | Outlet Air Temperature (°C) | Air Volume (m³/h) | Pressure (Pa) | Weight (t) |
ZJTL 1250 | 13.7-17.6 | 0-25 | <10% | <12% | ≤1 | 152 | ≤350 | 70-95 | ~25,000 | ~5000 | 26.3 |
ZJTL 1300 | 19.6-24.3 | 0-35 | <10% | <12% | ≤1 | 214 | ≤350 | 70-95 | ~45,000 | ~5000 | 41.8 |
ZJTL 1550 | 29.2-35.0 | 0-35 | <10% | <12% | ≤1 | 307 | ≤350 | 70-95 | ~65,000 | ~5000 | 70.2 |
ZJTL 1700 | 39.1-44.4 | 0-35 | <10% | <12% | ≤1 | 388 | ≤350 | 70-95 | ~88,000 | ~5000 | 83.1 |
ZJTL 1900 | 48.9-58.2 | 0-40 | <10% | <12% | ≤1 | 487 | ≤350 | 70-95 | ~120,000 | ~5000 | 96.8 |
ZJTL 2200 | 68.1-87.6 | 0-40 | <10% | <12% | ≤1 | 693 | ≤350 | 70-95 | ~180,000 | ~5000 | 183.3 |
ZJTL 2300 | 68.2-97.4 | 0-50 | <10% | <12% | ≤1 | 359 | ≤350 | 70-95 | ~80,000 | ~5000 | 67.9 |
ZJTL 2500 | 78.2-102.7 | 0-50 | <10% | <12% | ≤1 | 422 | ≤350 | 70-95 | ~100,000 | ~5000 | 77.6 |
ZJTL 3300 | 98.4-116.7 | 0-60 | <10% | <12% | ≤1 | 882 | ≤350 | 70-95 | ~240,000 | ~5000 | 243.5 |
ZJTL 4240 | 146.1-174.6 | 0-65 | <10% | <12% | ≤1 | 1164 | ≤350 | 70-95 | ~320,000 | ~5000 | 340.9 |
ZJTL 5250 | 194.1-231.6 | 0-70 | <10% | <12% | ≤1 | 1463 | ≤350 | 70-95 | ~400,000 | ~5000 | 435.8 |
ZJTL 6250 | 242.6-291.5 | 0-75 | <10% | <12% | ≤1 | 1753 | ≤350 | 70-95 | ~400,000 | ~5000 | 533.1 |
QUALITY NEVER GOES OUT OF STYLE
The vertical mill has relatively high grinding efficiency and low power consumption, and can save more than 20% of electricity compared to the ball mill. This is mainly due to the fact that the vertical mill adopts the "material bed crushing" method. During the grinding process, the grinding work is fully utilized by the material, and the finished product that has reached the fineness requirement is separated in time through the grading device, avoiding the phenomenon of over-grinding, thereby improving energy efficiency. Relatively speaking, the grinding principle of the ball mill is "single particle crushing", and the energy loss during the grinding process is large, resulting in its low energy utilization rate. This has also prompted more and more manufacturers to choose vertical mills to replace traditional equipment such as ball mills.
Although the vertical mill performs well in energy consumption and efficiency, the ball mill has unique advantages in preparing particle shape. The particle shape produced by the ball mill is closer to spherical, which is conducive to the uniform heating of the raw material during the calcination process, thereby improving the efficiency of raw material calcination. In addition, the presence of spherical particles also helps cement to react evenly during hydration and hardening, thereby improving the final strength of cement. This characteristic makes ball mills still occupy an important market share in the grinding process of cement clinker, especially in areas that require high-performance cement products.
Vertical mills have significant advantages in material drying, mainly due to their design that allows a large amount of air to pass through the mill, so that the material is suspended in the mill. The material in this suspended state has a large contact area with the airflow and high heat exchange efficiency, so the drying capacity is strong. Relatively speaking, the airflow of the ball mill is limited, especially when processing raw materials with high humidity. The ball mill often needs to install additional drying equipment at the front end to make up for its insufficient drying capacity. Therefore, the vertical mill is more efficient when processing materials with high moisture content, and the process flow is simpler, saving the investment and operating costs of additional equipment.
Vertical mills have more advantages than ball mills in terms of floor space and initial construction cost. Since the vertical mill adopts a vertical structure, the equipment is arranged vertically when installed, and the physical space occupied is relatively small, and the overall floor space is only 50%~70% of the ball mill. In addition, the initial construction cost of the vertical mill is low, and its operating cost and maintenance cost are only 70%~80% of the ball mill. These advantages make the vertical mill the first choice for many companies when building or upgrading production lines, which can not only reduce the initial investment, but also reduce the later operation and maintenance costs, thereby improving the overall economic benefits.
The vertical mill has a significant advantage in processing material particle size, and can process larger in-mill materials, usually up to 3%-5% of the diameter of the grinding roller. For large vertical mills, this means that large pieces of material can be processed directly, eliminating the secondary crushing link in the traditional grinding process, thereby simplifying the process. In contrast, due to the limitation of its grinding method, the ball mill has a larger diameter of steel balls and can usually only process smaller raw material particles. Therefore, when processing larger particle size materials, the efficiency of the ball mill is low. This difference makes the vertical mill more suitable for processing bulk materials, especially in the production lines of large and medium-sized factories, and more competitive.
The vertical mill has many advantages over the ball mill in terms of environmental performance. First, there is no direct collision between the steel balls and the liner during the operation of the vertical mill, so the noise level is low. Secondly, the grinding and conveying system design of the vertical mill is relatively simple, and a well-sealed negative pressure operating system is usually adopted, so there is less dust, which reduces the pollution of dust to the environment. On the contrary, due to its working principle, the collision between the grinding bodies of the ball mill produces a large noise, and the amount of dust during the grinding process is relatively high. Therefore, the vertical mill not only performs well in energy saving, but also meets the increasingly stringent environmental protection requirements, and is a green choice in modern industrial production.
Vertical mill is suitable for fine grinding of cement powder, improving its fluidity and mixing uniformity, and ensuring the quality of cement.
Vertical mill can grind activated carbon, increase specific surface area, and is widely used in gas and water treatment.
Vertical mill is suitable for grinding high-purity calcium powder, which is widely used in pharmaceutical, food and cosmetic industries.
Vertical mill can be used to grind a variety of ores, improve resource utilization and reduce production costs.
Coal gangue can be used for brick making and cement production, and vertical mill can improve its fineness and promote resource recycling.
Vertical mill can be used for fine grinding of mineral pigments to ensure its color uniformity, and is widely used in coatings and printing.
Vertical mill can grind heavy metal oxides, improve its application performance, and is widely used in chemicals and materials.
Vertical mill can be used to grind industrial waste, promote resource recovery and environmental protection, and reduce production costs.
