Cone Crusher Main Frame Top Bottom Shell Steel Metal Casting Spare Parts Metso Sandvik Symons Terex HP

Durable Wear-resistant Cone Crusher Main Frame Top Bottom Shell Steel Casting

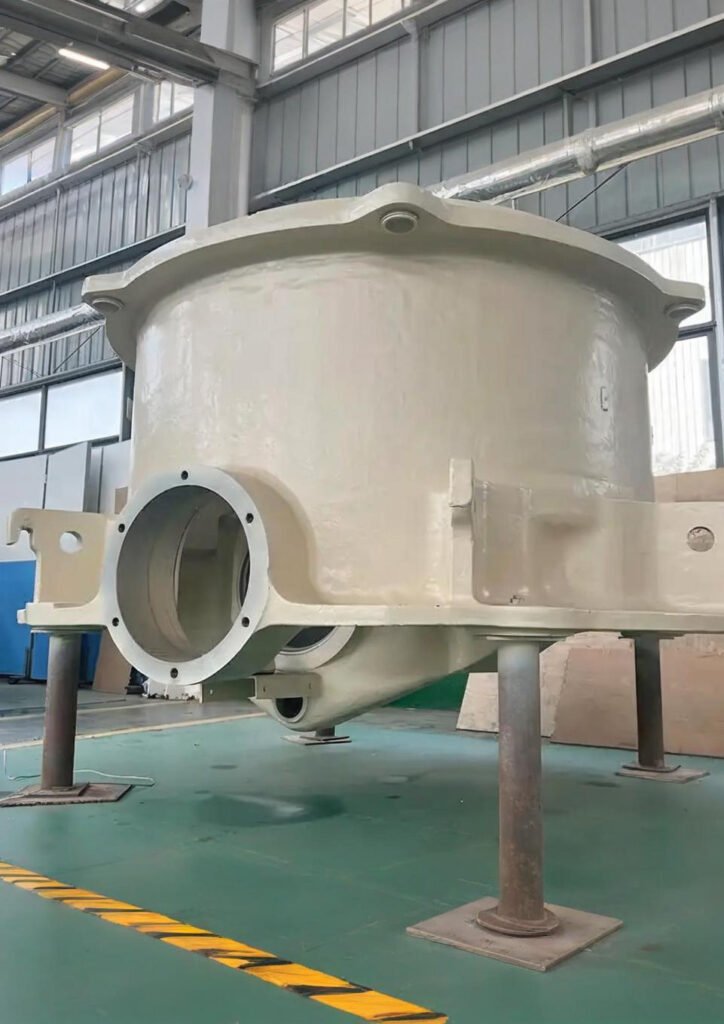

The cone crusher bottom shell(Main bodyFrame) is a component of the crusher, supporting and housing critical wear parts such as the sleeve liner, eccentric bushing, and radial bushing. It supports crushing forces, ensures proper alignment, and facilitates material discharge. Its structure consists of an upper casing and a base, with the upper casing securing the fixed cone assembly and the base securing the movable cone assembly. The casing is made of 3-phase electric arc furnace metal cast steel, such as in the ZG230-450 and ZG270-500 models. For larger crushers, the frame is divided into multiple parts, secured with screws for ease of manufacture and transportation. Well-known cone crusher brands include Metso Outotec, Sandvik, and Terex. Metso Outotec offers a full range of cone crushers, including the Nordberg HP™, GP™, and MX™ series, renowned for their high crushing force, excellent particle shape control, and reliability. Sandvik's CH/CS series and 800i series cone crushers are renowned for their ruggedness, durability, and energy efficiency. Selecting and maintaining the right sump configuration directly impacts crusher efficiency, liner life, and operating costs, therefore We provide high-quality cone crusher frames.

Durable Wear-resistant Cone Crusher Top Bottom Shell Steel Casting

Key Components & Functions of Cone Crusher Bottom Frame

We are a foundry & manufacturer

Lubrication Ports: Distribute pressurized oil to main shaft bearings, eccentric bushings, and adjustment ring sleeves. Operating at a pressure of 0.3–0.6 MPa, the lubrication system delivers 5–20 liters per minute, forming a hydrodynamic film that reduces friction coefficients to < 0.001 and limits operating temperatures to 40–60°C.

Discharge Zone

The gap between the lower edge of the fixed cone liner and the moving cone liner, adjustable from 5 mm to 50 mm via hydraulic or mechanical systems. It controls the exit of crushed material, directly governing throughput from 50 to 2,500 t/h and product particle size distribution (PSD), incorporate a "choke feed" configuration, where the zone is partially filled with material to promote inter-particle crushing.resulting in a more cubical product with a flakiness index < 15% and reduced oversize particles. The discharge zone’s wear-resistant liner made of abrasion-resistant steel (AR400/500) or rubber, extend service life to 800–1,200 operating hours under normal conditions.

Main Body

The main body forms the lower chamber of the crushing cavity and is engineered to withstand high mechanical stresses generated during crushing operations.Constructed from high-tensile cast steel like ZG270-500 or ASTM A216 WCB with a minimum yield strength of 270 MPa, it undergoes rigorous heat treatment normalizing and tempering to enhance impact resistance.Its inner surface is precision machined to mate with the adjustment ring and countershaft housing, ensuring concentric alignment of moving components

Socket Liner Seat

This component is a precision-machined bore within the main body, finished to tolerances of ±0.05 mm to securely retain the socket liner—a replaceable wear part typically made of high-chrome cast iron 20–30% Cr or manganese steel 11–14% Mn, ensuring precise orbital path eccentric motion for efficient crushing action, optimizing the compression ratio 4:1 to 6:1 and minimizing energy loss.

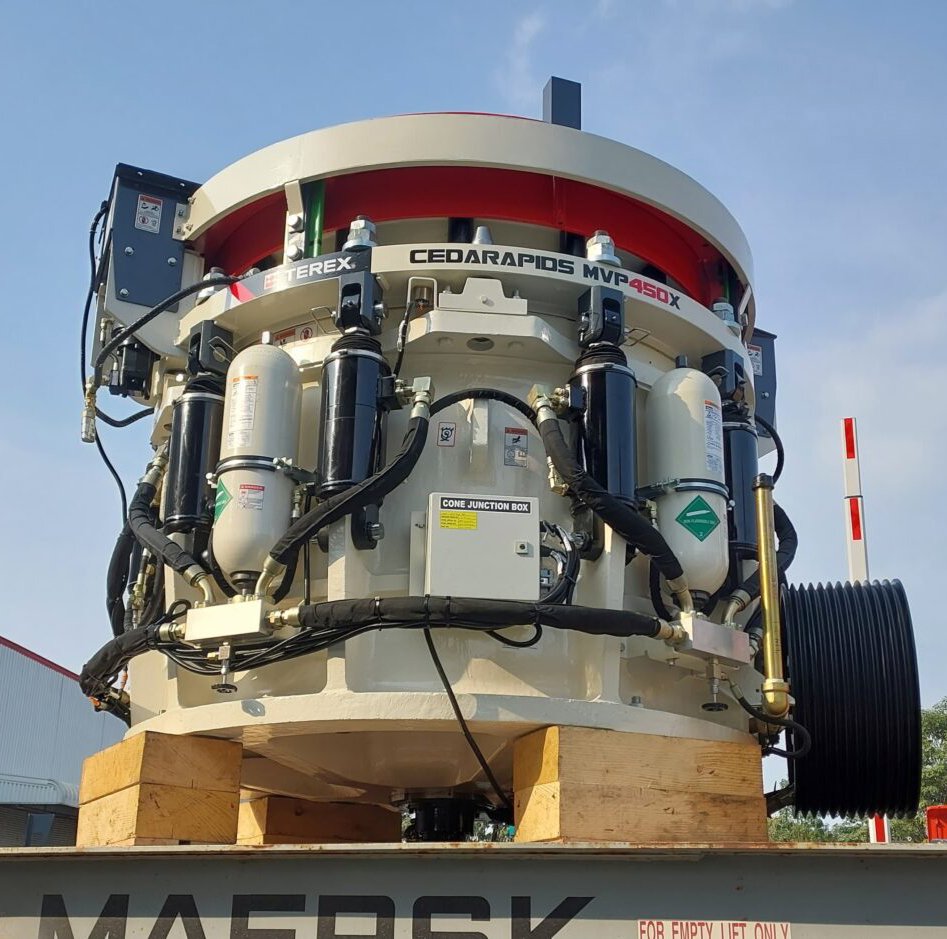

Terex MVP Series 380 Cone Crusher Parts List:

Terex MVP380 Cone Crusher	Terex MVP450 Cone Crusher	Terex MVP550 Cone Crusher	Terex TC1000 Cone Crusher
024500220004‬ \| Mantle, C \| 530kg	05400-300-21‬ \| Mantle \| 980kg	06000-300-02 \| Mantle \| 1155.518kg	603/9106E \| MANTLE \| 380kg
24500230010 \| Mantle, MF \| 690kg	05400-300-20‬ \| Mantle \| 970kg	06000-300-06 \| Bowl liner \| 1492.015kg	603/9082 \| CONE HEAD 1000 CONE \| 764kg
025400230003‬ \| Bowl liner \| 865kg	05400-300-20-01‬ \| Mantle C M MF \| 880kg	06000-300-07 \| Bowl liner \| 1510.155kg	603-9052 \| MC CONCAVE \| 325kg
04800-300-24-01 \| Mantle, Medium，C, MF (with 12 lugs) \| 820kg	540030015 \| Bowl liner Coarse \| 1080kg	06000-300-03 \| Bowl liner \| 1756kg	603-9071E \| CONCAVE AUTOSAND \| 453kg
04800-300-24‬ \| Mantle, Coarse \| 715kg		06000-300-01 \| Mantle STD \| 1154kg	603/1223 \| Countershaft arm shield \| 19.7kg
04800-300-73‬ \| Bowl liner, Midium \| 840kg		06000-300-04 \| Bowl liner \| 1750kg	603/1443 \| Frame arm shield \| 13kg
04800-300-67 \| Bowl liner, C \| 853kg
04800-300-69 \| Bowl liner medium fine \| 892kg
04800-300-24-01E \| Mantle Medium 18% \| 840kg
04800-300-73E \| Bowl liner, Midium \| 860kg

Nordberg Gyredisc Cone Crusher Parts specification:

Nordberg OMNICONE	Nordberg GYRADISC 36	Nordberg GYRADISC 48	Nordberg GYRADISC 66
1022060250 \| Countershaft bushing \| 8.6kg	2207-3501 \| Outer Bushing \| 64kg	4829-8475 \| concave \| 375kg	5014-0350 \| Lower liner \| 352kg
1022072953 \| Eccentric bushing \| 22kg	1030412400 \| Extension cap \| 182kg	4829-8501 \| concave \| 475kg	5014-0360 \| Lower liner \| 626kg
1022074799 \| Eccentric bushing \| 105kg	1048724100 \| Socket Liner \| 46kg	5014-0010 \| concave \| 225kg	3041-8600 \| Extension cap \| 1930kg
1022145725 \| Head bushing \| 29kg	2206-3100 \| Inner bushing \| 52kg	5014-0040 \| concave \| 245kg	9423-5013 \| Socket sub-assembly \| 1062.1kg
1048721801 \| Socket liner \| 25kg	4829-4700 \| Lower liner \| 234kg	5014-0050 \| concave \| 320kg	4872-7502 \| Socket liner \| 187kg
1048726805 \| Socket liner \| 110kg	5013-9880 \| Lower liner extension \| 85kg	2214-5900 \| Outer Bushing \| 136kg	2214-5715 \| Inner eccentric bushing \| 204kg
1022073303 \| Eccentric bushing, large shifted I.D. \| 46kg	5759-9501 \| Upper Step Bearing Plate \| 15kg	2207-2400 \| Inner Bushing \| 98kg	3114-2926 \| Eccentric \| 1040kg
1022147348 \| Head bushing \| 110kg	5759-7801 \| Lower plate thrust bearing \| 9kg	4872-6702 \| Socket Liner \| 103kg	9423-0041 \| Upper Liner Assy \| 1042kg
1022073308 \| Eccentric bushing \| 42kg	3041-2400 \| Feed hopper cone \| 185kg	6273-1775 \| Lock nut \| 85kg
1022145959 \| Head bushing \| 41kg	5013-9901,7055304000 \| Mantle \| 156kg	3680-5606 \| Gear,70048B1000 \| 133kg
1048722802 \| Socket liner \| 38.6kg	7055204006 \| Bowl liner, 4829-4706 \| 228kg	3680-4552 \| Pinion,7063004250 \| 98kg
6187-3310 \| Adjustment Ring \| 2650kg	3113-7902 \| Eccentric \| 340kg	4872-6700 \| Socket liner \| 105kg
6187-2991 \| Clamp Ring \| 800kg	6273-1701 \| Locking nut \| 30kg	6361-1055 \| HEAD WIPER RING \| 118kg
7015656103 \| Eccentric bushing \| 80kg	5013-9889 \| Lower liner extension \| 122kg	1050140050 \| Mantle \| 425kg
4831-5109 \| Bowl Liner, SH - M \| 1709kg	6194-0029 \| Head skirt \| 78kg	700048B105 \| Mantle \| 163kg
4829-1435 \| Bowl liner,STD,MEDIUM \| 513kg	4829-4707 \| Concave ring \| 220kg	7055204502 \| Concave \| 502kg
7055306752 \| MANTLE, O/C STD XT510 \| 350kg	3680-9453 \| Gear, 7000036B14 \| 82kg	1063915702 \| Torch ring \| 12kg
1022060750 \| countershaft bushing,Omnicone \| 10kg	3680-7353 \| Pinion,1036807353 \| 58kg
1062731681 \| locking nut \| 35kg	5013-9901 \| Lower mantle \| 150kg
5530-6754 \| Mantle \| 374kg	4246-1005 \| Head \| 681kg
1048291432 \| Bowl liner, Omnicone 937 \| 458kg	70036A1021 \| Socket sealing ring(elastic type) \| 73kg
5013-6388 \| Mantle \| 1504kg	7000036B33 \| Distributor \| 181kg
4831-5160 \| Bowl liner \| 1870kg	1063601890 \| RING SEALING \| 70kg
1050136388 \| Mantle \| 1505kg	7041920751 \| BLINDAGE LOW \| 92kg
1560Concave \| Concave \| 1910kg	6886-3350 \| Mainshaft \| 246kg
1048722800 \| Socket liner \| 39kg	6360-1890 \| Head Sealing Ring \| 41kg
1055981165 \| Feed plate \| 50kg	4829-4710 \| UPPER LINER WITH BAR \| 240kg
1022062091 \| Countershaft box bushing \| 18kg	5013-9900 \| Lower liner \| 184kg
7055207263 \| Bowl liner \| 1175kg	GD36SupportRing \| GD36 Support ring \| 91kg
7055307256 \| Mantle \| 1040kg	GD36BowlLiner \| GD36 Bowl Liner \| 251kg
4831-5111 \| Bowl liner \| 1785kg	GD36Mantle \| GD36 Mantle \| 160kg
5013-6368 \| Mantle \| 1650kg
2207-4063 \| Eccentric bushing \| 89kg
7055207506 \| BOWL LINER \| 1800kg
7055307506 \| MANTLE \| 1255kg
7012080001 \| TORCH RING \| 12kg
1022074802 \| Eccentric bushing \| 123kg
7055307002 \| Mantle \| 507kg
7055207006 \| MACHOIRES FIXE \| 760kg
7035800101 \| COUSSINET SPHERIQUE \| 35kg
1055980510 \| PLATEAU DE DISTRIBUTION \| 23.7kg
1057605171 \| BEARING, UPPER ECCENTRIC THRUST \| 42kg
7015656100 \| Inner eccentric bushing \| 38kg
7015656000 \| HEAD BUSHING \| 47kg
1022145717 \| Bushing \| 9.3kg
7055206754 \| BOWL LINER \| 420kg
7055206752 \| BOWL LINER \| 440kg
1063916948 \| Counterweight liner \| 30kg
1048721790 \| Socket liner \| 32kg
1057605105 \| THRUST BEARING \| 22kg
1048294809 \| mâchoire fixe \| 872kg
1063915607 \| ANNEAU ENTRETOISE \| 5.2kg
1048512800 \| Blindage bati \| 186kg
1062731666 \| écrou \| 26kg
1048291435 \| Concave \| 513kg
1063917170 \| Blindage balourd \| 41kg
1048514371 \| Blindage bati \| 213kg
1048294616 \| mâchoire fixe \| 682kg
1055981201 \| PLATEAU DISTRIBUTEUR \| 72kg
9429-0323 \| Eccentric assembly \| 2045kg
9429-0307 \| Countershaft Assembly \| 673kg
4246-4012 \| Head \| 2550kg
5760-5156 \| Head Ball \| 130kg
1022145955 \| Head bushing \| 41kg
1022073300 \| Bushing for eccentric \| 46kg
1036833865 \| Gear \| 102kg
1086427685 \| COUNTERWEIGHT \| 210kg
1048294622 \| Bowl Liner, C \| 781kg
1050132108 \| Mantle \| 560kg
1048516295 \| Seat liner \| 40kg
6875-2500 \| Countershaft \| 96kg
7055207001 \| Bowl liner \| 738kg
1022147343 \| Head Bushing \| 109kg
1048294612 \| Bowl liner \| 828kg
1050132105 \| Mantle \| 562kg
1068749881 \| Countershaft \| 90kg
1045375841 \| Box,Countershaft \| 27kg
1022147330 \| Upper head bushing \| 47kg
1022147331 \| Upper head bushing \| 47kg
1057605154 \| HEAD BALL \| 130kg
1057605156 \| HEAD BALL \| 130kg
1057605166 \| Lower Thrust Bearing \| 38kg

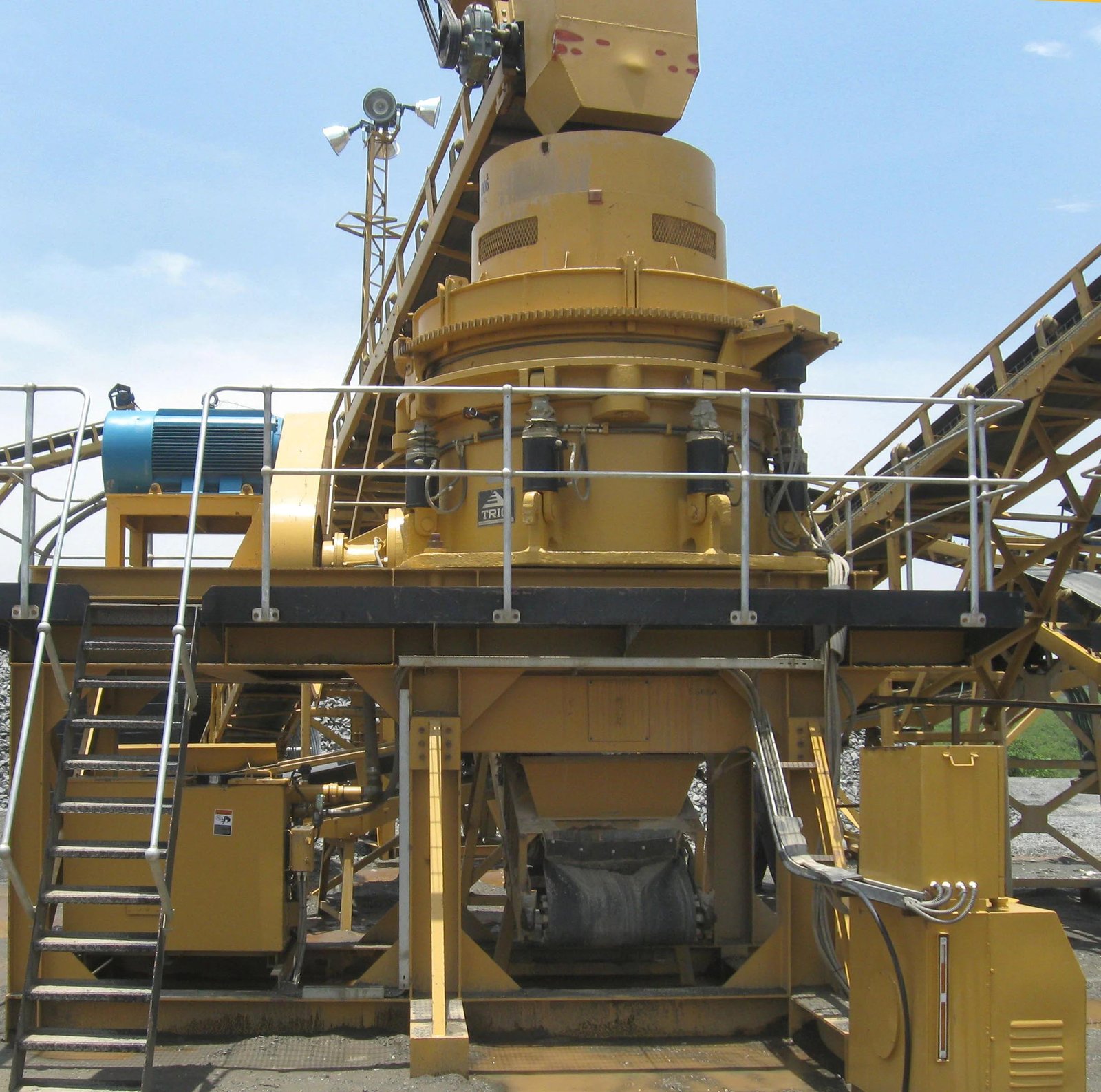

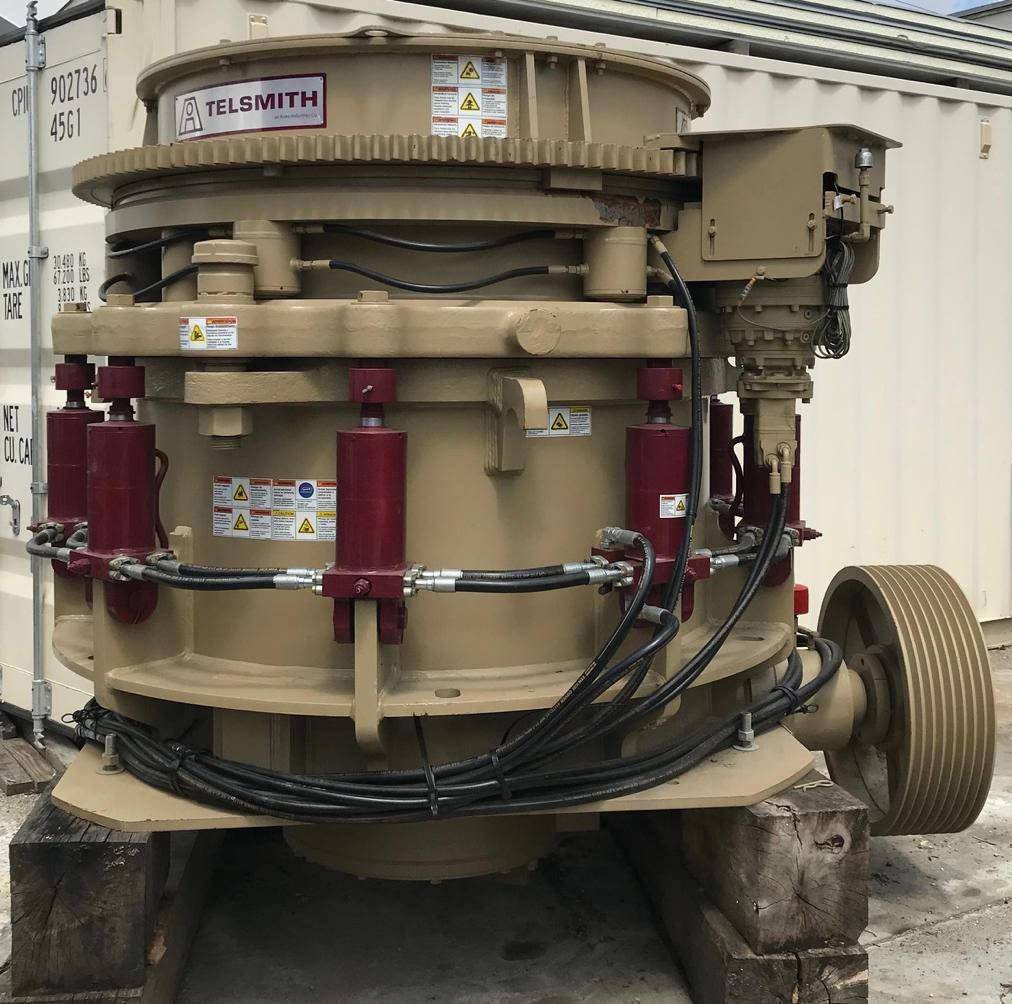

Trio Telsmith & other Cone Crusher Parts List:

Trio TC51 Cone Crusher	Trio TC66 Cone Crusher	Trio TC84 Cone Crusher	Trio TC84X Cone Crusher	Telsmith-57SBS-cone-crusher
2213-3922 \| Countershaft bushing, TC51 \| 18kg	TC680-1023 \| Main frame pin \| 10.3kg	TC841-3101A \| Mantle - SH \| 2500kg	TC84X-1029 \| Outer eccentric bushing \| 470kg	V-272-740B \| FOR HYDRAULIC POWERUNIT NAMEPLATES,GYRA,H \| 68kg
2213-4448 \| Socket liner, TC51 \| 61kg	TC680-1050 \| Support attachment ring \| 26.4kg	TC841-3102A \| Concave, SH, F \| 2590kg	TRIO17001146 \| Main shaft clamping nut \| 495kg	AF-272-600B \| PAINT(TELSMITH)(DIAMOND-VOGEL) \| 51kg
	TC680-1006 \| Frame lining \| 510kg	TC841-3101A \| Mantle - SH \| 2500kg	TRIO17001141 \| Cutting ring \| 21kg	BF-272-2760 \| MANTLE,57,18% \| 1250kg
	TC680-1501 \| Eccentric bushing-steel \| 1044kg	TC841-3202 \| Concave, SH, M \| 2670kg	TRIO17051983 \| A set of seals for the clamping cylinder \| 21kg	AB1-272-1208 \| BURNING RING \| 41kg
	TC680-1502-LH \| Gear \| 325kg	TC845-3501 \| Lower Mantle \| 2590kg	TRIO17001149 \| Upper cone lining \| 723kg	AF-272-2760 \| MANTLE,57,18% \| 1220kg
	TC680-1503 \| Counterweight ring \| 375kg	TC845-3502 \| Upper Mantle \| 560kg	TRIO17001153 \| Bottom lining of the cone \| 2360kg	JD1-272-2758 \| CONCAVE RING,57,NO.9,18% \| 1365kg
	TC680-1508A \| Spindle bushing, Inner eccentric bushing, Trio TC66 \| 190kg	TC845-3610 \| Concave, STD, M \| 3610kg	TRIO17001152 \| Lining of the bowl \| 2730kg	DD1-272-2758 \| CONCAVE RING,57,NO.4,18% \| 1540kg
	TC680-1512 \| Upper thrust plate \| 123kg	TC845-3501 \| Lower Mantle \| 2780kg		D-272-2138 \| SLEEVE,OUTER 57 \| 106kg
	TC680-1514 \| Thrust plate set \| 9.75kg	TC845-3502 \| Upper Mantle \| 560kg		B1-272-2138 \| SLEEVE,INNER 57 \| 86kg
	TC680-2000 \| Countershaft housing assembly \| 1905kg	TC845-3710 \| Concave, STD, C \| 3570kg
	TC680-2001 \| Countershaft \| 210kg	TC840-1501 \| Socket liner \| 295kg
	TC680-2003-LH \| pinion \| 196kg	TC840-2001A \| Eccentric \| 1790kg
	TC680-2004 \| Wear pad \| 6.8kg	TC840-2002A \| Inner eccentric bushing \| 362kg
	TC680-2006 \| Countershaft housing bushing \| 28.5kg	TC840-2522 \| Drive bushing \| 28kg
	TC680-2500 \| Bowl assembly \| 1750kg	TC840-4000 \| Safety cylinder group \| 366.25kg
	TC680-2501 \| Bowl \| 1245kg	TC840-4001 \| pin shaft \| 12.8kg
	TC680-2502 \| Socket liner \| 180kg	TC841-1002A \| Machining drawing of short head main shaft \| 2960kg
	TC680-2505 \| Socket sealing ring \| 290kg	TC841-1010 \| SH head - dry oil processing diagram \| 9000kg
	TC680-2506 \| Support hose \| 6.5kg	TC841-2001 \| Machining drawing of adjustment ring for short head \| 8010kg
	TC680-2507 \| Oil deflector \| 9.4kg	TC848-3801 \| Mantle \| 3170kg
	TC680-3100 \| Support ring assembly \| 6450kg	TC848-3810 \| Concave \| 3450kg
	TC680-3103 \| Locking cylinder \| 9kg	TC848-3801 \| Lower Mantle \| 3170kg
	TC680-3105 \| Bearing plate \| 16.2kg	TC848-3502 \| Upper Mantle \| 242kg
	TC680-3107 \| Rubber sealing ring (I) \| 6kg	TC845-3610 \| Concave, STD, M \| 3610kg
	TC680-3120 \| Ring gear carrier \| 740kg
	THZ005025DB \| Hydraulic motor set (including Adjustment gear) \| 110kg
	TC680-3600 \| Safety cylinder assembly \| 1000kg
	TC680-3610 \| Safety cylinder \| 105kg
	TC680-3601 \| Lower pin \| 5.8kg
	TC680-3603 \| Upper pin \| 7.4kg
	TC687-1001 \| principal axis \| 1372kg
	TC687-1006 \| Cutting ring \| 18.6kg
	TC687-1001 \| Main shaft \| 1312kg
	TC687-1003A \| Head \| 3850kg
	TC687-1007A \| Main shaft sleeve \| 440kg
	TC687-1100 \| Head and main shaft assembly,STD \| 5710kg
	TC687-2100 \| Adjustment ring assembly \| 6200kg
	TC687-2120 \| Cover and bucket \| 720kg
	TC687-2130 \| Rubber plate ring \| 5.5kg
	TC687-2002 \| U-bolt \| 13kg
	TC687-2120 \| Cover and bucket \| 720kg
	TC686-4601 \| Lower mantle \| 1530kg
	TC687-1005 \| Upper mantle \| 254kg
	TC686-4705 \| Concave \| 1760kg
	TC686-4601 \| Lower mantle \| 1530kg
	TC686-4605 \| Concave \| 1770kg
	TC685-1004 \| Lower mantle \| 1140kg
	TC685-2011 \| Filling block (1) \| 388kg
	TC685-2010A \| Concave \| 1960kg
	TC685-2012 \| Filling block (2) \| 193kg
	TC685-1005 \| Guard plate \| 130kg
	TC682- 3301A \| Lower mantle \| 1540kg
	TC682-1005 \| Upper mantle \| 315kg
	TC682- 2010B \| Concave \| 1290kg
	TC682-3301A \| Lower mantle \| 1540kg
	TC682-1005 \| Upper mantle \| 315kg
	TC682-3303A \| Concave \| 1390kg
	TC682-3301A \| Lower mantle \| 1540kg
	TC682-1005 \| Upper mantle \| 315kg
	TC682-3401A \| Concave \| 1410kg
	TC686-4601 \| Mantle \| 1530kg

Symons FT Cone Crusher Spare Parts Techical List:

Symons 2 FT Cone Crusher	Symons 3 FT Cone Crusher	Symons 4-1-4 FT Cone Crusher	Symons 4 FT Cone Crusher	Symons 5-1-2 FT Cone Crusher	Symons 7 FT Cone Crusher
7292-1601 \| Head skirt \| 48kg	3806-3461 \| Countershaft box guard \| 24kg	4830-4881 \| Bowl Liner \| 920kg	4830-4881 \| Bowl Liner \| 920kg	5598-7101 \| Feed plate \| 195kg	2214-7561 \| Outer Eccentric Bushing \| 485kg
2214-4201 \| Outer eccentric bushing \| 37kg	2214-5321 \| Outer Eccentric Bushing \| 74kg	6391-3321 \| Torch ring \| 5kg	6391-3321 \| Torch ring \| 5kg	9439-8122 \| Gear sub-assembly(gear,counter weight,dowel,capscrew hex hd,capscrew hex hd,lockwasher,loc tite) \| 750kg	2214-6721 \| Inner Eccentric Bushing \| 335kg
5168-4351 \| Mainshaft nut \| 74kg	2207-0561 \| Inner Eccentric Bushing \| 52kg	6358-5160 \| Oil collar \| 18kg	6358-5160 \| Oil collar \| 18kg	2214-7001 \| Mantle,Lower \| 1775kg	4872-8485 \| Socket Liner \| 305kg
4872-2335 \| Socket liner \| 22kg	2207-1401 \| Inner Eccentric Bushing \| 53kg	3806-5701 \| Arm guard \| 27kg	3806-5701 \| Arm guard \| 27kg	4830-6770 \| Bowl Liner \| 1860kg	4872-8520 \| Socket Liner \| 313kg
2261-1362 \| Outer eccentric bushing \| 35kg	2206-0762 \| Countershaft Box Bushing \| 11kg	4537-6128 \| Countershaft box \| 480kg	4537-6128 \| Countershaft box \| 480kg	5013-7001 \| Mantle,Lower \| 1685kg	2206-8500 \| Countershaft Box Bushing \| 29kg
2206-6641 \| Inner eccentric bushing \| 21kg	5013-2201 \| Mantle \| 290kg	6875-0416 \| Countershaft \| 106.59kg	6875-0416 \| Countershaft \| 106.59kg	4830-5421 \| Bowl Liner \| 1420kg	5760-7401 \| Lower Step Bearing Plate \| 47kg
5759-5701 \| Thrust bearing plate \| 5kg	4829-6544 \| Bowl Liner \| 420kg	5760-2301 \| Upper step Bearing Plate \| 32kg	5760-2301 \| Upper step Bearing Plate \| 32kg	2214-5706 \| Inner Eccentric Bushing \| 180kg	2618-7681 \| Cone feed \| 600kg
4829-1921 \| Bowl liner \| 100kg	4829-8131 \| Bowl Liner \| 341kg	2005-5006 \| Bowl \| 2400kg	2005-5006 \| Bowl \| 2400kg	2206-5840 \| Countershaft Box Bushing \| 23kg	5013-8101 \| Upper mantle \| 508kg
5013-1401 \| Mantle \| 116kg	5013-3801 \| Mantle \| 285kg	2005-4330 \| Bowl \| 2600kg	2005-4330 \| Bowl \| 2600kg	2206-5871 \| Countershaft Box Bushing \| 31kg	6358-9421 \| OIL FLINGER HOUSEING \| 49.9kg
4829-4081 \| Bowl liner \| 125kg	4829-5161 \| Bowl Liner \| 295kg	5168-5701 \| Mainshaft sleeve \| 204kg	5168-5701 \| Mainshaft sleeve \| 204kg	3378-4380 \| Main frame \| 9525kg	6886-7804 \| Main shaft \| 2815kg
4829-4351 \| Bowl liner \| 130kg	5013-2801 \| Mantle \| 238kg	5598-4581 \| Feed plate 28inch (large) \| 91kg	5598-4581 \| Feed plate 28inch (large) \| 91kg	3114-2863 \| Eccentric \| 1045kg	2618-8161 \| Feed cone \| 529kg
4829-3544 \| Bowl liner \| 99kg	4829-5701 \| Bowl Liner \| 268kg	4830-4612 \| Bowl Liner \| 871kg	4830-4612 \| Bowl Liner \| 871kg	3806-8501 \| Guard,countershaft box \| 60kg	5168-8131 \| Main shaft nut \| 513kg
noName \| Countershaft \| 63kg	3683-2377 \| Pinion(20 degree) \| 58kg	4830-4321 \| Bowl Liner \| 860kg	4830-4321 \| Bowl Liner \| 860kg	6875-3762 \| Countershaft \| 255kg	5598-7941 \| Feed plate-6 bolt \| 232kg
noName1 \| Main shaft \| 105kg	3113-8401,700001628T \| Eccentric \| 279kg	4830-1826 \| Bowl Liner \| 862kg	4830-1826 \| Bowl Liner \| 862kg	6358-9201 \| Flinger housing \| 30kg	5168-7386 \| Head nut-teardrop \| 585kg
6886-1781 \| Main shaft \| 134kg	5921-4907 \| Flywheel \| 170kg	4829-8603 \| Bowl Liner \| 640kg	4829-8603 \| Bowl Liner \| 640kg	4830-5557 \| Bowl Liner \| 1179kg	5598-8154 \| Feed plate-4 bolt \| 407kg
noName3 \| Eccentric \| 187kg	4829-6646 \| Bowl liner \| 340kg	4830-0023 \| Bowl Liner \| 661kg	4830-0023 \| Bowl Liner \| 661kg	4830-6048 \| Bowl Liner \| 1400kg	6273-8201 \| Mantle locking nut \| 576kg
5759-6001 \| Center step bearing plate \| 5kg	3113-8751 \| Eccentric \| 317.51kg	4830-0158 \| Bowl Liner \| 720kg	4830-0158 \| Bowl Liner \| 720kg	4830-6231 \| Bowl Liner \| 1760kg	7292-7601 \| Head wear ring \| 111kg
5759-6601 \| Upper step bearing plate \| 9kg	6886-3183 \| Main shaft \| 236kg	2214-5885 \| Outer Eccentric Bushing \| 148kg	2214-5885 \| Outer Eccentric Bushing \| 148kg	5013-7203 \| Mantle \| 1230kg	3806-9061 \| Countershaft box guard \| 88kg
8780-0703 \| Mainshaft nut wrench \| 12kg	4829-6530 \| Bowl Liner \| 465kg	2214-3930 \| Inner Eccentric Bushing \| 103kg	2214-3930 \| Inner Eccentric Bushing \| 103kg	4830-6871 \| Bowl Liner \| 1859.35kg	3806-9502 \| Arm guard,shouldered \| 128kg
noName6 \| Socket \| 145kg	9443-0733 \| Head & Shaft Assemble \| 954kg	4872-6430 \| Socket Liner,Short head \| 61kg	4872-6430 \| Socket Liner,Short head \| 61kg	4830-6772 \| Bowl Liner \| 1960kg	6876-1324 \| Countershaft \| 426kg
7320-1361 \| Main shaft sleeve \| 11kg	4829-5026 \| Bowl liner \| 305kg	2206-2090 \| Countershaft Box Bushing \| 18kg	2206-2090 \| Countershaft Box Bushing \| 18kg	5013-6851 \| Mantle \| 1950.05kg	3682-7652 \| PINION \| 345kg
7292-3601 \| Head skirt \| 64kg	5759-8701 \| Step bearing plate \| 9kg	5760-2601 \| Lower Step Bearing Plate \| 23kg	5760-2601 \| Lower Step Bearing Plate \| 23kg	6358-5904 \| Flinger oil \| 25kg	1038068501 \| Countershaft box guard \| 55kg
6380-2381 \| Socket sealing ring \| 60kg	6272-7401 \| Locking collar \| 82kg	6875-0681 \| Countershaft \| 107kg	6875-0681 \| Countershaft \| 107kg	4851-7451 \| Liner,mainframe seat,outer \| 18kg	4830-8556 \| Bowl liner \| 2990kg
2213-5241 \| Countershaft box bushing \| 10kg	3041-2875 \| Feed distributor \| 350kg	noName2 \| Pinion \| 98kg	noName2 \| Pinion \| 98kg	4851-7370 \| L. main frame seat inner \| 40kg	4830-9100 HD \| Bowl liner \| 3818kg
5759-6301 \| Inner step bearing plate \| 15.4kg	5013-2401 \| Bowl liner \| 314kg	4829-8941 \| Bowl liner \| 626kg	4829-8941 \| Bowl liner \| 626kg	5598-7381 \| Distributor plate \| 340kg	4830-9472 \| Bowl liner \| 3652kg
5013-1001 \| Mantle \| 90.7kg	4829-7591 \| Bowl Liner \| 347kg	6273-6128 \| Countershaft box \| 490kg	6273-6128 \| Countershaft box \| 490kg	5760-4701 \| Step bearing plate \| 28kg	4830-9741 \| Bowl liner \| 3585kg
4829-3001 \| Bowl liner \| 102kg	5013-3401 \| Mantle \| 317kg	5013-6001 \| Mantle \| 896kg	5013-6001 \| Mantle \| 896kg	6342-4121 \| W. pinion thrust \| 7kg	5013-8201 \| Upper mantle \| 545kg
5168-2001 \| Slag nut \| 59kg	4829-6576 \| Bowl liner \| 421kg	5168-5836 \| Main shaft nut(tear drop) \| 290kg	5168-5836 \| Main shaft nut(tear drop) \| 290kg	4247-2035 \| Head Bolted Socket Standard Seal \| 4200kg	5013-8601 \| Lower mantle \| 2435kg
4829-3541 \| Bowl liner \| 91kg	6863-3701 \| Countershaft \| 99kg	7320-4331 \| Mainshaft sleeve \| 52kg	7320-4331 \| Mainshaft sleeve \| 52kg	9447-1951 \| Head Shaft Assembly \| 5166kg	5013-8801 \| Mantle \| 2595kg
11048293001 \| BOWL LINER,STD EXTRA COARSE \| 102.0375kg	6380-5101 \| Socket sealing ring \| 70kg	6273-4486 \| Locking nut \| 96kg	6273-4486 \| Locking nut \| 96kg	2214-6161 \| Outer Eccentric Bushing \| 281kg	2214-0636 \| External pin bushing \| 5.6kg
11048293541 \| BOWL LINER,STD COARSE \| 90.7kg	7381-3601 \| Bare socket \| 182kg	5013-4451 \| Mantle CB in EC Bowl \| 730kg	5013-4451 \| Mantle CB in EC Bowl \| 730kg	7320-5981 \| Main shaft sleeve \| 158.7kg	2748-4501 \| COVER LOCKING NUT, LH THD, 7 FT SH \| 228kg
11050131001 \| MANTLE,STD \| 90.7kg	5598-3461 \| Feed plate \| 85kg	6360-4161 \| Socket sealing ring \| 155kg	6360-4161 \| Socket sealing ring \| 155kg	5760-3501 \| Lower Step Bearing Plate \| 29kg	3041-8357 \| Distributor post \| 1453kg
3806-1501 \| Countershaft box guard, 700001870T, 2FT \| 12.3kg	6886-2273 \| Main shaft \| 248kg	4830-4341 \| Bowl Liner \| 858kg	4830-4341 \| Bowl Liner \| 858kg	5760-4401 \| Step bearing center plate \| 29kg	6273-1601 \| Locking collar,LH thread \| 536kg
9442-0561 \| Main Shaft Assembly \| 281kg	4246-3002 \| Head \| 620kg	4830-1511 \| Bowl Liner \| 645kg	4830-1511 \| Bowl Liner \| 645kg	4872-7050 \| Socket Liner \| 189kg	6380-8161 \| Socket sealing ring \| 830kg
	3806-4021 \| Arm guard \| 17kg	4830-4071 \| Bowl Liner \| 850kg	4830-4071 \| Bowl Liner \| 850kg	3682-9752 \| Pinion \| 190kg	3114-4262 \| Eccentric \| 1678kg
	7320-3201 \| Main Shaft Sleeve \| 16kg	4830-2892 \| Bowl Liner \| 900kg	4830-2892 \| Bowl Liner \| 900kg	4537-6723 \| Counter Shaft Box \| 825.54kg	8642-8350 \| Counterweight \| 1029.75kg
	4872-4795 \| Socket Liner \| 41kg	4830-4992 \| Bowl Liner \| 1126kg	4830-4992 \| Bowl Liner \| 1126kg	9439-8078 \| Hydraulic Adjustment Ram Assembly \| 60kg	4830-8846 \| Bowl liner \| 3505kg
	4872-3565 \| Socket Liner \| 38kg	4829-9211 \| Bowl Liner \| 665kg	4829-9211 \| Bowl Liner \| 665kg	9448-0547 \| COUNTERSHAFT BOX ASSY \| 1058kg	5013-8901 \| Mantle \| 2570kg
	3683-3844 \| Gear \| 168kg	4829-9210 \| Bowl Liner \| 635kg	4829-9210 \| Bowl Liner \| 635kg	6380-6801 \| SOCKET SEALING RING \| 340kg	3682-9241 \| Bevel Gear \| 662.24kg
	3680-7703 \| Pinion,700001627T \| 59kg	4829-9751 \| Bowl Liner \| 773kg	4829-9751 \| Bowl Liner \| 773kg	6886-5701 \| Main Shaft \| 1390kg	4851-9320 \| LINER, MAINFRAME SEAT(SET) \| 63kg
	3680-8753 \| Eccentric bevel gear,700001631T \| 187kg	4830-0021 \| Bowl Liner \| 635kg	4830-0021 \| Bowl Liner \| 635kg	4830-6771 \| Bowl Liner \| 1928kg	6361-3181 \| Water Chamber \| 480kg
	3680-9455 \| Gear,700001578T \| 196kg	4830-0024 \| Bowl Liner \| 668kg	4830-0024 \| Bowl Liner \| 668kg	5013-7601 \| Mantle \| 1677.95kg	1063615902 \| Water chamber \| 777kg
	3680-7353 \| Pinion,700001579T \| 58kg	4830-0200 \| Bowl Liner \| 860kg	4830-0200 \| Bowl Liner \| 860kg	4830-6331 \| Bowl Liner \| 1529.202kg	6886-7662 \| Main shaft \| 2815kg
	6359-4701 \| Socket sealing ring \| 55kg	4830-1288 \| Bowl liner \| 720kg	4830-1288 \| Bowl liner \| 720kg	4830-5415 \| Bowl Liner \| 1587.25kg	2005-9276 \| bowl \| 6800kg
	5598-2621 \| Feed plate \| 55kg	4830-1500 \| Bowl liner \| 781kg	4830-1500 \| Bowl liner \| 781kg	5013-7401 \| Mantle \| 1325kg	6886-7943 \| Main shaft \| 3082kg
	7381-2401 \| Socket \| 180kg	4830-2451 \| Bowl liner \| 989kg	4830-2451 \| Bowl liner \| 989kg	4830-5556 \| Bowl Liner \| 1245kg	2005-9359 \| bowl \| 8300kg
	5759-9001 \| Middle thrust plate \| 13kg	5013-4726 \| Mantle \| 680kg	5013-4726 \| Mantle \| 680kg	4830-6501 \| Bowl Liner \| 2013.54kg	4247-5139 \| Head \| 9296.75kg
	5168-4893 \| Mainshaft nut \| 118kg	4829-9481 \| Bowl liner \| 807kg	4829-9481 \| Bowl liner \| 807kg	5013-6801 \| Mantle, Upper \| 253.96kg	6886-7663 \| Main shaft, Heavy duty \| 2815kg
	5013-2501 \| Mantle \| 286kg	5013-5401 \| Mantle \| 706kg	5013-5401 \| Mantle \| 706kg	4830-6638 \| Bowl Liner \| 2131.45kg	6361-7151 \| Water seal baffle ring \| 217kg
	6273-2501 \| Locking nut \| 53kg	4246-9002 \| head \| 1610kg	4246-9002 \| head \| 1610kg	3683-0807 \| Gear \| 326kg	6391-5481 \| Torch ring \| 9kg
	2747-5951 \| Locking nut cover \| 43kg	4830-2958 \| Bowl Liner CB in EC Bowl \| 794kg	4830-2958 \| Bowl Liner CB in EC Bowl \| 794kg	11048305415 \| BOWL LINER,SH SHORT COARSE \| 1587.25kg	2206-9161 \| Countershaft bushing \| 43kg
	11048295161 \| BOWL LINER,SH MEDIUM \| 281.17kg	4830-2957 \| Bowl Liner \| 818kg	4830-2957 \| Bowl Liner \| 818kg	11048305556 \| BOWL LINER,SH FINE FOR COARSE BOWL \| 1244.8575kg	7381-9580 \| Socket \| 1800kg
	11048295701 \| BOWL LINER,SH FINE LINER FOR COARSE BOWL \| 266.658kg	7320-4202 \| Main Shaft sleeve \| 240kg	7320-4202 \| Main Shaft sleeve \| 240kg	11048306331 \| BOWL LINER,SH EXTRA COARSE \| 1529.202kg	2005-8605 \| Bowl \| 8074kg
	11048296530 \| BOWL LINER,STD EXTRA COARSE \| 465.7445kg	6886-4350 \| Main shaft \| 726kg	6886-4350 \| Main shaft \| 726kg	11048306501 \| BOWL LINER,STD MEDIUM \| 2013.54kg	4247-5049 \| Head \| 8500kg
	11048296544 \| BOWL LINER,STD EXTRA COARSE \| 440.802kg	5598-5701 \| Feed plate \| 137kg	5598-5701 \| Feed plate \| 137kg	11048306638 \| BOWL LINER,STD FINE FOR COARSE BOWL \| 2131.45kg	2005-8831 \| Bowl \| 8074kg
	11048297591 \| BOWL LINER,SH COARSE \| 346.9275kg	3114-1201 \| Eccentric \| 475kg	3114-1201 \| Eccentric \| 475kg	11048306771 \| BOWL LINER,STD COARSE \| 1928kg	11048307379 \| BOWL LINER,SH MEDIUM \| 5600kg
	11050132201 \| MANTLE,STD \| 285.705kg	3806-4092 \| Countershaft box guard \| 32kg	3806-4092 \| Countershaft box guard \| 32kg	11050136801 \| UPPER MANTLE,STD \| 253.96kg	11048307490 \| BOWL LINER,SH ASM DESC2 \| 2826kg
	11050132501 \| MANTLE,STD STEPPED \| 285.705kg	5760-1701 \| Center step plate \| 23kg	5760-1701 \| Center step plate \| 23kg	11050137601 \| MANTLE,SH LONG MANG \| 1677.95kg	11048307581 \| BOWL LINER,SH FINE IN FINE BOWL \| 3357.2605kg
	11050132801 \| MANTLE,SH \| 238.0875kg	9446-2143 \| Main shaft assembly \| 2650kg	9446-2143 \| Main shaft assembly \| 2650kg	2005-5792 \| Bowl Coarse,STD \| 4227kg	11048307583 \| BOWL LINER,SH FINE IN COARSE BOWL \| 3336.3995kg
	11050133401 \| MANTLE,SH \| 317.45kg	4872-6435 \| Socket Liner,Standard \| 74kg	4872-6435 \| Socket Liner,Standard \| 74kg	6273-7001 \| Locking Nut,SH \| 247kg	11048308556 \| BOWL LINER,STD COARSE LINER FOR EXTRA COARSE BOWL \| 3174.5kg
	11050133801 \| MANTLE,SH \| 293kg	3680-5608 \| Gear,700005738T \| 350kg	3680-5608 \| Gear,700005738T \| 350kg	2748-2476 \| LOCKING NUT COVER \| 130kg	4830-8608 \| BOWL LINER,STD MEDIUM LINER FOR COARSE BOWL \| 3507kg
	5013-3001 \| mantle,EXTRA COARSE,short head \| 263kg	4830-1371 \| Bowl Liner \| 671kg	4830-1371 \| Bowl Liner \| 671kg	1073204661 \| Torch ring \| 18kg	11048309471 \| BOWL LINER,STD FINE FOR FINE OR MED BOWL \| 3650.675kg
	7085720751 \| Feed hopper \| 110kg	5013-5801 \| Mantle \| 682kg	5013-5801 \| Mantle \| 682kg	8642-8085 \| Eccentric gear counterweight \| 639kg	11050138201 \| UPPER MANTLE,STD \| 247.1575kg
	7000082113 \| Oil flinger \| 10kg	5168-5161 \| Mainshaft nut \| 95kg	5168-5161 \| Mainshaft nut \| 95kg	5168-6784 \| Main shaft nut \| 259kg	5013-8401 \| LOWER MANTLE,STD \| 2412.62kg
	6863-3425 \| Countershaft-short \| 70kg	5013-4801 \| Mantle \| 575kg	5013-4801 \| Mantle \| 575kg	5598-6261 \| Feed plate \| 251kg	11050138601 \| LOWER MANTLE,STD \| 2358.2kg
	6886-3193 \| Mainshaft (head fit rough) \| 229kg	4829-8671 \| Bowl Liner \| 662kg	4829-8671 \| Bowl Liner \| 662kg	9447-1012 \| Main shaft assembly shaft/head \| 5521kg	11050138801 \| LOWER MANTLE,STD \| 2595kg
	9439-5074 \| Socket assembly \| 193.2kg	2747-8876 \| Locking Nut Cover \| 79kg	2747-8876 \| Locking Nut Cover \| 79kg	5168-6781 \| Main shaft nut \| 165kg	11050139204 \| MANTLE,SH \| 2504kg
	5759-9301 \| Upper step bearing plate \| 12kg	5598-4161 \| Feed plate \| 64kg	5598-4161 \| Feed plate \| 64kg	6886-5740 \| mainshaft with oversized fit \| 1361kg	11050139268 \| MANTLE,SH \| 2675.65kg
	3378-2727 \| Main Frame \| 2644kg	11048298671 \| BOWL LINER,SH MEDIUM \| 662.11kg	11048298671 \| BOWL LINER,SH MEDIUM \| 662.11kg	4247-2016 \| Head \| 3900kg	6886-8542 \| Main shaft,STD,SH HD,SXHD \| 3081.53kg
	6358-7771 \| Flinger Housing \| 20kg	11048300158 \| BOWL LINER,SH COARSE \| 769kg	11048300158 \| BOWL LINER,SH COARSE \| 769kg	2281-7701 \| Adjustment cap \| 1257kg	5760-8650 \| Upper step bearing plate \| 240kg
	6358-3921 \| Flinger \| 12kg	1048301826 \| BOWL LINER,STD EXTRA COARSE \| 861.65kg	1048301826 \| BOWL LINER,STD EXTRA COARSE \| 861.65kg	1970-8076 \| U Bolt \| 14kg	5598-9041 \| Feed Plate,SH \| 416kg
	6587-6610 \| Adjustment Lock Post \| 8.5kg	11048302957 \| BOWL LINER,STD COARSE \| 818kg	11048302957 \| BOWL LINER,STD COARSE \| 818kg	6187-6742 \| Adjustment Ring \| 3990.8kg	5760-8001 \| INNER STEP BEARING PLATE \| 89kg
	6187-3900 \| Adjustment Ring \| 1260kg	11048302958 \| BOWL LINER,STD COARSE LINER FOR EXTRA COARSE BOWL \| 793.625kg	11048302958 \| BOWL LINER,STD COARSE LINER FOR EXTRA COARSE BOWL \| 793.625kg	5168-5901 \| Slag nut with hole \| 275kg	9439-9752 \| Bowl Adjustment ram \| 89.7kg
	7292-5601 \| Head wear ring \| 9.5kg	11048304341 \| BOWL LINER,STD MEDIUM FOR COARSE BOWL \| 858kg	11048304341 \| BOWL LINER,STD MEDIUM FOR COARSE BOWL \| 858kg	3633-894 \| Spring \| 14kg	4851-9455 \| Seat liner, Outer seat liner segment, STD, SH \| 18.14kg
	6886-2903 \| Mainshaft \| 540kg	11048304612 \| BOWL LINER,STD FINE FOR COARSE BOWL \| 870.72kg	11048304612 \| BOWL LINER,STD FINE FOR COARSE BOWL \| 870.72kg	2214-6161-OS \| 外径536.575，Outer eccentric bushing \| 305kg	9450-1819 \| Mainshaft assembly with stand \| 12167kg
	4829-6951 \| Bowl liner fine for Coarse Bowl \| 376.405kg	1050134451 \| MANTLE,STD COARSE STEPPED \| 725.6kg	1050134451 \| MANTLE,STD COARSE STEPPED \| 725.6kg	5760-5011 \| Upper step bearing plate \| 120kg	3682-9233 \| Gear,7-B-1501 \| 662.11kg
	2618-1550 \| Feed cone \| 170kg	11050134801 \| MANTLE,SH \| 575kg	11050134801 \| MANTLE,SH \| 575kg	9439-8087 \| Socket sub assembly \| 1167kg	5760-8601 \| Upper step bearing plate \| 85kg
	3FtHydraulicLockPostAssembly \| Hydraulic lock post assembly \| 50kg	11050135801 \| MANTLE,SH EXTRA COARSE \| 680kg	11050135801 \| MANTLE,SH EXTRA COARSE \| 680kg	7381-7204 \| Socket standard seal \| 1400kg	3682-7657 \| Pinion, 7-B-714 \| 335.59kg
	2206-3101 \| Inner eccentric bushing \| 52kg	11050136001 \| MANTLE,STD \| 896kg	11050136001 \| MANTLE,STD \| 896kg	1948-8995 \| Cap screw socket Hd - special \| 12.79kg	6187-7901 \| Internal pin adjustment ring \| 6656kg
	4872-4400 \| Socket liner \| 74kg	3708-6171 \| Oil collar gear \| 15.1kg	3708-6171 \| Oil collar gear \| 15.1kg	1970-7871 \| Bowl liner U-bolt \| 13kg	4851-7611 \| Main frame liner \| 807.23kg
	4872-4385 \| Socket liner \| 34kg	6342-3501 \| Symons 4 4.25 STD SH Pinion thrust washer \| 6kg	6342-3501 \| Symons 4 4.25 STD SH Pinion thrust washer \| 6kg	7320-4661 \| Main shaft sleeve & torch ring \| 18kg	6380-9190 \| Grease sealing ring \| 739kg
	2005-2437 \| Bowl \| 1260kg	3680-5603 \| Gear \| 408kg	3680-5603 \| Gear \| 408kg	6886-6287 \| Main shaft \| 1414.92kg	1940-8333 \| Locking collar capscrew \| 7.8kg
	5168-4420 \| Main shaft nut \| 172kg	9445-8320 \| Main shaft/head assembly+grease seal \| 2486kg	9445-8320 \| Main shaft/head assembly+grease seal \| 2486kg	2005-5791 \| Bowl \| 4218kg	7320-8011 \| Mainshaft Sleeve \| 36kg
	4829-6511 \| Bowl liner, STD \| 355kg	6360-4601 \| HEAD SEALING RING \| 141kg	6360-4601 \| HEAD SEALING RING \| 141kg	4247-2039 \| Head \| 4727kg	6342-5501 \| Pinion thrust washer \| 6kg
	3378-2732 \| Main frame \| 2600kg	9439-7069 \| Mainshaft nut assembly \| 205kg	9439-7069 \| Mainshaft nut assembly \| 205kg	4830-5970 \| Bowl liner \| 1300kg	8642-8301 \| Counterweight \| 680kg
	3YP.11.00 \| Spring assembly \| 1200kg	2214-5041 \| Inner eccentric bushing \| 103kg	2214-5041 \| Inner eccentric bushing \| 103kg	5168-5901M \| Head nut \| 544.2kg	6361-3183 \| water chamber \| 547kg
	4103-1500 \| ECROU D ARBRE \| 118kg	4537-6242 \| Countershaft Box \| 545kg	4537-6242 \| Countershaft Box \| 545kg	6273-0701 \| Locking collar \| 560kg	2302-7025 \| Main frame cap \| 300kg
	2618-2161 \| TREMIE CONIQUE \| 78kg	6886-5196 \| mainshaft (head fit rough) \| 800kg	6886-5196 \| mainshaft (head fit rough) \| 800kg	8642-8075 \| Counterweight \| 380kg	4537-7443 \| Countershaft box housing \| 1225kg
	9439-5215 \| Main frame assembly \| 750kg	6272-8301 \| Locking collar \| 136kg	6272-8301 \| Locking collar \| 136kg	3683-0809 \| Gear \| 326kg	9450-1815 \| mainshaft assembly \| 13000kg
	4829-5296 \| Bowl liner, Fine \| 255kg	5760-2001 \| INNER STEP BEARING PLATE \| 8kg	5760-2001 \| INNER STEP BEARING PLATE \| 8kg	4830-6636 \| BOWL LINER F IN F and M \| 2196kg	4872-8523 \| Socket liner \| 333kg
		9446-2154 \| Main shaft assembly \| 2555kg	9446-2154 \| Main shaft assembly \| 2555kg	1063-4721 \| Feed Hopper \| 300kg	3636-848 \| Spring \| 17kg
		6360-4164 \| Socket sealing ring \| 155kg	6360-4164 \| Socket sealing ring \| 155kg	9447-9376 \| MAINSHAFT ASSEMBLY \| 6060kg	1094496252 \| THRUST BRNG ASSY HVY DUTY & EXTRA HVY DU \| 262kg
		1998-2668 \| Bowl lug \| 9kg	1998-2668 \| Bowl lug \| 9kg	9447-9953 \| Adjustment ring assembly \| 4350kg	MM0346525 \| MAIN FRAME \| 228000kg
		6886-5185 \| Main shaft, Head fit rough \| 710kg	6886-5185 \| Main shaft, Head fit rough \| 710kg	2005-6198 \| bowl \| 5443kg	2214-8401 \| ECCENTRIC BUSHING OUTER, O/S \| 469kg
		6587-7025 \| Adjustment lock post \| 10.2kg	6587-7025 \| Adjustment lock post \| 10.2kg	9447-6768 \| Eccentric assembly \| 1824kg	6351-9651 \| CAP SEAL ADJUSTMENT \| 16kg
		5760-2301M \| Step bearing plate \| 76kg	5760-2301M \| Step bearing plate \| 76kg	5168-6783 \| Main Shaft Nut \| 395kg	6358-7662 \| OIL FLINGER \| 23.59kg
		6360-4163 \| Socket sealing ring \| 155kg	6360-4163 \| Socket sealing ring \| 155kg	2005-7027 \| Bowl \| 4536kg	1001674124 \| PRSSR REL VALVE 2 X 2 NPT, BRONZE, OIL \| 8kg
		9439-7138 \| Bowl lock assy \| 18kg	9439-7138 \| Bowl lock assy \| 18kg	6380-6802 \| Socket sealing ring \| 318kg	1070589805 \| SHIM 3.00"ID X 22.25"OD X 11GA \| 5.85kg
		7381-7004 \| Socket \| 450kg	7381-7004 \| Socket \| 450kg	2005-6280 \| Bowl Coarse \| 5443kg	1031144262 \| ECCENTRIC \| 1682kg
		4851-6161 \| FRAME LINER \| 390kg	4851-6161 \| FRAME LINER \| 390kg	8642-8086 \| Eccentric gear counterweight \| 640kg	1027268101 \| COVER PLATE ASSEMBLY \| 9kg
		2855-2350 \| Cylinder weldment \| 8.5kg	2855-2350 \| Cylinder weldment \| 8.5kg	5760-5010 \| Step Bearing Plate \| 120kg	1063-6471 \| FEED HOPPER (FINE, MEDIUM, & COARSE) \| 654kg
		4851-6186 \| Main Frame liner \| 136kg	4851-6186 \| Main Frame liner \| 136kg	9439-9903 \| Electric Power Unit Assembly \| 200kg	8030-2725 \| ROD STEP BEARING PLATE \| 8.89kg
		6360-1210 \| Socket sealing ring \| 155kg	6360-1210 \| Socket sealing ring \| 155kg	5923-9126 \| Sheave bushing \| 313kg	4851-9410 \| Seat liner segment \| 208kg
		3683-1502 \| Gear 20 degrees, solid \| 410kg	3683-1502 \| Gear 20 degrees, solid \| 410kg	5923-9206 \| Sheave bushing \| 414kg	9450-1847 \| mainshaft assembly \| 12506kg
		3683-1229 \| Pinion 20 degrees \| 98kg	3683-1229 \| Pinion 20 degrees \| 98kg		9449-6355 \| bowl \| 11088kg
		5013-5201 \| Mantle \| 739kg	5013-5201 \| Mantle \| 739kg		9450-4834 \| Eccentric assembly \| 3980kg
		4830-1350 \| BOWL LINER COARSE \| 1246kg	4830-1350 \| BOWL LINER COARSE \| 1246kg		9448-2239 \| NUT CITO \| 3000kg
		9439-6690 \| HYD LOCK POST ASSY \| 35kg	9439-6690 \| HYD LOCK POST ASSY \| 35kg		1970-8281 \| U-bolt \| 18kg
		9439-6034 \| Main shaft nut sub-assembly \| 99.7kg	9439-6034 \| Main shaft nut sub-assembly \| 99.7kg		4830-7386 \| Bowl liner \| 3423kg
		2005-4551 \| Fine/Medium Bowl \| 2880kg	2005-4551 \| Fine/Medium Bowl \| 2880kg		5013-9268 \| MANTLE,SH \| 2675.65kg
		3378-3296 \| Main Frame Cast \| 4930kg	3378-3296 \| Main Frame Cast \| 4930kg		9450-4889 \| main frame assembly \| 25750kg
					9449-3557 \| Mainshaft assembly \| 10600kg
					6187-7950 \| Adjustment Ring \| 6660kg
					2748-4726 \| Cover, locking nut \| 227kg
					1048309472 \| Bowl liner \| 3652kg
					6666-5691 \| Bowl liner \| 3652kg
					1063-8501 \| Bowl hopper \| 249.48kg
					4830-8731 \| Bowl liner, Medium liner for X coarse bowl, 7-B-621 \| 3287.875kg
					4830-8525 \| Bowl liner, Medium liner for coarse bowl, 7-B-1538 \| 3746.3635kg
					4830-8504 \| Bowl liner, 7-B-863 \| 3764.05kg
					4830-8505 \| Bowl liner, Midium liner for extra coarse bowl, 7-B-1321 \| 3614.395kg
					6361-9490 \| Adjustment ring dust collar \| 153.283kg
					2855-4130 \| Hydraulic cylinder \| 21.768kg
					2005-9335 \| Bowl \| 8140.325kg
					1808-0012 \| Filler blocks, medium liner in coarse bowl \| 43.9895kg
					8605-3730 \| ARANDELA \| 13kg
					6361-3051 \| OIL SEAL RING \| 9.53kg
					9439-9193 \| Hydraulic lock post \| 108kg
					8602-7102 \| WASHER U-BOLT \| 17.33kg
					8610-1485 \| WASHER U-BOLT \| 6kg
					8602-7101 \| WASHER BOLT \| 11.57kg
					3378-5980 \| Main frame \| 20180.75kg
					5013-9204 \| Mantle \| 2504kg
					5435-2751 \| External main frame pin \| 26kg
					2214-7561-098 \| Outer eccentric bushing over size \| 662kg
					9439-9130 \| Main shaft nut \| 513kg
					6876-1321 \| Countershaft \| 370kg
					9439-9069 \| Bowl hopper assembly \| 810kg
					9439-9403 \| countershaft and pinion assembly \| 720kg
					9439-9638 \| countershaft box assembly \| 300kg
					4872-9305 \| Socket liner \| 335kg
					4830-8473 \| Bowl liner \| 2563kg
					9450-4923 \| Main frame assembly \| 26000kg
					1063805101 \| RING SOC SEAL INTD \| 65.8kg
					4247-5132 \| Head \| 9000kg
					6886-8577 \| mainshaft \| 2700kg
					2618-8221 \| Feed cone \| 450kg
					1063-7927 \| Feed hopper \| 1670kg
					9450-3813 \| Counter Shaft Assembly \| 735kg
					9450-4578 \| Counter Shaft Box Assembly \| 1500kg
					9448-2221 \| Counter Shaft Bowl \| 6850kg
					9439-9957 \| Jack Clearing Assy \| 41kg
					5013-9001 \| Mantle \| 2386kg
					4830-8400 \| Bowl liner \| 3150kg
					5013-9203 \| Mantle \| 3000kg
					5013-9201 \| Mantle \| 2341kg
					5013-8951 \| Mantle Stepped XC \| 1890kg
					2281-8950 \| Adjustment cap \| 1900kg
					KR1417.1.1 \| Outer Eccentric Bushing \| 485kg
					KR1417.9.1 \| Inner Eccentric Bushing \| 335kg
					KR1417.9.2 \| Eccentric \| 1678kg
					9449-3556 \| Shaft assembly \| 10977kg
					2005-9385 \| Bowl \| 6804kg
					9439-9153 \| Bowl Adjustment Arm Assy \| 77kg
					9449-6181 \| ADJUSTMENT RING ASSEMBLY \| 9000kg
					9439-9396 \| Hopper Assembly \| 980kg
					4830-7499 \| Bowl liner \| 2832kg
					9448-2215 \| Bowl; STANDARD COARSE \| 6810kg
					9449-9402 \| Eccentric Assembly \| 3700kg
					3680-2700 \| Bevel Gear \| 770kg
					2206-7201 \| Countershaft Box Bushing \| 40.86kg
					4851-9456 \| Main Frame Seat Liner Outer \| 19kg

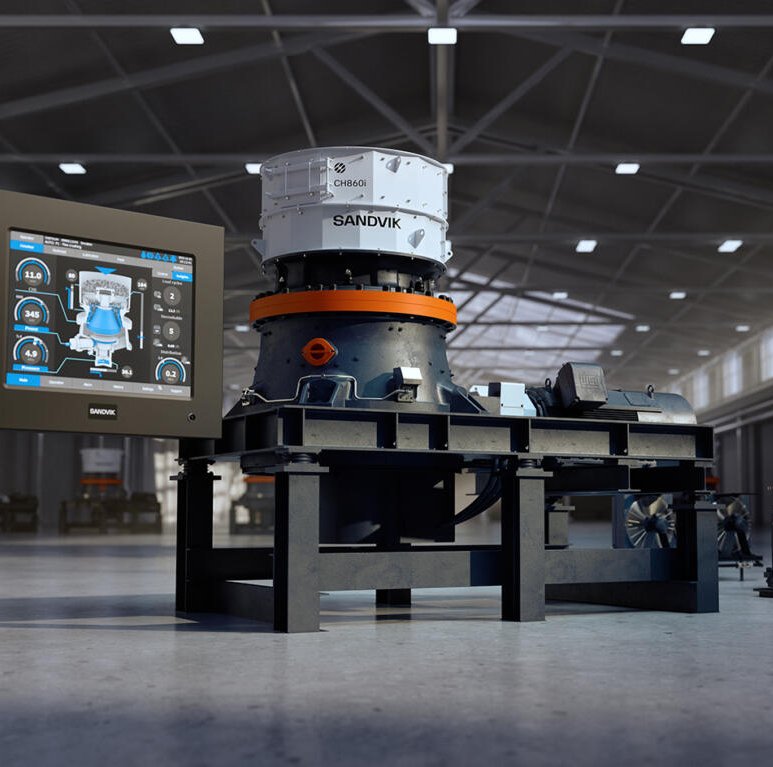

Sandivik CH CS Series HydroCone Crusher Parts List:

Sandvik CH420

Sandvik CH430

Sandvik CH440

Sandvik CH540

Sandvik CH550

Sandvik CH660

Sandvik CH830i

Sandvik CH840i

Sandvik CH860i

Sandvik CH865

Sandvik CH865i

Sandvik CH870

Sandvik CH870i

Sandvik CH880

Sandvik CH890

Sandvik CH890i

Sandvik CH895i

Sandvik CS420

Sandvik CS430

Sandvik CS440

Sandvik CS550

Sandvik CS660

Sandvik Hydrocone

Sandvik CG820 Gyratory Crusher

Sandvik CG830 Gyratory Crusher

442.6183-01 | Eccentric | 95kg

442.7908-00 | Bottom Shell | 2305kg

452.0230-901 | Bottom shell | 3875kg

BG00156936 | Eccentric | 140kg

452.7517-001 | Wear ring | 17kg

442.8735-00 | Bottom shell,Seccion inferior del bastidor Section,inférieur de bati | 6400kg

452.8513-005 | Concave M,M9 | 645kg

BG00475833 | Main shaft sleeve | 62kg

452.7654-001 | Spider bushing | 90kg

BG00166425 | Bushing, Eccentric 58+54+50+46+42 | 308kg

452.8241-001 | Concave MF,M1 | 1249kg

452.0842-001 | Concave MF,M1 | 1740kg

BG00239713-01 | Concave EC Top grip,M1 | 1957kg

442.7201-90 | Cover, cap | 6kg

452.5824-901 | Bottomshell Ar | 32000kg

442.9312-01 | Concave MF,M1 | 3950kg

452.4051-001 | Mantle OB,M1 | 3716kg

442.9686-01 | Eccentric bushing | 46kg

442.8449-01 | Eccentric | 146kg

442.7122-01 | Piston wearing plate | 26kg

452.7276-001 | Bottom shell bushing | 88kg

442.9033-01 | Eccentric bushing | 204kg

07-246-699-001 | Bottom shell bushing | 577kg

454.2546-001 | Mainshaft sleeve | 494kg

442.9657-01 | Eccentric bushing 13+16+18, machinning 442.6995 | 42kg

442.7201-00 | Cover | 6kg

442.7140-00 | Liner-Pin Shaft Arm | 44kg

BG00203559 | Bottom shell bushing | 55kg

452.7547-001 | Spider bushing CH550 | 73kg

442.8760-00 | Liner-Pin shaft arm Proteccion de desgaste Protection anti-usure | 60kg

452.8338-005 | Mantle B,M9 | 492kg

452.8602-001 | Mantle B,M1 | 753kg

452.8403-001 | Support ring | 198kg

452.8236-001 | M1, Mantle EF,For concave EF, F, MF | 1563kg

452.8241-002 | Concave MF,M2 | 1249kg

452.0842-002 | Concave MF,M2 | 1740kg

BG00239713-02 | Concave EC Top grip,M2 | 1957kg

442.9248-01 | Bottomshell bushing,See chapter 11 | 370kg

452.2045-901 | Eccentric Ar | 10060kg

442.9312-005 | Concave MF,M9 | 3950kg

452.4051-005 | Mantle OB,M9 | 3716kg

442.6139-01 | Piston wearing plate | 7kg

452.4516-001 | Eccentric bushing 16+20+25+30 | 76kg

442.7140-00 | Arm shield pinionshaft arm | 44kg

442.8723-00 | Gear and pinion set | 229.4kg

07-344-181-001 | Eccentric bushing | 438kg

454.2547-001 | Protective ring - Mainshaft,Split ring | 167kg

442.9658-01 | Eccentric bushing 18+20+22 | 42kg

442.7915-01 | Liner-Pin shaft arm | 36kg

442.7141-00 | Liner-Norrow Arm | 43kg

BG00203560 | Eccentric wearing plate | 16kg

BG00228529 | Concave M,M1 | 966kg

442.8759-00 | Liner-Narrow arm Proteccion de desgaste Protection anti-usure | 48kg

452.8602-002 | Mantle B,M2 | 753kg

452.8231-001 | Concave EC Topgrip,M1 | 1526kg

452.8232-001 | M1, Mantle A,For concave HR | 1426kg

452.8236-001 | Mantle EF,M1 | 1563kg

452.0842-005 | Concave MF,M9 | 1740kg

BG00239713-05 | Concave EC Top grip,M9 | 1957kg

442.9307-01 | Dust collar | 595kg

452.6434-901 | Dust collar Ar | 1645kg

442.9471-01 | Concave MC, F,M1 | 3768kg

442.9758-01 | Mantle HC,M1 | 3700kg

442.6138-01 | Main shaft step | 9kg

452.6117-901 | Mainshaft with headcenter | 1940kg

442.7141-00 | Arm shield narrow arm | 43kg

442.8730-01 | Piston wearing plate | 36kg

17-302-732-001 | Bottom shell bushing | 459kg

454.2551-001 | Head nut | 304kg

442.9659-01 | Eccentric bushing 22+25+28 | 42kg

442.7914-01 | Liner-Narrow arm | 27kg

442.7146-01 | Bottom shell bushing | 100kg

879.0359-00 | V-belt pulley 375 MGT125 10xSPC | 80kg

452.8496-001 | Concave MC,M1 | 1007kg

442.8742-01 | Bottom shell bushing Casquillo de chasis Douille de bâtie,R 223.1117,11 | 177kg

452.8602-003 | Mantle B,M7 | 753kg

452.8231-002 | Concave EC Topgrip,M2 | 1526kg

452.8233-001 | M1,Mantle B,For concave HR | 1228kg

452.8236-002 | Mantle EF,M2 | 1563kg

BG00689988 | Concave EC Top grip,M9 | 1970kg

452.0837-001 | Mantle A,M1 | 1903kg

442.9309-01 | Ring | 34kg

452.5938-901 | Hydroset cylinder Ar | 11080kg

442.9471-005 | Concave MC, F,M9 | 3768kg

452.4051-001 | Mantle OB M1,Alternative or order connected | 3716kg

442.6789-01 | Mantle B M1 | 407kg

442.8471-01 | Mantle B M1 | 665kg

442.7107-01 | Eccentric wearing plate | 22kg

442.8723-02 | Pinion | 229.4kg

17-200-455-001 | Main shaft step | 35kg

454.3927-001 | Mantle | 9198kg

442.6152-01 | Hub | 71kg

452.4190-001 | Bottom Shell Bushing | 58kg

442.7106-01 | Dust collar | 174kg

452.8500-001 | Concave C,M1 | 1008kg

442.8733-01 | Eccentric | 465kg

452.8602-005 | Mantle B,M9 | 753kg

452.7598-001 | Mainshaft sleeve | 101kg

BG00128445 | Liner topshell | 228kg

452.8241-001 | Concave MF,M1 | 1249kg

BG00568048 | Main shaft Assembly excluding mantle | 10000kg

452.0837-002 | Mantle A,M2 | 1903kg

442.9245-01 | Eccentric, eccentric body | 1060kg

452.6419-901 | Mainshaft Ar | 18000kg

442.9336-01 | Concave EC,M1 | 4052kg

452.6133-901 | Dust collar Ar | 1600kg

BG00395493 | Top shell assy exluding concave ring | 1680kg

442.8470-01 | Mantle A M1 | 755kg

442.7140-00 | Arm shield (pinion shaft arm) | 44kg

442.8732-01 | Main shaft step | 37kg

442.0721-01 | Bottom shell bushing | 58kg

454.2559-001 | Bottomshell bushing | 567kg

442.6127-00 | Gear, complete | 55kg

442.7929-01 | Dust collar | 106kg

442.7109-01 | Ring | 12kg

452.7843-001 | Concave EC,M1 | 1131kg

442.8824-01 | Eccentric bushing,18+20+24+28,R 223.1117,11 | 220kg

BG01078588-03 | Eccentric bushing, Throw 28-32-36 | 132kg

452.8233-001 | Mantle B,M1 | 1228kg

452.6271 | Overpressure Unit Alternatives | 870kg

452.8241-002 | Concave MF,M2 | 1249kg

452.0505-001 | Main shaft sleeve | 148kg

452.0837-005 | Mantle A,M9 | 1903kg

442.9357-01 | Eccentric bushing,24+28+32+36,See chapter 11,casting 442.9247 | 600kg

452.6235-901 | Topshell Ar | 32500kg

442.9336-005 | Concave EC,M9 | 4052kg

452.5944-901 | Topshell tertiary arrangement | 48600kg

BG00363893 | Cover kitch | 11kg

452.6113-001 | Arm shield | 135kg

442.7141-00 | Arm shield (narrow arm) | 43kg

442.8982-01 | Mantle A | 2176kg

07-245-027-001 | Main shaft step | 90kg

454.2587-001 | Eccentric bushing | 511kg

442.6130-01 | Wearing plate | 12kg

442.7921-01 | Eccentric | 152kg

442.7151-01 | Eccentric | 280kg

452.7843-002 | Concave EC,M2 | 1131kg

442.8825-01 | Eccentric bushing,28+32+36+40,R 223.1117,11 | 209kg

BG01078588-02 | Eccentric bushing, Throw 36-40-44 | 132kg

452.8233-002 | Mantle B,M2 | 1228kg

452.8238 | Concave | 1651kg

452.8236-002 | Mantle EF,M2 | 1563kg

452.0930-001 | Inner head nut | 61kg

452.0837-001 | Mantle A M1,For concaves,EC Topgrip/C/MC/M | 1903kg

442.9358-01 | Eccentric bushing,36+40+44+48,See chapter 11 | 600kg

452.6738 | Direct drive on subframe | 8400kg

452.4051-001 | Mantle OB,M1 | 3716kg

442.6996-01 | Eccentric bushing | 40kg

442.8520-00 | Spider cap | 141kg

442.8067-01 | Eccentric bushing 20, 25, 30, 36, no keyway 442.8066-01 | 136kg

442.8983-01 | Mantle B | 1915kg

454.2588-001 | Eccentric wearing plate | 213kg

442.9872-01 | Hydroset cylinder | 168kg

452.4191-01 | Eccentric bushing 16 19 22 | 63kg

442.9643-01 | Eccentric bushing 13+16+20+24,without keyway 442.9404 | 124kg

452.7843-003 | Concave EC,M7 | 1131kg

442.8826-01 | Eccentric bushing,40+44+48+50 Casquillo de excéntrica,R 223.1117,11 | 204.6kg

452.8602-001 | Mantle B,M1 | 753kg

452.8236-001 | Mantle EF,M1 | 1563kg

452.8239 | Concave | 1594kg

452.8236-002 | Mantle EF,M1 | 1563kg

452.0921-001 | Retaining ring | 226kg

452.0837-001 | Mantle A M1,Alternative or order connected | 1903kg

442.9359-01 | Eccentric Bushing, 48+52+56+60, See chapter 11 | 600kg

452.6164 | Overpressure connection assembly | 600kg

452.4051-005 | Mantle OB,M9 | 3716kg

442.6473-01 | Spider bushing | 35kg

442.9036-01 | WEAR PLATE RIM LINER | 69kg

442.8976-01 | Arm shield | 550kg

454.2296-001 | Adjustment ring | 11kg

442.9655-00 | Piston | 71kg

452.4192-001 | Eccentric bushing 22+25+29 | 63kg

442.9642-01 | Eccentric bushing 24 28 32 | 124kg

452.7443-001 | Inner head nut | 20kg

442.8729-01 | Hub | 280kg

452.8602-002 | Mantle B,M2 | 753kg

452.8236-002 | Mantle EF,M2 | 1563kg

452.8240-001 | Concave | 1602kg

452.0936-901 | Head nut with burning ring | 172kg

452.0807-001 | Eccentric bushing 62+68+74+80 | 420kg

442.9274-00 | Ring | 31kg

452.5998-901 | Hoses and protection | 1980kg

442.9758-01 | Mantle HC,M1 | 3700kg

442.8477-00 | Lower concave ring EC | 534kg

879.0359-00 | V-belt Pulley 375 MGT 125 10×SPC | 80kg

442.8979-00 | Concave ring | 1750kg

454.2591-001 | Guide bushing | 120kg

442.6139-01 | Piston wearing plate | 7kg

452.4193-01 | Eccentric bushing 29+32+34+36,blank 452.4189-001 | 63kg

442.9406-01 | Eccentric bushing 32+36+40+44 | 126kg

452.7542-001 | Mainshaft sleeve | 60kg

442.8723-00 | Gear and pinion set | 229.4kg

452.8602-003 | Mantle B,M7 | 753kg

452.8262-001 | Head nut protection steel HB 360-440 | 9kg

452.8241 | Concave | 1249kg

452.0845-001 | Mantle EF,M1 | 1979kg

BG01283913 | Pinion shaft housing assembly excluding pulley | 700kg

442.9249-01 | Eccentric wearing plate, See chapter 11 | 52kg

442.9249-02 | Eccentric wearing plate | 52kg

BG00598672 | Wear plate Assembly | 600kg

442.8484-00 | Concave upper | 74kg

442.7140-00 | Pin shaft arm liner | 44kg

442.9071-00 | Concave ring C, lower | 2064kg

454.2592-001 | Concave adapter | 26kg

442.6137-01 | Step washer | 7kg

442.7930-01 | Ring | 6kg

442.7142-01 | Hub | 170kg

452.7208-901 | Head nut,w. burning ring As. | 53.9kg

442.8722-01 | Hydroset cylinder Cilindre Hydroset Cylindre Hydroset | 617kg

452.8602-005 | Mantle B,M9 | 753kg

452.7595-001 | Dust collar | 492kg

452.8242-001 | Concave F,M1 | 1417kg

452.0845-002 | Mantle EF,M2 | 1979kg

452.6732-001 | Seating Ring | 40kg

442.9256-01 | Hydroset cylinder bushing, See chapter 11 | 135kg

452.5925-001 | Liner narrow arm | 184kg

442.9758-01 | Mantle HC M1,For concave MC/M/MF | 3700kg

452.9012 | Mantle,A | 872kg

442.7141-00 | Narrow arm liner | 43kg

442.8981-00 | Concave ring EC, upper | 1400kg

454.6004-001 | Piston, cylinder | 1339kg

442.9660-01 | Hydroset cylinder cover | 66kg

442.7802-00 | Gear and pinion set, Gleason, gear 61 teeth, pinion 15 teeth, N11851291 | 104kg

442.7169-00 | Ring | 11kg

452.7531-001 | Dust seal ring | 18kg

442.8724-01 | Hydroset cylinder bushing Camissa de caja de émbolo,Garniture inférieure de cylindre de piston,R 223.1117,11 | 79kg

BG00162890 | Eccentric bushing 70+66+62+58 | 305kg

452.8243 | Mantle,FlexiFeed B | 1276kg

452.0845-005 | Mantle EF,M9 | 1979kg

442.9650-93 | Rubber Damper | 80kg

442.9724-01 | Piston wearing plate | 94kg

452.6435-001 | Dust Collar | 880kg

442.9471-02 | Concave MC, F,M2 | 3768kg

452.9013 | Mantle,B | 781kg

879.0496-00 | Pulley,V belt | 100kg

442.9072-00 | Concave ring C, upper | 1775kg

442.6134-01 | Pinion shaft housing | 52kg

452.4188-001 | Ecc. Wearing plate | 12kg

442.7093-00 | Gear and pinion set | 128kg

452.7626-001 | Mantle A,M1 | 843kg

442.8758-00 | PISTON ASM, Piston part no 442.8738-01 | 342kg

452.8450-901 | Bottom shell arm liners | 649kg

452.8244 | Mantle,OB | 1555kg

452.0837-001 | Mantle A,M1 | 1903kg

442.9722-01 | Step washer, See chapter 11 | 107kg

452.6075-001 | Piston | 1000kg

442.9312-02 | Concave MF,M2 | 3950kg

452.9015 | Mantle,EC | 651kg

452.6391-901 | Bottom shell,Assembly | 4534kg

442.8759-01 | Liner-Narrow arm | 48kg

442.7450-01 | Main shaft | 490kg

442.7889-01 | Hydroset cylinder | 249kg

442.7107-01 | Eccentric wearing plate | 22kg

452.7626-002 | Mantle A,M2 | 843kg

442.8730-01 | Piston wearing plate,R 223.1117,11 | 36kg

452.7644-001 | Bottomshell bushing JM 14-15 | 240kg

452.8446 | Concave,HR | 1411kg

452.0837-002 | Mantle A,M2 | 1903kg

442.9304-01 | Packing clamp plate | 17kg

452.6045-001 | Dust seal retaining ring | 408kg

BG00688460-01 | Lubrication pump assembly | 200kg

452.9016 | Mantle,C | 739kg

452.1634-001 | Head centre | 1715kg

452.4151-001 | Dust collar | 278kg

442.6140-01 | Main shaft sleeve | 12kg

442.7892-01 | Hydroset cylinder bushing | 29kg

442.7163-01 | Hydroset cylinder | 394kg

452.7626-003 | Mantle A,M7 | 843kg

442.8731-01 | Step washer,R 223.1117,11 | 37kg

452.7645-001 | Eccentric wearing plate | 43kg

464.0599 | Concave,80 | 1414kg

452.0837-005 | Mantle A,M9 | 1903kg

442.9806-01 | Pinionshaft housing, Horizontal | 473kg

452.6048-001 | Dust seal ring | 65kg

452.7435-901 | Hydraulic pump assembly | 170kg

452.9019 | Upper concave | 418kg

452.1633-001 | Mainshaft | 1685kg

452.5839-001 | Support ring | 137kg

442.6138-01 | Main shaft step | 9kg

442.9668-00 | Piston | 118kg

442.7166-01 | Hydroset cylinder bushing | 43kg

452.7548-001 | Mantle B,M1 | 717kg

442.8725-01 | Packing clamp plate | 9kg

452.7717-901 | Step bearing set | 150kg

464.1162 | Concave,130 | 1352kg

452.0938-001 | Burning ring,Wear part | 5kg

442.9260-01 | Plate | 18kg

452.4051-001 | OB,Mantle | 3716kg

452.3684-901 | CONE MC RUBBER LINER KIT | 1360kg

452.9020 | Upper concave | 528kg

442.8059-01 | Top shell | 4970kg

452.5920-902 | Concave Lower EC | 1900kg

442.7449-01 | Head centre | 490kg

442.7893-01 | Piston wearing plate | 13kg

442.9672-00 | Piston | 186kg

452.7548-002 | Mantle B,M2 | 717kg

442.8764-01 | Pinion shaft housing Caja de cojinete de collar Boitier de palier a collets | 201kg

464.1164-001 | Mantle | 1270kg

452.0834-001 | Locating bar | 5kg

442.9807-01 | Pinion shaft, horizontal shaft (pinion shaft) | 207kg

442.9336-01 | Concave EC | 4052kg

BG00174595 | Lower concave,MC | 496kg

442.8089-01 | Mantle | 1271kg

442.8982-02 | Mantle A | 2176kg

442.9698-01 | Mantle A M1 | 290kg

442.7894-01 | Step washer | 13kg

442.7122-01 | Piston wearing plate | 26kg

452.7548-003 | Mantle B,M7 | 717kg

442.8723-02 | Pinion Pinion Pignon | 229.4kg

452.7720-001 | Piston wear plate | 47kg

452.0805-001 | Eccentric bushing, throw 32-37-42-47 | 420kg

442.9294-01 | Mainshaft sleeve, main shaft sleeve, see chapter 11 | 214kg

442.9471-01 | Concave MC | 3768kg

BG00174596 | Lower concave,MC | 496kg

442.8089-02 | Mantle | 1271kg

452.9040-902 | Upper concave, MC | 1214kg

442.6197-01 | Mantle B M1 | 231kg

442.9667-00 | Hydroset cylinder cover | 83kg

442.7121-01 | Step washer | 23kg

452.7203-901 | Gear and pinion set | 157kg

442.8766-01 | Plate Portacojinetes Chapeau de palier | 7kg

452.7718-001 | Step washer | 52kg

452.0516-001 | Hub | 435kg

442.9723-01 | Mainshaft step, main shaft thrust plate, see chapter 11 | 99kg

442.9312-01 | Concave MF | 3950kg

BG00174597 | Lower concave,MC | 496kg

442.8089-03 | Mantle | 1271kg

452.9041-902 | First lower concave, MC | 2037kg

442.7000-01 | Mantle EF M1 | 245kg

442.7902-01 | Main Shaft | 747kg

442.7112-00 | Chevron packing | 7kg

452.7250-001 | Eccentric bushing, Throw 48-44-40-36-32 | 93kg

442.8765-01 | Plate Portacojinetes Chapeau de palier | 9kg

452.7719-001 | Main shaft step | 45kg

452.0902-901 | Ring | 29kg

452.0264-001 | Mantle EF, movable cone bushing, see chapter 11 | 3500kg

442.9471-01 | Concave F | 3768kg

BG00174592 | Lower concave,MC | 496kg

452.1545-001 | Mantle | 959kg

452.3822-902 | Concave Lower C Mn18 | 2132kg

442.9761-01 | Mantle HC M1 | 245kg

442.7913-01 | Main shaft sleeve | 25kg

442.7167-01 | Packing clamp plate | 7kg

452.7076-001 | Arm liner pinionshaft | 91kg

442.8772-01 | Pinion shaft Eje propulsor Arbre moteur | 106kg

452.7591-001 | Head nut | 80kg

452.0807-901 | Eccentric bushing, throw 62-68-74-80,blank 452.0803 | 420kg

442.9314-01 | Mantle A, movable cone bushing, see chapter 11 | 3681kg

442.9249-02 | ECCENTRIC WEARING PLATE, N11851551 | 52kg

BG00174593 | Lower concave,MC | 496kg

452.1545-002 | Mantle | 959kg

442.8981-90 | Concave ring EC, upper | 1400kg

442.6194-00 | Head nut with burning ring | 20kg

442.7895-01 | Main shaft step | 11.5kg

442.9663-00 | Hydroset cylinder cover | 126kg

452.8600-001 | Concave,F | 1090kg

442.8792-01 | Mainshaft sleeve Manguito de eje principal Douille d'arbre principal,R 223.1117,11 | 82kg

452.8235-001 | Concave EF and BG00303824 Rubber Seal EF,For mantle EF, OB, M1 | 1512kg

BG00504656 | Bottom shell | 21000kg

442.9758-01 | Mantle heavy-choke, movable cone bushing, see chapter 11 | 3700kg

452.4051-002 | MANTLE EEF (XT710) CH880, MM0352126 | 3716kg

BG00174594 | Lower concave,MC | 496kg

452.1545-003 | Mantle | 959kg

452.3822-901 | Concave Lower C Mn13 | 2132kg

442.6193-01 | Inner head nut | 6kg

442.7910-01 | Head center | 822kg

442.7506-01 | Pinion shaft housing | 127kg

452.8601-01 | Concave,M | 1065kg

442.8732-01 | Main shaft step Placa de presion Plaque de pression,R 223.1117,11 | 37kg

452.8235-002 | Concave EF and BG00303824 Rubber Seal EF,For mantle EF, OB, M2 | 1512kg

452.0795-001 | Bottom shell bushing | 255kg

442.9758-01 | Mantle heavy-choke, movable cone bushing, see chapter 11 | 3700kg

452.0264-002 MM0238783 | MANTLE EF (XT710) CH880 | 3500kg

BG00202524 | Mantle,FlexiFeed B | 786kg

452.0943-001 | Mantle | 1207kg

452.1639-001 | Head center | 2767kg

442.6141-01 | Retainer | 23.5kg

452.1502-001 | Mantle EF | 561kg

868.0282-00 | Bearings Spherical Roller 23122 CC/W33/C3 | 5.6kg

452.8602 | Concave,B | 753kg

442.8819-01 | Mantle A Cubierta interior,Enveloppe intérieur,R 223.1117 M1,11 | 1192kg

452.8236-002 | M2, Mantle EF,For concave EF, F, MF | 1563kg

452.0808-001 | Eccentric wearing plate | 45kg

442.9270-00 | Head nut with burning ring, See chapter 11 | 222kg

452.0579-002 | CONCAVE EXTRA-EXTRA-FINE SHORT (XT710), MM0352127 | 3605kg

BG00134054 | Mantle,FlexiFeed B | 786kg

452.0943-002 | Mantle | 1207kg

442.8979-90 | Concave ring | 1750kg

442.9674-00 | Topshell EC2 assembly excl. concaves | 1000kg

442.7989-01 | Mantle B | 417kg

868.0804-00 | Tapered roller bearing 452322 M2/W502 | 13kg

452.9000-002 | Mantle,A | 1304kg

442.8819-02 | Mantle A Cubierta interior,Enveloppe intérieur,R 223.1117 M2,11 | 1192kg

452.8232-002 | M2, Mantle A,For concave HR | 1426kg

452.0970-001 | Hydroset cylinder | 1120kg

442.9269-01 | Inner head nut, See chapter 11 | 63kg

BG00134055 | Mantle,FlexiFeed B | 786kg

452.0943-003 | Mantle | 1207kg

452.3822-903 | Concave Lower C Mn21 | 2132kg

442.9554-00 | Top shell | 1000kg

442.9759-01 | Mantle HC | 474kg

442.7133-01 | Bearing cover outer | 7kg

452.9001-002 | Mantle,B | 1069kg

442.9760-01 | Mantle HEAVY-CHOKE,Cubierta interior Enveloppe intérieur,R 223.1117 M1,11 | 1199kg

452.8231-001 | EC, Top grip, concave, M1 | 1526kg

452.0969-001 | Hydroset cylinder bushing | 132kg

442.9306-01 | Burning ring, See chapter 11 | 7kg

BG00174595 | Lower concave,MC | 496kg

442.8070-01 | Mantle | 1145kg

442.9568-01 | Arm shield | 20kg

442.7988-01 | Mantle A | 498kg

442.9937-01 | Pinion shaft | 76kg

452.9002-002 | Mantle,S | 1190kg

442.9760-02 | Mantle HEAVY-CHOKE,Cubierta interior Enveloppe intérieur,R 223.1117 M2,11 | 1199kg

452.8231-002 | EC, Top grip, concave, M2 | 1526kg

452.0972-001 | Hydroset cylinder cover | 590kg

442.9271-01 | Dust seal ring, See chapter 11 | 64kg

BG00174596 | Lower concave,MC | 496kg

442.8070-02 | Mantle B | 1147kg

442.8362-01 | Spider cap | 65kg

442.7912-00 | Head Nut with burn ring | 25kg

442.7259-00 | Main shaft ass. excl mantle | 2545kg

452.9004-001 | Lower concave,EC | 880kg

442.8820-01 | Mantle B Cubierta interior,Enveloppe intérieur,R 223.1117 M1,11 | 1094kg

452.5576-901 | Pinion Shaft Bearing Kit | 32kg

452.0990-001 | Packing clamp plate | 12kg

442.9265-00 | Arm shield, See chapter 11 | 308kg

BG00174597 | Lower concave,MC | 496kg

442.8070-03 | Mantle | 1145kg

442.8363-01 | Spider bushing | 16kg

442.7918-01 | Inner head nut | 8kg

442.7100-01 | Main shaft | 1267kg

452.9005 | Lower concave,C | 971kg

442.8820-02 | Mantle B Cubierta interior,Enveloppe intérieur,R 223.1117 M2,11 | 1094kg

452.2630-901 | Step bearing set | 195kg

452.0266-001 | Spider cap, See chapter 11 | 1100kg

BG00174592 | Lower concave,MC | 496kg

442.8115-001 | CONCAVE SEGMENT UPPER EC | 88kg

442.9569-01 | Concave ring EC | 327kg

442.8017-01 | Dust seal ring | 8kg

442.7117-01 | Main shaft sleeve | 40kg

452.9008-001 | Upper concave,EC | 820kg

442.9760-01 | Mantle HEAVY-CHOKE,Cubierta interior Enveloppe intérieur,R 223.1117 M1,11 | 1199kg

452.0657-001 | Pinion shaft housing | 430kg

442.9266-01 | Spider bushing, See chapter 11 | 174kg

BG00174593 | Lower concave,MC | 496kg

442.8115-002 | CONCAVE SEGMENT UPPER EC | 88kg

442.9587-01 | Concave ring C | 279kg

442.8020-01 | Retaining ring | 54kg

442.7120-01 | Main shaft step | 23kg

452.9010 | Upper concave,C | 895kg

442.9760-02 | Mantle HEAVY-CHOKE,Cubierta interior Enveloppe intérieur,R 223.1117 M2,11 | 1199kg

452.0716-001 | Inner bearing cover | 27kg

452.0417-001 | Ring 5kg

BG00174594 | Lower concave,MC | 496kg

442.8115-003 | CONCAVE SEGMENT UPPER EC | 88kg

442.9586-01 | Concave ring M | 415kg

442.7981-00 | Top shell EC2 | 1697kg

442.8332-01 | Head centre | 1278kg

BG00202524 | Mantle,Flexifeed B M1 | 786kg

442.8800-01 | Head nut | 80kg

442.9260-01 | Outer bearing cover | 18kg

452.0579-001 | Concave ring, EEE, EEF, EEF, See chapter 11 | 3605kg

452.0651-001 | Main shaft | 968kg

452.0274-001 | Concave segment, MC | 123kg

442.9585-01 | Concave ring MF | 472kg

442.7984-01 | Arm shield | 27kg

442.7230-01 | Mantle B, M-EC, M1 | 613kg

BG00134054 | Mantle,Flexifeed B M2 | 786kg

442.8791-01 | Inner head nut Anillo roscado Bague filetée,R 223.1117,11 | 26kg

442.9650-92 | Vibration damper | 25kg

452.0263-001 | Concave ring, EF, EF, See chapter 11 | 2900kg

452.0632 | Head center | 945kg

452.0274-002 | Concave segment, MC | 123kg

442.9584-01 | Concave ring F | 535kg

442.7976-01 | Spider Cap | 100kg

442.7225-01 | Mantel A,F+MF, M1 | 665kg

BG00134055 | Mantle,Flexifeed B M3 | 786kg

442.8802-01 | Dust seal ring Anillo guardapolvo,Bague anti-poussiéres,R 223.1117,11 | 18kg

930.0332-00 | Coupling Omega E120 HDY | 200kg

442.9520-00 | Filler ring, MC, EEF, EF, EFX | 1896kg

442.8486-01 | Eccentric bushing,16/20/25/30 | 75kg

452.0274-003 | Concave segment, MC | 123kg

442.9583-01 | Concave ring EF | 440kg

442.6473-01 | Spider bushing | 35kg

442.7105-01 | Head nut | 50kg

BG00216572 | Concave,F | 1082kg

442.8801-01 | Retaining ring Anillo de retén Bague de retenue | 93kg

452.0891-901 | Filler ring EC,For concave EC | 592kg

442.9471-01 | Concave ring, MC (F), See chapter 11, MC (F) | 3768kg

452.7002-901 | Lower concave,C | 471kg

452.0273-901 | First lower concave, MC | 893kg

442.9596-01 | Filler ring | 202kg

452.1216-001 | Concave MF | 589kg

442.8333-01 | Inner head ring | 16kg

BG00216573 | Concave,F | 1082kg

442.9037-00 | Top shell,EC2,Parte superior del chasis Section supérieure de bâti | 4856kg

452.0898-901 | Filler ring M,For concave M/MF/F/EF | 1177kg

442.9312-01 | Concave ring, MF | 3950kg

BG00579404 | Pinion Shaft Housing Assembly | 165kg

452.0273-902 | First lower concave, MC | 893kg

442.9570-01 | Support ring | 51kg

442.8246-01 | Concave ring M | 570kg

442.7102-01 | Dust seal ring | 13kg

BG00216574 | Concave,F | 1082kg

442.8812-01 | Arm shield,Proteccion de desgaste Protection anti-usure | 74kg

452.0837-001 | Mantle A M1,Alternative or order connected | 1903kg

442.9332-00 | Filler ring, MF | 3800kg

452.6913-001 | Top shell | 2760kg

452.0273-903 | First lower concave, MC | 893kg

442.9575-00 | Feed hopper cone,Cone for 442.9613-00 EC-EC2 | 70kg

442.8251-01 | Concave ring F | 583kg

442.7103-01 | Retaining ring | 69kg

BG00226991 | Concave,MF | 1021kg

442.8753-01 | Spider cap | 345kg

452.0806-001 | Eccentric bushing 47+52+57+62 | 420kg

442.9398-01 | Concave Ring, C, Concave Liner C, C, See chapter 11 | 4097kg

452.6121-001 | Head center | 977kg

442.8099-00 | Concave segment, C | 107kg

442.8624-00 | Check valve | 26.5kg

442.8630-01 | Concave ring EF | 486kg

442.7180-01 | Top shell | 2877kg

BG00226992 | Concave,MF | 1021kg

442.8754-01 | Spider bushing,R 223.1117,11 | 87kg

452.0807-001 | Eccentric bushing 62+68+74+80 | 420kg

442.9336-01 | Concave Ring, EC, Filling Ring EC, EC, See chapter 11 | 4052kg

452.7008-001 | Concave support ring | 81kg

442.8099-90 | Concave segment, C | 107kg

442.8642-00 | Over pressure unit,Complete | 107kg

442.8248-01 | Concave ring C | 551kg

442.7190-01 | Arm shield | 43kg

BG00226993 | Concave,MF | 1021kg

442.8818-01 | Concave ring,F,R 223.1117,11 | 1172kg

452.0808-001 | Eccentric wearing plate | 45kg

452.0312-001 | Wear Plate, Wear Plate | 54kg

BG00566564 | Mainshaft assembly | 2300kg

442.8099-91 | Concave segment, C | 107kg

442.9325-00 | Over pressure fan | 15.8kg

442.8247-01 | Concave ring MC | 632kg

442.7492-01 | Spider cap | 210kg

BG00228529 | Concave,M | 966kg

442.8818-02 | Concave ring,F,R 223.1117,11 | 1172kg

452.0727-001 | Pinion shaft | 214kg

452.0264-001 | Mantle EF | 3500kg

442.8098-00 | First lower concave, C | 878kg

442.9871-00 | BOTTOM SHELL H/S 2000, N11852154 | 1433kg

442.8249-01 | Concave ring EC | 616kg

442.9408-01 | Spider bushing | 70kg

BG00228530 | Concave,M | 966kg

442.8817-01 | Concave ring,MF,R 223.1117,11 | 1222kg

BG00239981 | Mantle,Flexifeed B | 1678kg

442.9339-01 | Mantle B | 3010kg

442.8098-90 | First lower concave, C | 878kg

442.6131-01 | BOTTOMSHELL BUSHING /H2000, N11851103 | 44kg

442.8245-01 | Filler ring C (MC,EF) | 298kg

442.8416-01 | Concave ring EF, M1 | 829kg

BG00228531 | Concave,M | 966kg

442.8817-02 | Concave ring,MF Cubierta exterior,R 223.1117,MF M2,11 | 1222kg

BG00692006 | Mantle,HRi | 1893kg

442.9758-01 | Mantle Heavy-Choice, Cubierta Interior Manteau | 3700kg

442.8098-91 | First lower concave, C | 878kg

442.6132-01 | DUST COLLAR, N11851104 | 67kg

442.8008-01 | Filler ring M (F,MF) | 577kg

442.8417-01 | Concave ring F, M1 | 843kg

452.7275-001 | Eccentric wearing plate | 24kg

442.8863-01 | Filler ring,MF,(F, MF) | 1146kg

452.0675-001 | BOTTOM SHELL CH870, N11852156 | 12700kg

452.0579-001 | Concave Ring, EEF | 3605kg

442.8114-00 | First lower concave, EC | 948kg

442.6139-01 N11851109 | PISTON WEARING PLATE | 7kg

442.7915-01 | Liner-Pin shaft arm,Arm liners | 36kg

442.8418-01 | Concave ring MF, M1 | 814kg

BG01074558 | Bottom shell bushing | 119kg

442.8816-01 | Concave ring,M Cubierta exterior Enveloppe extérieure,R 223.1117,M M1,11 | 1292kg

452.1066-901 | PINION SHAFT ARM LINER, N11852175 | 222kg

442.9471-01 | Concave Ring, MC (F) | 3768kg

442.8114-90 | First lower concave, EC | 948kg

442.6138-01 N11851108 | MAIN SHAFT STEP | 9kg

442.7914-01 | Liner-Narrow arm,Arm liners | 27kg

442.8420-01 | Concave ring MC , M1 | 810kg

BG01078588-03 | Eccentric bushing, 28/32/36 | 132kg

442.8816-02 | Concave ring,M,R 223.1117,11 | 1292kg

452.1065-901 | NARROW ARM LINER, N11852174 | 165kg

442.9312-02 | Concave ring,MF | 3950kg

442.8114-91 | First lower concave, EC | 948kg

442.6789-03 | MANTLE B 21MNCR CS420, MM1328308 | 407kg

442.8870-00 | Bottomshell liner kit | 201kg

442.8421-01 | Concave ring C, M1 | 845kg

BG01078588-01 | Eccentric bushing, 44/48/52 | 132kg

442.8815-01 | Concave ring,MC,R 223.1117,11 | 1320kg

452.0926-00 | DUST COLLAR, N11852417 | 595kg

442.9336-01 | Concave ring,EC,Cóncavo | 4052kg

452.0945-901 | CONCAVE RING C, STEPPED 2 14MNCR CS440, MM1223001 | 796kg

442.7000-02 | MANTLE EF 18MNCR CH420, MM1328228 | 245kg

442.8864-01 | Wearing plates,Included in Bottomshell liner kit | 18kg

452.3027-001 | Concave EC Topgrip | 784kg

452.8600-002 | Concave,F | 1090kg

442.8815-02 | Concave ring,MC Cubierta exterior,R 223.1117,MC M2,11 | 1320kg

452.0999-001 | RING, N11852419 | 17kg

442.9249-01 | Eccentric wearing plate Arandela de cojinete,Plaque d'appui de l'excentrique | 52kg

452.0945-902 | CONCAVE RING C, STEPPED 2 18MNCR CS440, MM1328268 | 796kg

442.9698-02 | MANTLE A 18MNCR CH420, MM1328220 | 290kg

442.8865-01 | Wearing plates,Included in Bottomshell liner kit | 27kg

442.8419-01 | Concave ring M, M1 | 823kg

BG00214258 | Main Shaft Step Bearing | 26kg

442.8823-01 | Filler ring,MC,(M, MC) | 573kg

452.1000-001 | SEAL RING INNER, N11852083 | 6kg

BG00227258 | Concave,HR | 3372kg

452.0945-903 | CONCAVE RING C, STEPPED 2 21MNCR CS440, MM1223002 | 796kg

442.6789-02 | MANTLE B 18MNCR CS420, MM1328215 | 407kg

442.8866-01 | Wearing plates,Included in Bottomshell liner kit | 7kg

442.7485-01 | Filler ring MC, M, EF | 597kg

442.8814-01 | Concave ring,C Cubierta exterior Enveloppe extérieure,R 223.1117,C M1,11 | 1207kg

452.0540-001 | ECCENTRIC, N11852157 | 809kg

BG00282784 | Mantle,FlexiFeed A | 3901kg

452.6200-001 | Arm Shield | 243kg

442.6197-02 | MANTLE B 18MNCR CH420, MM1328122 | 231kg

442.7985-00 | Feed hopper | 282kg

442.7484-01 | Filler ring MF, F | 384kg

442.8814-02 | Concave ring,C,R 223.1117,11 | 1207kg

452.0530-901 | Gear and pinion set 50HZ, N11852158 | 450kg

442.9249-01 | ECCENTRIC WEARING PLATE, N11851551, 442.9249-02 | 52kg

452.3821-902 | Concave Lower C | 859kg

442.6789-01 | MANTLE B 14MNCR CS420, MM1223141 | 407kg

442.7915-01 | Pin shaft arm liner | 36kg

442.8425-01 | Support ring | 139kg

442.9230-01 | Concave ring,CX,R 223.1117,11 | 1388kg

452.0808-001 | ECCENTRIC WEARING PLATE, N11852087 | 45kg

452.2631-901 | STEP BEARING SET (2260/2280/4075) LAPPED,442.9722,442.9723,442.9724, N11852195 | 301kg

442.9036-02 | WEAR PLATE RIM LINER | 69kg

442.6197-03 | MANTLE B 21MNCR CH420, MM1223140 | 231kg

442.7914-01 | Narrow arm liner | 27kg

442.7140-00 | Liner-Pin shaft arm,Arm liners | 44kg

442.9230-02 | Concave ring,CX Cubierta exterior,R 223.1117,CX M2,11 | 1388kg

452.0656 N11852161 | PINION SHAFT HOUSING ASSY CH870 | 680kg

452.2007-901 | PINION SHAFT HOUSING ASSY H8000, N11852160 | 2800kg

442.9325-90 | Over pressure fan | 45kg

442.9698-03 | MANTLE A 21MNCR CH420, MM1222989 | 290kg

442.9666-01 | Piston | 115kg

442.7141-01 | Liner-Narrow arm,Arm liners | 43kg

442.8813-01 | Concave ring,EC,R 223.1117,11 | 1274kg

452.1930-901 | MAIN SHAFT & HEAD CENTER ASSY / USE ASSY N11852163, 452.4426-901 | 9000kg

442.9314-02 | MANTLE A (XT710) CH880, N11944828 | 3681kg

442.9698-01 | MANTLE A 14MNCR CH420, MM1222988 | 290kg

442.7927-01 | Eccentric wear plate | 13kg

442.7191-00 | Feed hopper | 355kg

442.8813-02 | Concave ring,EC,R 223.1117,11 | 1274kg

452.0924-001 | DUST SEAL RING, N11852066 | 36kg

452.4051-002 | MANTLE EEF M2 CH880, MM0352126 | 3716kg

442.9587-02 | CONCAVE C 18MNCR CH420, MM1328243 | 279kg

442.7925-01 | Eccentric bushing,29+32+34+36 | 67kg

442.7191-90 | Feed hopper with insp. door | 355kg

442.8793-01 | Support ring | 177kg

452.0664-001 | TOP SHELL CH870, N11852164 | 8353kg

442.9340-02/452.0264-002 | MANTLE EF (XT710) CH880, MM0238783 | 3500kg

442.9585-02 | CONCAVE MF 18MNCR CH420, MM1328224 | 472kg

442.7935-01 | BOTTOM SHELL BUSHING | 62kg

442.7270-00 | Feed hopper with cone complete | 575kg

442.9040-01 | Wearing plate HB 360-440 16x741x374 Planchas de desgaste,Plaques d'usure | 21kg

452.1060-001 | SPIDER ARM SHIELD, N11852173 | 162kg

452.5427-001 | TOP SHELL EC2 H8000, N11851545 | 14568kg

442.9569-02 | CONCAVE EC 18MNCR CH420, MM1328221 | 327kg

442.7924-01 | Eccentric bushing,22+25+29 | 67kg

442.7192-00 | Feed hopper cone-LH,For concave EC | 56.8kg

442.9041-01 | Wearing plate HB 360-440 16x617x380 Planchas de desgaste,Plaques d'usure | 14.8kg

452.0549-001 | RETAINING RING, N11852170 | 5.8kg

442.9398-02 | CONCAVE COARSE (XT710) CH880, N11944687 | 4097kg

442.9569-03 | CONCAVE EC 21MNCR CH420, MM1225660 | 327kg

452.6564-001 | PINIONSHAFT ARMLNR 14MNCR H/S3000, MM1224532 | 35kg

442.7192-90 | Feed hopper cone-RH,For concave EC | 56.8kg

442.9042-01 | Wearing plate HB 360-440 16x604x454 Planchas de desgaste,Plaques d'usure | 26kg

452.1369-901 | WEAR PLATE ASSY KIT, N11852422 | 150kg

442.9471-02 | CONCAVE FINE-MEDIUM-COARSE (XT710) CH880, N11944684 | 3768kg

442.9569-01 | CONCAVE EC 14MNCR CH420, MM1225659 | 327kg

452.6563-001 | NARROW ARM LINER 14MNCR H/S3000, MM1224533 | 26kg

442.9949-00 | V-belt drive SPC, 4-pol 50 Hz,Complete | 101kg

442.9043-01 | Wearing plate HB 360-440 16x603x454 Planchas de desgaste,Plaques d'usure | 32.7kg

452.0687-001 | SUPPORT RING, N11852080 | 450kg

452.0579-002 | CONCAVE EXTRA-EXTRA-FINE SHORT (XT710) CH880, MM0352127 | 3605kg

442.9583-02 | CONCAVE EF 18MNCR CH420, MM1224944 | 440kg

442.7935-01 | BOTTOM SHELL BUSHING, N11851322 | 58kg

879.0359-00 | V-belt Pulley 375 MGT 125 10xSPC | 80kg

442.9045-00 | Part of cone, left,Parte de cono, izquierda,Tolerie (blindage) tronconique, gauche,EC, CX | 94kg

452.0919-001,452.5504 Assembly no | Head center | 4512kg

442.9336-02 | CONCAVE EXTRA-COARSE (XT710) CH880, MM0346040 | 4052kg

442.9583-01 | CONCAVE EF 14MNCR CH420, MM1224931 | 440kg

442.8486-01/452.4516-001 N11851409 | ECCENTRIC BUSHING 16+20+25+30/S3000 | 76kg

869.0235-00 | Bushing MGT NR 125 ø100 | 16kg

442.9045-90 | Part of cone, right Parte de cone, derecha,Tolerie (blindage) tronconique, droite,EC, CX | 94kg

452.0918-001,452.5504 Assembly no | Main Shaft | 3925kg

452.3319-001 | Topshell | 13017kg

442.7214-02 | CONCAVE F 18MNCR CH420, MM1224673 | 535kg

452.4193-001 | ECCENTRIC BUSHING 29 32 34 36,blank 442.7922, N11851309, 442.7925-01 | 63kg

442.7140-00 | Pin shaft arm liner | 44kg

442.8777-00 | Check valve,Valvula de retencion,R 223.1111,7 | 22kg

452.0507-001 | Main shaft step | 68kg

452.0281-001 | Bottomshell | 17500kg

442.7214-01 | CONCAVE F 14MNCR CH420, MM1224633 | 535kg

442.7923-01 | ECCENTRIC BUSHING 16+19+22 | 63kg

442.7141-00 | Narrow arm liner | 43kg

879.0497-00 | V-belt pulley 500 MGT125 12xSPC Polea para correa en V,Poulie à courroie trapézoidale | 135kg

452.0537-01 | Step washer | 71kg

442.9336-005 | Concave, EC | 4052kg

442.9587-03 | CONCAVE C 21MNCR CH420, MM1224558 | 279kg

452.4188-001 | ECCENTRIC WEARING PLATE, 442.7927-01, N11851311 | 12kg

BG00259470 | STEP BEARING SET (2260/2280/4075) LAPPED, N11852206 | 75kg

442.8820-01 | Mantle B,F, MF, M, MC, C, EC,Cubierta interior,M1,Enveloppe intérieure | 1094kg

452.0838-001 | Concave EC | 2010kg

442.9340-01 | MANTLE EF M1 | 3500kg

442.9587-01 | CONCAVE C 14MNCR CH420, MM1224557 | 279kg

BG00259459 | STEP BEARING SET (2260/2280/4075) LAPPED, N11852210 | 39kg

452.1699-901 | MAIN SHAFT ASSEMBLY S4000, 442.9035-AD, N11851877 | 3770kg

442.8820-02 | Mantle B,F, MF, M, MC, C, EC,Cubierta interior,M2,Enveloppe intérieure | 1094kg

452.0538-01 | Piston wearing plate | 60kg

BG00210383 | Main Shaft Step Bearing | 8kg

452.0655-901 | MAIN SHAFT ASSEMBLY S3000, 442.8937-AD, N11851879 | 2100kg

BG00213813 | TAPERED MAINSHAFT SLEEVE CH440:2: BLOCK U.S.A!!, N11852051 | 36.4kg

442.9760-01 | Mantle HEAVY-CHOKE,F, MF, M, MC, C, EC,Cubierta interior,M1,Enveloppe intérieure | 1199kg

452.0656-901 | Pinion shaft housing assembly | 900kg

442.7591-901 | Main Shaft Assembly Head & Shaft Only | 970kg

BG00215626 | TAPERED MAINSHAFT SLEEVE CH/S 430, N11852098 | 26kg

442.7230-03 | MANTLE B 21MNCR CH440, MM1328259 | 613kg

442.9760-02 | Mantle HEAVY-CHOKE,F, MF, M, MC, C, EC,Cubierta interior,M2,Enveloppe intérieure | 1199kg

452.0953-901 | Hydroset cylinder assembly | 3000kg

442.9584-02 | Concave ring F | 535kg

442.8470-03 | MANTLE A 21MNCR CS430, MM1328289 | 755kg

442.7225-03 | MANTLE A 21MNCR CH440, MM1328257 | 665kg

442.8800-00 | Head nut with burning ring Tuerca con anillo de eje principal,Ecrou d'arbre principale avec bague | 83kg

930.0328-00 | Omega Elastomer Coupling E120 D110mm, D120mm | 200kg

BG01116613 | SPIDER CAP | 70kg

442.7988-03 | MANTLE A 21MNCR CH430, MM1328266 | 498kg

442.8089-02 | MANTLE A 18MNCR CS440, MM1328230 | 1271kg

442.8817-01 | Concave ring MF Cubierta exterior Enveloppe extérieure,MF M1 | 1222kg

194.0575-90 | Panel mounted | 5kg

442.7009-01 | Eccentric bushing | 40kg

442.9759-03 | MANTLE HC 21MNCR CH430, MM1328262 | 474kg

442.8039-02 | MANTLE EF 18MNCR CH440, MM1328226 | 765kg

442.8817-02 | Concave ring MF Cubierta exterior Enveloppe extérieure,MF M2 | 1222kg

902.0771-001 | Main lubrication system safety valve | 5kg

442.9871-01 | BOTTOM SHELL | 1433kg

442.8471-02 | MANTLE B 18MNCR CS430, MM1328187 | 665kg

442.9073-02 | MANTLE HC 18MNCR CH440, MM1328181 | 659kg

442.8815-01 | Concave ring MC Cubierta exterior Enveloppe extérieure,MC M1 | 1320kg

452.0684-901 | Top shell assembly | 10096kg

442.9554-01 | Topshell EC2 | 1000kg

442.9759-02 | MANTLE HC 18MNCR CH430, MM1328182 | 474kg

442.7225-02 | MANTLE A 18MNCR CH440, MM1328174 | 665kg

442.8815-02 | Concave ring MC Cubierta exterior Enveloppe extérieure,MC M2 | 1320kg

442.6197-05 | MANTLE B | 231kg

442.7989-02 | MANTLE B 18MNCR CH430, MM1328173 | 417kg

442.8070-03 | MANTLE B 21MNCR CS440, MM1328138 | 1147kg

442.8814-01 | Concave ring C Cubierta exterior Enveloppe extérieure,C M1 | 1207kg

442.9569-05 | CONCAVE EC | 327kg

442.7988-02 | MANTLE A 18MNCR CH430, MM1328168 | 498kg

442.8089-03 | MANTLE A 21MNCR CS440, MM1328137 | 1271kg

442.8814-02 | Concave ring C Cubierta exterior Enveloppe extérieure,C M2 | 1207kg

442.9584-05 | Concave ring F | 535kg

442.7989-03 | MANTLE B 21MNCR CH430, MM1328134 | 417kg

442.8070-01 | MANTLE B 14MNCR CS440, MM1225653 | 1147kg

442.8813-01 | Concave ring EC Cubierta exterior Enveloppe extérieure,EC M1 | 1274kg

442.9698-05 | MANTLE A | 290kg

442.8471-01 | MANTLE B 14MNCR CS430, MM1224784 | 665kg

442.8089-01 | MANTLE A 14MNCR CS440, MM1224791 | 1271kg

442.8813-02 | Concave ring EC Cubierta exterior Enveloppe extérieure,EC M2 | 1274kg

442.9584-03 | Concave ring F | 535kg

442.7989-01 | MANTLE B 14MNCR CH430, MM1224584 | 417kg

442.8039-03 | MANTLE EF 21MNCR CH440, MM1224740 | 765kg

442.8730-01 | Piston wearing plate Placa de presion Plaque de pression | 36kg

442.8470-02 | MANTLE A 18MNCR CS430, MM1223027 | 755kg

442.8039-01 | MANTLE EF 14MNCR CH440, MM1224738 | 765kg

442.8732-01 | Main shaft step,Placa de presion, superior Plaque de pression supérieure | 37kg

442.8470-01 | MANTLE A 14MNCR CS430, MM1223026 | 755kg

442.7225-01 | MANTLE A 14MNCR CH440, MM1224552 | 665kg

452.3765-001 | Bottom shell | 6622kg

442.7988-01 | MANTLE A 14MNCR CH430, MM1222997 | 498kg

442.9073-03 | MANTLE HC 21MNCR CH440, MM1224317 | 659kg

BG00565178 N11852352 | BOTTOM SHELL CH/CS660 5-ARMS W/RUBBER LINING | 8297kg

442.9759-01 | MANTLE HC 14MNCR CH430, MM1222996 | 474kg

442.9073-01 | MANTLE HC 14MNCR CH440, MM1224316 | 659kg

452.5222-001 | PINIONSHAFT ARMLNR CH660:2 (x1 for 5-armed), BG00277273, MM1222981 | 99kg

442.9035-01 | RIM LINER XT610 1of 6 14MNCR /S3000, MM1224594 | 43kg

442.7230-02 | MANTLE B 18MNCR CH440, MM1223128 | 613kg

452.5227-001 | NARROW ARM LINER CH660:2 (x4 for 5-armed), MM1222984 | 90kg

442.8451-01 | SPIDER ARM SHIELD OLD STYLE 14MNCR /S3000, MM1224761 | 138kg

442.7105-00 | HEAD NUT WITH RING, N11851695 | 50kg

891.1772-901 | RUBBER LINER ASSEMBLY BOTTOMSHELL,Wear Protection Kit,5-ARM CH/CS660, N11852488 | 200kg

442.8247-03 | CONCAVE MC 21MNCR CH430, MM1328263 | 632kg

442.8075-01 | SPIDER ARM SHIELD 14MNCR CS440, MM1224762 | 230kg

442.8741-01 | DUST COLLAR 452.4151,N11851438 | 278kg

452.1216-002 | CONCAVE MF 18MNCR CH430, MM1328261 | 589kg

442.9164-00 | SPIDER CAP TPE /S4000, N11851532 | 306kg

442.8723-00 | GEAR SET CPL H/S6000, N11851428 | 229.4kg

442.8248-02 | CONCAVE C 18MNCR CH430, MM1328200 | 551kg

BG00237121 | SPIDER BUSHING MNBR, N11852031, 442.9408-01 | 70kg

442.8761-01 | ECCENTRIC WEARING PLATE H/S6000, N11851446 | 25kg

442.8249-02 | CONCAVE EC 18MNCR CH430, MM1328199 | 616kg

442.8418-03 | CONCAVE MF 21MNCR CH440, MM1328267 | 814kg

BG00259473 | STEP BEARING SET (2260/2280/4075) LAPPED, N11852120 | 121kg

442.8251-02 | CONCAVE F 18MNCR CH430, MM1328172 | 583kg

452.3027-003 | CONCAVE EC TOPGRIP 21MNCR CH440, MM1328258 | 784kg

442.8730-01 N11851433 | PISTON WEARING PLATE | 36kg

442.8247-02 | CONCAVE MC 18MNCR CH430, MM1328171 | 632kg

442.8421-02 | CONCAVE C 18MNCR CH440, MM1328240 | 845kg

442.8847-901 | PINION SHAFT HOUSING ASSY H/S6000,BG00598827 N11851950 | 350kg

442.8246-02 | CONCAVE M 18MNCR CH430, MM1328169 | 570kg

442.8420-02 | CONCAVE MC 18MNCR CH440, MM1328234 | 810kg

452.4222-901 | MAIN SHAFT ASSEMBLY S6000, 452.1700-901/452.1640-901 N11852162 | 4500kg

452.1216-003 | CONCAVE MF 21MNCR CH430, MM1328160 | 589kg

442.8418-02 | CONCAVE MF 18MNCR CH440, MM1328233 | 814kg

BG00325390 | MAIN SHAFT SLEEVE TAPERED CH/CS660 / BLOCK U.S.A., N11852099 | 82kg

442.8251-03 | CONCAVE F 21MNCR CH430, MM1328155 | 583kg

442.8416-02 | CONCAVE EF 18MNCR CH440, MM1328219 | 829kg

442.8732-01 N11851435 | MAIN SHAFT STEP | 37kg

442.8248-03 | CONCAVE C 21MNCR CH430, MM1328136 | 551kg

452.3027-002 | CONCAVE EC TOPGRIP 18MNCR CH440, MM1328180 | 784kg

442.8819-03 | MANTLE A 21MNCR CH660, MM1328297 | 1192kg

442.8246-03 | CONCAVE M 21MNCR CH430, MM1328135 | 570kg

442.8417-02 | CONCAVE F 18MNCR CH440, MM1328177 | 843kg

442.9760-02 | MANTLE HC 18MNCR CH660, MM1328227 | 1199kg

442.8251-01 | CONCAVE F 14MNCR CH430, MM1224546 | 583kg

442.8419-02 | CONCAVE M 18MNCR CH440, MM1328175 | 823kg

442.8821-02 | MANTLE D 18MNCR CH660, MM1328193 | 1157kg

452.1216-001 | CONCAVE MF 14MNCR CH430, MM1224351 | 589kg

442.8417-03 | CONCAVE F 21MNCR CH440, MM1328150 | 843kg

442.8819-02 | MANTLE A 18MNCR CH660, MM1328184 | 1200kg

442.8246-01 | CONCAVE M 14MNCR CH430, MM1223431 | 570kg

442.8419-03 | CONCAVE M 21MNCR CH440, MM1328133 | 823kg

442.8820-03 | MANTLE B 21MNCR CH660, MM1328142 | 1094kg

442.8248-01 | CONCAVE C 14MNCR CH430, MM1223019 | 551kg

442.8421-03 | CONCAVE C 21MNCR CH440, MM1225664 | 845kg

442.9760-03 | MANTLE HC 21MNCR CH660, MM1224576 | 1199kg

442.8249-03 | CONCAVE EC 21MNCR CH430, MM1223017 | 616kg

442.8421-01 | CONCAVE C 14MNCR CH440, MM1225663 | 845kg

442.9760-01 | MANTLE HC 14MNCR CH660, MM1224575 | 1199kg

442.8249-01 | CONCAVE EC 14MNCR CH430, MM1223016 | 616kg

442.8416-03 | CONCAVE EF 21MNCR CH440, MM1224755 | 829kg

442.8821-03 | MANTLE D 21MNCR CH660, MM1224290 | 1157kg

442.8247-01 | CONCAVE MC 14MNCR CH430, MM1222969 | 632kg

442.8416-01 | CONCAVE EF 14MNCR CH440, MM1224753 | 829kg

442.8821-01 | MANTLE D 14MNCR CH660, MM1224289 | 1157kg

442.8478-91 | CONCAVE RING LOWER C 21MNCR CS430, MM1328307 | 463kg

442.8417-01 | CONCAVE F 14MNCR CH440, MM1224551 | 843kg

442.8983-03 | MANTLE B 21MNCR CS660, MM1222976 | 1915kg

442.8477-90 | CONCAVE RING LOWER EC 18MNCR CS430, MM1328186 | 534kg

442.8419-01 | CONCAVE M 14MNCR CH440, MM1223160 | 823kg

442.8983-02 | MANTLE B 18MNCR CS660, MM1222975 | 1915kg

442.8477-00 | CONCAVE RING LOWER EC 14MNCR CS430, MM1223028 | 534kg

442.8420-03 | CONCAVE MC 21MNCR CH440, MM1223036 | 810kg

442.8983-01 | MANTLE B 14MNCR CS660, MM1222974 | 1915kg

442.8485-00 | CONCAVE SEGMENT UPPER C 14MNCR CS430, MM1328216 | 82kg

442.8420-01 | CONCAVE MC 14MNCR CH440, MM1223035 | 810kg

BG00395488 | TOP SHELL ASSY / RAISED ARMS CH660 (NEW STYLE), N11852331 | 4935kg

442.8484-00 | CONCAVE SEGMENT UPPER EC 14MNCR CS430, MM1328170 | 74kg

442.8098-90 | CONCAVE RING LOWER C 18MNCR CS440, MM1328188 | 877kg

442.8975-01 | SPIDER RIM LINER (x12) /S6800/CS660, N11851739 | 63kg

452.0274-901 | CONCAVE SEGMENT UPPER MC 14MNCR CS430, MM1224785 | 123kg

452.0273-902 | CONCAVE RING LOWER MC 18MNCR CS440, MM1328156 | 893kg

442.8969-00 | SPIDER S6000/BG00395422 N11851835 | 4426kg

442.8484-90 | CONCAVE SEGMENT UPPER EC 18MNCR CS430, MM1223029 | 74kg

452.1955-902 | CONCAVE RING EC, STEPPED 2 18MNCR CS440, MM1328145 | 926kg

452.3841-001 | SPIDER CAP CH660 (NEW STYLE) N11852332 | 340kg

452.5574-901 | Pinionshaft housing repair kit | 9kg

442.8114-91 | CONCAVE RING EC 21MNCR CS440, MM1328140 | 948kg

442.8977-01 | SPIDER CAP | 416kg

BG00229485 | Piston wear plate | 13kg

442.8098-91 | CONCAVE RING LOWER C 21MNCR CS440, MM1328139 | 877kg

452.5862-901 | SPIDER CAP DOME, TOP / CS660, S6800, N11852073 | 430kg

BG00566438 | Main Shaft Assembly Excl Mantle | 1690kg

452.1972-901 | CONCAVE RING LOWER MC STEPPED 2 18MNCR CS440, MM1224765 | 836kg

442.8814-03 | CONCAVE C 21MNCR CH660, MM1328299 | 1207kg

BG00395477 | Top shell assy excluding concave ring | 1755kg

442.8098-00 | CONCAVE RING LOWER C 14MNCR CS440, MM1223174 | 877kg

442.8813-03 | CONCAVE EC 21MNCR CH660, MM1328298 | 1274kg

452.7002-902 | Lower concave,C | 470kg

442.8114-00 | CONCAVE RING EC 14MNCR CS440, MM1222987 | 948kg

442.8813-02 | CONCAVE EC 18MNCR CH660, MM1328237 | 1274kg

BG00516535 | LUBE PUMP | 8kg

452.1955-903 | CONCAVE RING EC, STEPPED 2 21MNCR CS440, MM1222986 | 926kg

442.8817-02 | CONCAVE MF 18MNCR CH660, MM1328225 | 1192kg

442.7912-01 | Head Nut | 25kg

452.1955-901 | CONCAVE RING EC, STEPPED 2 14MNCR CS440, MM1222985 | 926kg

442.8815-02 | CONCAVE MC 18MNCR CH660, MM1328207 | 1320kg

442.7989-05 | MANTLE B M9 | 417kg

442.8099-90 | CONCAVE SEGMENT UPPER C 18MNCR CS440, MM1225655 | 107kg

442.8814-02 | CONCAVE C 18MNCR CH660, MM1328185 | 1207kg

442.8249-05 | CONCAVE EC M9 | 616kg

442.8099-00 | CONCAVE SEGMENT UPPER C 14MNCR CS440, MM1225654 | 107kg

442.9230-03 | CONCAVE CX 21MNCR CH660, MM1328132 | 1388kg

452.1216-005 | CONCAVE MF M9 | 589kg

919.0165-00 | ACCUMULATOR EHV ACCU 24.5-330/90 | 70kg

442.8815-03 | CONCAVE MC 21MNCR CH660, MM1225652 | 1320kg

442.9035-02 | RIM LINER 18MNCR | 43kg

BG00395484 | Top shell excluding concave | 3100kg

442.8815-01 | CONCAVE MF 14MNCR CH660, MM1225651 | 1320kg

452.6115-001 | Mantle FlexiFeed B | 449kg

BG01116734 | Spider Cap | 154kg

442.8817-03 | CONCAVE MF 21MNCR CH660, MM1225650 | 1222kg

452.6115-002 | Mantle FlexiFeed B | 449kg

BG00579403 | Pinion Shaft Housing Assembly | 241kg

442.8817-01 | CONCAVE MF 14MNCR CH660, MM1225649 | 1222kg

452.6115-005 | Mantle FlexiFeed B | 449kg

BG00228541 | Step Washer | 24kg

442.8814-01 | CONCAVE C 14MNCR CH660, MM1224786 | 1207kg

BG00227004 | Main Shaft Step Bearing | 24kg

442.8813-01 | CONCAVE EC 14MNCR CH660, MM1224301 | 1274kg

452.0231-001 | Bottom shell | 4041kg

BG00420435 | CONCAVE CX, WITH LIFTING LUGS 18MNCR CH660, MM1222999 | 1400kg

BG00570208 | Bottom Shell Assembly | 4926kg

442.9071-90 | CONCAVE RING LOWER C 18MNCR CS660, MM1328212 | 2064kg

BG00566212 | Main shaft assembly excluding mantle | 2845kg

442.9071-00 | CONCAVE RING LOWER C 14MNCR CS660, MM1224573 | 2064kg

BG00566233 | Main shaft Assembly including mantle | 2750kg

442.9072-90 | CONCAVE RING UPPER C 18MNCR CS660, MM1328231 | 1775kg

BG00296337 | Mainshaft assembly | 3000kg

442.9072-00 | CONCAVE RING UPPER C 14MNCR CS660, MM1224574 | 1775kg

442.7140-01 | Arm shield | 44kg

194.0575-00 | CABINET, ELECTRICAL, N11852198 | 10kg

442.8422-01 | Bowl liner | 809kg

BG00575600 | Foot assembly CH660 CS660 | 324kg

442.7259-901 | Mainshaft assembly | 2780kg

442.8756 | Foot | 77kg

442.8422-02 | Bowl liner | 809kg

452.4309-001 | Main shaft | 2003kg

442.8553-902 | Top shell assembly | 6520kg

452.4311-001 | Head center | 2290kg

442.9664-01 | Piston | 186kg

442.8738-01 | Piston | 342kg

BG00395265 | Top shell assy | 4819kg

452.4865-001 | Hydroset cylinder | 255kg

442.8421-05 | CONCAVE C M9 | 845kg

442.9803-00 | Gear and pinion set | 230kg

452.6444-901 | Eccentric assembly | 750kg

452.4130-901 | mainshaft assembly | 5891kg

442.7230-05 | MANTLE B M9 | 613kg

452.4982-901 | Foot assembly | 77kg

442.8419-05 | CONCAVE M M9 | 823kg

452.4983-901 | Foot assembly | 77kg

442.8417-05 | CONCAVE F M9 | 843kg

452.0820-001 | Mantle EF | 1411kg

442.8422-03 | Bowl liner | 809kg

452.0832-001 | Concave EF | 1200kg

BG00420434 | Concave ring CX M1 | 1400kg

452.4297-901 | Foot Assembly | 239kg

452.4128 | ECCENTRIC ASSEMBLY | 1194kg

452.4127-00 | PINIONSHAFT HOUSING ASSEMBLY | 338kg

891.2133-901 | RUBBER LINING WALL PROTECTION KIT FOR BOTTOM SHELL | 164kg

442.4329-90 | Pump,Assembly,Lubrication | 60.4kg

BG00212915 | Main Shaft Step Bearing | 41kg

BG00213342 | Piston Step Bearing | 39kg

BG00213489 | Step washer | 45kg

452.3760-001 | Top Shell | 4855kg

452.6027-001 | Mantle | 1191kg

452.0820-002 | Mantle EF | 1411kg

891.2033-901 | Arm protection set | 360kg

BG00277273 | Narrow Arm Liner | 92kg

891.1897-901 | Conical Feed Hopper Liners EC Kit Rubber | 172kg

891.1858-901 | RUBBER LINING | 14.3kg

452.4131-901 | TOP SHELL ASSY / RAISED ARMS CH660 (NEW STYLE), N11852331 | 6865kg

442.9072-95 | CONCAVE RING UPPER M9 | 1775kg

442.9071-95 | CONCAVE RING LOWER M9 | 2064kg

442.8983-05 | MANTLE B M9 | 1915kg

442.8821-05 | MANTLE D M9 | 1157kg

442.8820-05 | MANTLE B M9 | 1094kg

442.9230-05 | CONCAVE CX M9 | 1388kg

442.8817-05 | CONCAVE MF M9 | 1222kg

442.9071-91 | CONCAVE RING LOWER Mn21Cr2 | 2064kg

442.9072-91 | CONCAVE RING UPPER C Mn21Cr2 | 1775kg

452.4224-901 | Spider assembly | 7300kg

442.9071-90 | CONCAVE RING LOWER C M2 | 2064kg

Metso HP GP Series Cone Crusher Spare Parts List:

Metso GP330

Metso GP500

Metso GP550

Metso HP100

Metso HP200

Metso HP300

Metso HP400

Metso HP500

Metso HP600

Metso HP700

Metso HP800

Metso HP900

Metso MP1000

Metso MP1250

Metso MP2500

Metso S42x65 Gyratory crusher

Metso S50x65 Gyratory crusher

Metso S54x75 Gyratory crusher

Metso S60x89 Gyratory crusher

Metso S60x110 Gyratory crusher

MM0594667 | ECCENTRIC BUSHING | 90.65kg

941536 | THRUST BEARING,GP500 & GP500S | 104.5kg

MM0318508 | ECCENTRIC BUSHING | 145.59kg

N90248027 | ADJUSTMENT RING ASSY, CONJUNTO DO ANEL DE AJUSTE | 670.5kg

7041068006 | BOLT, LOCK | 20kg

7090008015 | MAIN FRAME ASSEMBLY | 4724.6kg

1093040131 | MAIN FRAME ASSEMBLY | 6808kg

1093050142 | MAIN FRAME ASSEMBLY | 9828.3kg

N98001024 | FEED CONE SET,STD | 104.3kg

1048314310 | BOWL LINER SHORT HEAD MEDIUM | 2208kg

1093080073 | HEAD ASSEMBLY | 6028kg

1044180343 | HOPPER, LOWER | 156kg

MM0391712 | Head sub-assembly | 9765kg

MM0347687 | MAIN FRAME ASSEMBLY | 48904kg

MM0350181 | COUNTERSHAFT BOX BUSHING | 78kg

07-250-010-001 | BOTTOMSHELL BUSHING,65 | 438kg

07-146-694-008 | BOLT, SQUARE HEAD,3.000-4UNC-2A X 17.00 | 19.6kg

07-252-469-001 | BOTTOMSHELL BUSHING,75,BAM22611 | 588kg

07-246-925-001 | BOTTOMSHELL BUSHING,6089 | 1043kg

17-303-841-501 | PINION SHAFT ASSEMBLY,60110 S/B 17-403-274-501 WITH ENPRO SEAL P.E. | 2930.0kg

MM1011329 | TOP BEARING | 76.49kg

312707 | PROTECTION BUSHING,G1315 | 66.7kg

582397 | TOP BEARING | 100.97kg

7090048200 | CONJUNTO DO SOQUETE | 33.3kg

N65558054 | FEED CONE | 11.3kg

7090248005 | ADJUSTMENT RING ASSY | 2377.6kg

1093040115 | ADJUSTMENT RING ASSEMBLY | 3006kg

1093050095 | COUNTERSHAFT ASSEMBLY | 776.9kg

N98000551 | SEALING DEVICE SET | 97.4kg

1048314349 | BOWL LINER SHORT HEAD MEDIUM | 2190kg

1048517411 | MAIN FRAME LINER | 700kg

1048300031 | BOWL LINER | 1177kg

1057605280 | Head ball | 480kg

MM0346164 | Main Frame Sub-Assembly | 44587kg

MM0349235 | ECCENTRIC BUSHING | 884kg

07-246-237-001 | BOTTOMSHELL BUSHING KEY,65 | 5kg

17-303-538-501 | MAIN SHAFT STEP,ASSY WITH WEAR INDICATOR 65 | 89kg

17-202-772-501 | DUST COLLAR,STANDARD UPPER COUNTERWEIGHT 75 | 565.2kg

07-246-927-001 | KEY,BOTTOMSHELL BUSHING | 7.5kg

17-303-541-501 | MAIN SHAFT STEP,WITH WEAR INDICATOR SG60110 ITALBRONZE LTDA | 347kg

MM0593668 | MAIN SHAFT ASSEMBLY | 3085.67kg

495277 | RING, SEAL,G1315 495277 | 13kg

MM0301237 | MAIN SHAFT ASSEMBLY | 5317.67kg

N90058031 | CONJUNTO DA CABEÇA | 360kg

7023508000 | BOWL | 1480kg

7090018004 | COUNTERSHAFT ASSEMBLY | 355.1kg

N90158038 | TRAMP RELEASE ASSEMBLY | 1576.3kg

N90228024 | ECCENTRIC ASSEMBLY | 2527.7kg

N85701309 | HOPPER,WITH FEED PLATFORM-ALL PRODUCT HP6 | 480kg

1048724021 | SOCKET LINER | 196kg

1038069733 | ARM GUARD | 152kg

7055308282 | MANTLE | 1228kg

1094305023 | Head stub bolt sub-assy | 332kg

MM0332086 | ADJUSTMENT RING ASSY | 29755kg

MM0349418 | SOCKET LINER | 1072kg

07-146-694-008 | BOLT, SQUARE HEAD,3.000-4UNC-2A X 17.00 | 19.6kg

17-203-250-501 | BURNING RING ASSEMBLY,5065 SUPERIOR GYRATORY MILWAUKEE BEARING &,MBM REQUOT | 45kg

07-346-505-001 | ECCENTRIC WEAR RING ASSEMBLY,75 | 114kg

17-303-096-501 | DUST COLLAR,LARGE UPPER COUNTERWEIGHT | 693kg

07-248-909-001 | PLUG,MAINSHAFT STEP RETAINER | 37.2kg

MM0593491 | COVER | 163.28kg

949618601658 | DRIVE GEAR PAIR,G15 186016+285758 | 309.5kg

941536 | THRUST BEARING | 105kg

N90258013 | CONJUNTO DO BOJO | 1225.5kg

1022814802 | ADJUSTMENT CAP | 335.8kg

N90228304 | ECCENTRIC ASSEMBLY | 1011.6kg

N90018011 | COUNTERSHAFT ASSEMBLY | 593.8kg

1093050067 | SOCKET ASSEMBLY | 235kg

N90288052 | TOOL ASSEMBLY,HP400-500 HP6 | 20.4kg

1050143800 | MANTLE, UPPER | 98kg

1057612407 | THRUST BEARING, LOWER | 78kg

1063437879 | BOWL ADAPTER RING | 183kg

1022075736 | Eccentric bushing | 456kg

1094300295 | CLAMPING CYLINDER | 23.2kg

MM0395406 | BOWL LINER | 16513kg

17-402-789-506 | ECCENTRIC ASSEMBLY,1.500 THROW MK-II STD UPPER CWT 4265 | 3059.5kg

17-301-712-001 | HEADNUT,OUTER, OR 1 PIECE | 126kg

07-350-236-001 | ECCENTRIC SUPPORT PLATE,75 | 467.2kg

17-203-125-801 | COUNTERWEIGHT, UPPER,AND HARDWARE LARGE 1.81 THROW 6089 | 846.4kg

1095059940 | BACKING COMPOUND,WF ULTRA PERFORMANCE, 22LB, P/N 241- 22PM,COPPS INDUSTRIES | 11.0kg

MM0577496 | HUB ASSEMBLY | 628.67kg

931467 | SETTING PISTON, | 507kg

582529 | BUSHING | 99kg

7004205203 | CHECK, RUBBER,.539607-45, | 5kg

1020962100 | SLIDE | 9.2kg

7090048101 | SOCKET ASSEMBLY | 104kg

7090228301 | ECCENTRIC ASSEMBLY | 1730kg

7090058016 | HEAD ASSEMBLY | 3072.4kg

N55209504 | BOWL LINER,F | 2249kg

1050143829 | MANTLE SHORT HEAD | 2288kg

1070589855 | SHIM,THRUST BEARING | 6.1kg

1063915676 | TORCH RING | 6.2kg

1068868619 | Main shaft | 4420kg

MM0345563 | BUSHING | 14.2kg

MM0394355 | UPPER MANTLE | 1066kg

07-345-013-001 | WEAR RING,ECCENTRIC 65 ITALBRONZE LTDA | 81.7kg

17-202-360-001 | DUST SEAL,WITH O-RING, 1-PC 65/70 WILLSUP INC. | 25kg

17-303-540-501 | MAIN SHAFT STEP,MK-II 75 ITALBRONZE LTDA,BAM22660 | 109kg

17-202-903-001 | SPLASH RING,DUST COLLAR, LARGE UPRCWT 6089 | 43.1kg

17-303-213-001 | HEADNUT,MACHINING 60-110 | 737.0kg

MM0523930 | BEARING, 272724 | 14.59kg

186099 | LUG,G1315 | 120kg

581211 | FRAME BUSHING | 89.23kg

N90288019 | Tool Assembly | 56.4kg

7080500423 | SUPPORT | 33kg

7090058000 | HEAD ASSEMBLY | 1183kg

N90048105 | SOCKET ASSEMBLY | 170kg

N90258006 | BOWL ASSEMBLY | 4544kg

N55309502 | MANTLE,EF/F | 1697kg

1050143833 | MANTLE SHORT HEAD, MED & COARSE, S/B | 2695kg

1038018752 | GUARD,STATIONARY COUNTERWEIGHT | 171kg

N22300505 | DRILLED BLOCK | 10.4kg

1048727628 | Socket liner | 463kg

1094300295 | CLAMPING CYLINDER ASSEMBLY | 22.2kg

MM0398020 | LOWER MANTLE | 14054kg

17-303-084-001 | ECCENTRIC SUPPORT PLATE,65 | 253kg

17-400-969-501 | BOTTOMSHELL SIDE LINER,LEFT HAND, ADJ PINIONSHAFT 65 | 120kg

1095059940 | BACKING COMPOUND,WF ULTRA PERFORMANCE, 22LB, P/N 241- 22PM,COPPS INDUSTRIES | 11kg

07-345-521-001 | ECCENTRIC WEAR RING ASSEMBLY,6089 | 163kg

17-202-238-001 | DUST SEAL RING,1 PIECE, 60-110,WILLSUP INC.,QTE 10/1/03 | 113.9kg

MM0521380 | BEARING, 292723 | 14.2kg

285869 | THRUST BEARING,G1315 | 29kg

581199 | SETTING PISTON | 493.29kg

7059801000 | VERIFICADOR INFLADOR | 5kg

7057500007 | GEAR BRAKE MOTOR | 63kg

7090058302 | FEED PLATE ASSEMBLY | 60.7kg

1093040077 | FEED CONE | 96.2kg

N90148029 | PIPING ASSEMBLY, OIL | 107.5kg

N12080205 | TORCH RING | 11kg

1050143842 | MANTLE SHORT HEAD | 2572kg

1033785794 | MAIN FRAME,MACHINING & SUB-ASSY | 18016kg

7002153011 | PRESSURE LIMITER | 7.6kg

1022148833 | Head bushing | 540kg

1022070708 | COUNTERSHAFT BOX BUSHING | 58.2kg

17-303-538-501 | MAIN SHAFT STEP,ASSY WITH WEAR INDICATOR 65 | 89kg

17-400-969-502 | BOTTOMSHELL SIDE LINER,RIGHT HAND, ADJ PINIONSHAFT 65 | 120kg

17-301-723-001 | HEADNUT,OUTER, 75 | 226.8kg

07-346-882-002 | ECCENTRIC SUPPORT PLATE,6089 | 834.6kg

07-249-039-501 | RETAINING RING,LOWER DUST SEAL, 60-110 | 697.0kg

MM1004197 | THRUST BEARING | 62.16kg

949630749800 | COVER,G14-SARJA 307498 | 7.4kg

MM0290376 | COVER SIDE PLATE | 245.57kg

7021900200 | REVEST. DA CARCAÇA PRINCIPAL,Mainframe liner | 117.9kg

7063002250 | PINION | 9kg

7090258000 | BOWL ASSEMBLY | 2173.4kg

1093040116 | BOWL ASSEMBLY | 2774.2kg

N90288014 | TOOLS ASSEMBLY | 201.2kg

N55209504-099 | BOWL LINER CASTING | 2249kg

1054440226 | MAIN FRAME PIN | 25.13kg

1063916952 | FRAME RING,INTERFERENCE FIT | 27.6kg

1087729041 | WRENCH, LOCKBOLT | 49kg

MM0344927 | Head bushing | 159kg

MM0317614 | ECCENTRIC ASSEMBLY | 9700kg

1095059940 | BACKING COMPOUND,WF ULTRA PERFORMANCE, 22LB, P/N 241- 22PM | 11kg

17-400-969-503 | BOTTOMSHELL SIDE LINER,LEFT HAND INTERMEDIATE 65 | 193kg

17-202-361-001 | DUST SEAL,WITH O-RING, 1 PIECE 75 WILLSUP INC. BAM22617 - 442.6123-01 | 34.5kg

17-303-531-501 | MAIN SHAFT STEP,WITH WEAR INDICATOR 89 | 232kg

07-125-202-001 | SPRING,COMPRESSION, 5.375 DIA X 16.25 LONG | 42.2kg

MM1004069 | FRAME BUSHING | 79kg

705302060400 | ROLLER BEARING,DIN5412-NU224 (G14) | 5.8kg

MM0290377 | COVER SIDE PLATE | 245.57kg

7022102001 | PROTEÇÃO DO BRAÇO | 20kg

N66000275 | BASE PLATE | 14.8kg

7090168002 | SHIM ASSEMBLY | 222.8kg

1093040180 | ADJUSTMENT MECHANISM ASSEMBLY | 790kg

1033785560 | MAIN FRAME | 8016kg

N55309502-099 | MANTLE CASTING | 1697kg

1093070190 | FEED PLATE ASSY | 221kg

1048517581 | FRAME SEAT LINER,SET OF 6 | 48kg

N90198830 | LUBRICATION BASE PLATE | 215kg

MM0264431 | Bowl assembly, MP1000 | 23200kg

MM0316879 | ECCENTRIC | 3050kg

17-301-712-001 | HEADNUT,OUTER, OR 1 PIECE | 126kg

17-400-969-504 | BOTTOMSHELL SIDE LINER,RIGHT HAND INTERMEDIATE 65 | 193kg

17-300-838-001 | DUST SEAL RETAINER, UPPER,75 | 816.5kg

1095059940 | BACKING COMPOUND,WF ULTRA PERFORMANCE, 22LB, P/N 241- 22PM,COPPS INDUSTRIES | 11kg

17-303-225-001 | SPIDER BUSHING,S/B 17-303-969-801, ALL THROW 60110 | 1761.3kg

MM1063672 | ARM GUARD | 41.38kg

705302994000 | ROLLER BEARING,DIN720-30224 (G14) | 6.2kg

MM0290378 | COVER SIDE PLATE | 177.44kg

7022102000 | PROTEÇÃO DO CONTRAEIXO,Countershaft guard | 9.2kg

7028000463 | PROTECTION COVER | 5kg

7072002019 | CYLINDRIC FEED EXTENSION | 73kg

1093040040 | HOPPER ASSEMBLY | 307kg

1057605167 | THRUST BEARING, LOWER | 42kg

N41060203 | BOLT, LOCK | 69.3kg

MM0203178 | MANTLE SPECIAL HP700 SH M-SPECIAL, 086 | 2293kg

1033785795 | MAIN FRAME,MACHINING | 15868kg

N43800023 | STRAINER | 5kg

1057605260 | THRUST BEARING | 189kg

1022075736 | ECCENTRIC BUSHING | 456kg

17-202-360-001 | DUST SEAL,WITH O-RING, 1-PC 65/70 WILLSUP INC. | 25kg

17-400-969-505 | BOTTOMSHELL SIDE LINER,RIGHT HAND ADJ NARROW ARM 65 | 139kg

07-248-267-501 | DUST SEAL RETAINER, LOWER,75 | 253kg

17-202-236-001 | DUST SEAL RING,89 | 58kg

17-303-229-801 | SPIDER VENT COVER,ASSEMBLY 60110 | 96.2kg

MM1070442 | COVER SIDE PLATE | 62.6kg

702128586900 | THRUST BEARING CASTING,G15 285869A-G GZ-CUPB10SN | 40kg

582348 | ECCENTRIC SHAFT | 395.54kg

7013308500 | EIXO PRINCIPAL,Main shaft | 152kg

1044180300 | FEED HOPPER, UPPER | 92kg

7090288005 | TOOLS ASSEMBLY | 163.5kg

N90288013 | TOOL ASSEMBLY | 182kg

1038069595 | ARM GUARD | 100kg

N98001025 | FEED CONE SET | 35kg

MM0203180 | BOWL LINER SH HD MEDIUM SPECIAL | 2736kg

1068868598 | MAIN SHAFT,FINISHED | 2227kg

N80008016 | FRAME | 96kg

1048519630 | MAIN FRAME LINER | 1950kg

MM0298467 | COUNTERWEIGHT | 4074kg

07-246-172-501 | DUST SEAL RETAINER, LOWER,65 | 102kg

17-400-969-506 | BOTTOMSHELL SIDE LINER,RIGHT HAND ADJ NARROW ARM 65 | 140kg

07-252-768-001 | SPLASH CURTAIN,75 | 6.5kg

17-300-845-001 | DUST SEAL RETAINER, UPPER | 720kg

1095059940 | BACKING COMPOUND,WF ULTRA PERFORMANCE, 22LB, P/N 241- 22PM | 11.0kg

MM1070506 | COVER SIDE PLATE | 62.6kg

186002 | FRAME, UPPER,G1315 | 3470kg

MM0302905 | COUNTERSHAFT | 105.53kg

7074129000 | MANCAL DE APOIO INFERIOR | 6.5kg

1044180301 | FEED HOPPER, LOWER | 96kg

7018307006 | MAIN FRAME | 3800kg

1033781826 | MAIN FRAME | 5260kg

1063915542 | FRAME RING | 12kg

7065550291 | Feed cone | 32kg

MM0335582 | MANTLE SPECIAL HP700 SH M-SPECIAL, 086 | 2513kg

1048517584 | SEAT LINER SEGMENT | 8kg

7005419218 | SQUIRREL CAGE MOTOR | 68kg

1038069780 | ARM GUARD | 218kg

MM0310089 | SOCKET ASSEMBLY | 868kg

17-401-426-001 | SPIDER BUSHING,LUJ 65 | 391kg

17-400-969-507 | BOTTOMSHELL SIDE LINER,RIGHT HAND, OPPOSITE PINIONSHAFT 65 | 140kg

07-146-694-006 | BOLT, SQUARE HEAD,3.000-4UNC-2A X 22.50 PITTSBURGH WELDING,QTE | 24kg

07-246-914-501 | DUST SEAL RETAINER, LOWER,89 | 419kg

17-107-414-003 | PUMP ASSEMBLY,LUBE 40 GPM 460V/60 NEMA | 211.3kg

MM1070665 | COVER SIDE PLATE | 40.68kg

285852 | TOP BEARING,E25/32/40 G1315 | 79.2kg

MM0314182 | ARM GUARD | 102.25kg

7084101513 | Frame seat liner | 8kg

N55208146 | BOWL LINER,SH M | 510kg

7021900301 | MAIN FRAME SHELL,MAIN FRAME LINER | 228kg

1057605172 | THRUST BEARING, LOWER | 32kg

1048516296 | Seat liner | 31kg

N98000772 | CONICAL HOPPER SET | 522.5kg

MM0341717 | MANTLE SH HD FINE | 2769kg

1093085029 | ADJUSTMENT RING,SUB-ASSEMBLY | 6814kg

N02150052 | PUMP | 33.2kg

1094300074 | CLEARING JAK | 92kg

MM0309830 | SOCKET LINER | 393kg

1095059940 | BACKING COMPOUND,WF ULTRA PERFORMANCE, 22LB, P/N 241- 22PM,COPPS INDUSTRIES | 11kg

17-400-969-508 | BOTTOMSHELL SIDE LINER,LEFT HAND, OPPOSITE PINIONSHAFT 65 | 138kg

17-401-413-001 | SPIDER BUSHING,LUJ 75 | 512kg

07-147-372-009 | BOLT, HEXAGONAL,MACHINE BOLT 3.000"-4 UNC-2A X 21.50"LG, UNPLTD | 25kg

17-303-202-001 | MPS CYLINDER BUSHING, LOWER,60-110 | 659.0kg

MM1052897 | ARM GUARD | 83.42kg

949630750100 | THRUST BEARING,G14/15 307501 | 36.8kg

MM0295477 | PROTECTION PLATE | 16.41kg

N12030502 | Clamping ring, ANEL DE TRAVAMENTO | 148kg

1050130815 | MANTLE,SH F/M/C | 429kg

7013308252 | MAIN SHAFT | 520kg

1038067401 | ARM GUARD | 42kg

1068867278 | MAIN SHAFT | 1113kg

N98000246 | DUST SEAL SET | 18.5kg

MM0341718 | BOWL LINER SH HD FINE | 2145kg

1061876265 | CLAMPING RING | 1381kg

N86402576 | HYDRAULIC HOSE | 6.4kg

MM0301295 | MAIN FRAME | 43548kg

MM0367404 | HEAD ASSEMBLY | 11261kg

17-107-414-001 | PUMP,LUBE, BARE W/O SKID | 65kg

17-201-116-002 | SIDE LINER WEDGE,PLAIN | 9.3kg

17-107-629-001 | SPIDER SEAL FILLER RING,LUJ 5475 | 10.4kg

17-302-055-001 | SPIDER BUSHING,MK-II, LUJ, ALL THROWS - 89 | 981kg

07-351-122-501 | MPS CYLINDER BUSHING, UPPER,60-110 | 635.5kg

MM1053606 | PROTECTION PLATE | 23.87kg

949647118300 | PRESSURE PLATE,G14/15-SARJA 471183 | 38kg

MM0295493 | PROTECTION PLATE | 15.38kg

7081108000 | GUARDA•PÓ | 36.3kg

N08010111 | BACKING COMPOUND,METSO XT BACKING, 10 KG KIT, 81065P KORROBOND | 10kg

1057602250 | LOWER THRUST BEARING | 19kg

1063915541 | FRAME RING | 25kg

N21900353 | MAIN FRAME LINER | 555kg

N98000247 | DUST SEAL SET | 8.6kg

1048314345 | BOWL LINER MEDIUM (For Standard Bowl Part #20055031) | 3015kg

1093070001 | CLAMPING CYLINDER | 11.7kg

N90288800 | ASSEMBLY | 10kg

1063916922 | FRAME RING | 36kg

MM0384670 | HEAD | 9759kg

17-107-492-003 | PUMP,BARE 10.2 DISPLACMENT, SAE #12 PORTS,,SAE #4 DRAIN,PARKER P/N PGM315A993VREB05-66 | 7.8kg

17-402-743-001 | ECCENTRIC SLEEVE,1.50 THROW 5065 | 554kg

07-248-302-001 | CONCAVE SUPPORT RING,75 | 33.6kg

1095059940 | BACKING COMPOUND,WF ULTRA PERFORMANCE, 22LB, P/N 241- 22PM,COPPS INDUSTRIES | 11kg

07-346-998-501 | PISTON,STEP SUPPORT PISTON ASSY | 3358.0kg

MM1053858 | PROTECTION PLATE | 23.87kg

949638376500 | THRUST BEARING,G14/15 383765 | 29.6kg

MM0295505 | PROTECTION PLATE | 15.38kg

N27009558 | CALÇO | 5.1kg

1063917032 | BOWL ADAPTER RING | 51kg

7022102502 | ARM GUARD | 30kg

1048516272 | Mainframe seat liner,5PCS 1 set, N11852073 | 24kg

N12504019 | ADJUSTMENT RING | 3013.5kg

N98000670 | ADJUSTMENT CAP SET | 655.3kg

5014-3810 | Mantle, SH, Med, Coarse | 5687kg

1061877930 | ADJUSTMENT RING | 6383kg

N02445735 | FILTER | 13kg

MM0325218 | SEAT LINER SEGMENT SET | 333kg

MM0288343 | HEAD BUSHING - UPPER | 85kg

17-400-969-501 | BOTTOMSHELL SIDE LINER,LEFT HAND, ADJ PINIONSHAFT 65 | 120kg

07-345-013-002 | WEAR RING,ECCENTRIC WEARING RING (CASTING) ITALBRONZE LTDA | 499kg

1095059940 | BACKING COMPOUND,WF ULTRA PERFORMANCE, 22LB, P/N 241- 22PM,COPPS INDUSTRIES | 11kg

17-107-414-026 | PUMP ASSEMBLY,LUBE 50 GPM 575V/60 NEMA | 243kg

17-303-542-501 | PISTON WEAR PLATE,ASSEMBLY ITALBRONZE LTDA | 362kg

MM0577438 | PROTECTION BUSHING | 41.62kg

307501A | BILLET, THRUST BEARING,G14 | 45kg

MM0259100 | HEAD | 2771.77kg

7088010082 | CILINDRO DE ALÍVIO | 56kg

N55208146-099 | BOWL LINER CASTING | 510kg

7046000000 | FRAME RING | 5.3kg

N21900352 | MAIN FRAME LINER | 396kg

1061875592 | CLAMPING RING | 760kg

N90058061 | HEAD ASSEMBLY,STD HP6 | 2832kg

4831-4348 | Bowl liner | 2169kg

1054440226 | MAIN FRAME PIN | 25.1kg

7005419218 | SQUIRREL CAGE MOTOR | 68kg

1028563351 | CYLINDER SUB-ASSY | 41.5kg

1022148833 | HEAD BUSHING - LOWER | 540kg

17-400-969-502 | BOTTOMSHELL SIDE LINER,RIGHT HAND, ADJ PINIONSHAFT 65 | 120kg

17-303-539-501 | PISTON WEAR PLATE,ASSEMBLY, 75 SUPERIORS | 82.6kg

17-202-537-002 | FILTER, OIL,CANISTER AND DUAL FILTER ASM | 49.9kg

17-500-699-005 | BOTTOMSHELL SIDE LINER,S/B 17-502-402-502, LH LOWER ADJ TO PINION 6089 | 142.9kg

07-347-001-001 | WASHER, STEP,4.0" X 11.5"ID X 36.5"OD | 340.0kg

MM1006347 | MANTLE EC/C | 739kg

702130750100 | THRUST BEARING CASTING,G14 307501-G G-CUPB10SN | 47.4kg

582422 | PROTECTION BUSHING | 82.81kg

N02445269 | ACUMULADOR | 15.5kg

7047811506 | SLIDE ASSEMBLY | 85kg

1048514410 | FRAME SEAT LINER | 18kg

1068863509 | MAIN SHAFT | 710kg

N81108010 | DUST SHELL | 124.6kg

N98000489 | HEAD BUSHING SET | 194kg

1093070045 | TRAMP RELEASE CYLINDER | 214kg

N29201813 | DRILLED BLOCK | 12kg

1094300295 | CLAMPING CYLINDER | 23.2kg

1048315551 | BOWL LINER | 5989kg

17-400-969-503 | BOTTOMSHELL SIDE LINER,LEFT HAND INTERMEDIATE 65 | 193kg

07-252-540-001 | WASHER, STEP,65 | 97kg

17-501-122-506 | BOTTOMSHELL SIDE LINER,75 FLARED | 276.7kg

17-500-699-004 | BOTTOMSHELL SIDE LINER,S/B 17-502-402-501, RH LOWER ADJ TO PINION 6089 | 123.4kg

17-303-214-001 | MAIN SHAFT SLEEVE,LUJ SHAFT, 60-110 | 1369.9kg

MM1029744 | CONCAVE, C | 1349kg

383765A | BILLET, THRUST BEARING,G14/15 | 34.5kg

582445 | SEAL | 11.07kg

7090158009 | CIRCUITO DE ALÍVIO | 18kg

N55208134 | BOWL LINER,STD C | 550kg

7012504002 | ADJUSTMENT RING | 1830kg

1061873403 | ADJUSTMENT RING | 2190kg

1094280065 | CLAMPING CYLINDER ASSEMBLY | 10.8kg

N98001325 | HEAD BALL SET | 144.5kg

1093085016 | PRESSURE ACCUMULATOR,ASSY, 2.5 GAL - STD, #24 SAE PORT - 3000 PSI | 36kg

N10600203 | COOLER | 145kg

MM0369504 | ADJUSTMENT RING | 21541kg

MM0355638 | MANTLE | 5464kg

17-400-969-504 | BOTTOMSHELL SIDE LINER,RIGHT HAND INTERMEDIATE 65 | 193kg

17-303-539-002 | PISTON WEAR PLATE,MACHINING | 82.6kg

07-346-535-006 | DUST COLLAR,MACH - 74 | 565.2kg

17-500-699-003 | BOTTOMSHELL SIDE LINER,S/B 17-502-401-502, LH UPPER ADJ TO PINION 6089 | 133.8kg

17-202-997-001 | LOCKNUT, MAIN SHAFT SLEEVE,PLATE, 5.5 X 30.5 ID X 37.5 OD | 195.0kg

706300275000 | ELASTIC DAMPER | 9.62kg

702138376500 | THRUST BEARING CASTING,G14/15 383765-G G-CUPB10SN | 35kg

N11951712 | MANTLE | 1218.11kg

N88100009 | HASTE DO PISTÃO | 8.5kg

N55208135 | BOWL LINER,STD C | 550kg

1061873757 | CLAMPING RING | 290kg

1061872992 | CLAMPING RING | 533.6kg

1054351501 | MAIN FRAME PIN | 10.1kg

N98000490 | RING SET | 127.7kg

1054268776 | CLEVIS PIN,TRAMP RELEASE CYLINDER | 8.7kg

N22300505 | DRILLED BLOCK | 10.4kg

1022140676 | BUSHING | 22kg

MM1526485 | MANTLE LOW SH M/C/EC XT710 | 4980kg

17-400-969-505 | BOTTOMSHELL SIDE LINER,RIGHT HAND ADJ NARROW ARM 65 | 139kg

17-303-538-002 | MAIN SHAFT STEP,MACHINING | 95.3kg

07-445-912-003 | ECCENTRIC BUSHING,1.25 THROW 5475,BAM22629 | 730kg

17-500-699-002 | BOTTOMSHELL SIDE LINER,S/B 17-502-401-501, RH UPPER ADJ TO PINION 6089 | 133.8kg

17-502-015-009 | MANTLE, LOWER,STANDARD 2PC, 106.0 RBD PART/CORG 60110 XT520 | 14430.0kg

MM1126450 | Head nut | 94.84kg

814318607800 | MANTLE,GP500MF; S1000 | 1164kg

N11951715 | CONCAVE | 1687.61kg

7013355750 | CONTRAEIXO,Countershaft | 30kg

N55208137 | BOWL LINER,STD M | 526kg

1094280065 | CLAMPING CYLINDER ASSY | 10.8kg

1061940191 | DUST SHELL | 93kg

1093050058 | TRAMP RELEASE CYLINDER | 225.5kg

N15656214 | HEAD BUSHING | 194kg

1045376433 | COUNTERSHAFT BOX | 766kg

N02154768 | RADIATOR | 64.4kg

1094300295 | CLAMPING CYLINDER ASSEMBLY | 22.2kg

MM0400826 | MANTLE UPR SH F/M/C/EC XT710 | 682kg

17-400-969-506 | BOTTOMSHELL SIDE LINER,RIGHT HAND ADJ NARROW ARM 65 | 140kg

07-244-104-004 | MAIN SHAFT STEP,CASTING, 42" SUPERIOR ITALBRONZE LTDA | 129.3kg

17-402-837-001 | ECCENTRIC,MK-II 75 | 2527.9kg

17-500-699-016 | BOTTOMSHELL SIDE LINER,S/B 17-502-409-501, INTERMEDIATE LOWER 6089 | 189kg

17-502-015-007 | MANTLE, UPPER,PARTIALLY CORRUGATED 2PC XT520 60110 | 5103.0kg

MM1026543 | MANTLE | 900kg

495349 | TORCH RING,GP500EF-MF & GP500S | 6.4kg

582729 | TORCH RING | 7.34kg

7063002401 | PINHÃO,Pinion | 13.5kg

N55208138 | BOWL LINER,STD M | 526kg

1028562625 | CYLINDER TUBE | 7.1kg

1094280065 | CLAMPING CYLINDER ASSEMBLY | 10.8kg

N02445272 | PRESSURE ACCUMULATOR | 31.5kg

N90288047 | SEALING DEVICE SET,STD HP6 | 94.7kg

1022066795 | COUNTERSHAFT BUSHING,MACHINING | 34kg

N55208522 | BOWL LINER,Standard,X-Coarse,XT510 | 1389kg

1094300592 | TRAMP RELEASE CYL ASSY | 326kg

MM0436930 | BOWL LINER SH M (INTERMEDIATE) XT710 | 5190kg

17-400-969-507 | BOTTOMSHELL SIDE LINER,RIGHT HAND, OPPOSITE PINIONSHAFT 65 | 140kg

17-502-170-501 | SPIDER,SUPER, LUJ MK-II 5065 | 21704.4kg

17-302-955-001 | ECCENTRIC GEAR,SPIRAL BEVEL, MK-II WITH LOWER CWT 75 | 1368kg

17-500-699-014 | BOTTOMSHELL SIDE LINER,S/B 17-502-407-501, INTERMEDIATE UPPER 6089 | 133.8kg

17-403-016-001 | CONCAVE SEGMENT, LOWER,7.50 OSS X 2.00 THROW MANGANESE 60110 | 273.5kg

MM1026544 | CONCAVE | 1200kg

287906 | NUT,TR360X12-8H VASEN G415-G2215 | 117kg

MM0257321 | head NUT | 87.4kg

7090228205 | CONJUNTO DO EXCÊNTRICO | 145kg

N55208143 | BOWL LINER,SH C | 498kg

1093030108 | TRAMP RELEASE CYLINDER | 120.8kg

1093040030 | TRAMP RELEASE CYLINDER | 212.5kg

1054268776 | CLEVIS PIN | 8.2kg

N98001183 | SOCKET SET,MAXI | 178.4kg

1038069629 | COUNTERSHAFT BOX GUARD | 76.2kg

N55208523 | BOWL LINER,Standard,X-Coarse,XT710 | 1389kg

MM0310178 | ACCUMULATOR ASSY | 68kg

17-400-969-508 | BOTTOMSHELL SIDE LINER,LEFT HAND, OPPOSITE PINIONSHAFT 65 | 138kg

17-200-308-501 | BOTTOMSHELL HUB LINER,UPPER 65 | 47kg

07-248-227-001 | ECCENTRIC GEAR KEY,75 | 10.3kg

17-500-699-016 | BOTTOMSHELL SIDE LINER,S/B 17-502-409-501, INTERMEDIATE LOWER 6089 | 189kg

17-403-016-002 | KEY, CONCAVE SEGMENT, LOWER,7.50 OSS X 2.00 THROW MANGANESE 60110 | 262.6kg

MM1126588 | Eccentric bushing 32/36/40 | 107kg

7002125787 | HEATER,6KW-230/480V | 6kg

N11951714 | Concave | 1395kg

7090228106 | COUNTERWEIGHT | 162kg

N55208144 | BOWL LINER,SH C | 498kg

1093030107 | ROD ASSEMBLY | 39.7kg

N02445271 | PRESSURE ACCUMULATOR | 31.5kg

1028563422 | CYLINDER TUBE | 139kg

N98001155 | ECCENTRIC ASSEMBLY | 864.5kg

1062807444 | OIL FLINGER | 21kg

N55208524 | BOWL LINER,Standard,X-Coarse,XT720 | 1389kg

MM0345191 | COUNTERSHAFT BOX ASSEMBLY | 2970kg

17-201-116-002 | SIDE LINER WEDGE,PLAIN | 9.3kg

17-200-307-501 | BOTTOMSHELL HUB LINER,UPPER RIGHT HAND 65 | 68kg

17-302-954-001 | COUNTERWEIGHT,LOWER 75 | 609kg

17-500-699-016 | BOTTOMSHELL SIDE LINER,S/B 17-502-409-501, INTERMEDIATE LOWER 6089 | 189kg

17-403-016-003 | CONCAVE SEGMENT, 2ND TIER,7.50 OSS X 2.00 THROW MANGANESE 60110 | 267.6kg

MM1102962 | Wear Plate | 7.32kg

7005419188 | SQUIRREL CAGE MOTOR,BF5 112M44 4 KW | 46kg

N11951717 | Concave | 1559.71kg

7043358005 | EXCÊNTRICO | 94kg

N55308011 | MANTLE,STD F/M/C | 482kg

1037711893 | PISTON HEAD | 30kg

1054268776 | CLEVIS PIN | 8.2kg

1093050057 | PISTON ROD | 60kg

N98000544 | THRUST BEARING SET, UPPER | 29.9kg

1068636577 | COUNTERSHAFT | 241kg

N55208398 | BOWL LINER,Standard,Coarse,XT510 | 1445kg

MM0297430 | PINION | 367kg

07-343-568-006 | DUST SEAL,COLLAR (FINISH) | 362kg

17-200-306-501 | BOTTOMSHELL HUB LINER,UPPER LEFT HAND 65 | 62.6kg

17-402-287-001 | BEVEL GEAR,SPIRAL BEVEL GEAR | 1607.5kg

17-500-699-013 | BOTTOMSHELL SIDE LINER,S/B 17-502-406-502, LH INTERMEDIATE UPPER 6089 | 133.8kg

17-403-016-004 | KEY, CONCAVE SEGMENT, 2ND TIER,7.50 OSS X 2.00 THROW MANGANESE 60110 | 256.7kg

MM1006351 | Concave, EC | 1089kg

7043800008 | FILTER, | 10kg

ММ0316348 | Bearing | 7kg

7015655250 | Eccentric bushing | 11kg

N55308012 | MANTLE,SH F/M/C | 429kg

1065634305 | ROD | 27kg

1093040032 | CLEARING/ RELEASE CIRCUIT | 6kg

1065634356 | PISTON ROD | 39kg

N15607254 | ECCENTRIC BUSHING | 100.6kg

1038069628 | COUNTERSHAFT BOX GUARD | 22.4kg

N55208399 | BOWL LINER,Standard,Coarse,XT710 | 1445kg

1022070708 | COUNTERSHAFT BOX BUSHING | 58.2kg

07-343-568-008 | COLLAR CASTING,DUST SEAL, DUCTILE IRON | 578.3kg

17-100-832-001 | BOTTOMSHELL HUB LINER,LOWER CENTER 65 | 40kg

17-402-254-501 | COUNTERWEIGHT ASSEMBLY,LOWER | 623.7kg

17-500-699-012 | BOTTOMSHELL SIDE LINER,S/B 17-502-406-501, RH INTERMEDIATE UPPER 6089 | 133.8kg

07-547-219-024 | CONCAVE SEGMENT, 3RD TIER,XT610 60110 | 240.0kg

MM1051364 | Concave Medium | 1360kg

706300275000 | ELASTIC DAMPER,ER. 487517-2 | 8.2kg

ММ0524133 | Bearing | 15kg

7074129001 | Upper thrust bearing | 6kg

7065558050 | FEED CONE | 10.5kg

7090018003 | COUNTERSHAFT PINION ASSY | 134kg

1093040031 | PISTON ROD | 54kg

1068634890 | COUNTERSHAFT | 148kg

N98001158 | GEAR SET | 375.3kg

1093085022 | COUNTERWEIGHT,SUB-ASSEMBLY | 2253kg

N55208400 | BOWL LINER,Standard,Coarse,XT720 | 1445kg

1045378302 | COUNTERSHAFT BOX | 1514kg

17-401-227-001 | ECCENTRIC BUSHING,1.500 THROW, 4265 | 554kg

17-100-831-001 | BOTTOMSHELL HUB LINER,LOWER 65 | 60kg

07-346-505-002 | WEAR RING,ECCENTRIC WEARING RING (CASTING) | 114kg

17-500-699-015 | BOTTOMSHELL SIDE LINER,S/B 17-502-408-501, INTERMEDIATE LOWER 6089 | 173kg

07-547-219-025 | KEY, CONCAVE SEGMENT, 3RD TIER,XT610 60110 | 236.0kg

MM1023776 | Mantle Fine/Medium Fine/Medium | 883kg

582415 | Eccentric bushing | 149kg

ММ1035181 | Wedge pair | 365kg

7035410600 | Drive Gear | 34kg

7065558051 | FEED CONE | 10.5kg

1022063300 | COUNTERSHAFT BUSHING | 12.6kg

1065634357 | PISTON ROD | 33kg

1045376019 | COUNTERSHAFT BOX | 360kg

N98000241 | COUNTERWEIGHT LINER SET | 169.8kg

1031143668 | ECCENTRIC | 2151kg

N55208525 | BOWL LINER,Standard,Medium,XT510 | 1387kg

1038069700 | GUARD | 145kg

17-302-945-001 | ECCENTRIC,STD UPPER COUNTERWEIGHT MK-II 65 | 1321.8kg

17-100-831-001 | BOTTOMSHELL HUB LINER,LOWER 65 | 60kg

17-302-994-001 | MPS CYLINDER BUSHING, LOWER,75 | 173kg

17-500-699-015 | BOTTOMSHELL SIDE LINER,S/B 17-502-408-501, INTERMEDIATE LOWER 6089 | 173kg

07-547-219-022 | CONCAVE SEGMENT, 4TH TIER,XT610 60110 | 195.0kg

MM1002745 | Hub | 203kg

MM1062846 | Liner | 122kg

7016200106 | CONTRAPESO, Counterweight | 130kg

77055208149 | BOWL LINER,SH,F | 505kg

7023408201 | COUNTERSHAFT BOX | 126kg

1054915521 | PISTON | 21kg

1036831527 | PINION | 109kg

N74129032 | THRUST BEARING, UPPER | 29.9kg

1022075464 | ECCENTRIC BUSHING | 211kg

N55208526 | BOWL LINER,Standard,Medium,XT710 | 1387kg

1038000900 | SHIELD | 17kg

17-302-958-001 | ECCENTRIC GEAR,SPIRAL BEVEL, MK-II LWR CWT 65 | 884.5kg

17-402-740-501 | MAIN SHAFT,WITH PERMANENT EYEBOLT ASM | 19298.1kg

07-252-462-501 | MPS CYLINDER BUSHING, UPPER,75 | 140kg

17-500-699-014 | BOTTOMSHELL SIDE LINER,S/B 17-502-407-501, INTERMEDIATE UPPER 6089 | 133.8kg

07-547-219-023 | KEY, CONCAVE SEGMENT, 4TH TIER,XT610 60110 | 191.0kg

MM1062739 | Liner | 162kg

7022072500 | REVESTIMENTO DO CONTRAPESO | 32kg

77055208121 | BOWL LINER,SH X-Fine | 390kg

7022102501 | COUNTERSHAFT GUARD | 32kg

1068634887 | COUNTERSHAFT | 118kg

1062807442 | OIL FLINGER | 9.7kg

N74129032 | THRUST BEARING, UPPER | 29.9kg

1057612405 | THRUST BEARING | 89kg

N55208527 | BOWL LINER,Standard,Medium,XT720 | 1387kg

1062807656 | OIL FLINGER | 44.5kg

17-402-286-001 | ECCENTRIC GEAR,SPIRAL BEVEL 65 | 884.5kg

07-349-665-001 | NARROW ARM LINER,BOTTOMSHELL 65 | 174.2kg

17-402-288-501 | MPS PISTON AND PLUG ASSEMBLY | 905kg

17-500-699-014 | BOTTOMSHELL SIDE LINER,S/B 17-502-407-501, INTERMEDIATE UPPER 6089 | 133.8kg

07-547-219-020 | CONCAVE SEGMENT, 5TH TIER,XT610 60110 | 184.0kg

MM1062831 | Liner | 162kg

7039608500 | Socket liner | 33kg

1050130813 | Mantle | 477kg

7022102500 | COUNTERSHAFT GUARD | 11.3kg

1036831195 | PINION | 54kg

1038067481 | COUNTERSHAFT BOX GUARD | 41kg

N74129032 | THRUST BEARING, UPPER | 29.9kg

1086428470 | COUNTERWEIGHT | 1929kg

7055208382 | BOWL LINER,Standard,Fine,XT510 | 1388kg

1038067965 | GUARD | 62kg

07-345-013-002 | WEAR RING,ECCENTRIC WEARING RING (CASTING) ITALBRONZE LTDA | 87kg

17-200-630-001 | PINION SHAFT ARM LINER,LEFT HAND 65 | 147.4kg

17-402-295-001 | MPS CLAMP PLATE,MK-II 75 | 215kg

17-500-699-007 | BOTTOMSHELL SIDE LINER,S/B 17-502-403-502, UPPER 6089 | 91kg

07-547-219-021 | KEY, CONCAVE SEGM, 5TH TIER,XT610 60110 | 180.0kg

MM1062725 | Liner | 143kg

N82404327 | CABEÇA | 320kg

71055308001 | Mantle | 482kg

7033100015 | OIL FLINGER | 13kg

N22102700 | COUNTERSHAFT GUARD | 80kg

1038067482 | COUNTERSHAFT BOX GUARD | 53kg

N98001146 | COUNTERSHAFT SET | 160kg

1063917765 | COUNTERWEIGHT LINER | 324kg

7055208392 | BOWL LINER,Standard,Fine,XT710 | 1413kg

MM0354111 | ECCENTRIC SUB-ASSEMBLY | 5489kg

17-300-182-501 | MPS CYLINDER,65, CAST | 1574kg

17-200-629-001 | PINION SHAFT ARM LINER,RIGHT HAND 65 | 149kg

17-402-297-501 | MPS COVER PLATE,75 | 970.2kg

17-500-699-006 | BOTTOMSHELL SIDE LINER,S/B 17-502-403-501, UPPER 6089 | 92.5kg

07-547-219-018 | CONCAVE SEGMENT, 6TH TIER,XT610 60110 | 181.4kg

N11951713 | Concave F | 1222kg

7024950501 | Head ball | 18kg

7090058013 | Head Assembly | 687kg

7035912253 | HOUSING,countershaft housing cover | 12kg

1022062210 | COUNTERSHAFT BUSHING | 14kg

1093055002 | ECCENTRIC ASSEMBLY | 1124.5kg

N98000277 | COUNTERSHAFT BUSHING SET | 44kg

MM0377355 | SUBASSEMBLY,SOCKET | 218kg

7055208383 | BOWL LINER,Standard,Fine,XT720 | 1430kg

MM0354111 | ECCENTRIC SUB-ASSY | 5489kg

17-303-539-501 | PISTON WEAR PLATE,ASSEMBLY, 75 SUPERIORS | 82.6kg

17-402-738-001 | SPIDER RIM LINER,5065 SPIDER RIM LINER | 521.6kg

17-303-539-501 | PISTON WEAR PLATE,ASSEMBLY, 75 SUPERIORS,BAM22637 | 82.6kg

17-500-699-009 | BOTTOMSHELL SIDE LINER,S/B 17-502-404-502, LH LOWER ADJ TO NARROW 6089 | 112kg

07-547-219-019 | KEY, CONCAVE SEGMENT, 6TH TIER,XT610 60110 | 177.0kg

582728 | Head nut | 90kg

7015656202 | Head bushing | 25.4kg

N55208148 | BOWL LINER (M) | 510kg

1036833868 | PINION | 40kg

1045376018 | COUNTERSHAFT BOX | 280kg

N90228127 | COUNTERWEIGHT ASSEMBLY | 1399kg

N98000515 | CYLINDER SET | 343.2kg

1048724025 | SOCKET LINER | 196kg

1048300039 | BOWL LINER,SHORT HEAD,Coarse,XT710 | 1177kg

1022075736 | ECCENTRIC BUSHING | 456kg

07-252-540-001 | WASHER, STEP,65 | 97kg

17-402-412-001 | CONCAVE SEGMENT, LOWER,5.50 OSS X 1.50 THROW 65, XT610,WT. PER SOROCABA 12/4/12 MEASURE | 160kg

07-252-533-001 | MAIN SHAFT STEP WASHER | 140.2kg

17-500-699-010 | BOTTOMSHELL SIDE LINER,S/B 17-502-405-501, LOWER 6089 | 107.5kg

17-502-015-014 | Standard lower part/corg 2PC 106.0 RBD | 14500kg

MM0528571 | Concave Fine | 1342kg

7041068004 | PARAFUSO DE TRAVAMENTO | 8.8kg

7055308003 | Mantle,SH,F/M/C | 439kg

1068633366 | COUNTERSHAFT | 94kg

1027471712 | COVER | 14.5kg

1031143420 | ECCENTRIC | 695kg

N98000282 | NUT SET | 13.9kg

1073817098 | SOCKET | 222kg

1048300032 | BOWL LINER,SHORT HEAD,Medium,XT510 | 1151kg

1057605258 | THRUST BEARING | 202kg

17-303-539-002 | PISTON WEAR PLATE,MACHINING | 82.6kg

17-402-412-002 | KEY, CONCAVE SEGMENT, LOWER,5.50 OSS X 1.50 THROW 65 | 158.8kg

17-202-824-001 | RETAINER,RING MPS SEAL 75 | 25.4kg

17-500-699-011 | BOTTOMSHELL SIDE LINER,S/B 17-502-405-502, LOWER 6089 | 94kg

17-402-984-501 | Dust collar | 2584.95kg

7080500423 | SUPORTE | 33kg

N55208141 | BOWL LINER (F) - 18% Mn | 546kg

7090228208 | GEAR ECCENTRIC ASSY | 437kg

1062807443 | OIL FLINGER | 13.7kg

1022074809 | ECCENTRIC BUSHING | 113kg

N44454533 | HYDRAULIC HOSE,1"1/2 LG.1065 | 6kg

1042472605 | HEAD,MACHINING | 5382kg

1048300035 | BOWL LINER,SHORT HEAD,Medium,XT710 | 1151kg

MM0297789 | GEAR | 1337kg

17-402-844-001 | PINION SHAFT,MK-II, DIRECT & V-BELT DRIVE 65 | 242kg

07-544-837-007 | CONCAVE SEGMENT, 2ND TIER,LOWER MIDDLE, XT610 | 106.6kg

07-252-461-001 | BUSHING,MPS CYL BUSHING-LWR | 178kg

17-500-699-008 | BOTTOMSHELL SIDE LINER,S/B 17-502-404-501, RH LOWER ADJ TO NARROW 6089 | 112kg

07-446-340-001 | DUST COLLAR | 2585kg

7057500003 | CONJUNTO DO MOTOR HIDRÁULICO | 118kg

7055308002 | Upper mantle,SH,EF | 345kg

N90228115 | COUNTERWEIGHT ASSY | 573kg

1093045000 | ECCENTRIC | 846kg

1057605168 | THRUST BEARING, UPPER | 50kg

N44454534 | HYDRAULIC HOSE,1"1/2 LG.1795 | 10.4kg

1057612434 | HEAD BALL | 249kg

7055208394 | BOWL LINER,SHORT HEAD,Medium,XT720 | 1151kg

MM0350690 | COUNTERWEIGHT | 3082kg

17-106-722-001 | BEARING,DOUBLE ROW TAPERED ROLLER 65 | 30.4kg

07-544-837-008 | KEY, CONCAVE SEGMENT, 2ND TIER,XT610, SG4265 | 94.4kg

17-202-819-001 | MPS PISTON PLUG | 6.8kg

17-402-372-001 | DUST COLLAR,STD UPPER CWT, 6089 | 959kg

7028000463 | COBERTURA DE PROTEÇÃO | 5kg

7055308006 | Lower mantle,SH,EF | 55kg

7043358008 | ECCENTRIC | 270kg

7090228112 | COUNTERWEIGHT ASSEMBLY | 885kg

1036831535 | GEAR | 274kg

N98000286 | MANIFOLD SET | 118kg

1022147723 | HEAD BUSHING, LOWER | 302kg

7055208385 | BOWL LINER,SHORT HEAD,Fine,XT510 | 1159kg

MM0351618 | COUTNERWEIGHT GUARD | 626.4kg

17-303-538-002 | MAIN SHAFT STEP,MACHINING | 95.3kg

17-401-129-003 | CONCAVE SEGMENT, 3RD TIER,MANGANESE 65 | 83.9kg

17-402-297-002 | COVER PLATE,MPS CYL COVER PLTE, MACH, W / POSITION INDICATOR | 968.9kg

17-402-565-001 | ECCENTRIC,6089 SUPERIOR CRUSHER | 3842kg

7063002250 | PINHÃO | 9kg

N55208136 | BOWL LINER,STD,C | 550kg

1022073307 | INNER ECCENTRIC BUSHING | 49.5kg

1031136180 | ECCENTRIC | 530kg

N16200123 | COUNTERWEIGHT | 1210kg

N98000684 | PRESSURE ACCUMULATOR SET | 6.1kg

1022147711 | HEAD BUSHING, UPPER | 81kg

7055208395 | BOWL LINER,SHORT HEAD,Fine,XT710 | 1159kg

1094300683 | SOCKET ASSEMBLY | 837kg

07-244-104-004 | MAIN SHAFT STEP,CASTING, 42" SUPERIOR ITALBRONZE LTDA | 129.3kg

17-401-129-004 | KEY, CONCAVE SEGMENT, 3RD TIER,MANGANESE 65 | 70.3kg

17-303-539-002 | PISTON WEAR PLATE,MACHINING | 82.6kg

17-202-901-001 | ECCENTRIC BUSHING,1.812 THROW LARGE UPEPR CWT 6089,1000830668 BRONZE | 1118.1kg

7005631150 | GEAR REDUCER | 39kg

N55208139 | BOWL LINER,STD,M | 526kg

1057612200 | UPPER THRUST BEARING | 22kg

1022074069 | ECCENTRIC BUSHING | 81kg

N22072102 | COUNTERWEIGHT LINER | 188.2kg

N88010103 | CYLINDER ASSEMBLY | 321kg

1019559608 | BOLT, LOCK | 139kg

7055208386 | BOWL LINER,SHORT HEAD,Fine,XT720 | 1159kg

1094305046 | SOCKET SUB-ASSY | 474kg

17-107-558-501 | PUMP ASSEMBLY,SPIDER LUBE BARREL | 40kg

17-401-129-005 | CONCAVE SEGMENT, 4TH TIER,MANGANESE 5065 ONLY | 90.7kg

17-402-839-001 | PINION SHAFT,MK-II 75 FOR DIRECT & V-BELT DRIVE | 270.3kg

17-303-008-001 | ECCENTRIC GEAR,SPIRAL BEVEL MK-II 6089,FOR LOWER COUNTERWEIGHT | 2382.3kg

7055208001 | REVESTIMENTO DO BOJO, Bowl liner M & F | 256kg

N55208140 | BOWL LINER,STD,F | 545kg

1036833869 | DRIVE GEAR | 95kg

1057605169 | THRUST BEARING, UPPER | 31kg

1073817084 | SOCKET | 138kg

N14856003 | AXLE | 8.3kg

1055981161 | FEED PLATE | 82kg

7055208387 | BOWL LINER,SHORT HEAD,X-Fine,XT510 | 1270kg

1073818176 | SOCKET | 470kg

17-107-560-001 | PUMP UNIT,SPIDER BARREL PUMPING UNIT | 16.8kg

17-401-129-006 | KEY, CONCAVE SEGMENT, 4TH TIER,MANGANESE 5065 | 86.2kg

17-402-287-002 | PINION,SPIRAL BEVEL PINION | 150.6kg

07-246-913-001 | ECCENTRIC GEAR KEY,6089 | 11.7kg

7055308121 | Mantle | 220kg

N55208142 | BOWL LINER,STD,F | 537kg

N16200115 | COUNTERWEIGHT | 470kg

1036803301 | GEAR | 217kg

1048723201 | SOCKET LINER | 110kg

MM0235244 | ACCUMULATOR, BLADDER,SB330-13A4/112US-262C (170 BAR) HYDAC | 43kg

1048314346 | BOWL LINER,STD F(For use with Standard Bowl #20055033) | 2922kg

1048300043 | BOWL LINER,SHORT HEAD,X-Fine | 1270kg

MM0391730 | HEAD ASSEMBLY | 11344kg

17-202-786-501 | PIPE ASSEMBLY,UPPER | 6.8kg

17-402-748-001 | CONCAVE SEGMENT, 5TH TIER,MANGANESE 5065 | 145.2kg

17-502-067-501 | PINION SHAFT HOUSING,ASSEMBLY 75 | 908kg

17-303-007-001 | COUNTERWEIGHT ASSEMBLY, LOWER 89 | 1072kg

7085701300 | CAIXA DE ALIMENTAÇÃO | 90kg

N50130813 | Mantle,STD,F,M,C, MM0392784 | 482kg

1038018155 | COUNTERWEIGHT LINER | 103kg

7016200114 | COUNTERWEIGHT | 739kg

7082404310 | HEAD | 2795kg

N98000484 | ADJUSTMENT RING ASSEMBLY | 3600.6kg

1050143849 | MANTLE,EF,F,C,EC,STD | 3075kg

7055208396 | BOWL LINER,SHORT HEAD,X-Fine | 1270kg

1022148833 | HEAD BUSHING - LOWER | 540kg

17-203-324-401 | ASSEMBLY DRAWING,OVERPRESSURE DUST BLOWER SMART SYSTEM PIX | 40.8kg

17-402-748-002 | KEY, CONCAVE SEGM, 5TH TIER,MANGANESE 5065 | 136.1kg

17-303-540-002 | MAIN SHAFT STEP,MACHINING | 96.6kg

07-445-076-001 | ECCENTRIC BUSHING,1.812 THROW, STD UPPER CWT 6089 | 1156.7kg

7085728150 | TREMONHA CÔNICA | 86.3kg

N55208145 | BOWL LINER,SH C | 498kg

7039608251 | SOCKET | 56kg

1038018156 | COUNTERWEIGHT LINER | 143kg

1057605124 | HEAD BALL | 146kg

N98000297 | MAIN FRAME PIN SET | 9kg

1086343192 | WEDGE | 8.6kg

N55308511 | Mantle,STD,X-Coar.,Coar. | 1190kg

1003183980 | RING BOLT | 33.6kg

17-200-308-501 | BOTTOMSHELL HUB LINER,UPPER 65 | 47kg

17-303-084-002 | ECCENTRIC SUPPORT PLATE,65 | 253kg

07-252-501-002 | MAIN SHAFT STEP,BRONZE CASTING MAGNOLIA METAL CORP. | 117.9kg

17-402-306-001 | BEVEL GEAR,SPIRAL BEVEL GEAR 6089 | 2596.8kg

7031800010 | CHAVE DO CONTRAEIXO | 9.3kg

N55208146 | BOWL LINER,SH M | 510kg

7035800600 | SOCKET LINER | 47kg

1073814256 | SOCKET | 101kg

1022147321 | HEAD BUSHING, UPPER | 36.9kg

N98001294 | CLAMPING RING SET | 460.6kg

1095059940 | BACKING COMPOUND,WF ULTRA PERFORMANCE, 22LB, P/N 241-22PM | 11kg

N55308512 | Mantle,STD,X-Coar.,Coar. | 1190kg

1055989405 | FEED PLATE | 334kg

17-200-307-501 | BOTTOMSHELL HUB LINER,UPPER RIGHT HAND 65 | 68kg

17-302-999-501 | SUPPORT BRACKET,BALANCE CYLINDER 75 | 70.8kg

17-203-125-501 | COUNTERWEIGHT, UPPER,ASSEMBLY, LARGE 1.81 THROW 6089 | 846.5kg

N55308122 | MANTLE | 220kg

N55208147 | BOWL LINER,SH M | 510kg

7082404300 | HEAD | 1050kg

N35800601 | SOCKET LINER | 68kg

N15655252 | HEAD BUSHING, LOWER | 134kg

N27009556 | SHIM | 10.5kg

1063915673 | TORCH RING | 23kg

N55308513 | Mantle,STD,X-Coar.,Coar. | 1190kg

1019584380 | SQ HEAD BOLT | 6.36kg

17-200-306-501 | BOTTOMSHELL HUB LINER,UPPER LEFT HAND 65 | 62.6kg

17-202-619-001 | BALANCE CYLINDER,AIR/OIL, 8.00 DIA BORE, 30.00 STROKE, 4.00 INLET,JOHNSON HYDRAULICS, INC. | 230.9kg

17-303-074-001 | RETAINING RING,LARGE UPPER CWT, 1.81" THROW 6089 | 48.1kg

7055208003 | BOWL LINER | 255kg

N55208148 | BOWL LINER,SH M | 510kg

7024950500 | HEAD BALL | 60kg

1057605158 | HEAD BALL | 80kg

1062440044 | DRIVE GEAR | 520kg

N98000802 | PINION SET | 11.1kg

1048314346099 | BOWL LINER CASTING,STD FINE FOR COARSE BOWL | 2922kg

7055308381 | Mantle,STD,Fine,XT510, | 1295kg

1086345380 | WEDGE | 23kg

17-100-832-001 | BOTTOMSHELL HUB LINER,LOWER CENTER 65 | 40kg

17-402-292-501 | MPS CHECK VALVE,ASSEMBLY, 4.00, 600 PSI | 39kg

07-345-521-002 | PLATE, ECCENTRIC WEARING RING,1000830664 / ACM 3040 BRONZE, SG6089,ITALBRONZE LTDA | 162kg

7055208000 | Bowl liner | 237kg

N55208150 | BOWL LINER,SH F | 510kg

7015656200 | UPPER HEAD BUSHING | 15kg

1022147349 | HEAD BUSHING, UPPER | 28kg

N57500012 | HYDRAULIC MOTOR ASSEMBLY | 80kg

N98000309 | SLIDE SET | 20.3kg

1020055033 | BOWL,STANDARD, HP800, PHASE 1 | 8717kg

7055308387 | Mantle,STD,Fine,XT710, | 1270kg

1048315551 | Bowl liner | 5989kg

17-100-831-001 | BOTTOMSHELL HUB LINER,LOWER 65 | 60kg

17-105-775-030 | FLANGE,4.00 PIPE, 4 BOLT SQ, SOCKET WELD, O-RING, 3000PSI,MAIN MANUFACTURING PRODUCTS P/N | 8.2kg

17-303-013-001 | MPS CYLINDER BUSHING, LOWER | 263kg

7055308122 | Mantle F & EF | 222kg

77055208151 | BOWL LINER,SH F | 510kg

1022145975 | LOWER HEAD BUSHING | 48kg

1022147350 | HEAD BUSHING, LOWER | 104kg

N28000951 | PROTECTION COVER | 8kg

N98000468 | DRIVE GEAR SET | 461kg

1044180362 | HOPPER,COARSE BOWL,STD COARSE,MED.,FINE BOWL LINERS | 1243kg

7055308384 | Mantle,STD,Fine,XT720, | 1270kg

1050144053 | Mantle | 5506kg

17-100-831-001 | BOTTOMSHELL HUB LINER,LOWER 65 | 60kg

17-203-261-501 | PIPE ASSEMBLY,MPS COVER PLATE TO FLANGE 75 | 13.2kg

17-200-841-501 | MPS CYLINDER BUSHING, UPPER,89 | 267.6kg

N90058020 | HEAD ASSEMBLY | 368kg

N55208153 | BOWL LINER,SH,EF | 372kg

7041068005 | LOCKING BOLT | 24kg

1019559606 | BOLT, LOCK | 59kg

N63002253 | PINION | 9kg

N29550019 | JACK | 6kg

1073057612 | BUSHING,SHEAVE, TYPE QD-P, BORED FOR 150MMD SHAFT | 41kg

7055308282 | Mantle,SH,Coar.,Med. | 1228kg

1063915735 | TORCH RING | 22.5kg

17-401-418-501 | MAIN SHAFT,WITH PERMANENT EYEBOLT | 16231.3kg

17-203-254-501 | PIPE ASSEMBLY,BALANCE CYLINDER TO FLANGE 75 | 17.4kg

17-402-315-501 | MPS PISTON AND PLUG ASSEMBLY | 1800.8kg

7055208002 | Bowl liner | 246kg

1048291517 | Bowl liner, medium | 479kg

7065558093 | FEED CONE | 17kg

1055981158 | FEED PLATE | 35kg

N41060201 | BOLT, LOCK | 65kg

N63002253 | PINION | 9kg

N02154802 | HEAT EXCHANGER,ITT P/ N HCF-B-06048 | 49.4kg

7055308388 | Mantle,SH,Coarse,Medium,SH | 1258kg

1022819301 | ADJUSTMENT CAP ASSY | 2552kg

17-301-737-001 | MAIN SHAFT SLEEVE,THREADED 65 | 440kg

00-691-531-709 | EYE BOLT,2.00"-4.5UNC-2AX4.00-ASMEB18.15-T2- ASTMA489-UNPLTD | 8kg

17-303-532-501 | PISTON WEAR PLATE,ITALBRONZE LTDA,QUOTE 9/6/02 | 230kg

7055308120 | Mantle | 215kg

N02150060 | Gear pump | 15.5kg

7023508200 | BOWL | 1780kg

1020053002 | BOWL | 2279kg

1055981159 | FEED PLATE | 54kg

N63002253 | PINION | 9kg

MM0215635 | BRACKET,BALL VALVE PROX SWITCH, M03470- 110 | 118kg

7055308385 | Mantle,SH,Coar.,Med. | 1228kg

1018780310 | WEDGE RETAINER | 7.2kg

07-349-665-001 | NARROW ARM LINER,BOTTOMSHELL 65 | 174.2kg

17-502-135-501 | BOTTOMSHELL,ASSEMBLY, FLARED MK-II 75 | 49627.5kg

07-254-889-001 | MAIN SHAFT STEP WASHER,89 | 224kg

7090258005 | Bowl Assembly | 1525kg

1022815005 | ADJUSTMENT CAP | 390kg

1022815026 | ADJUSTMENT CAP | 488kg

N23508202 | BOWL | 3747kg

N98001132 | MAIN FRAME SET | 11242kg

N02150054 | PUMP,P7500C367AXSPLNY3000ASPLNY301DVS | 77.6kg

7055308383 | Mantle,SH,X-Fine,XT510, | 1313kg

MM0264424 | BOWL RING | 740kg

17-200-630-001 | PINION SHAFT ARM LINER,LEFT HAND 65 | 147.4kg

17-501-883-501 | TOPSHELL,ASSY. FOR 5475, OR LOWER FOR 2PC 6275+ | 64410.5kg

17-402-313-001 | MPS PISTON,89 | 1789.9kg

MM0904061 | Main shaft, 7013308001 | 303kg

1062440045 | DRIVE GEAR | 437kg

1062440048 | DRIVE GEAR | 465kg

N23455510 | ADJUSTMENT CAP | 792kg

N98000549 | SHAFT SET | 1141.2kg

1062440052 | RING,DRIVER | 590kg

7055308389 | Mantle,SH,X-Fine,XT710, | 1000kg

1057951852 | PLUG #4 | 6kg

17-200-629-001 | PINION SHAFT ARM LINER,RIGHT HAND 65 | 149kg

17-200-290-002 | BOTTOMSHELL HUB LINER,UPPER LEFT HAND 75 | 106.6kg

17-202-835-001 | MPS PISTON PLUG,89 | 9kg

7022072003 | Counterweight liner | 50kg

7080500423 | SUPPORT | 33kg

1010212939 | INSTALLATION SUPPORT | 74kg

N85701305 | HOPPER | 212.6kg

N98000555 | COUNTERWEIGHT LINER SET | 171.5kg

1093085034 | HYDRAULIC DRIVE | 146kg

71048300039 | BOWL LINER,SH,COARSE | 1177kg

1022148525 | Head bushing | 180kg

17-303-495-001 | SPIDER ARM SHIELD,ARCH SPIDER, 4265 | 1408kg

17-200-290-001 | BOTTOMSHELL HUB LINER,UPPER OPPOSITE PINION 75 | 57kg

17-303-532-002 | PLATE,PISTON WEAR PL MACH. 6089 FINISH MACHINE | 170.1kg

N22072003 | Counterweight liner | 50kg

7057500007 | GEAR BRAKE MOTOR | 63kg

1093070298 | HYDRAULIC MOTOR ASSEMBLY | 127kg

1044180284 | HOPPER, LOWER | 226kg

N98000329 | ARM GUARD SET | 61.4kg

1037071003 | PINION,P/N 81-004-4062 | 10kg

77055208392 | BOWL LINER,STD FINE | 1413kg

1048315407 | Bowl liner | 4700kg

07-244-052-001 | SPIDER CAP,65 | 1356kg

17-200-290-003 | BOTTOMSHELL HUB LINER,UPPER RIGHT HAND 75 | 106.6kg

17-303-631-005 | PISTON WEAR PLATE,RGH 89 | 240.4kg

7090058303 | Feed cone assembly | 32kg

7063002250 | PINION | 9kg

1020962080 | SLIDE | 10.886kg

N85728303 | CONICAL HOPPER | 337.6kg

N98000330 | ARM GUARD SET | 84.2kg

N02480792 | PUMP,PVP41 36 L2 P | 26kg

77055208403 | BOWL LINER,SH MEDIUM | 1527kg

MM0264430 | Bowl assembly | 23130.67kg

17-402-412-001 | CONCAVE SEGMENT, LOWER,5.50 OSS X 1.50 THROW 65, XT610,WT. PER SOROCABA 12/4/12 MEASURE | 160kg

17-301-761-501 | MAINSHAFT, SLEEVE & DOWEL ASSY,LUJ 5475 | 27215.5kg

07-248-798-002 | PISTON WEAR PLATE,CASTING, SG6089 | 207.3kg

7055308001 | Mantle | 494kg

7028000463 | PROTECTION COVER | 5kg

1044180249 | HOPPER, UPPER | 149kg

1048314222 | BOWL LINER | 1767kg

N21900360 | MAIN FRAME LINER | 244kg

N02125717 | FILTER,F3-50P-1-05Q-E-50-PP-1 | 23.2kg

7082404311 | Head center | 1686kg

1022148527 | Head bushing | 180kg

17-402-412-002 | KEY, CONCAVE SEGMENT, LOWER,5.50 OSS X 1.50 THROW 65 | 158.8kg

17-401-446-501 | MAIN SHAFT,WITH PERMANENT EYEBOLT 5475 WITHOUT SLEEVE | 29903.1kg

17-303-633-008 | MAIN SHAFT STEP,ROUGH MACH 89 | 241.8kg

1044180340 | UPPER FEED HOPPER | 141kg

7055308502 | MANTLE | 1798kg

N84101519 | SEAT LINER SEGMENT | 26kg

MM0311336 | BOWL LINER,SH FINE | 4231kg

N55308387 | MANTLE F,STD | 1270kg

1059239974 | Sheave without "S" bushing, 40"OD 8V | 1088kg

07-544-837-007 | CONCAVE SEGMENT, 2ND TIER,LOWER MIDDLE, XT610 | 106.6kg

17-301-760-001 | MAIN SHAFT SLEEVE,LUJ THREADED 75,BAM22659 | 421kg

17-402-928-503 | FLOW DIVIDER VALVE,50 GPM SPLIT FLOW ASSEMBLY | 20kg

1044180281 | LOWER FEED HOPPER | 96kg

1063437875 | BOWL ADAPTER RING | 202.1kg

N21900359 | MAIN FRAME LINER | 315kg

48314356 | BOWL LINER COARSE (For use with Standard Bowl #20055034 & #20055033) | 2924kg

1066664409 | BOWL LINER EXTRA COARSE,STD | 1389kg

1073818178 | Socket | 470kg

07-544-837-008 | KEY, CONCAVE SEGMENT, 2ND TIER,XT610, SG4265 | 94.4kg

17-300-837-001 | SPLASH CURTAIN SUPPORT RING,75 | 18.6kg

17-200-825-001 | BOTTOMSHELL HUB LINER,LEFT HAND 6089 | 155.1kg

N55208269 | Bowl Liner STD F | 736kg

1063915668 | TORCH RING | 30kg

N84101520 | SEAT LINER SEGMENT | 6.5kg

1048314364 | Bowl liner | 4160kg

N65558201 | Feed cap | 35kg

MM0215157 | Counterweight assembly, Sub-assembly, 1094305008 | 3780kg

17-401-129-003 | CONCAVE SEGMENT, 3RD TIER,MANGANESE 65 | 83.9kg

07-354-559-001 | NARROW ARM LINER,75 | 332kg

17-200-826-001 | BOTTOMSHELL HUB LINER,RIGHT HAND 6089 | 155.1kg

N55308261 | MANTLE,FINE,MEDIUM,COARSE | 780kg

N22300505 | DRILLED BLOCK | 10.4kg

N98000323 | SEAT LINER SEGMENT SET | 34.8kg

1050143852 | Mantle | 4677kg

1048300004 | BOWL LINER | 1170kg

MM0201016 | Bowl liner | 5521kg

17-401-129-004 | KEY, CONCAVE SEGMENT, 3RD TIER,MANGANESE 65 | 70.3kg

07-354-558-002 | PINION SHAFT ARM LINER,LEFT HAND 75 | 225kg

17-200-827-001 | BOTTOMSHELL HUB LINER,REAR 6089 | 89.8kg

1063914652 | TORCH RING | 5kg

7002153011 | PRESSURE LIMITER | 7.6kg

N55309509 | Mantle,fine,Extra fine | 1746.65kg

1048314363 | Bowl Liner | 4200kg

1048722905 | Socket liner | 67kg

MM0325217 | SEAT LINER SEGMENT | 33kg

17-401-129-001 | CONCAVE SEGMENT, 4TH TIER,OR UPPER, MANGANESE 4265 | 90.7kg

07-354-558-001 | PINION SHAFT ARM LINER,RIGHT HAND 75 | 235.9kg

17-401-602-501 | MAINSHAFT,LUJ, WITH PERM EYEBOLT 6089,FOR THREADED MAINSHAFT SLEEVE | 47749.6kg

1063917418 | BOWL ADAPTER RING | 65kg

7086124758 | TUBE | 9.7kg

77055209502 | Bowl liner,Coarse | 2030kg

MM0328312 | Main frame and main shaft | 18616kg

1048300005 | Bowl liner,SHD | 1200kg

1031143704 | Eccentric | 3400kg

17-401-129-002 | KEY, CONCAVE SEGMENT, 4TH TIER,OR UPPER, MANGANESE 4265 | 86.2kg

17-402-300-008 | MANTLE,PARTIALLY CORRUGATED 73.25 RBD XT510 5475 | 7801.8kg

17-302-053-001 | MAIN SHAFT SLEEVE,6089 LUJ MK-II THREADED | 837kg

7003236883 | DETACHABLE HUB PULLEY | 150kg

N30165405 | MOTOR SUPPORT | 1059.2kg

77055209504 | Bowl liner,Fine | 2249kg

1093080217 | Eccentric assembly | 5312kg

1048300007 | Bowl liner,MEDIUM | 1400kg

1057605256 | Eccentric bearing | 155kg

07-449-494-003 | SPIDER RIM LINER,LEFT HAND ADJ TO SPIDER ARM 5475 | 818kg

17-202-036-001 | SLEEVE LOCK WASHER,MAINSHAFT 89 | 21.4kg

1080960059 | ECCENTRIC LIFTING PLATE | 79.2kg

7047811525 | SLIDE ASSEMBLY | 89kg

77055309501 | Mantle,Coarse | 1650kg

1073049423 | Sheave bushing | 49kg

77055308395 | Mantle | 1159kg

1048315556 | BOWL LINER | 4619kg

07-350-278-001 | SPIDER RIM LINER,CENTER 75 | 1161kg

17-202-034-001 | LOCKNUT, MAIN SHAFT SLEEVE,LUJ - 89 | 98.4kg

MM0233622 | IMMERSION HEATER | 5.7kg

7005419218 | SQUIRREL CAGE MOTOR | 68kg

N12080212 | Torch ring | 10.9kg

MM0325754 | Main frame liner | 772kg

1042463505 | Head | 1745kg

MM0431856 | Head | 11000kg

07-449-494-002 | SPIDER RIM LINER,RIGHT HAND ADJ TO SPIDER ARM 5475 | 830.1kg

17-301-590-001 | MAIN SHAFT EYE BOLT,6089 | 74.8kg

N35900142 | COVER | 6.3kg

7005419218 | SQUIRREL CAGE MOTOR | 68kg

N98000488 | Head Assembly | 2830kg

ММ0325753 | Main frame assembly | 19707kg

1038067463 | GUARD COUNTERSHAFT | 77.5kg

1055988675 | Feeding distribution plate | 340kg

10140446000 | CONCAVE | 244kg

17-301-089-001 | NARROW ARM LINER,6089 | 280kg

N84101124 | COVER | 11.4kg

N29201813 | DRILLED BLOCK | 12kg

N98000251 | BOWL KIT | 5150kg

1059422506 | PUMP, OIL GEAR PVW-20 | 31kg

N90058315 | Feed cone assembly | 81kg

MM0264425 | BOWL ADAPTER RING SHORT HEAD | 729kg

10140431000 | CONCAVE, SPECIAL | 200.4kg

17-401-591-001 | SPIDER RIM LINER | 697.2kg

7005419218 | SQUIRREL CAGE MOTOR | 45kg

N22300505 | DRILLED BLOCK | 10.4kg

N55309508 | Mantle | 1706kg

5014-3810 | Mantle, SH, Med, Coarse | 5687kg

7090058015 | Head assembly | 1880kg

MM0305775 | BOWL LINER | 6234kg

10140029000 | CONCAVE,DOUBLE TIER | 456kg

17-501-426-001 | SPIDER ARM SHIELD,STANDARD 6089 | 4847.915kg

N02150061 | PUMP | 25.8kg

MM0250509 | COOLING FAN | 7kg

N98001114 | PULLEY SET | 296kg

4831-4348 | Bowl liner | 2169kg

7085728300 | CONICAL HOPPER, 锥形料斗 | 208.9kg

1062731757 | Locking nut | 445kg

10040431900 | CONCAVE CASTING | 200.4kg

07-248-700-001 | SPIDER CAP,STANDARD - 89 MACHINING | 6804kg

N29201816 | DRILLED BLOCK | 50kg

1048314236 | BOWL LINER | 2292kg

N98001281 | Bowl Assembly | 5770kg

N12504023 | ADJUSTMENT RING | 2450kg

1094300480 | Hydraulic Drive Unit Assembly | 190kg

10040029900 | CONCAVE CASTING | 456kg

17-301-088-002 | PINION SHAFT ARM LINER,RIGHT HAND HALF ONLY, ACM-180, SG6089 | 196kg

7005419218 | SQUIRREL CAGE MOTOR | 45kg

1048314243 | BOWL LINER | 2292kg

N90258405 | HEAD COMPLETE WITH STRAP AND KEY SUPPORTS | 516kg

MM0200072 | Mantle | 5550kg

17-400-026-006 | 54X75 Mantle two piece smooth options | 2327kg

17-301-088-003 | PINION SHAFT ARM LINER,LEFT HAND HALF ONLY, ACM-180, 6089 | 196kg

N29201813 | DRILLED BLOCK | 12kg

7055308501 | MANTLE | 1957kg

1063437878 | BOWL ADAPTER RING | 233kg

MM0236527 | MAIN FRAME ASSEMBLY | 50000kg

17-400-026-016 | 54X75 Mantle two piece smooth options | 2327kg

17-501-426-003 | SPIDER ARM SHIELD, Rock box XT510 | 7169.835kg

N02154081 | AIR COOLER, INSTALLATION | 80kg

77055308508 | MANTLE | 1933kg

1063437880 | Bowl adaptor ring | 240kg

1036833302 | Eccentric Gear | 1185kg

17-402-300-007 | MANTLE,PARTIALLY CORRUGATED 1 PIECE 54 75 | 7808.8kg

07-346-904-001 | Hydroset cylinder bushing | 347kg

N02154760 | RADIATOR | 26kg

1048314244 | BOWL LINER,STD EXTRA COARSE | 1888kg

1055308282 | Mantle S.H. – 18% Mag | 1250kg

MM0309147 | Bowl liner | 6028kg

17-402-300-001 | MANTLE,PARTIALLY CORRUGATED 1 PIECE 54 75 XT610 | 7808.8kg

07-248-798-001 | PISTON WEAR PLATE | 207.3kg

N55208263 | BOWL LINER,SH M | 775kg

77055208515 | BOWL LINER,STD MEDIUM | 2090kg

7002150040 | PUMP R1A6137G4A1C-198L/MIN | 48kg

MM0308181 | Bowl liner | 5989kg

17-402-300-002 | MANTLE,PARTIALLY CORRUGATED 1 RBD 54 75 XT610 | 7808.8kg

07-445-076-002 | ECCENTRIC BUSHING | 1156.7kg

N55208264 | BOWL LINER,SH EXTRA FINE | 794kg

77055208516 | BOWL LINER,STD FINE | 2074kg

N98000821 | Plate power distribution | 12kg

MM0305196 | Mantle | 5455kg

07-445-912-001 | ECCENTRIC BUSHING,1.625 THROW 5475 | 730kg

17-402-309-801 | Eccentric assembly | 8899.0305kg

77055208265 | BOWL LINER,SH,EXTRA FINE | 581kg

7055208502 | BOWL LINER,STD FINE | 2074kg

N80507567 | SUPPORT | 71kg

MM0377324 | LUBE PUMP PLATE ASSY | 210kg

07-445-912-002 | ECCENTRIC BUSHING,1.375 THROW 5475 | 730kg

17-301-089-002 | Narrow arm liner | 280kg

7055208266 | BOWL LINER | 785kg

77055208519 | BOWL LINER,SH FINE | 1850kg

N90258018 | Bowl | 3000kg

1048315412 | Bowl liner | 5672kg

07-445-912-004 | ECCENTRIC BUSHING,1.00 THROW 5475 | 730kg

17-501-908-002 | Upper part/corg mantle X610 | 2427kg

77055208279 | BOWL LINER | 785kg

77055208520 | BOWL LINER,SH EXTRA FINE | 1580kg

1093040074 | ADJUSTMENT MECHANISM | 805kg

MM0354614 | Bowl liner | 6470kg

07-252-501-001 | MAIN SHAFT STEP,BRONZE CASTING MAGNOLIA METAL CORP. | 117.9kg

17-501-908-006 | Lower part/corg mantle X520 | 9728kg

7055208267 | BOWL LINER,STD COARSE | 856kg

7055308506 | MANTLE | 1680kg

N22102712 | Arm Guard | 45kg

1094205071 | Accumulator assy | 68kg

07-248-123-001 | Spider cap | 2535kg

17-402-368-001 | REG CONCAVE | 175kg

N55208268 | BOWL LINER, MEDIUM, STD | 741kg

7055308509 | MANTLE,SH | 1798kg

N22102713 | Arm Guard | 45kg

1048727626 | Socket liner | 463kg

217402300021A | Mantle | 7800kg

17-402-368-002 | KEY CONCAVE | 166kg

7055308258 | MANTLE,STD | 775kg

77055308514 | MANTLE,EC,C(1),STD | 1925kg

MM1338371 | Adjustment ring assemlby | 3200kg

1080960082 | Head turning plate | 650kg

17-502-013-001 | Mantle | 6387kg

17-402-368-003 | REG CONCAVE | 152kg

N55208279 | BOWL LINER | 783kg

77055308515 | MANTLE,EXTRA COARSE,STD | 1882kg

17-502-013-002 | Mantle | 6387kg

17-402-368-004 | KEY CONCAVE | 143kg

N55208280 | BOWL LINER,STD COARSE | 856kg

1019559607 | LOCKING BOLT | 81kg

17-502-013-003 | Mantle | 6387kg

N55208282 | BOWL LINER | 736kg

7055208504 | BOWL LINER FINE,STD | 2100kg

17-502-177-001 | UPPER CONCAVE SEGMENT | 215kg

N55208283 | BOWL LINER COARSE,SH | 806kg

N55308516 | MANTLE,C,EC,EC(1),STD | 1881kg

17-502-177-002 | UPPER MIDDLE CONCAVE SEGMENT | 235kg

N55208284 | BOWL LINER | 756kg

7055208512 | BOWL LINER MEDIUM,STD | 2096kg

17-502-177-003 | LOWER MIDDLE CONCAVE SEGMENT | 238kg

N55208285 | MANTLE | 766kg

7055208514 | BOWL LINER COARSE,STD | 2443kg

17-502-177-004 | LOWER CONCAVE SEGMENT 6.88 O.S.S. 1,25 THROW | 216kg

N55208277 | Bowl Liner,XF,M21%,SH | 581kg

1066664501 | BOWL LINER COARSE (1),STD | 2367kg

17-502-177-005 | UPPER CONCAVE SEGMENT | 215kg

N65558321 | feed cone | 18.1kg

1066664502 | BOWL LINER COARSE (1),STD | 2367kg

17-502-177-006 | UPPER MIDDLE CONCAVE SEGMENT | 235kg

N55208276 | BOWL LINER FINE HP300,SH | 793kg

1048314240 | BOWL LINER EXTRA COARSE,STD | 1913kg

17-502-177-007 | LOWER MIDDLE CONCAVE SEGMENT | 238kg

N55208275 | BOWL LINER MEDIUM,SH | 770kg

7055208513 | BOWL LINER EXTRA COARSE,STD | 1919kg

17-502-177-008 | LOWER CONCAVE SEGMENT 5,5 O.S.S, 1.25 THROW | 250kg

N55208262 | BOWL LINER COARSE,SH | 808kg

1066664508 | BOWL LINER EXTRA COARSE (2),STD | 2260kg

17-502-177-009 | LOWER CONCAVE SEGMENT 7.0 O.S.S, 1.62 THROW | 225kg

N55208274 | BOWL LINER COARSE,SH | 808kg

7055308503 | MANTLE,FINE,STD | 1957kg

17-502-177-010 | LOWER CONCAVE SEGMENT 6.0 O.S.S, 1.62 THROW | 244kg

N55308264 | LOWER MANTLE PART EXTRA FINE,SH | 593kg

N55308515 | MANTLE,EXTRA COARSE,STD | 1882kg

17-502-177-011 | LOWER CONCAVE SEGMENT 6.0 O.S.S, 1.00 THROW | 236kg

7055308254 | UPPER MANTLE PART EXTRA FINE,SH | 39kg

7055208508 | BOWL LINER EXTRA FINE,SH | 1580kg

17-502-177-012 | LOWER CONCAVE SEGMENT 6.0 O.S.S, 1.62 THROW | 244kg

N55308266 | LOWER MANTLE PART EXTRA FINE,SH | 593kg

7055208518 | BOWL LINER MEDIUM,SH | 1726kg

17-502-177-014 | LOWER CONCAVE SEGMENT 5,5 O.S.S, 1.62 THROW | 265kg

N55308262 | MANTLE FINE,MEDIUM,COARSE,SH | 780kg

7055208517 | BOWL LINER COARSE,SH | 1760kg

17-502-177-015 | UPPER CONCAVE SEGMENT | 215kg

N55308267 | MANTLE FINE,MEDIUM,COARSE,SH | 794kg

1048314241 | BOWL LINER COARSE,SH | 1760kg

17-502-177-016 | UPPER MIDDLE CONCAVE SEGMENT | 235kg

N55208271 | Std coarse bowl liner | 856kg

7055308504 | MANTLE FINE,MEDIUM,COARSE,SH | 1804kg

17-502-177-013 | LOWER MIDDLE CONCAVE SEGMENT | 238kg

N55208273 | Bowl liner | 736kg

N65558252 | Feed plate | 54kg

07-354-559-002 | NARROW ARM LINER,75 | 332kg

48294629 | Bowl Liner | 750kg

77055208532 | Bowl liner | 2310kg

07-354-558-003 | PINION SHAFT ARM LINER,RIGHT HAND 75 | 235.9kg

7055308252 | Mantle | 766kg

7055208502 | Bowl liner | 2100kg

07-354-558-004 | PINION SHAFT ARM LINER,LEFT HAND 75 | 225kg

77055308263 | Mantle | 766kg

77055308520 | Mantle | 2100kg

17-502-416-001 | UPPER CONCAVE DOUBLE TIER WX50 | 458kg

77055209253 | Bowl liner | 1062kg

1093055003 | Counterweight assembly | 1378.6kg

17-502-416-002 | LOWER CONCAVE DUBLE TIER 6.88 OSS X 1.25 TH WX55 | 456kg

77055308260 | Mantle | 593kg

ММ1318580 | TORCH RING | 30kg

17-502-416-003 | LOWER CONCAVE DUBLE TIER 6.00 OSS X 1.62 TH WX50 | 483kg

77050132118 | Mantle | 620kg

6391-7605 | Counterweight Guard | 142kg

17-502-416-004 | SPECIAL LOWER DOUBLE TIER 6.00 OSS X 1.62 TH WX50 REDUCED CAPACITY | 490kg

77055208281 | BOWL LINER,MEDIUM | 737kg

1086428322 | Counterweight | 1210kg

17-502-416-005 | LOWER CONCAVEDUBLE TIER 5.00 OSS X 1.25 TH WX50 | 537kg

N55208272 | BOWL LINER,MEDIUM | 737kg

N98000770 | MAIN FRAME ASSEMBLY | 10500kg

17-502-416-006 | LOWER CONCAVEDUBLE TIER 7.00 OSS X 1.62 TH WX50 | 499kg

7072450024 | Adjusting ring | 1830kg

1093050023 | ECCENTRIC ASSEMBLY | 2563kg

17-502-416-007 | UPPER CONCAVE DOUBLE TIER WX70 | 458kg

7002150036 | PUMP, HYDRAULIC | 27kg

1093050128 | Adjustment ring assembly | 4038kg

17-502-416-008 | LOWER CONCAVE DOUBLE TIER 6.00 OSS X 1.62 WX70 | 483kg

N55308265 | Mantle | 766kg

N90248014 | ADJUSTMENT RING ASSEMBLY | 3966kg

17-502-416-009 | LOWER CONCAVE DOUBLE TIER 8.00 OSS X 1.62 WX70 | 466kg

N55205277 | BOWL LINER,SH,EXTRA FINE | 581kg

N55208531 | Bowl Liner STD C | 2350kg

17-502-416-010 | LOWER CONCAVE DOUBLE TIER 5.50 OSS X 1.25 WX50 | 527kg

N55208286 | BOWL LINER,SH,EXTRA FINE | 598kg

N55308519 | Mantle STD | 1830kg

17-502-416-011 | LOWER CONCAVE DOUBLE TIER 8.00 OSS X 1.62 WX50 | 466kg

N55208265 | BOWL LINER,SH,EXTRA FINE | 581kg

1063917605 | Counterweight liner | 133kg

17-502-416-012 | LOWER CONCAVE DOUBLE TIER 8.00 OSS X 1.00 WX50 | 447kg

7055208250 | Bowl liner | 800kg

1061876294 | Adjustment ring | 2840kg

17-502-416-013 | LOWER CONCAVE DOUBLE TIER 6.00 OSS X 1.62 WX65 | 483kg

7065558094 | Feed Cone | 18kg

N90248508 | ADJUSTMENT MECHANISM ASSEMBLY | 993.3kg

17-502-416-014 | LOWER CONCAVE DOUBLE TIER 6.00 OSS X 1.62 WX60 | 483kg

6391-5547 | Frame ring | 6.4kg

N12504022 | ADJUSTMENT RING | 3048.2kg

07-449-490-001 | SPIDER ARM SHIELD | 1482kg

1062807491 | Oil flinger | 14kg

N90408006 | DRIVE GEAR | 700kg

A2-88455 | Hub liners | 224kg

7055208259 | BOWL LINER | 1042kg

MM1370518 | Bolt,Locking,Mantle | 63kg

17-502-207-001 | Lower corrugated mantle | 6721kg

MM0905715 | ADJUSTMENT RING ASSEMBLY | 1857.09kg

N55308514 | MANTLE STD C/EC | 1886kg

17-502-207-003 | Lower corrugated mantle | 6721kg

1061871854 | Adjustment ring | 1771kg

17-502-207-005 | Lower corrugated mantle | 6721kg

7016200102 | Counterweight-N16200115 | 470kg

17-502-207-002 | Upper corrugated mantle | 2168kg

N90058056 | Head assembly | 1102.4kg

17-502-207-004 | Upper corrugated mantle | 2168kg

MM0904069 | Main shaft | 540.98kg

17-502-207-006 | Upper corrugated mantle | 2168kg

1048722782 | Socket liner | 43kg

07-547-556-001 | Regular concave (upr) | 191kg

N55208281 | BOWL LINER, MEDIUM | 740kg

07-547-556-002 | Key concave (upr) | 183kg

MM1318244 | Torch ring | 6kg

07-547-556-003 | Regular concave (mid) | 200kg

7002445608 | ACCUMULATOR | 11kg

07-547-556-004 | Key concave (mid) | 186kg

MM1601135 | Bowl liner | 888kg

07-547-556-005 | Regular concave (4th) | 191kg

MM1598925 | Bowl liner, STD-XC | 789kg

07-547-556-006 | Key concave (4th) | 183kg

7085728250 | CONICAL HOPPER | 200kg

07-547-569-001 | Concave segment - lower middle | 177kg

07-547-569-002 | Key concave segment - lower middle | 169kg

07-547-569-003 | Concave segment - lower middle | 181kg

07-547-569-004 | Key concave segment - lower | 172kg

07-547-569-005 | Concave segment - lower middle XT710 | 177kg

07-547-569-006 | Key concave segment - lower middle XT710 | 169kg

FAQ: Frequently Asked Question about Cone Crusher

1. Who invented cone crusher?

The cone crusher was first invented in the United States by the Symons brothers of Milwaukee in the 1920s, hence the name "Symons cone crusher." The Symons brothers are credited with being the first designers and inventors of the spring cone crusher. The greatest advantages of the Symons brothers' cone crusher lie in its durability and simplicity, with only nine moving parts. After years of research and development, the spring cone crusher has become one of the most efficient and widely used crushing equipment. Its structure consists of an eccentric sleeve inserted into the main shaft, which drives the rotating cone to oscillate, causing the ore and rock to be continuously compressed and bent within the crushing chamber. Since then, the cone crusher has continued to develop, and in 1948, the American company Allis Chalmers first introduced a bottom-mounted single-cylinder hydraulic cone crusher.

2. What are the common failures of cone crusher bottom shell? how to Prevent?

1. Fatigue Cracking
Fatigue cracking happens when the cone crusher shell is under repeated cyclic loading—this is common because crushers work in cycles of compression and release, with typical cyclic forces ranging from 500 to 3,000 kN for industrial models. Over time, these repeated stresses create small cracks (usually starting at welds or castings’ weak points) that grow and can split the shell. To fix this, experts first choose the right alloys: high-tensile cast steel like ZG270-500 (with a yield strength of ≥270 MPa) is better than regular steel because it handles cyclic stress 30% longer. They also use Finite Element Analysis (FEA) during design—this computer tool simulates where stress builds up (e.g., the bottom shell’s discharge zone) and adjusts the shell’s shape (like adding fillets to sharp edges) to cut peak stress by 25–40%.

2. Bore Wear
Bore wear (wearing down of the socket liner seat’s inner hole) usually gets worse from two main issues: misalignment or poor lubrication. If the shell’s bore isn’t perfectly aligned with the eccentric bushing (even a 0.1 mm misalignment), the two parts rub unevenly—this can speed up wear by 50% compared to aligned setups. Lubrication failure is just as bad: if the oil port clogs and the bore doesn’t get enough ISO VG 46 lubricating oil, friction between the bore and liner increases, wearing the bore’s surface down by 0.5–1 mm every 1,000 operating hours. Experts recommend two key steps: check the bore’s condition every 800 hours (using a bore gauge to measure wear—replace the shell if wear exceeds 2 mm) and do laser alignment checks every 6 months (laser tools ensure alignment within ±0.05 mm, which keeps wear slow and steady).

3. Corrosion/Pitting
Corrosion and pitting (small holes on the shell’s surface) happen when moisture, rain, or acidic ores (like copper or iron ore with pH < 6) react with unprotected steel. In high-humidity mines (where humidity stays above 75%), a plain steel shell can start showing rust in 2–3 weeks, and pitting can go 1–3 mm deep in 6 months—this weakens the shell and makes it more likely to crack under load. To prevent this, experts suggest using anti-corrosion coatings in these environments. For example, a zinc-rich epoxy coating (with 85% zinc content) forms a protective layer that stops moisture from touching the steel—this can make the shell’s corrosion resistance 3–4 times better than uncoated steel. For extra protection in acidic ore plants, add a top coat of polyurethane (PU) paint—it resists acid splashes and keeps the zinc layer intact for 5–7 years.

3. What are the cone crusher main frame Inspection & Maintenance best practices?

1. Monthly Checks:
Monthly inspections are critical for catching early signs of shell damage—skipping them can lead to unplanned downtime (which costs $5,000–$20,000 per day for industrial crushers). Here’s what experts recommend, with precise steps and benchmarks:

Measure bore tolerances: Use a digital bore gauge to check the socket liner seat’s inner diameter. The ideal tolerance for most models (e.g., Sandvik CH895i, Metso HP500) is ±0.05 mm—if tolerance drifts beyond ±0.15 mm, the bore will misalign with the eccentric bushing, accelerating wear by 40%. Record measurements each month; a sudden 0.08 mm+ change means there’s hidden wear (e.g., from a damaged liner).

Inspect for cracks with dye-penetrant testing (DPT): DPT is the gold standard for finding tiny surface cracks (as small as 0.02 mm) that eye checks miss—critical because a 1 mm crack can grow to 10 mm in 2–3 weeks under cyclic load. Clean the shell’s surface first (remove oil/rust with a wire brush), apply penetrant (leave 10–15 minutes), wipe excess, and spray developer. Any red lines indicate cracks—if cracks are longer than 5 mm or deeper than 2 mm, repair the shell (via welding with matching alloy rods) or replace it immediately.

Verify lubrication flow rates: Use the oil system’s flow meter to check if oil reaches the shell’s lubrication ports at the correct rate (typically 5–20 L/min, depending on crusher size). A flow rate 30% below the manufacturer’s spec (e.g., 3.5 L/min instead of 5 L/min) means the bore and bearings aren’t getting enough oil—this increases friction and can wear the shell’s inner surface by 0.3 mm per month. Also, check oil temperature (should stay 40–60°C); over 65°C means the oil is breaking down, even if flow is normal.

2. Liner Replacement:
Replacing only one component like a worn socket liner without the eccentric is a common mistake that shortens the shell’s life by 50%. Here’s why matched sets matter, plus expert replacement steps:

Why matched sets are non-negotiable: The socket liner, eccentric bushing, and counterweights are engineered to work together with precise clearances 0.1–0.2 mm. If you mix old and new parts—for example, a new liner with a 6-month-old eccentric—the clearances become uneven. This causes “point loading” stress concentrated on 10–15% of the shell’s bore instead of 100%, leading to localized wear or fatigue cracks in 3–4 months. For example, a Metso GP100 crusher’s matched set (liner + eccentric + counterweights) is calibrated to distribute stress evenly across the lower frame mixing parts can push stress peaks to 3,500 kN which is well above the shell’s 3,000 kN max capacity.

Expert replacement tips: First, clean the shell’s bore with a solvent to remove old oil and debris even a 0.1 mm layer of dirt can throw off alignment. Then, use a torque wrench to fasten the new liner to the bore (follow manufacturer torque specs: e.g., 800 N·m for Sandvik CH series). After installation, check the eccentric’s runout with a dial indicator—should be ≤0.03 mm. Finally, test-run the crusher at 50% load for 30 minutes; if you hear grinding or feel excessive vibration, stop and recheck the set’s alignment.

3. Oil System Maintenance:
Contaminated oil (with dirt, metal shavings, or water) causes 60% of bottom shell failures—here’s how to maintain the oil system like an expert:

Monitor oil filters and pressure gauges daily: Check the pressure gauge (normal range: 0.3–0.6 MPa) when starting the crusher. A sudden pressure drop (e.g., from 0.5 MPa to 0.2 MPa) means the filter is clogged—replace it within 2 hours to avoid oil starvation. For spin-on filters, use only OEM or ISO 4406 Class 18/16/13-rated filters (these trap particles as small as 4 μm; cheaper filters let 10 μm+ debris pass, which scratches the shell’s bore).

Test oil quality monthly: Send a 50 mL oil sample to a lab for analysis—key metrics to check:

Particle count: Should be ≤10,000 particles (≥4 μm) per mL; over 20,000 means the system is dirty (flush the oil tank and replace hoses).

Water content: ≤0.1% (by volume); over 0.2% causes rust in the shell’s bore—add a water-removing additive or drain/replace the oil.

Viscosity: Should stay within ±10% of the original ISO VG rating (e.g., 41.4–50.6 cSt for ISO VG 46 oil); if it’s too thin (e.g., 35 cSt), the oil can’t form a protective film, leading to metal-on-metal wear.

Change oil every 2,000–2,500 operating hours: Even with clean filters, oil degrades over time (additives break down, viscosity drops). Always use the manufacturer-recommended oil (e.g., Shell Omala S4 GX 46 for Telsmith crushers)—mixing oil brands can cause chemical reactions that form sludge, which clogs lubrication ports and damages the shell.

4. Shoud I choose a OEM manufacturer or aftermartket for cone crusher bottom/top shell?

Choose OEM if: Your crusher runs 24/7, processes hard/abrasive materials likegranite, basalt, or is a high-capacity model ≥500 tph. The higher upfront cost is offset by longer service life 12,000+ hours and lower downtime—for a 24/7 mine, OEM shells typically lower TCO by 15–20% over 3 years compared to risky aftermarket parts.

Choose Aftermarket if: Your crusher operates intermittently (≤12 hours/day), processes soft materials (e.g., limestone, gypsum), and you can verify the supplier’s technical credentials (MTRs, laser scanning reports, WPS). Opt for aftermarket suppliers that specialize in your crusher brand (e.g., suppliers focusing on Sandvik or Metso parts) —they’re more likely to match OEM specs than general-purpose manufacturers.

1. OEM Bottom Shells:
Guaranteed Compatibility and Durability for High-Demand Scenarios
OEM bottom shells are engineered as “original matching components” for specific crusher models (e.g., Metso Nordberg HP500, Sandvik CH895i) and come with technical guarantees that directly reduce operational risks. Here’s why they remain the first choice for high-load or continuous-operation scenarios, backed by key data:

100% Compatibility & Precise Dynamic Alignment: OEM shells are designed with the same 3D models and manufacturing tolerances as the original crusher—typically holding dimensional accuracy of ±0.05 mm for critical mating surfaces (e.g., the socket liner seat and eccentric bushing interface). This precision ensures the bottom shell integrates seamlessly with other OEM parts (e.g., main shaft, adjustment ring), maintaining the crusher’s optimal dynamic performance: for example, a Sandvik OEM bottom shell for the CH895i keeps the moving cone’s orbital path deviation ≤0.03 mm, which preserves a 4:1–6:1 reduction ratio and cuts oversize product rates by 8–12% compared to misaligned setups.

Tested Metallurgical Performance: OEM shells undergo rigorous material validation and load testing before market release. For instance, Caterpillar OEM bottom shells use ZG270-500 cast steel that’s certified to meet ASTM A216 WCB standards—with a minimum yield strength of 270 MPa and impact toughness of ≥27 J at -20°C. They also pass 1,000+ hours of cyclic load testing (simulating 3,000 kN peak crushing forces) to ensure no fatigue cracks form. This translates to a typical service life of 12,000–15,000 operating hours for OEM shells in hard rock applications—30–40% longer than untested aftermarket parts.

Reduced Unplanned Downtime: For crushers running 24/7 (e.g., large-scale mines), unplanned downtime due to a failed bottom shell can cost $8,000–$25,000 per day (including labor, lost production, and emergency part delivery). OEM shells minimize this risk: most OEMs offer a 12–24 month warranty (covering material defects and premature wear) and provide technical support for installation—ensuring the shell is fitted correctly the first time. For example, Telsmith’s OEM bottom shell for the 52 SBX model includes a pre-installation alignment guide that cuts fitting time by 50% and eliminates rework due to misalignment.

2. Aftermarket Bottom Shells:
Aftermarket bottom shells can reduce upfront costs by 20–40% compared to OEM parts—making them attractive for budget-conscious operations or crushers in low-intensity use. However, not all aftermarket parts meet OEM standards, and skipping technical verification can lead to premature failures that ultimately increase TCO. Experts recommend three non-negotiable checks to ensure aftermarket shells perform reliably:

Material Certification: ISO 3755 & Beyond: The foundation of a durable bottom shell is high-quality cast steel—so always request a material test report (MTR) that confirms compliance with ISO 3755 (the international standard for carbon and carbon-manganese cast steel for general engineering). Key metrics to verify include:

Chemical composition: Carbon content (0.20–0.30% for ZG270-500) to ensure strength without brittleness; manganese (1.20–1.60%) to enhance impact resistance.

Mechanical properties: Tensile strength (≥480 MPa) and elongation (≥22%)—values below these indicate substandard steel that will wear 2x faster under cyclic load.

Non-destructive testing (NDT): Ask for ultrasonic testing (UT) reports to confirm no internal porosity (≤1% by volume) or inclusions—these hidden flaws are the main cause of sudden shell cracking under high pressure.

Dimensional Precision: Laser Scanning & OEM Tolerance Matching: Even if the material is correct, poor dimensional accuracy will ruin performance. Reputable aftermarket suppliers use laser scanning (with ±0.02 mm accuracy) to reverse-engineer OEM bottom shells, ensuring critical features match OEM specs:The socket liner seat’s inner diameter (e.g., 450 mm for a Metso GP100) must be within ±0.05 mm of the OEM value—any deviation beyond ±0.1 mm will cause the eccentric bushing to rub unevenly, wearing the shell’s bore at a rate of 0.5 mm per 1,000 hours.
The bottom shell’s mounting hole positions (for attaching to the crusher base) must align with OEM templates—laser alignment checks should show hole center deviation ≤0.03 mm to avoid bolt stress and shell warping.

Welding Process Control: Minimizing Residual Stress: For modular aftermarket shells (split into 2–4 sections for transportation), welding quality directly impacts fatigue life. Require the supplier to provide a welding procedure specification (WPS) that follows AWS D1.1 (American Welding Society) standards, including:Pre-weld heating (600–650°C for ZG270-500 steel) to reduce heat input and prevent cold cracking.

Post-weld heat treatment (PWHT): Holding the shell at 620°C for 4 hours, then cooling at 50°C/h—this reduces residual stress by 80% or more, a critical step to avoid premature fatigue (untreated welds can develop cracks in as little as 2,000 hours of operation).
Weld inspection: Dye-penetrant testing (DPT) of all welds to check for surface cracks—any crack longer than 3 mm means the weld needs reworking.

5. What is a crusher and why is it important in mining and mineral processing?

A crusher is a machine that reduces large rocks into smaller rocks, gravel, sand, or rock dust. This step is very important because smaller material is easier to move on conveyors and to process in the plant. Crushing is usually the first step in separating valuable minerals from waste rock (gangue). The waste may be thrown away or sometimes recycled, while the mineral-rich material goes on for further processing.

Different crushers are used depending on the hardness, size, and properties of the material. The basic working principle is simple: the feed material is squeezed between two solid surfaces, and strong mechanical force breaks or deforms the rock.

Crushers are usually classified by stages:
Primary crushers handle big, coarse rocks (up to 1–1.5 meters).
Secondary crushers take the smaller feed from primary and reduce it further.
Tertiary and quaternary crushers make very fine particles (often <5 mm), useful for sand, aggregates, or mineral liberation.

Most crushers also send their output to a screening machine, which sorts the material by size before the next processing step. In many plants, after crushing, the material is further ground in mills (like ball mills or vertical mills) to reach the required fineness.

For example, a large jaw crusher can handle feed up to 1500 mm and produce output around 150–300 mm, while cone crushers or impact crushers may reduce this further down to just a few millimeters.

6. What are the 4 types of cone crusher?

Cone crushers have four main types tailored to different needs. Symons cone crushers, with spring protection, suit small-to-medium mines’ medium-fine crushing of materials ≤300MPa (20-500 t/h). Single-cylinder hydraulic ones (mainstream now) boost efficiency by 15-25% for hard rock (≤350MPa, 50-1500 t/h). Multi-cylinder hydraulic models handle ultra-hard materials (≥350MPa, 500-2500 t/h) with high stability. Gyratory crushers, for coarse crushing, process large ore (1000-10000 t/h) in big mines. Model selection depends on crushing stage, material hardness and capacity.

1. Symons cone crusher
The first is the Symons cone crusher. Designed by the Symons brothers in the early 20th century, this traditional model features a spring safety device and a compound pendulum motion of the moving cone, making it a typical example of a "standard" cone crusher. Its main shaft is fixed to the top of the frame. As the eccentric sleeve rotates around the main shaft, it drives the moving cone in a "rotational pendulum" motion—both orbiting around the main shaft and rotating on its own axis. Material is crushed by compression and bending within the "V-shaped crushing chamber" formed by the fixed and moving cones. The key function of the spring device is overload protection: when encountering uncrushable objects such as iron blocks, the spring compresses, temporarily retracting the moving cone. Once the foreign object is expelled, it automatically resets, preventing damage to core components. This type of crusher features three crushing chambers: coarse crushing (C chamber), secondary crushing (M chamber), and fine crushing (F chamber). They handle particle sizes ranging from 10 to 300 mm, with a typical capacity of 20 to 500 t/h. They are suitable for medium-hard materials with a hardness of ≤300 MPa, such as limestone, iron ore, and granite. They are currently widely used in secondary crushing in small and medium-sized mines and in construction aggregate production lines. Their simple structure and low maintenance make them highly practical in small and medium-capacity applications.

2. single-cylinder hydraulic cone crusher
The second type is the single-cylinder hydraulic cone crusher, first invented by the American company Allis Chalmers in 1948. It has now become a mainstream model in the mining and aggregate industries. Its core upgrade lies in replacing the traditional spring mechanism with a single-cylinder hydraulic system at the bottom, providing both overload protection and discharge opening adjustment. The hydraulic cylinder directly supports the movable cone assembly. As the eccentric sleeve drives the cone's rotation, the cylinder adjusts the cone's position in real time. This hydraulic system not only allows for remote adjustment of the discharge opening (without stopping the machine, within an adjustment range of 5-50mm) to accommodate varying particle sizes, but also relieves pressure when encountering uncrushable material, allowing the cone to descend. Once the foreign material is expelled, the pressure automatically increases and resets, significantly enhancing operational flexibility and equipment safety. Compared to the Simmons model, the single-cylinder hydraulic cone crusher utilizes a "laminated crushing principle," whereby the material is repeatedly compressed within the crushing chamber, resulting in a more cubic particle shape and a 15-25% increase in crushing efficiency. It also offers a higher degree of automation, integrating a PLC system to monitor key parameters such as oil temperature, pressure, and discharge opening size in real time. Typical models include the Metso Nordberg GP100 (230 t/h capacity) and Sandvik CH895i (650 t/h capacity). These are suitable for 24/7 operation in large mines and for fine crushing in aggregate production lines. They can process hard rock with a hardness of ≤350 MPa, such as basalt and quartzite.

3. Multi-cylinder hydraulic cone crusher
The third type is the multi-cylinder hydraulic cone crusher, designed for "extra-hard materials and ultra-high capacity." This high-end model features a top multi-cylinder hydraulic system and an optimized laminated crushing chamber, resulting in high crushing force, low wear, and a long life. Unlike single-cylinder models with bottom-supported hydraulic cylinders, these crushers utilize three to six hydraulic cylinders arranged circumferentially around the top of the frame. Cylinder pressure stabilizes the fixed cone (adjustment ring) and provides overload protection. The moving cone is still driven by an eccentric sleeve, but the crushing chamber is 20-30% deeper than single-cylinder models, allowing the material to reside longer within the chamber, resulting in more complete, layered crushing, reduced over-crushing, and improved product uniformity. These crushers can achieve a crushing force of 5,000-10,000 kN, 1.5-2 times that of single-cylinder models. They handle particle sizes from 5 to 200 mm and have a production capacity of 500-2,500 t/h. They are suitable for handling extremely hard materials with a hardness of 350 MPa or higher, such as diamond ore, nickel ore, and hard granite. Typical applications include secondary or tertiary crushing in large open-pit and underground mines, such as the secondary and tertiary crushing stages of iron and copper ore after primary crushing. These require equipment with high reliability and low maintenance. Models such as the Metso Nordberg HP500 (550 t/h capacity) and Sandvik CS440 (800 t/h capacity) can achieve over 10,000 hours of continuous operation without major failures, meeting high-load production demands.

4. gyratory crusher
The fourth type is the gyratory crusher. Although often classified as a derivative of the cone crusher, its structure and application are highly specialized, used exclusively in primary crushing and suitable for projects requiring ultra-large feed sizes and ultra-high production capacities. The core difference lies in its funnel-shaped crushing chamber and its long-axis movable cone. The main shaft is vertically arranged, its top fixed to the frame crossbeam, and its bottom inserted into an eccentric sleeve. The movable cone is long and conical, rotating slowly around the main shaft (at a speed of only 80-150 rpm, far lower than the 800-1200 rpm of other cone crushers). Material enters through a large top feed opening (typically 500-1500 mm) and is initially crushed in the gap between the movable cone and the fixed cone (on the inner wall of the frame), resulting in a discharge size of 100-300 mm. The greatest advantages of this type of crusher are its large feed size (capable of handling ore over 1.5 m in diameter), high production capacity (1,000-10,000 t/h), and high crushing ratio (typically 5:1-8:1). This makes it the only choice for primary crushing in large mines, replacing jaw crushers for handling oversized materials. Typical models include the Metso Nordberg G1000 (capacity 10,000 t/h) and Sandvik CG800 (capacity 8,000 t/h), which are mostly used in coarse crushing plants in large iron, coal, and non-ferrous metal mines. They require heavy feeding equipment such as apron feeders and have high requirements for foundation bearing capacity (a single machine can weigh up to 100-500 tons).

7. How does a cone crusher work? The Working principle

Feed from a feed hopper is fed into a large opening at the top of the cone crusher. The feed then falls under gravity and enters the crushing chamber, where it is crushed between the mantle (the movable crushing liner mounted on the cone) and concaves (the stationary liners fixed inside the upper casing). As the feed moves toward the crusher’s drive end, repeated crushing actions reduce its size gradually-larger particles are broken down first, and smaller pieces continue moving downward toward the drive end. After passing through the full crushing process, the final product—now reduced to a significantly smaller size (typically matching the crusher’s closed side setting)—is discharged through an opening in the bottom shell.

Gyratory Crusher Operation
The crushing action of a gyratory crusher comes from the oscillation (or throw) of the mantle liner (attached to the long, vertical cone) and the fixed concave liners (installed inside the upper casing). These two components form the crusher’s working surfaces, as all material crushing occurs between them. The width of the discharge opening directly determines the final product size: to adjust the product size, operators raise or lower the upper casing—this changes the gap between the mantle and concaves. Raising the concaves (also called bowl liners) increases the gap, resulting in larger output particles; lowering the concaves narrows the gap, producing finer products.

Since the mantle moves with eccentric motion, the gap between the mantle and concaves is never equal on both sides at any given time. When one side has the widest gap (known as the Open Side Setting, OSS), the opposite side has the narrowest gap (called the Closed Side Setting, CSS). Both settings are critical for defining product size: OSS represents the largest possible output particle size, while CSS represents the smallest. Their relationship follows the formula: OSS = CSS + Throw (where “Throw” is the maximum distance the mantle swings, usually 12–25 mm for industrial models).

Eccentric Motion & Drive System
The eccentric motion that powers the mantle comes from the lower eccentric bushing and drive arrangement at the bottom of the main shaft. The drive system works as follows: an electric motor powers the countershaft (supported by pinion bearings), and an external gearbox or belt drive reduces the motor speed to match the crusher’s operational needs—typical crusher speeds range from several hundred rpm up to approximately 1,000 rpm (gyratory crushers run slower, at 80–150 rpm). In some designs, a clutch system is added to absorb shock from uncrushable materials. The pinion gear on the countershaft meshes with the crown gear (or eccentric gear), which drives the rotation of the lower eccentric bushing.

The inner surface of the eccentric bushing is machined off-centre from the crusher’s central axis. As the bushing rotates, the lower end of the main shaft swings in an elliptical orbit around the crusher’s centreline. This movement causes the gap between the mantle and concave liners to open and close with each shaft rotation. Notably, the mantle’s movement is minimal at its upper end (to guide feed smoothly) but increases as the feed falls lower—this rising throw also boosts crushing force, ensuring effective breakdown of even hard materials (e.g., granite, basalt) as they move deeper into the chamber.

Post-Crushing Discharge & Supporting Systems
After being crushed, the material falls into the bottom shell assembly and is discharged onto a product conveying system (such as a conveyor belt) for further processing. This processing may include additional crushing stages (secondary, tertiary, or quaternary), milling, or beneficiation steps—depending on the final product requirements (e.g., construction aggregates need tertiary crushing for cubical particle shape，while mineral ores may require milling for metal extraction).

The lower casing (part of the bottom shell assembly) also houses two critical systems: a forced lubrication system and a hydraulic system. The forced lubrication system circulates oil (typically ISO VG 46 or 68) to key components like the main shaft bearings and eccentric bushing, reducing friction and preventing overheating. The hydraulic system includes tramp release cylinders (if fitted): these cylinders retract the mantle to discharge uncrushable objects (e.g., iron chunks) and then reset automatically, protecting the mantle, concaves, and bottom shell from damage.

8. What are the parts and components of a cone crusher?

A cone crusher is composed of several key assemblies that work together to reduce large rocks into smaller, uniform-sized material. At the top, the bowl assembly includes the hopper assembly, adjustment cap, the main bowl, and the drive ring, which together direct and contain the feed material into the crushing chamber.

Surrounding this, the adjustment ring assembly contains the dust shell, dust shell seal, clamp ring, clamping cylinder, adjustment ring, and tramp release cylinder. These parts help secure the crusher components, maintain alignment, and allow adjustment of the crushing gap.

The head assembly sits below the adjustment ring and includes the pin, head ball, head, upper and lower head bushings, and T-seal. This assembly supports the crushing head and ensures smooth movement while transferring force to crush the material.

The mainframe assembly forms the structural backbone of the crusher, consisting of the mainframe itself, mainframe liner, stationary guard, arm guard, mainshaft, thrust washer, and U-seals, all of which provide stability and support for the rotating and crushing components.

Inside the crusher, the liner and hopper components include the mantle, bowl liner, bowl adapter ring, and liner hardware. These liners protect the main structural components from wear and can be replaced as they wear out.

The socket assembly contains the socket and socket liner, which encase and support the bottom portion of the crushing head.

The eccentric assembly, a critical part for motion, consists of the eccentric, eccentric bushing, U-seal, counterweight, counterweight guard, thrust bearing, T-seal, and gear, all of which control the gyrating motion of the main shaft and head.

Finally, the countershaft assembly includes the countershaft box, countershaft box guard, flinger housing, oil flinger, countershaft bushing, countershaft, and pinion. This assembly transmits power from the motor to the eccentric and main shaft, driving the crushing action.

Together, these assemblies create a coordinated system that enables the cone crusher to efficiently break down large rock into smaller, processable sizes while ensuring protection, adjustability, and smooth operation.

9. What are the parts of a Metso Sandvik HP series cone crusher?

1. Crushing Chamber
The crushing chamber is the central and most critical part of a cone crusher, as it is the exclusive space where material size reduction occurs-its design directly dictates the crusher’s size reduction ratio (ranging from 4:1 for coarse crushing to 8:1 for fine crushing) and overall operational performance. Composed of two core components-the fixed bowl liner (outer cone) and the movable mantle (inner cone)—the chamber’s geometry (depth, wall angle, and gap profile) is engineered for specific applications: for example, deep-chamber designs (used in multi-cylinder hydraulic crushers) extend material residence time by 25–30%, promoting inter-particle crushing that produces a more cubical product (flakiness index <15%), while shallow chambers suit high-throughput coarse crushing. The chamber’s capacity also aligns with the crusher’s feed size: a primary crushing chamber (for gyratory crushers) can accept feed up to 1.5 meters, while a tertiary chamber (for fine aggregates) handles feed ≤50 mm. For hard rock processing (e.g., granite with compressive strength ≥300 MPa), the chamber’s inner walls are reinforced with thicker liners (50–80 mm) to resist abrasion, ensuring consistent performance over 800–1,200 operating hours before liner replacement.

2. Mantle
The mantle is the inner, moving component of the crushing chamber, responsible for delivering the mechanical force required to crush material. Positioned directly below the feed opening, it operates in a precise gyratory (circular) path—driven by the eccentric assembly—with typical oscillation speeds of 800–1,200 rpm for standard cone crushers (slower, 80–150 rpm, for larger gyratory crushers). To withstand extreme compressive forces (up to 10,000 kN in heavy-duty models) and abrasion from hard materials, mantles are manufactured from high-wear-resistant alloys: high-chromium cast iron (20–30% Cr content, Brinell hardness 500–600 HB) is common for medium-hard ores (e.g., iron ore), while manganese steel (11–14% Mn) is preferred for highly abrasive applications (e.g., quartzite), as it work-hardens upon impact—its hardness increases by 30–40% during use, extending service life. The mantle’s surface profile is also optimized: wave-like or serrated profiles improve material grip, reducing slippage and boosting crushing efficiency by 10–15%. Over time, mantles wear unevenly (0.5–1 mm per 100 operating hours), so regular thickness checks with a depth gauge are critical; replacement is recommended when wear exceeds 20% of the original thickness to avoid damaging the underlying main shaft.

3. Concave (Bowl Liner)
The concave—also called the bowl liner—is the stationary outer cone that surrounds the mantle, forming the fixed side of the crushing chamber and providing a rigid surface against which the mantle crushes material. Like the mantle, it endures intense impact and abrasion, so it is made from durable, wear-resistant materials: abrasion-resistant steel (AR400/500, hardness 400–500 HB) works for aggregate production (e.g., limestone), while ceramic-reinforced cast iron is used for mining (e.g., copper ore) to extend service life by 25–35%. The concave is secured to the upper bowl assembly with high-tensile bolts (grade 8.8 or 10.9) and precision-fitted to within ±0.05 mm—gaps between the concave and bowl assembly would cause vibration, leading to premature wear of both the concave and mantle. Its inner diameter and angle are matched to the mantle to define the crushing gap: for a Sandvik CH895i crusher, a 450 mm inner-diameter concave paired with a 300 mm mantle creates a nominal discharge gap of 75 mm (adjustable via the adjustment ring). The concave wears more slowly than the mantle (due to its stationary position), typically lasting 1,200–1,500 operating hours in medium-intensity use, but it must be replaced alongside the mantle if misalignment occurs—mixing worn and new components causes uneven stress, reducing crushing efficiency by 8–12%.

4. Liners
Liners are replaceable wearing parts fitted to both the mantle (inner liners) and concave (outer liners), designed to absorb the brunt of impact and abrasion during crushing—protecting the crusher’s structural components (main shaft, bowl assembly) from damage. Their material and design are tailored to the processed material: rubber liners are used for soft, sticky materials (e.g., gypsum) to reduce noise by 10–15 dB and prevent clogging, while metal liners (high-chromium or manganese steel) suit hard, abrasive materials. Liners feature a bolt-on or tongue-and-groove design for easy installation—most can be replaced in 2–4 hours with a small team, minimizing downtime. Thickness varies by application: primary crushing liners are 50–80 mm thick to handle large feed sizes, while tertiary liners are 20–40 mm thick for fine crushing. To maintain performance, liners must be inspected every 200 operating hours: signs like cracks, uneven thinning, or loose bolts require immediate replacement, as worn liners can increase oversize product by 10–20% and strain the eccentric assembly.

5. Eccentric Assembly
The eccentric assembly is the “power core” of the cone crusher, responsible for generating the mantle’s gyratory motion. Connected to the bottom of the main shaft, it consists of three key parts: the eccentric bushing (a cylindrical component with an off-center inner hole), the pinion shaft (a small drive gear), and the countershaft (a motor-driven rotating shaft). The assembly converts rotational motor power into oscillating motion: the motor drives the countershaft (supported by heavy-duty pinion bearings with a load capacity of 50–100 kN), the pinion shaft meshes with a crown gear (attached to the eccentric bushing), and the bushing spins. Since the bushing’s inner hole is offset from the crusher’s central axis (eccentricity 5–15 mm), the main shaft (and mantle) swings in an elliptical orbit—opening and closing the gap between the mantle and concave with each rotation. For high-capacity crushers (≥500 tph), the assembly is made from forged 42CrMo steel for strength and cooled by the forced lubrication system (oil flow rate 10–15 L/min) to keep temperatures below 65°C; temperatures above this indicate insufficient lubrication, which can damage the bushing within 100 hours.

6. Adjustment Ring (Bowl Adjustment Ring)
The adjustment ring—also known as the bowl adjustment ring—is a large circular component mounted on the bowl assembly (which holds the concave), and its primary function is to control the closed side setting (CSS)—the narrowest gap between the mantle and concave, which directly determines the finest possible product size. To adjust the CSS, the ring is raised or lowered via the crusher’s hydraulic or spring-based system: raising the ring lifts the bowl assembly (and concave), increasing the CSS for coarser product; lowering the ring reduces the CSS for finer output. Modern crushers use hydraulic adjustment, which allows precise CSS control (±1 mm) and remote operation via PLC—far faster than older spring systems (5–10 minutes vs. 30–60 minutes). The ring also has a locking mechanism (hydraulic clamps or lock nuts) to stabilize the CSS during operation—even a 0.5 mm CSS drift can increase oversize product by 8–12%. For example, a Metso Nordberg HP500 crusher’s adjustment ring adjusts the CSS from 10 mm to 50 mm, covering product sizes from fine aggregates (10–15 mm) to coarse gravel (40–50 mm).

7. Main Shaft
The main shaft is the central structural and power-transmitting component of the cone crusher, extending vertically from the mantle’s top to the eccentric assembly’s bottom. Its key roles are to support the mantle’s weight (up to 1,000 kg in large models), transfer crushing forces (up to 10,000 kN) to the crusher frame, and transmit the eccentric assembly’s motion to drive the mantle’s gyration. Manufactured from forged 40CrNiMoA alloy steel (heat-treated via quenching and tempering), it has a tensile strength of ≥900 MPa and excellent fatigue resistance—critical for withstanding cyclic stresses (800–1,200 cycles per minute). The upper end is precision-machined to fit the mantle (tolerance ±0.03 mm) to avoid wobble, while the lower end inserts into the eccentric bushing’s off-center hole. Shaft diameter is optimized for capacity: a 500 tph crusher uses a 200–250 mm diameter shaft, while a 1,000 tph model uses 300–350 mm. Ultrasonic testing every 5,000 operating hours detects hidden cracks—even a 1 mm crack can propagate rapidly under load, causing catastrophic failure.

8. Spider Cap
The spider cap is a protective cover at the very top of the cone crusher, sitting above the spider bearing—a critical component that supports the main shaft’s upper end and enables smooth rotation. Its primary role is to shield the spider bearing from contamination (dust, water, fines) and physical damage, as even small debris can seize the bearing within 100–200 hours. Made from cast steel (ZG230-450) for durability, it has a sealed design with O-rings or gaskets to create a tight barrier between the cap and top shell. The spider cap also mounts the feed hopper, with a precision-machined inner surface that aligns the hopper with the crushing chamber—misalignment here causes uneven feed distribution, leading to one-sided mantle/concave wear (reducing their service life by 20–30%). For dusty environments (e.g., dry aggregate plants), a secondary labyrinth seal is added to the spider cap, extending the spider bearing’s service life from 8,000 to 12,000 hours.

9. Dust Seal
The dust seal is a specialized component installed between the spider cap and top shell, designed to block dust, fines, and moisture from entering the crusher’s internal parts (spider bearing, main shaft, lubrication system). In cone crushers, dry materials (e.g., limestone, concrete aggregate) generate fine dust (≤10 μm) that can contaminate lubricating oil—reducing its effectiveness by 50% and causing bearing wear. Most dust seals use a labyrinth or lip-seal design: labyrinth seals create a series of narrow channels that trap dust, while lip seals use a flexible rubber lip to press against the top shell, forming a tight barrier. For high-humidity environments (e.g., tropical mines), a combination of dust seals and desiccants is used to prevent moisture buildup—moisture can cause rust on the main shaft, reducing its fatigue life by 15–20%. The dust seal should be inspected every 500 operating hours; cracks or wear in the seal require replacement to avoid costly internal component damage.

10. Hydraulic/Spring-based Adjustment System
The hydraulic or spring-based adjustment system is connected to the adjustment ring, enabling precise control of the closed side setting (CSS)—a key factor in determining product size. Hydraulic systems (used in modern crushers) apply pressure (0.3–0.6 MPa) to hydraulic cylinders mounted on the adjustment ring, allowing smooth, remote CSS adjustments in 5–10 minutes; they also include a tramp release function—if uncrushable objects (e.g., iron chunks) enter the chamber, the system relieves pressure to open the gap, discharge the object, and reset automatically, protecting the mantle and concave. Spring-based systems (older designs) use heavy-duty coil springs (typically 8–12 springs per crusher) to apply tension to the adjustment ring—CSS adjustment requires manual bolt tightening/loosening, taking 30–60 minutes, and tramp release relies on spring compression (less precise than hydraulic). For high-throughput operations (≥300 tph), hydraulic systems are preferred, as they reduce downtime by 40–50% and maintain CSS accuracy within ±1 mm—critical for consistent product quality. The system’s pressure gauges and cylinders should be inspected daily; hydraulic fluid (ISO VG 46) should be replaced every 2,000 operating hours to prevent corrosion.

10. What is the difference between a hydraulic cone crusher and a spring cone crusher?

A hydraulic cone crusher and a spring cone crusher are both designed for secondary and tertiary crushing of rocks and ores, but they operate in different ways and have unique advantages. The main difference lies in how they adjust settings, handle overload protection, and adapt to varying operating conditions. In a nutshell, hydraulic cone crushers offer higher capacity, better product control, and improved protection, but at a higher price and with more complex maintenance. Spring cone crushers are cheaper and simpler, but less precise, less efficient, and less adaptable to changing conditions.

1. For the adjustment system, a hydraulic cone crusher uses a hydraulic cylinder mounted on the main shaft. This allows for quick, easy, and precise adjustment of the crushing settings. In contrast, the spring cone crusher depends on a large compression spring for adjustment, which is less precise and slower to modify.

2. When it comes to overload protection, hydraulic cone crushers are equipped with a tramp release system. This feature enables the mantle to move away from the concave if uncrushable material enters, preventing serious damage. The spring cone crusher has limited overload protection; if metal or other hard objects enter the chamber, it may lead to damage or downtime.

3. In terms of crushing capacity and feed size, hydraulic cone crushers usually offer higher capacity and can process larger feed sizes, often up to 300–400 mm. They are also capable of producing finer output sizes ranging from 6–75 mm. On the other hand, spring cone crushers are typically limited to feed sizes of about 200–300 mm, and their product size range is broader, usually 10–100 mm, but with less control over precision.

4. The efficiency of hydraulic cone crushers is generally higher, as the crushing action is optimized with hydraulic support. They consume less energy for the same output compared to spring cone crushers, which are less efficient and may require more power.

5. In terms of maintenance, hydraulic cone crushers are more complex because of their hydraulic systems, but these systems also offer better protection against wear and reduce the chances of catastrophic damage. Spring cone crushers are simpler in design, making them easier to maintain, though they may require more frequent replacement of springs and wear parts.

6. Looking at adaptability, hydraulic cone crushers can easily adjust to different feed materials and operational needs, making them suitable for a wide range of applications. Spring cone crushers are less adaptable and work best with consistent feed materials.

7. Finally, considering cost, hydraulic cone crushers have a higher initial investment due to advanced technology and hydraulic components. Spring cone crushers are less expensive upfront because of their simpler design, but they may incur more frequent maintenance costs over time.

11. How is a cone crusher used in gold mining ore processing?

In gold mining, the raw ore is first transported from the mine to the crushing plant. The ore may contain very large rocks, sometimes up to 1 meter in diameter. At the first stage, a primary jaw crusher is used. This machine reduces the size of the large rocks to about 150–200 mm.

The crushed ore is then carried by conveyor to the secondary crushing stage, which uses a cone crusher. The ore enters through a feed system that includes a hopper and a distributor. The distributor ensures that material flows evenly into the crushing chamber, even when handling coarse feed.

Inside the chamber, the ore is trapped between a fixed bowl liner and a moving mantle. The mantle is driven by an eccentric shaft powered by the crusher motor. This creates a circular, repetitive motion that compresses and releases the ore. During compression, the ore is crushed between the liners; when the mantle moves away, the smaller particles drop further down the chamber.

As the ore moves downward, the space between the liners becomes narrower, causing continuous crushing and reduction in particle size. The final product size depends on the Closed Side Setting (CSS), which is the minimum gap between the mantle and the bowl liner at the bottom. The CSS can be adjusted using hydraulic or spring mechanisms, allowing operators to control product size.

In this gold mining system, the cone crusher is usually set to produce ore sized 25–50 mm, which is suitable for the tertiary crushing stage. After leaving the cone crusher, the ore is transferred by conveyor to a third-stage crusher, often another cone crusher or a High-Pressure Grinding Roll (HPGR).

During tertiary crushing, the ore is further reduced to about 6–12 mm, which makes it ideal for feeding into a ball mill. After that, grinding and flotation techniques are used to concentrate the gold-bearing minerals.

Throughout the entire process, the cone crusher’s performance must be carefully monitored. Operators track the feed rate, power consumption, and liner wear to keep the crusher running efficiently and to maintain the required product size.

12. How to optimize cone crusher performance in mining operations?

Cone crushers play a key role in mining and aggregate production. To keep them efficient, operators need to monitor and adjust several important parameters. The most critical factors are the Closed Side Setting (CSS), crusher speed, feed rate, and liner selection.

Closed Side Setting (CSS):
The CSS is the minimum gap between the mantle and the bowl liner at the bottom of the crushing chamber. Depending on the crusher model and application, the CSS usually ranges between 6 mm and 75 mm. For example, a CSS of 12 mm is ideal for fine aggregates, while a CSS of 50 mm works well for medium-hard rock. Even a small change of 2–3 mm in CSS can significantly affect product size distribution and overall capacity.

Crusher Speed:
The rotational speed of a cone crusher generally falls between 600 and 1,000 RPM, depending on the size and brand. For example, a 7-foot cone crusher processing hard rock often performs best at around 750 RPM. Increasing the speed by just 50 RPM can boost capacity by 10–15%. However, running faster may also lead to more fine particles in the product.

Feed Rate:
Feed rate depends on the crusher size, the hardness of the material, and the target output. A 5.5-foot cone crusher processing granite might handle 200–300 tons per hour. But if the feed rate is overloaded by 15%, the crusher capacity could drop by 5–10%, and wear on liners and components will accelerate. Proper feed distribution is therefore essential for efficiency and long liner life.

Liner Selection:
Liners protect the crusher chamber and influence product quality. Options include standard, heavy-duty, and ultra heavy-duty liners, chosen based on the abrasiveness of the material. For example, very abrasive sandstone may require ultra heavy-duty liners lasting about 500,000 tons, while softer limestone might only need standard liners, which can last up to 1,000,000 tons. The liner profile also matters: a low-profile liner produces finer material, while a high-profile liner is better for coarser output.

13. What are the differences between Spring, Symons, Compound, Single-Cylinder Hydraulic, and Multi-Cylinder Hydraulic Cone Crushers?

1. A spring cone crusher uses a mechanical spring system for overload protection. When uncrushable material enters the chamber, the springs compress to let it pass, which prevents serious damage. Adjustment is done manually, and safety is more basic compared to hydraulic designs. Because of manual operation, the capacity is usually medium to low, and product size control is less precise. These crushers are best for medium-hard to hard ores where automation is not required. However, the efficiency is lower, since downtime for adjustments is longer. Typical output size ranges from 10–100 mm depending on the closed side setting.

2. The Symons cone crusher is considered a more advanced design. It is equipped with hydraulic tramp release and clearing systems, which make adjustment faster and safer. Operators can adjust the closed side setting (CSS) hydraulically, giving better control over the final output size. Symons crushers are widely used in secondary, tertiary, and quaternary crushing applications, handling capacities from medium to high. Efficiency is higher than spring models because of smoother adjustment and better chamber clearing. They can handle feed sizes up to 300 mm and produce well-graded products, making them suitable for both aggregates and mining.

3. A compound cone crusher combines spring and hydraulic technologies. It uses springs for overload protection while also including hydraulic systems for setting adjustments. This hybrid design provides balanced efficiency and safety. Capacity is generally medium, but it can handle a wide range of materials, including abrasive ores. Product size can be controlled better than a pure spring crusher, usually within the 8–75 mm range. Because it combines two systems, it is versatile and cost-effective, but may not match the speed and efficiency of fully hydraulic models.

4. The single-cylinder hydraulic cone crusher relies on one hydraulic cylinder to adjust the setting and clear the crushing chamber. This design makes it simple and reliable, with fewer parts compared to multi-cylinder systems. It delivers high efficiency because adjustment is quick and downtime is reduced. These crushers offer precise control, making them ideal for medium to hard materials such as basalt, granite, and iron ore. Capacity is high, often reaching 500–1,000 tons per hour for large models. With accurate CSS adjustment, they can produce fine outputs, usually between 6–40 mm.

5. Finally, the multi-cylinder hydraulic cone crusher represents the most advanced design. It uses several hydraulic cylinders to provide very precise adjustment, stronger crushing force, and efficient clearing. This type has the highest capacity and efficiency, often exceeding 1,200 tons per hour in large mining operations. The multiple cylinders allow for fast response and very fine product size control, sometimes down to 5 mm. They are especially suitable for large-scale mining and aggregate plants where high-volume crushing of hard materials such as quartzite, basalt, or gold ore is required. Multi-cylinder designs also reduce liner wear because of better crushing action, extending service life.

14. What are the best practices for operating and maintaining a cone crusher?

1. The first step is proper selection of the cone crusher. Operators need to think about the type of material being processed, the required size reduction ratio, and the final product size. For example, hard materials like basalt or iron ore may need a multi-cylinder hydraulic cone crusher, while softer materials can be handled with spring or Symons designs. Choosing the correct machine improves efficiency and reduces unnecessary wear.

2. Another key factor is feed distribution. Material must be spread evenly across the feed plate at the top of the crusher. Uneven feeding can cause uneven liner wear, higher power consumption, and reduced throughput. A well-designed feed distributor or chute system ensures that the material flows consistently into the crushing chamber, which helps maintain product quality and crusher life.
It is also important to monitor the Closed Side Setting (CSS). Automatic CSS adjustment systems can keep the product size steady, but even with manual systems, operators should check and adjust CSS frequently. A small change of just 2–3 mm in CSS can make a big difference in both product size distribution and overall capacity.

3. The eccentric throw should be adjusted when material type or product requirements change. A larger eccentric throw increases the crushing force and throughput, making it suitable for coarser material. A smaller eccentric throw produces finer material but may reduce capacity. Modern crushers allow operators to adjust eccentric throw settings based on changing operational needs.

4. Regular maintenance is critical for keeping a cone crusher reliable. Bearings, mantle, concave, and lubrication systems should be checked frequently. Liner wear should be monitored closely, as worn liners reduce crushing efficiency and may lead to mechanical issues. Having a planned maintenance schedule minimizes downtime and prevents costly failures.

5. Using high-quality wear parts also improves performance. The mantle and concave are usually made from manganese steel, but the grade of manganese can vary. Higher-quality manganese lasts longer under abrasive conditions, reducing the frequency of liner changes and keeping the crusher operating more consistently.

6. Finally, operators must avoid non-crushable materials entering the chamber. Tramp metal, such as bolts or pieces of steel, can cause serious damage to the mantle, concave, and even the frame. To prevent this, cone crushers are often fitted with metal detectors or magnetic separators upstream. These systems stop harmful objects before they reach the crushing chamber.

15. What are the challenges and limitations of cone crushers?

cone crushers are excellent for hard rock reduction, but they face challenges with sticky materials, product uniformity, feed size limitations, and high wear rates. Proper feed preparation, chamber design optimization, and strict maintenance schedules are the best ways to overcome these limitations.

1. Material compatibility:
Cone crushers perform very well with hard, abrasive materials like ores, granite, and basalt. They break down these rocks effectively and with relatively low liner wear. However, they struggle with sticky or clay-rich materials. Such materials can build up inside the crushing chamber, clogging the feed opening or sticking to the mantle and concave. In some cases, this can bring production to a halt. To handle sticky feed, operators often need to pre-screen or blend materials before they enter the crusher.

2. product uniformity.
While cone crushers can reduce a wide variety of rock types, achieving perfectly uniform particle size can be difficult. This is especially true with materials that fracture unevenly, leading to more flaky or elongated particles. For industries like concrete or asphalt production, where consistent particle shape and gradation are critical, this limitation may reduce product quality. Advanced crushers with optimized chamber designs can improve uniformity, but they cannot eliminate variability completely.

3. Size limitations
By design, cone crushers can only accept feed up to a certain maximum size—usually between 200 mm and 400 mm, depending on the model. Oversized rocks must be reduced in a primary crusher, such as a jaw crusher, before feeding the cone crusher. If large rocks enter directly, they can block the chamber or cause high stress on the eccentric shaft and liners. This often requires multiple crushing stages, which increases both operating costs and processing time.

4. operational difficulties
Finally, cone crushers face operational difficulties linked to wear and maintenance. Because they work under high compressive forces, the mantle, concave, and bearings experience significant wear, especially with coarse or highly abrasive materials. Frequent liner changes and part replacements increase downtime and maintenance costs. For example, in a hard granite operation, liner life might be only 300–400 hours, whereas in limestone it could last over 1,000 hours. Regular monitoring of wear patterns and preventive maintenance are necessary to keep operations running smoothly.

16. How does a cone crusher differ from other types of crushers?

A cone crusher works by using rotational movement and compressive force between the mantle and concave to break down rock. As the eccentric shaft rotates, the mantle moves in a circular path, pressing material against the concave. This repeated squeezing and releasing action reduces the rock into smaller, cubical-shaped particles. Because of this mechanism, cone crushers are especially effective for producing well-graded aggregates with good particle shape, which is important for concrete, asphalt, and road construction.

In contrast, a jaw crusher uses two plates, one fixed and one moving, to apply direct compression on the rock. Jaw crushers are best suited for primary crushing because they can handle very large feed sizes—sometimes up to 1,000 mm—but their product is usually more irregular in shape compared to cone crushers.

Another type is the impact crusher, which uses high-speed rotors and hammers to throw material against breaker plates. This action produces a more cubical product but often with a higher percentage of fines. Impact crushers are very effective for softer stones like limestone, but less suitable for extremely hard materials such as basalt or granite.

Compared to these, cone crushers are typically used for secondary, tertiary, or even quaternary crushing stages. They handle feed sizes up to about 300–400 mm and can produce outputs as fine as 5–6 mm, depending on the closed side setting (CSS). Their strength lies in processing hard, abrasive materials like granite, basalt, and iron ore while delivering high reduction ratios and excellent particle shape.

17. What Materials Can Be Processed with a Cone Crusher? What are the applications?

Cone crushers are suitable for a variety of materials from soft to very hard. The specific processing range depends on the type of cone crusher (such as Simmons type, single-cylinder hydraulic type, and multi-cylinder hydraulic type

1. First, soft to medium-hard, non-abrasive materials are the primary materials for cone crushers. These materials typically have a compressive strength of 250 MPa or less, including limestone, dolomite, and marble. For example, limestone is suitable for all types of cone crushers. Small and medium-sized Simmons cone crushers, equipped with a primary crushing chamber, can achieve a throughput of 20-500 t/h. Due to the material's low hardness, ordinary wear-resistant steel can be used for the mantle and concave sections, resulting in a liner life of up to 1200-1500 hours. For use in the secondary and tertiary crushing stages of aggregate production lines, single-cylinder hydraulic cone crushers can produce more uniformly shaped finished products by adjusting the CSS.

2. Second, hard and highly abrasive materials require heavy-duty cone crushers. These materials typically have a compressive strength of 250-400 MPa, typically granite, basalt, and quartz. For granite, for example, a multi-cylinder hydraulic cone crusher with a crushing force of 5,000-8,000 kN is required. Both the mantle and concave components should be made of high-chromium cast iron or manganese steel. Manganese steel liners undergo "work hardening" due to material impact, increasing surface hardness by 30-40% and extending their lifespan by over 50% compared to ordinary steel liners. Furthermore, for highly abrasive materials like quartz, a deep-cavity crushing design is recommended to extend the material's residence time within the crushing chamber and reduce direct wear on the liner through layered crushing.

3. Cone crushers can also process some ores and recycled materials. For example, single-cylinder hydraulic cone crushers are often used for medium-to-fine crushing of metal ores such as iron ore and copper. Paired with a CSS with an 8-30 mm setting, they can crush the ore to a particle size suitable for grinding. Recycled concrete and asphalt from construction waste can also be processed by cone crushers—but the moisture content of the recycled material must be kept below 15%. Excessive moisture can cause adhesion to the mantle and concave, resulting in a 20-30% reduction in throughput. Metal detectors are also necessary to prevent the entry of foreign objects such as rebar, which can damage the eccentric assembly.

However, cone crushers also have clear processing limitations. First, they are not suitable for extremely soft, sticky, or highly humid materials, as these can clog the crushing chamber and even cause the mantle and concave to "lock," requiring frequent downtime for cleaning. Second, cone crushers are not recommended for extremely brittle materials, as their extrusion crushing method produces excessive fines, making impact crushers more suitable. Third, uncrushable foreign objects must be removed through a tramp release system, otherwise they can bend the main shaft or fracture the lower frame, resulting in repair costs reaching tens of thousands of USD..

18. What is the typical capacity range of a cone crusher?

1. First is the traditional Symons cone crusher, widely used in medium- and small-sized mines or in medium-to-fine crushing stages of aggregate production lines. Its typical capacity ranges from 20–500 t/h. For example, when processing medium-soft materials like limestone, a Symons model with a coarse crushing chamber (C chamber) can achieve 20–300 t/h. If switched to a fine crushing chamber (F chamber) for finer product requirements, the capacity drops to 20–150 t/h. This is because the fine crushing chamber has a smaller gap, causing the material to stay longer in the chamber, reducing the amount of material passing through per unit time.

2. Next is the single-cylinder hydraulic cone crusher, currently a mainstream model in the industry. Its capacity range is broader, typically 50–1,500 t/h, making it suitable for most medium- to large-scale production scenarios. For example, the commonly used Sandvik CH895i can process hard rock such as granite with a medium crushing chamber (M chamber) and a CSS (Closed Side Setting) of 15–25 mm, achieving a capacity of 300–650 t/h. Meanwhile, the Metso Nordberg GP100 model, when processing limestone, can achieve a stable capacity of 200–230 t/h by adjusting the CSS to 20–30 mm. Using the lamination crushing principle, it maintains product shape while keeping the content of flaky and elongated particles below 12%.

3. Then there is the multi-cylinder hydraulic cone crusher, designed for high capacity and high stability, mainly for large-scale crushing of hard and ultra-hard rock. Its typical capacity is 500–2,500 t/h. For instance, the Metso Nordberg HP500 processing basalt (compressive strength 300–400 MPa) with a deep crushing chamber can reach 550–800 t/h. Larger models, like the Sandvik CS440, can handle 800–1,200 t/h in medium-to-fine crushing of large iron ore, thanks to higher crushing force (up to 10,000 kN) and optimized chamber design for efficient material flow.

4. There is also the gyratory crusher, a derivative of the cone crusher mainly used for coarse crushing. It has the largest capacity among all cone-type crushers, serving large-scale mines in primary crushing. Its typical capacity ranges from 1,000–10,000 t/h. For example, the Metso Nordberg G1000 can process oversized feed up to 1.5 meters and maintain a capacity of 8,000–10,000 t/h, supporting 24-hour continuous production in large open-pit mines. The Sandvik CG800 can reach 6,000–8,000 t/h when coarse crushing coal, with its large feed opening and low-speed gyratory motion (80–150 rpm) being key to achieving high throughput.

5. It is important to note that all the above capacities are based on “standard conditions”, which assume a material moisture content below 15%, feed size within the machine’s specifications, and minimal impurities. If the actual material hardness exceeds the machine’s maximum compressive strength or contains more impurities, capacity may drop by 10–30%. For example, when a single-cylinder hydraulic cone crusher processes limestone with more than 20% clay content, the material can stick to the mantle (moving cone liner) and concave (fixed cone liner), causing chamber blockage. The capacity may drop from 200 t/h to 140–160 t/h, requiring additional screening or washing to restore throughput.

19. What are the steel metal casting spare parts on a cone crusher?

1. Main Frame Components
Lower Frame (Main Frame/Base Frame)
The lower frame is the primary load-bearing component of the entire crusher. It supports the weight of the crushing mechanism, transmission system, and hydraulic system while withstanding the high compressive forces generated during crushing. It is typically made of high-strength cast steel (e.g., ZG35CrMo) to ensure structural stability and resistance to deformation.
Upper Frame (Fixed Frame)
The upper frame works together with the lower frame to form the external structure of the closed crushing chamber. The inner surface is used to install the concave (fixed cone liner). Accurate alignment with the lower frame is critical to maintain chamber concentricity. Common materials include ZG270-500 or ZG35, balancing strength with machinability.

2. Crushing Chamber and Adjustment-Related Cast Components
Adjustment Ring
Located above the upper frame and connected via threads, the adjustment ring can be rotated to change the position of the concave, thereby adjusting the Closed Side Setting (CSS) and controlling product size. High thread precision and wear resistance are required. Typical materials are ZG35CrMo or ZG40CrNiMo cast steel.
Concave (Fixed Cone)
The concave forms the fixed part of the crushing chamber, with liners embedded on the inner surface. It must withstand high compressive impact from the material. It is usually an integral cast steel structure, made from the same material as the adjustment ring. In large-scale crushers, segmented cast designs are used to facilitate transport and installation.
Mantle (Moving Cone)
The mantle is the moving component of the crushing chamber. Its top connects to the eccentric sleeve, and it performs gyratory motion to crush the material. As a core crushing part, it must have very high strength and fatigue resistance. Common materials are ZG35CrNiMo or ZG42CrMo cast steel, with some models featuring surface quenching to improve wear resistance.

3. Transmission and Eccentric Components
Eccentric Sleeve
Mounted around the main shaft and driven by the motor via a belt and pulley, the eccentric sleeve drives the mantle in a gyratory motion. It is a central part of the transmission system and must withstand significant torque and radial forces. Typical materials are ZG35CrMo or ZG40CrNiMo cast steel, often heat-treated to optimize mechanical performance.
Main Shaft
The main shaft connects the mantle to the eccentric sleeve. One end is rigidly connected to the mantle, and the other end fits into the eccentric hole of the sleeve. When the eccentric sleeve rotates, it drives the main shaft and mantle to gyrate synchronously. High-strength alloy cast steel (e.g., ZG42CrMo) is used, with precise machining and flaw detection to prevent fracture.
Drive Shaft (Input Shaft)
This shaft transmits power from the motor to the eccentric sleeve. One end connects to the pulley, and the other meshes with the eccentric sleeve via gears. High coaxiality and torsional strength are required. Common materials include ZG35 or ZG45 cast steel, with some models combining forged and cast steel for enhanced performance.

4. Auxiliary Support and Protective Cast Components
Thrust Bearing Housing
Installed at the base of the frame, it supports the lower end of the main shaft’s thrust bearing and absorbs axial forces generated during crushing. The bearing mounting surface must be flat and precise. Materials are typically ZG35 or ZG270-500.
Dust Cover / Protective Cover
Covers components such as the adjustment ring and pulley to prevent dust and debris from entering the internal mechanism. Large dust covers are sometimes made from cast steel (e.g., ZG230-450) to ensure rigidity and avoid deformation caused by vibration.
Locking Nut / Cap
These cast components secure the concave, mantle, or bearing assemblies in place. They must provide reliable locking to prevent movement during crushing. Materials commonly include ZG35 or ZG45 cast steel, and some designs incorporate a locating pin for additional stability.

20. Why is using 3-phase electric arc furnace (EAF) metal casting better for cone crusher spare parts like the frame or bottom shell than other casting methods?

Using 3-phase electric arc furnace (EAF) casting for cone crusher spare parts, such as the frame or bottom shell, offers several advantages over traditional metal casting methods like cupola or induction furnace casting.

First, EAF casting provides higher-quality steel with uniform chemical composition. The 3-phase EAF allows precise control of alloying elements, reducing impurities such as sulfur and phosphorus. This ensures that critical parts like the bottom shell, which must withstand extremely high compressive and impact forces during crushing, have superior strength and toughness.

Second, EAF casting enables high-strength and wear-resistant components. Parts like the frame or bottom shell experience heavy static and dynamic loads. Steel produced in a 3-phase EAF can be alloyed with elements such as chromium, molybdenum, and nickel, resulting in castings with excellent hardness, fatigue resistance, and impact toughness. This improves durability and reduces downtime for replacement.

Third, EAF casting allows consistent and precise metallurgical properties, minimizing internal defects such as porosity, shrinkage, or segregation. These defects are more common in other casting methods, which can lead to premature failure under the extreme loads in a cone crusher.

Another benefit is scalability and energy efficiency. 3-phase EAFs can produce large volumes of molten steel for heavy-duty castings while using less energy per ton of steel compared to traditional furnaces. This makes it cost-effective for producing large spare parts like the frame bottom shell or upper frame.

Finally, EAF casting supports custom alloy design for specialized applications. For example, if a crusher is used to process extremely hard or abrasive materials like basalt or iron ore, the steel composition can be tailored to maximize wear resistance without sacrificing toughness. This level of customization is more difficult with conventional casting methods.

21. Why is alkaline phenolic resin sand better than other types of sand for cone crusher spare part metal casting, especially for surface finishing?

At tongli we use alkaline phenolic resin sand to make your cone crusher upper/lower top and bottom shell main frame, because it offers significant advantages over traditional green sand, silica sand, or other resin-bonded sands.

First, alkaline phenolic resin sand provides excellent mold strength and stability. During the casting process, large cone crusher components are subjected to high temperatures and molten metal pressures. Phenolic resin sand maintains its shape and resists deformation better than other sands, ensuring the casting’s dimensions are accurate and consistent. This reduces the need for extensive machining after casting.

Second, this sand type ensures superior surface finish. Its fine particle size and strong bonding create smooth and uniform mold surfaces, minimizing sand defects such as roughness, ripples, or veining. For parts like the bottom shell or frame, which must fit precisely with other components, the high-quality surface finish improves assembly accuracy and reduces wear on mating parts.

Third, alkaline phenolic resin sand has low gas evolution and low thermal expansion, which prevents casting defects such as blowholes, porosity, or cracks. These properties are especially important for large, thick-walled cone crusher castings, where internal defects can compromise strength and reduce service life.

Additionally, this sand allows fast mold production and reuse. Phenolic resin-coated sand can be baked or cured quickly, providing high productivity in foundries, and it can be reclaimed and reused multiple times without losing bonding quality. This makes it cost-effective compared to traditional sands, especially for large-scale production.

Finally, dimensional precision and wear performance are improved. Parts with a smooth surface and uniform microstructure reduce friction between moving parts like mantle and concave. This not only prolongs liner life but also enhances the crusher’s efficiency and reduces maintenance intervals.

RELATED PRODUCTS

ALL PRODUCTS 

SOLUTION VIDEO

Bottom Shell Metal Casting Supply for World-Famous Cone Crusher Brands

Metso (Finland) – HP & GP Series Cone Crushers

Metso is one of the most recognized names in crushing equipment worldwide. Their HP Series (High Performance) and GP Series (General Purpose) cone crushers are standard choices in mining, aggregates, and quarry operations. The HP300, HP500, and HP800 are especially popular for secondary and tertiary crushing. The bottom shell on Metso machines supports heavy eccentric movements and must withstand high crushing forces, making quality castings a necessity for long service life.

Sandvik (Sweden) – CH & CS Series Cone Crushers

Sandvik’s cone crushers, especially the CH660, CH870, and CS440 models, are widely used for precision aggregate shaping and fine crushing. Known for their hydraulically adjusted setting systems and consistent output, these crushers rely on a robust bottom shell casting to house the main shaft and protect against vibration. As a spare parts dealer, supplying durable replacement shells for Sandvik crushers is key to ensuring stable production for operators worldwide.

Terex Cedarapids (USA) – MVP & RC Series

Terex, through its Cedarapids brand, manufactures cone crushers such as the MVP380X, MVP550X, and RC45III. These are common in North American quarries and portable crushing plants. Their bottom shell structure must handle portable plant vibration and frequent relocation stress, so customers often need replacement castings to keep machines mobile and efficient. Dealers who can provide accurate-fit bottom shell parts add real value to plant operators.

Weir Minerals (UK) – Trio® TC & TP Series

Weir’s Trio® cone crushers, particularly the TC36, TC51, and TP450 models, are known in both mining and sand & aggregate sectors. The bottom shell in these models integrates lubrication and supports the eccentric assembly. Over time, wear and stress make replacement shells essential. Spare parts dealers supplying bottom shell castings for Trio crushers help operators extend machine life without compromising crushing performance.

FLSmidth (Denmark) – Raptor® Cone Crushers

FLSmidth produces the Raptor series (Raptor® 250, 450, 600, and 1100), designed for mining and high-capacity crushing plants. Their bottom shells are designed with heavy reinforcement to handle oversized feed and high horsepower. As these crushers operate in demanding environments, customers frequently seek strong replacement bottom shell castings to maintain uptime. Dealers can position themselves as critical suppliers for mines relying on the Raptor line.

Astec (USA) – Telsmith Titan™ & Legacy Series

Astec Industries continues the Telsmith legacy with cone crushers such as the Titan™ T200, T400, and T900. Known for durability and American engineering, these machines rely on solid bottom shell assemblies to manage eccentric shaft loads and crushing forces. For spare parts dealers, Titan series bottom shell castings are often requested by clients in both mining and aggregate industries across North America and beyond.

Thyssenkrupp (Germany) – Kubria Series

Thyssenkrupp’s Kubria cone crushers are widely applied in both hard rock mining and cement industry crushing lines. Models like the Kubria 75, 90, and 110 are engineered for high throughput. Their bottom shells form a critical load-bearing base and incorporate lubrication channels. Replacement demand is steady because operators require OEM-equivalent strength in castings to minimize unplanned downtime in heavy-duty applications.

Kleemann (Germany) – MOBICONE Series

Kleemann, part of the Wirtgen Group, focuses on mobile crushing plants with the MOBICONE MCO 9, MCO 11, and MCO 13 cone crusher models. These machines are designed for on-site mobility in road construction and aggregate production. Their bottom shells are engineered for compact design but must still carry the eccentric and crushing forces. Offering spare shell castings for Kleemann ensures continuous operation for contractors who rely on mobile crushers.

Terex MVP380 Cone Crusher	Terex MVP450 Cone Crusher	Terex MVP550 Cone Crusher	Terex TC1000 Cone Crusher
024500220004‬ \| Mantle, C \| 530kg	05400-300-21‬ \| Mantle \| 980kg	06000-300-02 \| Mantle \| 1155.518kg	603/9106E \| MANTLE \| 380kg
24500230010 \| Mantle, MF \| 690kg	05400-300-20‬ \| Mantle \| 970kg	06000-300-06 \| Bowl liner \| 1492.015kg	603/9082 \| CONE HEAD 1000 CONE \| 764kg
025400230003‬ \| Bowl liner \| 865kg	05400-300-20-01‬ \| Mantle C M MF \| 880kg	06000-300-07 \| Bowl liner \| 1510.155kg	603-9052 \| MC CONCAVE \| 325kg
04800-300-24-01 \| Mantle, Medium，C, MF (with 12 lugs) \| 820kg	540030015 \| Bowl liner Coarse \| 1080kg	06000-300-03 \| Bowl liner \| 1756kg	603-9071E \| CONCAVE AUTOSAND \| 453kg
04800-300-24‬ \| Mantle, Coarse \| 715kg		06000-300-01 \| Mantle STD \| 1154kg	603/1223 \| Countershaft arm shield \| 19.7kg
04800-300-73‬ \| Bowl liner, Midium \| 840kg		06000-300-04 \| Bowl liner \| 1750kg	603/1443 \| Frame arm shield \| 13kg
04800-300-67 \| Bowl liner, C \| 853kg
04800-300-69 \| Bowl liner medium fine \| 892kg
04800-300-24-01E \| Mantle Medium 18% \| 840kg
04800-300-73E \| Bowl liner, Midium \| 860kg

Nordberg OMNICONE	Nordberg GYRADISC 36	Nordberg GYRADISC 48	Nordberg GYRADISC 66
1022060250 \| Countershaft bushing \| 8.6kg	2207-3501 \| Outer Bushing \| 64kg	4829-8475 \| concave \| 375kg	5014-0350 \| Lower liner \| 352kg
1022072953 \| Eccentric bushing \| 22kg	1030412400 \| Extension cap \| 182kg	4829-8501 \| concave \| 475kg	5014-0360 \| Lower liner \| 626kg
1022074799 \| Eccentric bushing \| 105kg	1048724100 \| Socket Liner \| 46kg	5014-0010 \| concave \| 225kg	3041-8600 \| Extension cap \| 1930kg
1022145725 \| Head bushing \| 29kg	2206-3100 \| Inner bushing \| 52kg	5014-0040 \| concave \| 245kg	9423-5013 \| Socket sub-assembly \| 1062.1kg
1048721801 \| Socket liner \| 25kg	4829-4700 \| Lower liner \| 234kg	5014-0050 \| concave \| 320kg	4872-7502 \| Socket liner \| 187kg
1048726805 \| Socket liner \| 110kg	5013-9880 \| Lower liner extension \| 85kg	2214-5900 \| Outer Bushing \| 136kg	2214-5715 \| Inner eccentric bushing \| 204kg
1022073303 \| Eccentric bushing, large shifted I.D. \| 46kg	5759-9501 \| Upper Step Bearing Plate \| 15kg	2207-2400 \| Inner Bushing \| 98kg	3114-2926 \| Eccentric \| 1040kg
1022147348 \| Head bushing \| 110kg	5759-7801 \| Lower plate thrust bearing \| 9kg	4872-6702 \| Socket Liner \| 103kg	9423-0041 \| Upper Liner Assy \| 1042kg
1022073308 \| Eccentric bushing \| 42kg	3041-2400 \| Feed hopper cone \| 185kg	6273-1775 \| Lock nut \| 85kg
1022145959 \| Head bushing \| 41kg	5013-9901,7055304000 \| Mantle \| 156kg	3680-5606 \| Gear,70048B1000 \| 133kg
1048722802 \| Socket liner \| 38.6kg	7055204006 \| Bowl liner, 4829-4706 \| 228kg	3680-4552 \| Pinion,7063004250 \| 98kg
6187-3310 \| Adjustment Ring \| 2650kg	3113-7902 \| Eccentric \| 340kg	4872-6700 \| Socket liner \| 105kg
6187-2991 \| Clamp Ring \| 800kg	6273-1701 \| Locking nut \| 30kg	6361-1055 \| HEAD WIPER RING \| 118kg
7015656103 \| Eccentric bushing \| 80kg	5013-9889 \| Lower liner extension \| 122kg	1050140050 \| Mantle \| 425kg
4831-5109 \| Bowl Liner, SH - M \| 1709kg	6194-0029 \| Head skirt \| 78kg	700048B105 \| Mantle \| 163kg
4829-1435 \| Bowl liner,STD,MEDIUM \| 513kg	4829-4707 \| Concave ring \| 220kg	7055204502 \| Concave \| 502kg
7055306752 \| MANTLE, O/C STD XT510 \| 350kg	3680-9453 \| Gear, 7000036B14 \| 82kg	1063915702 \| Torch ring \| 12kg
1022060750 \| countershaft bushing,Omnicone \| 10kg	3680-7353 \| Pinion,1036807353 \| 58kg
1062731681 \| locking nut \| 35kg	5013-9901 \| Lower mantle \| 150kg
5530-6754 \| Mantle \| 374kg	4246-1005 \| Head \| 681kg
1048291432 \| Bowl liner, Omnicone 937 \| 458kg	70036A1021 \| Socket sealing ring(elastic type) \| 73kg
5013-6388 \| Mantle \| 1504kg	7000036B33 \| Distributor \| 181kg
4831-5160 \| Bowl liner \| 1870kg	1063601890 \| RING SEALING \| 70kg
1050136388 \| Mantle \| 1505kg	7041920751 \| BLINDAGE LOW \| 92kg
1560Concave \| Concave \| 1910kg	6886-3350 \| Mainshaft \| 246kg
1048722800 \| Socket liner \| 39kg	6360-1890 \| Head Sealing Ring \| 41kg
1055981165 \| Feed plate \| 50kg	4829-4710 \| UPPER LINER WITH BAR \| 240kg
1022062091 \| Countershaft box bushing \| 18kg	5013-9900 \| Lower liner \| 184kg
7055207263 \| Bowl liner \| 1175kg	GD36SupportRing \| GD36 Support ring \| 91kg
7055307256 \| Mantle \| 1040kg	GD36BowlLiner \| GD36 Bowl Liner \| 251kg
4831-5111 \| Bowl liner \| 1785kg	GD36Mantle \| GD36 Mantle \| 160kg
5013-6368 \| Mantle \| 1650kg
2207-4063 \| Eccentric bushing \| 89kg
7055207506 \| BOWL LINER \| 1800kg
7055307506 \| MANTLE \| 1255kg
7012080001 \| TORCH RING \| 12kg
1022074802 \| Eccentric bushing \| 123kg
7055307002 \| Mantle \| 507kg
7055207006 \| MACHOIRES FIXE \| 760kg
7035800101 \| COUSSINET SPHERIQUE \| 35kg
1055980510 \| PLATEAU DE DISTRIBUTION \| 23.7kg
1057605171 \| BEARING, UPPER ECCENTRIC THRUST \| 42kg
7015656100 \| Inner eccentric bushing \| 38kg
7015656000 \| HEAD BUSHING \| 47kg
1022145717 \| Bushing \| 9.3kg
7055206754 \| BOWL LINER \| 420kg
7055206752 \| BOWL LINER \| 440kg
1063916948 \| Counterweight liner \| 30kg
1048721790 \| Socket liner \| 32kg
1057605105 \| THRUST BEARING \| 22kg
1048294809 \| mâchoire fixe \| 872kg
1063915607 \| ANNEAU ENTRETOISE \| 5.2kg
1048512800 \| Blindage bati \| 186kg
1062731666 \| écrou \| 26kg
1048291435 \| Concave \| 513kg
1063917170 \| Blindage balourd \| 41kg
1048514371 \| Blindage bati \| 213kg
1048294616 \| mâchoire fixe \| 682kg
1055981201 \| PLATEAU DISTRIBUTEUR \| 72kg
9429-0323 \| Eccentric assembly \| 2045kg
9429-0307 \| Countershaft Assembly \| 673kg
4246-4012 \| Head \| 2550kg
5760-5156 \| Head Ball \| 130kg
1022145955 \| Head bushing \| 41kg
1022073300 \| Bushing for eccentric \| 46kg
1036833865 \| Gear \| 102kg
1086427685 \| COUNTERWEIGHT \| 210kg
1048294622 \| Bowl Liner, C \| 781kg
1050132108 \| Mantle \| 560kg
1048516295 \| Seat liner \| 40kg
6875-2500 \| Countershaft \| 96kg
7055207001 \| Bowl liner \| 738kg
1022147343 \| Head Bushing \| 109kg
1048294612 \| Bowl liner \| 828kg
1050132105 \| Mantle \| 562kg
1068749881 \| Countershaft \| 90kg
1045375841 \| Box,Countershaft \| 27kg
1022147330 \| Upper head bushing \| 47kg
1022147331 \| Upper head bushing \| 47kg
1057605154 \| HEAD BALL \| 130kg
1057605156 \| HEAD BALL \| 130kg
1057605166 \| Lower Thrust Bearing \| 38kg

Trio TC51 Cone Crusher	Trio TC66 Cone Crusher	Trio TC84 Cone Crusher	Trio TC84X Cone Crusher	Telsmith-57SBS-cone-crusher
2213-3922 \| Countershaft bushing, TC51 \| 18kg	TC680-1023 \| Main frame pin \| 10.3kg	TC841-3101A \| Mantle - SH \| 2500kg	TC84X-1029 \| Outer eccentric bushing \| 470kg	V-272-740B \| FOR HYDRAULIC POWERUNIT NAMEPLATES,GYRA,H \| 68kg
2213-4448 \| Socket liner, TC51 \| 61kg	TC680-1050 \| Support attachment ring \| 26.4kg	TC841-3102A \| Concave, SH, F \| 2590kg	TRIO17001146 \| Main shaft clamping nut \| 495kg	AF-272-600B \| PAINT(TELSMITH)(DIAMOND-VOGEL) \| 51kg
	TC680-1006 \| Frame lining \| 510kg	TC841-3101A \| Mantle - SH \| 2500kg	TRIO17001141 \| Cutting ring \| 21kg	BF-272-2760 \| MANTLE,57,18% \| 1250kg
	TC680-1501 \| Eccentric bushing-steel \| 1044kg	TC841-3202 \| Concave, SH, M \| 2670kg	TRIO17051983 \| A set of seals for the clamping cylinder \| 21kg	AB1-272-1208 \| BURNING RING \| 41kg
	TC680-1502-LH \| Gear \| 325kg	TC845-3501 \| Lower Mantle \| 2590kg	TRIO17001149 \| Upper cone lining \| 723kg	AF-272-2760 \| MANTLE,57,18% \| 1220kg
	TC680-1503 \| Counterweight ring \| 375kg	TC845-3502 \| Upper Mantle \| 560kg	TRIO17001153 \| Bottom lining of the cone \| 2360kg	JD1-272-2758 \| CONCAVE RING,57,NO.9,18% \| 1365kg
	TC680-1508A \| Spindle bushing, Inner eccentric bushing, Trio TC66 \| 190kg	TC845-3610 \| Concave, STD, M \| 3610kg	TRIO17001152 \| Lining of the bowl \| 2730kg	DD1-272-2758 \| CONCAVE RING,57,NO.4,18% \| 1540kg
	TC680-1512 \| Upper thrust plate \| 123kg	TC845-3501 \| Lower Mantle \| 2780kg		D-272-2138 \| SLEEVE,OUTER 57 \| 106kg
	TC680-1514 \| Thrust plate set \| 9.75kg	TC845-3502 \| Upper Mantle \| 560kg		B1-272-2138 \| SLEEVE,INNER 57 \| 86kg
	TC680-2000 \| Countershaft housing assembly \| 1905kg	TC845-3710 \| Concave, STD, C \| 3570kg
	TC680-2001 \| Countershaft \| 210kg	TC840-1501 \| Socket liner \| 295kg
	TC680-2003-LH \| pinion \| 196kg	TC840-2001A \| Eccentric \| 1790kg
	TC680-2004 \| Wear pad \| 6.8kg	TC840-2002A \| Inner eccentric bushing \| 362kg
	TC680-2006 \| Countershaft housing bushing \| 28.5kg	TC840-2522 \| Drive bushing \| 28kg
	TC680-2500 \| Bowl assembly \| 1750kg	TC840-4000 \| Safety cylinder group \| 366.25kg
	TC680-2501 \| Bowl \| 1245kg	TC840-4001 \| pin shaft \| 12.8kg
	TC680-2502 \| Socket liner \| 180kg	TC841-1002A \| Machining drawing of short head main shaft \| 2960kg
	TC680-2505 \| Socket sealing ring \| 290kg	TC841-1010 \| SH head - dry oil processing diagram \| 9000kg
	TC680-2506 \| Support hose \| 6.5kg	TC841-2001 \| Machining drawing of adjustment ring for short head \| 8010kg
	TC680-2507 \| Oil deflector \| 9.4kg	TC848-3801 \| Mantle \| 3170kg
	TC680-3100 \| Support ring assembly \| 6450kg	TC848-3810 \| Concave \| 3450kg
	TC680-3103 \| Locking cylinder \| 9kg	TC848-3801 \| Lower Mantle \| 3170kg
	TC680-3105 \| Bearing plate \| 16.2kg	TC848-3502 \| Upper Mantle \| 242kg
	TC680-3107 \| Rubber sealing ring (I) \| 6kg	TC845-3610 \| Concave, STD, M \| 3610kg
	TC680-3120 \| Ring gear carrier \| 740kg
	THZ005025DB \| Hydraulic motor set (including Adjustment gear) \| 110kg
	TC680-3600 \| Safety cylinder assembly \| 1000kg
	TC680-3610 \| Safety cylinder \| 105kg
	TC680-3601 \| Lower pin \| 5.8kg
	TC680-3603 \| Upper pin \| 7.4kg
	TC687-1001 \| principal axis \| 1372kg
	TC687-1006 \| Cutting ring \| 18.6kg
	TC687-1001 \| Main shaft \| 1312kg
	TC687-1003A \| Head \| 3850kg
	TC687-1007A \| Main shaft sleeve \| 440kg
	TC687-1100 \| Head and main shaft assembly,STD \| 5710kg
	TC687-2100 \| Adjustment ring assembly \| 6200kg
	TC687-2120 \| Cover and bucket \| 720kg
	TC687-2130 \| Rubber plate ring \| 5.5kg
	TC687-2002 \| U-bolt \| 13kg
	TC687-2120 \| Cover and bucket \| 720kg
	TC686-4601 \| Lower mantle \| 1530kg
	TC687-1005 \| Upper mantle \| 254kg
	TC686-4705 \| Concave \| 1760kg
	TC686-4601 \| Lower mantle \| 1530kg
	TC686-4605 \| Concave \| 1770kg
	TC685-1004 \| Lower mantle \| 1140kg
	TC685-2011 \| Filling block (1) \| 388kg
	TC685-2010A \| Concave \| 1960kg
	TC685-2012 \| Filling block (2) \| 193kg
	TC685-1005 \| Guard plate \| 130kg
	TC682- 3301A \| Lower mantle \| 1540kg
	TC682-1005 \| Upper mantle \| 315kg
	TC682- 2010B \| Concave \| 1290kg
	TC682-3301A \| Lower mantle \| 1540kg
	TC682-1005 \| Upper mantle \| 315kg
	TC682-3303A \| Concave \| 1390kg
	TC682-3301A \| Lower mantle \| 1540kg
	TC682-1005 \| Upper mantle \| 315kg
	TC682-3401A \| Concave \| 1410kg
	TC686-4601 \| Mantle \| 1530kg

Symons 2 FT Cone Crusher	Symons 3 FT Cone Crusher	Symons 4-1-4 FT Cone Crusher	Symons 4 FT Cone Crusher	Symons 5-1-2 FT Cone Crusher	Symons 7 FT Cone Crusher
7292-1601 \| Head skirt \| 48kg	3806-3461 \| Countershaft box guard \| 24kg	4830-4881 \| Bowl Liner \| 920kg	4830-4881 \| Bowl Liner \| 920kg	5598-7101 \| Feed plate \| 195kg	2214-7561 \| Outer Eccentric Bushing \| 485kg
2214-4201 \| Outer eccentric bushing \| 37kg	2214-5321 \| Outer Eccentric Bushing \| 74kg	6391-3321 \| Torch ring \| 5kg	6391-3321 \| Torch ring \| 5kg	9439-8122 \| Gear sub-assembly(gear,counter weight,dowel,capscrew hex hd,capscrew hex hd,lockwasher,loc tite) \| 750kg	2214-6721 \| Inner Eccentric Bushing \| 335kg
5168-4351 \| Mainshaft nut \| 74kg	2207-0561 \| Inner Eccentric Bushing \| 52kg	6358-5160 \| Oil collar \| 18kg	6358-5160 \| Oil collar \| 18kg	2214-7001 \| Mantle,Lower \| 1775kg	4872-8485 \| Socket Liner \| 305kg
4872-2335 \| Socket liner \| 22kg	2207-1401 \| Inner Eccentric Bushing \| 53kg	3806-5701 \| Arm guard \| 27kg	3806-5701 \| Arm guard \| 27kg	4830-6770 \| Bowl Liner \| 1860kg	4872-8520 \| Socket Liner \| 313kg
2261-1362 \| Outer eccentric bushing \| 35kg	2206-0762 \| Countershaft Box Bushing \| 11kg	4537-6128 \| Countershaft box \| 480kg	4537-6128 \| Countershaft box \| 480kg	5013-7001 \| Mantle,Lower \| 1685kg	2206-8500 \| Countershaft Box Bushing \| 29kg
2206-6641 \| Inner eccentric bushing \| 21kg	5013-2201 \| Mantle \| 290kg	6875-0416 \| Countershaft \| 106.59kg	6875-0416 \| Countershaft \| 106.59kg	4830-5421 \| Bowl Liner \| 1420kg	5760-7401 \| Lower Step Bearing Plate \| 47kg
5759-5701 \| Thrust bearing plate \| 5kg	4829-6544 \| Bowl Liner \| 420kg	5760-2301 \| Upper step Bearing Plate \| 32kg	5760-2301 \| Upper step Bearing Plate \| 32kg	2214-5706 \| Inner Eccentric Bushing \| 180kg	2618-7681 \| Cone feed \| 600kg
4829-1921 \| Bowl liner \| 100kg	4829-8131 \| Bowl Liner \| 341kg	2005-5006 \| Bowl \| 2400kg	2005-5006 \| Bowl \| 2400kg	2206-5840 \| Countershaft Box Bushing \| 23kg	5013-8101 \| Upper mantle \| 508kg
5013-1401 \| Mantle \| 116kg	5013-3801 \| Mantle \| 285kg	2005-4330 \| Bowl \| 2600kg	2005-4330 \| Bowl \| 2600kg	2206-5871 \| Countershaft Box Bushing \| 31kg	6358-9421 \| OIL FLINGER HOUSEING \| 49.9kg
4829-4081 \| Bowl liner \| 125kg	4829-5161 \| Bowl Liner \| 295kg	5168-5701 \| Mainshaft sleeve \| 204kg	5168-5701 \| Mainshaft sleeve \| 204kg	3378-4380 \| Main frame \| 9525kg	6886-7804 \| Main shaft \| 2815kg
4829-4351 \| Bowl liner \| 130kg	5013-2801 \| Mantle \| 238kg	5598-4581 \| Feed plate 28inch (large) \| 91kg	5598-4581 \| Feed plate 28inch (large) \| 91kg	3114-2863 \| Eccentric \| 1045kg	2618-8161 \| Feed cone \| 529kg
4829-3544 \| Bowl liner \| 99kg	4829-5701 \| Bowl Liner \| 268kg	4830-4612 \| Bowl Liner \| 871kg	4830-4612 \| Bowl Liner \| 871kg	3806-8501 \| Guard,countershaft box \| 60kg	5168-8131 \| Main shaft nut \| 513kg
noName \| Countershaft \| 63kg	3683-2377 \| Pinion(20 degree) \| 58kg	4830-4321 \| Bowl Liner \| 860kg	4830-4321 \| Bowl Liner \| 860kg	6875-3762 \| Countershaft \| 255kg	5598-7941 \| Feed plate-6 bolt \| 232kg
noName1 \| Main shaft \| 105kg	3113-8401,700001628T \| Eccentric \| 279kg	4830-1826 \| Bowl Liner \| 862kg	4830-1826 \| Bowl Liner \| 862kg	6358-9201 \| Flinger housing \| 30kg	5168-7386 \| Head nut-teardrop \| 585kg
6886-1781 \| Main shaft \| 134kg	5921-4907 \| Flywheel \| 170kg	4829-8603 \| Bowl Liner \| 640kg	4829-8603 \| Bowl Liner \| 640kg	4830-5557 \| Bowl Liner \| 1179kg	5598-8154 \| Feed plate-4 bolt \| 407kg
noName3 \| Eccentric \| 187kg	4829-6646 \| Bowl liner \| 340kg	4830-0023 \| Bowl Liner \| 661kg	4830-0023 \| Bowl Liner \| 661kg	4830-6048 \| Bowl Liner \| 1400kg	6273-8201 \| Mantle locking nut \| 576kg
5759-6001 \| Center step bearing plate \| 5kg	3113-8751 \| Eccentric \| 317.51kg	4830-0158 \| Bowl Liner \| 720kg	4830-0158 \| Bowl Liner \| 720kg	4830-6231 \| Bowl Liner \| 1760kg	7292-7601 \| Head wear ring \| 111kg
5759-6601 \| Upper step bearing plate \| 9kg	6886-3183 \| Main shaft \| 236kg	2214-5885 \| Outer Eccentric Bushing \| 148kg	2214-5885 \| Outer Eccentric Bushing \| 148kg	5013-7203 \| Mantle \| 1230kg	3806-9061 \| Countershaft box guard \| 88kg
8780-0703 \| Mainshaft nut wrench \| 12kg	4829-6530 \| Bowl Liner \| 465kg	2214-3930 \| Inner Eccentric Bushing \| 103kg	2214-3930 \| Inner Eccentric Bushing \| 103kg	4830-6871 \| Bowl Liner \| 1859.35kg	3806-9502 \| Arm guard,shouldered \| 128kg
noName6 \| Socket \| 145kg	9443-0733 \| Head & Shaft Assemble \| 954kg	4872-6430 \| Socket Liner,Short head \| 61kg	4872-6430 \| Socket Liner,Short head \| 61kg	4830-6772 \| Bowl Liner \| 1960kg	6876-1324 \| Countershaft \| 426kg
7320-1361 \| Main shaft sleeve \| 11kg	4829-5026 \| Bowl liner \| 305kg	2206-2090 \| Countershaft Box Bushing \| 18kg	2206-2090 \| Countershaft Box Bushing \| 18kg	5013-6851 \| Mantle \| 1950.05kg	3682-7652 \| PINION \| 345kg
7292-3601 \| Head skirt \| 64kg	5759-8701 \| Step bearing plate \| 9kg	5760-2601 \| Lower Step Bearing Plate \| 23kg	5760-2601 \| Lower Step Bearing Plate \| 23kg	6358-5904 \| Flinger oil \| 25kg	1038068501 \| Countershaft box guard \| 55kg
6380-2381 \| Socket sealing ring \| 60kg	6272-7401 \| Locking collar \| 82kg	6875-0681 \| Countershaft \| 107kg	6875-0681 \| Countershaft \| 107kg	4851-7451 \| Liner,mainframe seat,outer \| 18kg	4830-8556 \| Bowl liner \| 2990kg
2213-5241 \| Countershaft box bushing \| 10kg	3041-2875 \| Feed distributor \| 350kg	noName2 \| Pinion \| 98kg	noName2 \| Pinion \| 98kg	4851-7370 \| L. main frame seat inner \| 40kg	4830-9100 HD \| Bowl liner \| 3818kg
5759-6301 \| Inner step bearing plate \| 15.4kg	5013-2401 \| Bowl liner \| 314kg	4829-8941 \| Bowl liner \| 626kg	4829-8941 \| Bowl liner \| 626kg	5598-7381 \| Distributor plate \| 340kg	4830-9472 \| Bowl liner \| 3652kg
5013-1001 \| Mantle \| 90.7kg	4829-7591 \| Bowl Liner \| 347kg	6273-6128 \| Countershaft box \| 490kg	6273-6128 \| Countershaft box \| 490kg	5760-4701 \| Step bearing plate \| 28kg	4830-9741 \| Bowl liner \| 3585kg
4829-3001 \| Bowl liner \| 102kg	5013-3401 \| Mantle \| 317kg	5013-6001 \| Mantle \| 896kg	5013-6001 \| Mantle \| 896kg	6342-4121 \| W. pinion thrust \| 7kg	5013-8201 \| Upper mantle \| 545kg
5168-2001 \| Slag nut \| 59kg	4829-6576 \| Bowl liner \| 421kg	5168-5836 \| Main shaft nut(tear drop) \| 290kg	5168-5836 \| Main shaft nut(tear drop) \| 290kg	4247-2035 \| Head Bolted Socket Standard Seal \| 4200kg	5013-8601 \| Lower mantle \| 2435kg
4829-3541 \| Bowl liner \| 91kg	6863-3701 \| Countershaft \| 99kg	7320-4331 \| Mainshaft sleeve \| 52kg	7320-4331 \| Mainshaft sleeve \| 52kg	9447-1951 \| Head Shaft Assembly \| 5166kg	5013-8801 \| Mantle \| 2595kg
11048293001 \| BOWL LINER,STD EXTRA COARSE \| 102.0375kg	6380-5101 \| Socket sealing ring \| 70kg	6273-4486 \| Locking nut \| 96kg	6273-4486 \| Locking nut \| 96kg	2214-6161 \| Outer Eccentric Bushing \| 281kg	2214-0636 \| External pin bushing \| 5.6kg
11048293541 \| BOWL LINER,STD COARSE \| 90.7kg	7381-3601 \| Bare socket \| 182kg	5013-4451 \| Mantle CB in EC Bowl \| 730kg	5013-4451 \| Mantle CB in EC Bowl \| 730kg	7320-5981 \| Main shaft sleeve \| 158.7kg	2748-4501 \| COVER LOCKING NUT, LH THD, 7 FT SH \| 228kg
11050131001 \| MANTLE,STD \| 90.7kg	5598-3461 \| Feed plate \| 85kg	6360-4161 \| Socket sealing ring \| 155kg	6360-4161 \| Socket sealing ring \| 155kg	5760-3501 \| Lower Step Bearing Plate \| 29kg	3041-8357 \| Distributor post \| 1453kg
3806-1501 \| Countershaft box guard, 700001870T, 2FT \| 12.3kg	6886-2273 \| Main shaft \| 248kg	4830-4341 \| Bowl Liner \| 858kg	4830-4341 \| Bowl Liner \| 858kg	5760-4401 \| Step bearing center plate \| 29kg	6273-1601 \| Locking collar,LH thread \| 536kg
9442-0561 \| Main Shaft Assembly \| 281kg	4246-3002 \| Head \| 620kg	4830-1511 \| Bowl Liner \| 645kg	4830-1511 \| Bowl Liner \| 645kg	4872-7050 \| Socket Liner \| 189kg	6380-8161 \| Socket sealing ring \| 830kg
	3806-4021 \| Arm guard \| 17kg	4830-4071 \| Bowl Liner \| 850kg	4830-4071 \| Bowl Liner \| 850kg	3682-9752 \| Pinion \| 190kg	3114-4262 \| Eccentric \| 1678kg
	7320-3201 \| Main Shaft Sleeve \| 16kg	4830-2892 \| Bowl Liner \| 900kg	4830-2892 \| Bowl Liner \| 900kg	4537-6723 \| Counter Shaft Box \| 825.54kg	8642-8350 \| Counterweight \| 1029.75kg
	4872-4795 \| Socket Liner \| 41kg	4830-4992 \| Bowl Liner \| 1126kg	4830-4992 \| Bowl Liner \| 1126kg	9439-8078 \| Hydraulic Adjustment Ram Assembly \| 60kg	4830-8846 \| Bowl liner \| 3505kg
	4872-3565 \| Socket Liner \| 38kg	4829-9211 \| Bowl Liner \| 665kg	4829-9211 \| Bowl Liner \| 665kg	9448-0547 \| COUNTERSHAFT BOX ASSY \| 1058kg	5013-8901 \| Mantle \| 2570kg
	3683-3844 \| Gear \| 168kg	4829-9210 \| Bowl Liner \| 635kg	4829-9210 \| Bowl Liner \| 635kg	6380-6801 \| SOCKET SEALING RING \| 340kg	3682-9241 \| Bevel Gear \| 662.24kg
	3680-7703 \| Pinion,700001627T \| 59kg	4829-9751 \| Bowl Liner \| 773kg	4829-9751 \| Bowl Liner \| 773kg	6886-5701 \| Main Shaft \| 1390kg	4851-9320 \| LINER, MAINFRAME SEAT(SET) \| 63kg
	3680-8753 \| Eccentric bevel gear,700001631T \| 187kg	4830-0021 \| Bowl Liner \| 635kg	4830-0021 \| Bowl Liner \| 635kg	4830-6771 \| Bowl Liner \| 1928kg	6361-3181 \| Water Chamber \| 480kg
	3680-9455 \| Gear,700001578T \| 196kg	4830-0024 \| Bowl Liner \| 668kg	4830-0024 \| Bowl Liner \| 668kg	5013-7601 \| Mantle \| 1677.95kg	1063615902 \| Water chamber \| 777kg
	3680-7353 \| Pinion,700001579T \| 58kg	4830-0200 \| Bowl Liner \| 860kg	4830-0200 \| Bowl Liner \| 860kg	4830-6331 \| Bowl Liner \| 1529.202kg	6886-7662 \| Main shaft \| 2815kg
	6359-4701 \| Socket sealing ring \| 55kg	4830-1288 \| Bowl liner \| 720kg	4830-1288 \| Bowl liner \| 720kg	4830-5415 \| Bowl Liner \| 1587.25kg	2005-9276 \| bowl \| 6800kg
	5598-2621 \| Feed plate \| 55kg	4830-1500 \| Bowl liner \| 781kg	4830-1500 \| Bowl liner \| 781kg	5013-7401 \| Mantle \| 1325kg	6886-7943 \| Main shaft \| 3082kg
	7381-2401 \| Socket \| 180kg	4830-2451 \| Bowl liner \| 989kg	4830-2451 \| Bowl liner \| 989kg	4830-5556 \| Bowl Liner \| 1245kg	2005-9359 \| bowl \| 8300kg
	5759-9001 \| Middle thrust plate \| 13kg	5013-4726 \| Mantle \| 680kg	5013-4726 \| Mantle \| 680kg	4830-6501 \| Bowl Liner \| 2013.54kg	4247-5139 \| Head \| 9296.75kg
	5168-4893 \| Mainshaft nut \| 118kg	4829-9481 \| Bowl liner \| 807kg	4829-9481 \| Bowl liner \| 807kg	5013-6801 \| Mantle, Upper \| 253.96kg	6886-7663 \| Main shaft, Heavy duty \| 2815kg
	5013-2501 \| Mantle \| 286kg	5013-5401 \| Mantle \| 706kg	5013-5401 \| Mantle \| 706kg	4830-6638 \| Bowl Liner \| 2131.45kg	6361-7151 \| Water seal baffle ring \| 217kg
	6273-2501 \| Locking nut \| 53kg	4246-9002 \| head \| 1610kg	4246-9002 \| head \| 1610kg	3683-0807 \| Gear \| 326kg	6391-5481 \| Torch ring \| 9kg
	2747-5951 \| Locking nut cover \| 43kg	4830-2958 \| Bowl Liner CB in EC Bowl \| 794kg	4830-2958 \| Bowl Liner CB in EC Bowl \| 794kg	11048305415 \| BOWL LINER,SH SHORT COARSE \| 1587.25kg	2206-9161 \| Countershaft bushing \| 43kg
	11048295161 \| BOWL LINER,SH MEDIUM \| 281.17kg	4830-2957 \| Bowl Liner \| 818kg	4830-2957 \| Bowl Liner \| 818kg	11048305556 \| BOWL LINER,SH FINE FOR COARSE BOWL \| 1244.8575kg	7381-9580 \| Socket \| 1800kg
	11048295701 \| BOWL LINER,SH FINE LINER FOR COARSE BOWL \| 266.658kg	7320-4202 \| Main Shaft sleeve \| 240kg	7320-4202 \| Main Shaft sleeve \| 240kg	11048306331 \| BOWL LINER,SH EXTRA COARSE \| 1529.202kg	2005-8605 \| Bowl \| 8074kg
	11048296530 \| BOWL LINER,STD EXTRA COARSE \| 465.7445kg	6886-4350 \| Main shaft \| 726kg	6886-4350 \| Main shaft \| 726kg	11048306501 \| BOWL LINER,STD MEDIUM \| 2013.54kg	4247-5049 \| Head \| 8500kg
	11048296544 \| BOWL LINER,STD EXTRA COARSE \| 440.802kg	5598-5701 \| Feed plate \| 137kg	5598-5701 \| Feed plate \| 137kg	11048306638 \| BOWL LINER,STD FINE FOR COARSE BOWL \| 2131.45kg	2005-8831 \| Bowl \| 8074kg
	11048297591 \| BOWL LINER,SH COARSE \| 346.9275kg	3114-1201 \| Eccentric \| 475kg	3114-1201 \| Eccentric \| 475kg	11048306771 \| BOWL LINER,STD COARSE \| 1928kg	11048307379 \| BOWL LINER,SH MEDIUM \| 5600kg
	11050132201 \| MANTLE,STD \| 285.705kg	3806-4092 \| Countershaft box guard \| 32kg	3806-4092 \| Countershaft box guard \| 32kg	11050136801 \| UPPER MANTLE,STD \| 253.96kg	11048307490 \| BOWL LINER,SH ASM DESC2 \| 2826kg
	11050132501 \| MANTLE,STD STEPPED \| 285.705kg	5760-1701 \| Center step plate \| 23kg	5760-1701 \| Center step plate \| 23kg	11050137601 \| MANTLE,SH LONG MANG \| 1677.95kg	11048307581 \| BOWL LINER,SH FINE IN FINE BOWL \| 3357.2605kg
	11050132801 \| MANTLE,SH \| 238.0875kg	9446-2143 \| Main shaft assembly \| 2650kg	9446-2143 \| Main shaft assembly \| 2650kg	2005-5792 \| Bowl Coarse,STD \| 4227kg	11048307583 \| BOWL LINER,SH FINE IN COARSE BOWL \| 3336.3995kg
	11050133401 \| MANTLE,SH \| 317.45kg	4872-6435 \| Socket Liner,Standard \| 74kg	4872-6435 \| Socket Liner,Standard \| 74kg	6273-7001 \| Locking Nut,SH \| 247kg	11048308556 \| BOWL LINER,STD COARSE LINER FOR EXTRA COARSE BOWL \| 3174.5kg
	11050133801 \| MANTLE,SH \| 293kg	3680-5608 \| Gear,700005738T \| 350kg	3680-5608 \| Gear,700005738T \| 350kg	2748-2476 \| LOCKING NUT COVER \| 130kg	4830-8608 \| BOWL LINER,STD MEDIUM LINER FOR COARSE BOWL \| 3507kg
	5013-3001 \| mantle,EXTRA COARSE,short head \| 263kg	4830-1371 \| Bowl Liner \| 671kg	4830-1371 \| Bowl Liner \| 671kg	1073204661 \| Torch ring \| 18kg	11048309471 \| BOWL LINER,STD FINE FOR FINE OR MED BOWL \| 3650.675kg
	7085720751 \| Feed hopper \| 110kg	5013-5801 \| Mantle \| 682kg	5013-5801 \| Mantle \| 682kg	8642-8085 \| Eccentric gear counterweight \| 639kg	11050138201 \| UPPER MANTLE,STD \| 247.1575kg
	7000082113 \| Oil flinger \| 10kg	5168-5161 \| Mainshaft nut \| 95kg	5168-5161 \| Mainshaft nut \| 95kg	5168-6784 \| Main shaft nut \| 259kg	5013-8401 \| LOWER MANTLE,STD \| 2412.62kg
	6863-3425 \| Countershaft-short \| 70kg	5013-4801 \| Mantle \| 575kg	5013-4801 \| Mantle \| 575kg	5598-6261 \| Feed plate \| 251kg	11050138601 \| LOWER MANTLE,STD \| 2358.2kg
	6886-3193 \| Mainshaft (head fit rough) \| 229kg	4829-8671 \| Bowl Liner \| 662kg	4829-8671 \| Bowl Liner \| 662kg	9447-1012 \| Main shaft assembly shaft/head \| 5521kg	11050138801 \| LOWER MANTLE,STD \| 2595kg
	9439-5074 \| Socket assembly \| 193.2kg	2747-8876 \| Locking Nut Cover \| 79kg	2747-8876 \| Locking Nut Cover \| 79kg	5168-6781 \| Main shaft nut \| 165kg	11050139204 \| MANTLE,SH \| 2504kg
	5759-9301 \| Upper step bearing plate \| 12kg	5598-4161 \| Feed plate \| 64kg	5598-4161 \| Feed plate \| 64kg	6886-5740 \| mainshaft with oversized fit \| 1361kg	11050139268 \| MANTLE,SH \| 2675.65kg
	3378-2727 \| Main Frame \| 2644kg	11048298671 \| BOWL LINER,SH MEDIUM \| 662.11kg	11048298671 \| BOWL LINER,SH MEDIUM \| 662.11kg	4247-2016 \| Head \| 3900kg	6886-8542 \| Main shaft,STD,SH HD,SXHD \| 3081.53kg
	6358-7771 \| Flinger Housing \| 20kg	11048300158 \| BOWL LINER,SH COARSE \| 769kg	11048300158 \| BOWL LINER,SH COARSE \| 769kg	2281-7701 \| Adjustment cap \| 1257kg	5760-8650 \| Upper step bearing plate \| 240kg
	6358-3921 \| Flinger \| 12kg	1048301826 \| BOWL LINER,STD EXTRA COARSE \| 861.65kg	1048301826 \| BOWL LINER,STD EXTRA COARSE \| 861.65kg	1970-8076 \| U Bolt \| 14kg	5598-9041 \| Feed Plate,SH \| 416kg
	6587-6610 \| Adjustment Lock Post \| 8.5kg	11048302957 \| BOWL LINER,STD COARSE \| 818kg	11048302957 \| BOWL LINER,STD COARSE \| 818kg	6187-6742 \| Adjustment Ring \| 3990.8kg	5760-8001 \| INNER STEP BEARING PLATE \| 89kg
	6187-3900 \| Adjustment Ring \| 1260kg	11048302958 \| BOWL LINER,STD COARSE LINER FOR EXTRA COARSE BOWL \| 793.625kg	11048302958 \| BOWL LINER,STD COARSE LINER FOR EXTRA COARSE BOWL \| 793.625kg	5168-5901 \| Slag nut with hole \| 275kg	9439-9752 \| Bowl Adjustment ram \| 89.7kg
	7292-5601 \| Head wear ring \| 9.5kg	11048304341 \| BOWL LINER,STD MEDIUM FOR COARSE BOWL \| 858kg	11048304341 \| BOWL LINER,STD MEDIUM FOR COARSE BOWL \| 858kg	3633-894 \| Spring \| 14kg	4851-9455 \| Seat liner, Outer seat liner segment, STD, SH \| 18.14kg
	6886-2903 \| Mainshaft \| 540kg	11048304612 \| BOWL LINER,STD FINE FOR COARSE BOWL \| 870.72kg	11048304612 \| BOWL LINER,STD FINE FOR COARSE BOWL \| 870.72kg	2214-6161-OS \| 外径536.575，Outer eccentric bushing \| 305kg	9450-1819 \| Mainshaft assembly with stand \| 12167kg
	4829-6951 \| Bowl liner fine for Coarse Bowl \| 376.405kg	1050134451 \| MANTLE,STD COARSE STEPPED \| 725.6kg	1050134451 \| MANTLE,STD COARSE STEPPED \| 725.6kg	5760-5011 \| Upper step bearing plate \| 120kg	3682-9233 \| Gear,7-B-1501 \| 662.11kg
	2618-1550 \| Feed cone \| 170kg	11050134801 \| MANTLE,SH \| 575kg	11050134801 \| MANTLE,SH \| 575kg	9439-8087 \| Socket sub assembly \| 1167kg	5760-8601 \| Upper step bearing plate \| 85kg
	3FtHydraulicLockPostAssembly \| Hydraulic lock post assembly \| 50kg	11050135801 \| MANTLE,SH EXTRA COARSE \| 680kg	11050135801 \| MANTLE,SH EXTRA COARSE \| 680kg	7381-7204 \| Socket standard seal \| 1400kg	3682-7657 \| Pinion, 7-B-714 \| 335.59kg
	2206-3101 \| Inner eccentric bushing \| 52kg	11050136001 \| MANTLE,STD \| 896kg	11050136001 \| MANTLE,STD \| 896kg	1948-8995 \| Cap screw socket Hd - special \| 12.79kg	6187-7901 \| Internal pin adjustment ring \| 6656kg
	4872-4400 \| Socket liner \| 74kg	3708-6171 \| Oil collar gear \| 15.1kg	3708-6171 \| Oil collar gear \| 15.1kg	1970-7871 \| Bowl liner U-bolt \| 13kg	4851-7611 \| Main frame liner \| 807.23kg
	4872-4385 \| Socket liner \| 34kg	6342-3501 \| Symons 4 4.25 STD SH Pinion thrust washer \| 6kg	6342-3501 \| Symons 4 4.25 STD SH Pinion thrust washer \| 6kg	7320-4661 \| Main shaft sleeve & torch ring \| 18kg	6380-9190 \| Grease sealing ring \| 739kg
	2005-2437 \| Bowl \| 1260kg	3680-5603 \| Gear \| 408kg	3680-5603 \| Gear \| 408kg	6886-6287 \| Main shaft \| 1414.92kg	1940-8333 \| Locking collar capscrew \| 7.8kg
	5168-4420 \| Main shaft nut \| 172kg	9445-8320 \| Main shaft/head assembly+grease seal \| 2486kg	9445-8320 \| Main shaft/head assembly+grease seal \| 2486kg	2005-5791 \| Bowl \| 4218kg	7320-8011 \| Mainshaft Sleeve \| 36kg
	4829-6511 \| Bowl liner, STD \| 355kg	6360-4601 \| HEAD SEALING RING \| 141kg	6360-4601 \| HEAD SEALING RING \| 141kg	4247-2039 \| Head \| 4727kg	6342-5501 \| Pinion thrust washer \| 6kg
	3378-2732 \| Main frame \| 2600kg	9439-7069 \| Mainshaft nut assembly \| 205kg	9439-7069 \| Mainshaft nut assembly \| 205kg	4830-5970 \| Bowl liner \| 1300kg	8642-8301 \| Counterweight \| 680kg
	3YP.11.00 \| Spring assembly \| 1200kg	2214-5041 \| Inner eccentric bushing \| 103kg	2214-5041 \| Inner eccentric bushing \| 103kg	5168-5901M \| Head nut \| 544.2kg	6361-3183 \| water chamber \| 547kg
	4103-1500 \| ECROU D ARBRE \| 118kg	4537-6242 \| Countershaft Box \| 545kg	4537-6242 \| Countershaft Box \| 545kg	6273-0701 \| Locking collar \| 560kg	2302-7025 \| Main frame cap \| 300kg
	2618-2161 \| TREMIE CONIQUE \| 78kg	6886-5196 \| mainshaft (head fit rough) \| 800kg	6886-5196 \| mainshaft (head fit rough) \| 800kg	8642-8075 \| Counterweight \| 380kg	4537-7443 \| Countershaft box housing \| 1225kg
	9439-5215 \| Main frame assembly \| 750kg	6272-8301 \| Locking collar \| 136kg	6272-8301 \| Locking collar \| 136kg	3683-0809 \| Gear \| 326kg	9450-1815 \| mainshaft assembly \| 13000kg
	4829-5296 \| Bowl liner, Fine \| 255kg	5760-2001 \| INNER STEP BEARING PLATE \| 8kg	5760-2001 \| INNER STEP BEARING PLATE \| 8kg	4830-6636 \| BOWL LINER F IN F and M \| 2196kg	4872-8523 \| Socket liner \| 333kg
		9446-2154 \| Main shaft assembly \| 2555kg	9446-2154 \| Main shaft assembly \| 2555kg	1063-4721 \| Feed Hopper \| 300kg	3636-848 \| Spring \| 17kg
		6360-4164 \| Socket sealing ring \| 155kg	6360-4164 \| Socket sealing ring \| 155kg	9447-9376 \| MAINSHAFT ASSEMBLY \| 6060kg	1094496252 \| THRUST BRNG ASSY HVY DUTY & EXTRA HVY DU \| 262kg
		1998-2668 \| Bowl lug \| 9kg	1998-2668 \| Bowl lug \| 9kg	9447-9953 \| Adjustment ring assembly \| 4350kg	MM0346525 \| MAIN FRAME \| 228000kg
		6886-5185 \| Main shaft, Head fit rough \| 710kg	6886-5185 \| Main shaft, Head fit rough \| 710kg	2005-6198 \| bowl \| 5443kg	2214-8401 \| ECCENTRIC BUSHING OUTER, O/S \| 469kg
		6587-7025 \| Adjustment lock post \| 10.2kg	6587-7025 \| Adjustment lock post \| 10.2kg	9447-6768 \| Eccentric assembly \| 1824kg	6351-9651 \| CAP SEAL ADJUSTMENT \| 16kg
		5760-2301M \| Step bearing plate \| 76kg	5760-2301M \| Step bearing plate \| 76kg	5168-6783 \| Main Shaft Nut \| 395kg	6358-7662 \| OIL FLINGER \| 23.59kg
		6360-4163 \| Socket sealing ring \| 155kg	6360-4163 \| Socket sealing ring \| 155kg	2005-7027 \| Bowl \| 4536kg	1001674124 \| PRSSR REL VALVE 2 X 2 NPT, BRONZE, OIL \| 8kg
		9439-7138 \| Bowl lock assy \| 18kg	9439-7138 \| Bowl lock assy \| 18kg	6380-6802 \| Socket sealing ring \| 318kg	1070589805 \| SHIM 3.00"ID X 22.25"OD X 11GA \| 5.85kg
		7381-7004 \| Socket \| 450kg	7381-7004 \| Socket \| 450kg	2005-6280 \| Bowl Coarse \| 5443kg	1031144262 \| ECCENTRIC \| 1682kg
		4851-6161 \| FRAME LINER \| 390kg	4851-6161 \| FRAME LINER \| 390kg	8642-8086 \| Eccentric gear counterweight \| 640kg	1027268101 \| COVER PLATE ASSEMBLY \| 9kg
		2855-2350 \| Cylinder weldment \| 8.5kg	2855-2350 \| Cylinder weldment \| 8.5kg	5760-5010 \| Step Bearing Plate \| 120kg	1063-6471 \| FEED HOPPER (FINE, MEDIUM, & COARSE) \| 654kg
		4851-6186 \| Main Frame liner \| 136kg	4851-6186 \| Main Frame liner \| 136kg	9439-9903 \| Electric Power Unit Assembly \| 200kg	8030-2725 \| ROD STEP BEARING PLATE \| 8.89kg
		6360-1210 \| Socket sealing ring \| 155kg	6360-1210 \| Socket sealing ring \| 155kg	5923-9126 \| Sheave bushing \| 313kg	4851-9410 \| Seat liner segment \| 208kg
		3683-1502 \| Gear 20 degrees, solid \| 410kg	3683-1502 \| Gear 20 degrees, solid \| 410kg	5923-9206 \| Sheave bushing \| 414kg	9450-1847 \| mainshaft assembly \| 12506kg
		3683-1229 \| Pinion 20 degrees \| 98kg	3683-1229 \| Pinion 20 degrees \| 98kg		9449-6355 \| bowl \| 11088kg
		5013-5201 \| Mantle \| 739kg	5013-5201 \| Mantle \| 739kg		9450-4834 \| Eccentric assembly \| 3980kg
		4830-1350 \| BOWL LINER COARSE \| 1246kg	4830-1350 \| BOWL LINER COARSE \| 1246kg		9448-2239 \| NUT CITO \| 3000kg
		9439-6690 \| HYD LOCK POST ASSY \| 35kg	9439-6690 \| HYD LOCK POST ASSY \| 35kg		1970-8281 \| U-bolt \| 18kg
		9439-6034 \| Main shaft nut sub-assembly \| 99.7kg	9439-6034 \| Main shaft nut sub-assembly \| 99.7kg		4830-7386 \| Bowl liner \| 3423kg
		2005-4551 \| Fine/Medium Bowl \| 2880kg	2005-4551 \| Fine/Medium Bowl \| 2880kg		5013-9268 \| MANTLE,SH \| 2675.65kg
		3378-3296 \| Main Frame Cast \| 4930kg	3378-3296 \| Main Frame Cast \| 4930kg		9450-4889 \| main frame assembly \| 25750kg
					9449-3557 \| Mainshaft assembly \| 10600kg
					6187-7950 \| Adjustment Ring \| 6660kg
					2748-4726 \| Cover, locking nut \| 227kg
					1048309472 \| Bowl liner \| 3652kg
					6666-5691 \| Bowl liner \| 3652kg
					1063-8501 \| Bowl hopper \| 249.48kg
					4830-8731 \| Bowl liner, Medium liner for X coarse bowl, 7-B-621 \| 3287.875kg
					4830-8525 \| Bowl liner, Medium liner for coarse bowl, 7-B-1538 \| 3746.3635kg
					4830-8504 \| Bowl liner, 7-B-863 \| 3764.05kg
					4830-8505 \| Bowl liner, Midium liner for extra coarse bowl, 7-B-1321 \| 3614.395kg
					6361-9490 \| Adjustment ring dust collar \| 153.283kg
					2855-4130 \| Hydraulic cylinder \| 21.768kg
					2005-9335 \| Bowl \| 8140.325kg
					1808-0012 \| Filler blocks, medium liner in coarse bowl \| 43.9895kg
					8605-3730 \| ARANDELA \| 13kg
					6361-3051 \| OIL SEAL RING \| 9.53kg
					9439-9193 \| Hydraulic lock post \| 108kg
					8602-7102 \| WASHER U-BOLT \| 17.33kg
					8610-1485 \| WASHER U-BOLT \| 6kg
					8602-7101 \| WASHER BOLT \| 11.57kg
					3378-5980 \| Main frame \| 20180.75kg
					5013-9204 \| Mantle \| 2504kg
					5435-2751 \| External main frame pin \| 26kg
					2214-7561-098 \| Outer eccentric bushing over size \| 662kg
					9439-9130 \| Main shaft nut \| 513kg
					6876-1321 \| Countershaft \| 370kg
					9439-9069 \| Bowl hopper assembly \| 810kg
					9439-9403 \| countershaft and pinion assembly \| 720kg
					9439-9638 \| countershaft box assembly \| 300kg
					4872-9305 \| Socket liner \| 335kg
					4830-8473 \| Bowl liner \| 2563kg
					9450-4923 \| Main frame assembly \| 26000kg
					1063805101 \| RING SOC SEAL INTD \| 65.8kg
					4247-5132 \| Head \| 9000kg
					6886-8577 \| mainshaft \| 2700kg
					2618-8221 \| Feed cone \| 450kg
					1063-7927 \| Feed hopper \| 1670kg
					9450-3813 \| Counter Shaft Assembly \| 735kg
					9450-4578 \| Counter Shaft Box Assembly \| 1500kg
					9448-2221 \| Counter Shaft Bowl \| 6850kg
					9439-9957 \| Jack Clearing Assy \| 41kg
					5013-9001 \| Mantle \| 2386kg
					4830-8400 \| Bowl liner \| 3150kg
					5013-9203 \| Mantle \| 3000kg
					5013-9201 \| Mantle \| 2341kg
					5013-8951 \| Mantle Stepped XC \| 1890kg
					2281-8950 \| Adjustment cap \| 1900kg
					KR1417.1.1 \| Outer Eccentric Bushing \| 485kg
					KR1417.9.1 \| Inner Eccentric Bushing \| 335kg
					KR1417.9.2 \| Eccentric \| 1678kg
					9449-3556 \| Shaft assembly \| 10977kg
					2005-9385 \| Bowl \| 6804kg
					9439-9153 \| Bowl Adjustment Arm Assy \| 77kg
					9449-6181 \| ADJUSTMENT RING ASSEMBLY \| 9000kg
					9439-9396 \| Hopper Assembly \| 980kg
					4830-7499 \| Bowl liner \| 2832kg
					9448-2215 \| Bowl; STANDARD COARSE \| 6810kg
					9449-9402 \| Eccentric Assembly \| 3700kg
					3680-2700 \| Bevel Gear \| 770kg
					2206-7201 \| Countershaft Box Bushing \| 40.86kg
					4851-9456 \| Main Frame Seat Liner Outer \| 19kg

Spare Parts

Durable Wear-resistant Cone Crusher Main Frame Top Bottom Shell Steel Casting

Key Components & Functions of Cone Crusher Bottom Frame

Discharge Zone

Main Body

Socket Liner Seat

Terex MVP Series 380 Cone Crusher Parts List:

Nordberg Gyredisc Cone Crusher Parts specification:

Trio Telsmith & other Cone Crusher Parts List:

Symons FT Cone Crusher Spare Parts Techical List:

Sandivik CH CS Series HydroCone Crusher Parts List:

Metso HP GP Series Cone Crusher Spare Parts List:

FAQ: Frequently Asked Question about Cone Crusher

RELATED PRODUCTS

SOLUTION VIDEO

Bottom Shell Metal Casting Supply for World-Famous Cone Crusher Brands

Metso (Finland) – HP & GP Series Cone Crushers

Metso (Finland) – HP & GP Series Cone Crushers

Sandvik (Sweden) – CH & CS Series Cone Crushers

Sandvik (Sweden) – CH & CS Series Cone Crushers

Terex Cedarapids (USA) – MVP & RC Series

Terex Cedarapids (USA) – MVP & RC Series

Weir Minerals (UK) – Trio® TC & TP Series

Weir Minerals (UK) – Trio® TC & TP Series

FLSmidth (Denmark) – Raptor® Cone Crushers

FLSmidth (Denmark) – Raptor® Cone Crushers

Astec (USA) – Telsmith Titan™ & Legacy Series

Astec (USA) – Telsmith Titan™ & Legacy Series

Thyssenkrupp (Germany) – Kubria Series

Thyssenkrupp (Germany) – Kubria Series

Kleemann (Germany) – MOBICONE Series

Kleemann (Germany) – MOBICONE Series

GETIN TOUCH

Please feel free to leave a message. We will reply to you in 24 hours.

GET UP DATE FROM NEWSLETTER

Spare Parts

Durable Wear-resistant Cone Crusher Main Frame Top Bottom Shell Steel Casting

Adventages of TONGLi Cone Crusher Main Lower Frame

Key Components & Functions of Cone Crusher Bottom Frame

Discharge Zone

Main Body

Socket Liner Seat

Terex MVP Series 380 Cone Crusher Parts List:

Nordberg Gyredisc Cone Crusher Parts specification:

Trio Telsmith & other Cone Crusher Parts List:

Symons FT Cone Crusher Spare Parts Techical List:

Sandivik CH CS Series HydroCone Crusher Parts List:

Metso HP GP Series Cone Crusher Spare Parts List:

FAQ: Frequently Asked Question about Cone Crusher

RELATED PRODUCTS

SOLUTION VIDEO

Bottom Shell Metal Casting Supply for World-Famous Cone Crusher Brands

Metso (Finland) – HP & GP Series Cone Crushers

Metso (Finland) – HP & GP Series Cone Crushers

Sandvik (Sweden) – CH & CS Series Cone Crushers

Sandvik (Sweden) – CH & CS Series Cone Crushers

Terex Cedarapids (USA) – MVP & RC Series

Terex Cedarapids (USA) – MVP & RC Series

Weir Minerals (UK) – Trio® TC & TP Series

Weir Minerals (UK) – Trio® TC & TP Series

FLSmidth (Denmark) – Raptor® Cone Crushers

FLSmidth (Denmark) – Raptor® Cone Crushers

Astec (USA) – Telsmith Titan™ & Legacy Series

Astec (USA) – Telsmith Titan™ & Legacy Series

Thyssenkrupp (Germany) – Kubria Series

Thyssenkrupp (Germany) – Kubria Series

Kleemann (Germany) – MOBICONE Series

Kleemann (Germany) – MOBICONE Series

RELATED NEWS

GETIN TOUCH

Please feel free to leave a message. We will reply to you in 24 hours.

GET UP DATE FROM NEWSLETTER

GET IN TOUCH

LEAVE A MESSAGE
