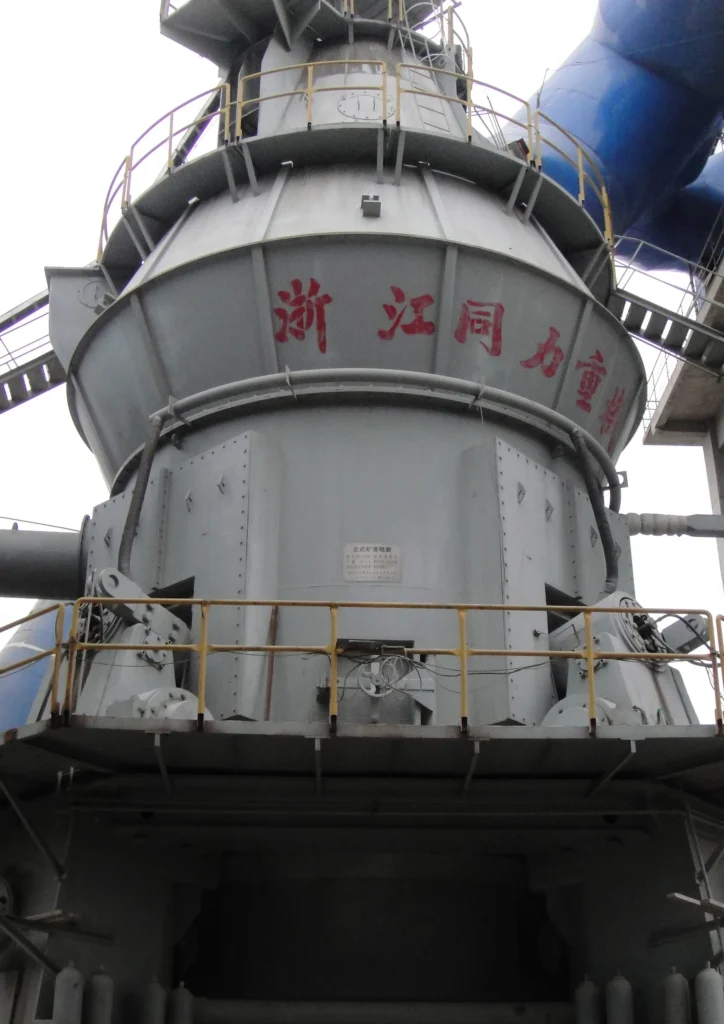

Tongli Natural Gypsum Vertical Mill is an industrial equipment specially used for grinding natural gypsum. Its main purpose is to crush natural gypsum to the required fineness to meet the needs of industries such as building materials, gypsum board, agriculture and chemical industry. It is mainly composed of grinding disc, grinding roller, grading device, fan, feeding system and discharging system. The material between the grinding disc and the grinding roller is ground, and the fine powder is separated and discharged by the grading device. The material is fed into the mill through the feeding system, and the rotation of the grinding disc drives the grinding roller for grinding. The grinding roller applies pressure to crush the gypsum material, and the fan takes away the fine powder and separates the product of the required particle size through the grading device. The production capacity of natural gypsum vertical mill is usually measured in tons per hour (t/h). Common vertical mill production capacities range from 20 t/h to 200 t/h, depending on the equipment model and configuration.
One machine, two jobs
A MACHINE YOU CAN DEPEND ON!
Tongli Natural Gypsum Vertical Mill is equipped with an efficient grading device that can precisely adjust the fineness; the optimized material flow system ensures uniform feeding and efficient discharging, improving production efficiency; the automatic control system monitors the equipment status in real time to ensure stable operation.
The Tongli Natural Gypsum Vertical Mill is equipped with an automatic control system that can monitor the operating status of the equipment in real time and make automatic adjustments to ensure stable operation of the equipment.
The natural gypsum vertical mill is equipped with a classifier that can adjust the fineness of the product as needed. The design of the classifier usually includes multiple rotating impellers, which can accurately control the particle size of the powder.
The Tongli Natural Gypsum Feeding System is designed to evenly feed the material into the mill to ensure uniform distribution of the material in the mill. The discharging system is designed to efficiently discharge the product in the mill, reducing the retention time of the material and improving production efficiency.
Model | TLSG8021 | TLSG9024 | TLSG10027 | TLSG10036 |
Average Working Diameter (mm) | 800 | 900 | 1000 | 1000 |
Number of Annular Tracks / Layers | 3 | 3 | 3 | 4 |
Number of Grinding Rollers (pcs) | 21 | 24 | 27 | 36 |
Main Shaft Speed (r.p.m) | 230 | 200 | 180 | 180 |
Feed Particle Size (mm) | ≤20 | ≤20 | ≤20 | ≤20 |
Product Particle Size Range (μm) | 5-47 | 5-47 | 5-47 | 5-47 |
Product Output (t/h) | 0.4-4.5 | 0.4-5.5 | 0.6-6.5 | 0.7-7.5 |
Installation Dimensions (LxWxH) (m) | 13.9x4x6.2 | 14.7x4.8x7.2 | 18x4.6x8.6 | 18x4.6x8.6 |
Materials are uniformly fed into the center of the mill through a feeding system (such as a screw feeder or vibrating feeder). Typically, the feeding system directs the gypsum material into the center area of the grinding table. The grinding table is the main grinding component of the vertical mill, positioned horizontally and continuously rotating. The rotation of the table generates centrifugal force, distributing the material across the surface of the table. The grinding rollers are another critical component of the vertical mill, usually consisting of two or three rollers. These rollers apply pressure to the surface of the grinding table through a hydraulic system.
The rotational movement of the rollers crushes the material, which is ground between the table and the rollers. On the grinding table, the gypsum material is crushed and ground by the rollers, gradually turning into fine powder. The material moves outward on the grinding table due to centrifugal force while being crushed by the pressure of the rollers. The fan introduces air into the system, carrying away the fine powder within the mill. The airflow helps transport the fine powder from the surface of the grinding table to the classification device located above. The classification device (typically a cyclone separator or classifier) is located at the top of the mill. It separates the fine powder from the coarse particles in the airflow, with fine powder being separated and discharged by the classification device.
Coarse particles are returned to the grinding table for further grinding. The classified fine powder is conveyed to a storage silo or final product collection device through a discharge system (such as a pneumatic conveying system). This system is responsible for discharging and storing or further processing the product powder from the mill.
Increasing the pressure of the grinding rollers can enhance grinding efficiency. However, excessively high pressure may lead to equipment overload or increased wear. It is necessary to find a balance between increasing output and maintaining equipment. Adjusting the airflow of the fan can control the speed of airflow within the mill, thereby affecting material grinding and fineness. Appropriate airflow can improve the efficiency of fine powder discharge.
By adjusting the parameters of the classification device (such as rotational speed), it is possible to control the fineness and flow of the product. Optimizing the settings of the classification device helps to increase output and ensure product quality. Regular maintenance and inspection of the vertical mill are essential to ensure all components (such as grinding rollers, grinding table, classification device, etc.) are in good condition, reducing faults and downtime. Regular cleaning and inspection of the dust removal system can prevent dust accumulation and blockages. Keeping the equipment clean helps maintain stable operating conditions. High humidity materials may cause clumping issues during the grinding process.
Controlling the moisture content of the material or pre-drying it can reduce its impact on the grinding process. Using advanced monitoring systems to monitor the operating status of the equipment in real-time, including parameters such as output, energy consumption, and temperature. Through data analysis, operational parameters can be adjusted in a timely manner to enhance output.
Regularly check the wear condition of the grinding rollers and grinding table, and promptly replace severely worn components. The wear of the rollers and table can affect grinding efficiency and product quality. Regularly clean dust and impurities from the grinding rollers and table to prevent buildup that may affect the normal operation of the equipment. Inspect the wear condition of the blades and other components of the classification device to ensure it operates correctly. Regularly check the filter bags or cartridges of the dust removal system to ensure they work properly and avoid dust leakage.
Replace lubricating oil regularly as per the equipment manufacturer's recommendations to maintain good lubrication. Choosing the appropriate lubricating oil can reduce wear and improve equipment efficiency. Inspect the hydraulic system's pipes and connections to ensure there are no oil leaks. Record the operating data of the equipment and analyze performance and failure causes for preventive maintenance. Provide training for operators to ensure they master proper operating methods and maintenance skills. Establish and follow safety operating procedures to ensure safety during the equipment operation.
Cement Production: Natural gypsum is used to adjust the setting time of cement. The vertical mill can grind gypsum to the required fineness to ensure its effective application in cement production. The high-efficiency grinding capability of the vertical mill can meet the gypsum demand in large-scale cement production.
Gypsum Board Production: Used for the production of building gypsum board. Natural gypsum needs to be ground to a specific fineness to ensure the quality and performance of the gypsum board. The vertical mill can provide a uniform particle size distribution suitable for gypsum board production.
Fertilizer Production: Gypsum is an important raw material for fertilizers, used in the production of phosphate fertilizers, among others. The vertical mill can efficiently grind gypsum to meet the needs of fertilizer production. High-efficiency grinding and stable particle size control contribute to the quality of fertilizer products.
Chemical Manufacturing: In certain chemical production processes, gypsum is used as an intermediate or additive. The vertical mill can handle gypsum with various particle size requirements, allowing for precise adjustments in grinding effect during chemical manufacturing.
Soil Improvement: Gypsum is used as a soil conditioner to improve soil structure and moisture retention capabilities. The vertical mill can grind gypsum to the desired fineness to optimize soil improvement effects. High fineness gypsum helps for uniform distribution and more effective soil improvement.
Animal Feed: Gypsum is sometimes used as an additive in animal feed to provide calcium and other minerals. The vertical mill can grind gypsum to an appropriate particle size. The fineness of the grinding can be adjusted according to the feed requirements.
The natural gypsum vertical mill is suitable for various industries and applications, including building materials, chemicals, agriculture, environmental protection, and other industrial fields. It provides efficient grinding capabilities and flexible operating parameters to meet different applications’ requirements for gypsum fineness and quality.
Insufficient roller pressure may lead to low grinding efficiency; adjust the roller pressure as needed to ensure proper grinding conditions. Insufficient or excessive airflow from the fan may affect material grinding and discharge; check and adjust the fan airflow to ensure it matches the grinding needs of the equipment. An uneven feeding system may lead to instability in the grinding process; improve the feeding system to ensure uniform feeding into the mill. Wear of the grinding rollers and grinding table can reduce grinding efficiency; regularly check the wear condition of the rollers and table, and replace them if necessary.
Failures in the lubrication system or insufficient lubricating oil may lead to overheating of the equipment. High humidity materials can easily cause blockages during the grinding process. Dust accumulation may lead to poor material flow and blockages. Uneven feeding may cause internal blockages in the equipment. Common issues with the natural gypsum vertical mill include insufficient output, unstable grinding fineness, overheating of the equipment, noise and vibration, material blockages, and excessive energy consumption. Taking appropriate adjustment and maintenance measures can effectively improve the operational efficiency and stability of the equipment. Regular inspection and maintenance are key to ensuring the long-term stable operation of the equipment.
High-temperature environments may cause equipment overheating, leading to the deterioration of lubricating oil or grease, increasing mechanical wear and energy consumption. Strengthen the cooling system's maintenance to ensure the equipment operates within an appropriate temperature range.
Use lubricating materials and coolants suitable for high-temperature environments. High humidity may cause equipment components to rust, especially metal parts, increasing the risk of corrosion and affecting equipment stability and lifespan. Regularly check and maintain rust prevention measures for the equipment, such as applying anti-rust oil. Ensure adequate ventilation and dryness of the equipment to reduce the impact of moisture. Use moisture-proof materials and covers for the equipment to minimize moisture intrusion.
Precipitation may lead to external moisture on the equipment, increasing the risk of corrosion and electrical system failure. Ensure that the roof or rain protection measures for the equipment are intact to avoid direct exposure to rainwater. Taking appropriate preventive and maintenance measures tailored to different climatic environments can effectively reduce the impact on the natural gypsum vertical mill, enhancing the stability and lifespan of the equipment. Regular inspection and appropriate equipment maintenance are key to addressing the effects of climatic conditions.
Natural gypsum is widely used in cement and plasterboard production. Vertical mills are ideal for grinding this soft material into a fine powder, enabling efficient production of high-quality gypsum products with consistent particle size.
Anhydrite, a dry form of gypsum, is harder than natural gypsum. Vertical mills efficiently grind this material to a fine particle size, enhancing its use in cement, plaster, and other applications requiring reactive gypsum.
Phosphogypsum, a by-product of phosphate fertilizer production, can be processed by vertical mills. These mills handle the variable quality of phosphogypsum, producing fine particles suitable for use in construction, agriculture, and industrial applications.
Flue gas desulfurization gypsum, produced from sulfur dioxide removal in power plants, can be finely ground in vertical mills. This processed gypsum is ideal for use in cement production, reducing environmental impact and improving product quality.
Synthetic gypsum, produced from industrial by-products like coal-fired power plants, can be processed in vertical mills. These mills offer high efficiency in grinding synthetic gypsum into fine powder for use in cement, plaster, and wallboard production.
Marble waste gypsum, a by-product from the marble cutting process, is processed in vertical mills to create finely ground gypsum for use in construction materials and in cement manufacturing.
Desulfurized gypsum, produced from industrial processes, can be ground in vertical mills making it suitable for various applications, including cement and plasterboard.
Titanium gypsum, a by-product from titanium dioxide production, can be finely ground and used in construction, agriculture, and as a supplement in cement production to enhance performance and sustainability.
