Galena: The Oldest and Most Dangerous Mineral – How to Safely Process?

Galena is a lead sulfide mineral whose crystals occur in massive, cubic, octahedral, and fibrous layers. Today, it is the most important lead ore used in the production of commodities. The mineral was first described by Pliny the Elder (Gaius Plinius Secundus) in 77 AD. He named it after the Latin word for "lead ore" because it was used by various societies as a source of lead. This is partly due to the relatively low melting point required to smelt galena. The mineral's ancient origin was Sardinia, Italy, but today, significant sources exist worldwide. The finest specimens of galena to date are currently being produced in countries such as Australia, Canada, the United Kingdom, and the United States. It is common for other minerals to coexist with galena. These include silver, copper, quartz, pyrite, sphalerite, fluorite, calcite, and chalcopyrite. So, the most pressing question is, why is galena dangerous? Galena (PbS), a primary ore of lead, is considered hazardous primarily due to its lead content. While galena is quite stable and easy to handle in solid crystals, when crushed, ground, or smelted in vertical roller mill or ball mills, it releases toxic lead dust or fumes, which can be harmful if inhaled or ingested. Long-term exposure to galena can cause lead poisoning, nerve damage, and kidney problems, while mining waste can also contaminate soil and water sources. For safety reasons, galena specimens should be handled with care, hands should be washed after handling, and dust collectors should be installed in grinding lines to prevent dust generation.

Physical properties of galena

Galena's perfect cubic cleavage, metallic luster, lead-gray color, and relative softness distinguish it from most other metallic minerals. However, perhaps its most striking characteristic is its extremely high density (high specific gravity). A sample of galena feels much heavier than similarly sized samples of most minerals, including other metallic minerals. Galena (PbS) and rock salt (salt or NaCl) have identical crystal structures, so it's no surprise that they exhibit similar perfect cubic cleavage. Both minerals fracture along three perpendicular weak lines. Galena is about as hard as a fingernail and is easily scratched by fingernails or metal implements.

Chemical classification	sulfide
color	The fresh surface is bright silver with bright metallic luster, and turns into dull lead gray after losing its luster.
stripe	Lead gray turns black
luster	The fresh surface has a metallic luster, and the surface loses its gloss.
transparency	opaque
cleavage	Perfect, cube, three directions at right angles
Mohs hardness	2.5+
proportion	7.4 to 7.6
Diagnostic properties	Color, luster, specific gravity, striations, cleavage, cubic or octahedral crystals.
chemical composition	Lead sulfide, PbS, and silver are the most common minerals, followed by copper and zinc, and sometimes gold, iron, cadmium, antimony, bismuth, arsenic, and selenium.
Crystal System	Isometric
use	Lead ore

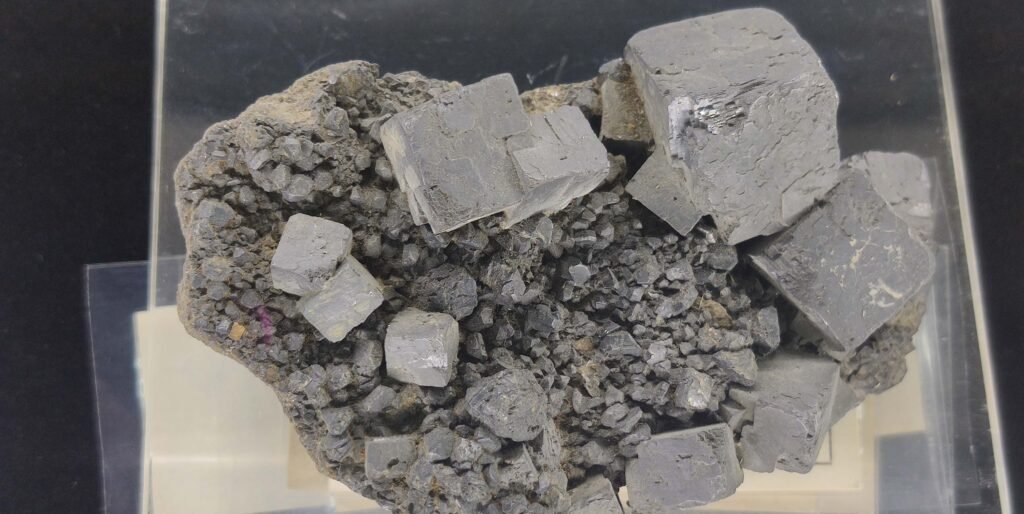

How is galena formed?

Galena is a common endogenous mineral, primarily formed in low- to moderate-temperature hydrothermal processes. These environments typically include hydrothermal veins and contact metamorphic sedimentary rocks, and galena is often found alongside other minerals such as sphalerite and chalcopyrite.

Galena's formation is not limited to a single type of rock. It can be found in igneous, metamorphic, and sedimentary rocks, demonstrating its versatility as a naturally occurring mineral. Galena often occurs as a replacement mineral in sedimentary rocks, indicating its dynamic nature during geological processes. Over time, galena weathers and transforms into minerals such as galena or cerussite.

Cause type

• Hydrothermal deposits: This is the most important type of galena origin. It is commonly found in medium- and low-temperature hydrothermal vein deposits and skarn-type deposits. It often coexists with minerals such as sphalerite (ZnS), pyrite (FeS₂), chalcopyrite (CuFeS₂), calcite, quartz, fluorite, and barite. This "lead-zinc coexistence" is so common that it is often collectively referred to as "lead-zinc deposits" in the industry.
• Sedimentary deposits: These are found in sedimentary rock-hosted stratabound lead-zinc deposits (SEDEX) and Mississippi Valley-type (MVT) deposits. These deposits are large in scale and are the primary source of global lead and zinc resources.
• Metamorphic rocks: In some cases, galena can be formed during the metamorphism of lead-rich rocks or minerals. High temperatures and pressures can trigger chemical reactions that form galena.
• Secondary enrichment: The secondary enrichment process can cause galena to concentrate in certain areas. This occurs when water leaches lead from the primary ore body and then transports it to the secondary enrichment area under different chemical conditions, where it is deposited.

Symbiotic combination

• Main associated minerals: sphalerite (almost inseparable).
• Common gangue minerals: quartz, calcite, dolomite, fluorite, barite.
• Secondary minerals: After oxidation, galena can form colorful secondary minerals such as cerussite (PbCO₃), lead sulfate (PbSO₄) and molybdenite (PbMoO₄).

The formation of galena involves a variety of factors, including the presence of lead, sulfur, and favorable geological conditions. Here is a brief overview of galena formation:

• Presence of lead: The formation of galena requires a source of lead. Lead can come from a variety of sources, including magmatic intrusions that carry lead-bearing minerals into the Earth's crust, and the presence of lead-rich rocks.
• Sulfur: Sulfur is another key component. Sources of sulfur include various geological processes, such as volcanic activity, which release sulfur dioxide (SO2) into the atmosphere. Under certain conditions, this sulfur combines with lead to form galena.
• Hydrothermal activity: The circulation of high-temperature hydrothermal fluids is a common mechanism for galena formation. These fluids typically originate deep within the Earth and carry dissolved minerals, including lead and sulfur. When these fluids encounter suitable host rocks, they cool and deposit galena and other minerals.
• Chemical reactions: In hydrothermal systems, chemical reactions occur between lead, sulfur, and other elements in the surrounding rocks. As the fluid cools and conditions change, these reactions lead to the precipitation of galena.
• Crystallization: When galena precipitates from hydrothermal fluids, it forms distinctive crystals. Galena crystals typically exhibit cubic cleavage and often have a distinctive, shiny, cube-like shape.
• The specific geological environment and conditions significantly influence the size and quality of galena deposits. Galena can occur as a primary ore in lead mines or as a byproduct of other mineral mining. Furthermore, it is associated with a variety of other minerals, including sphalerite (zinc sulfide) and chalcopyrite (copper and iron sulfide), forming polymetallic deposits.

Where is Galena Found?

Galena is mined primarily in lead-producing areas. Galena is the most common and important lead ore and is often the primary source of lead production. These mining sources can be categorized as follows:

Primary lead ore

These mines specialize in the extraction of lead ore, primarily targeting galena. They are typically located in areas with favorable geological conditions for the formation of lead deposits, such as hydrothermal or sedimentary environments. Some well-known primary lead mines include:

• Lucky Friday Mine in the United States: Located in Idaho, this mine is an important producer of lead and silver, with galena being the main ore mineral.
• Broken Hill Mine, Australia: Historically one of the world's largest lead-zinc mines, it is famous for its high-grade galena deposits.
• Lesvall Mine, Sweden: This mine extracts lead and silver from galena-rich ore.

polymetallic ore

Galena is often found in polymetallic deposits along with other valuable minerals such as zinc (sphalerite), copper, and silver. These mines mine a variety of metals, with galena being one of the ore minerals. Some well-known polymetallic mines that mine galena include:

• Sullivan Mine, Canada: This mine in British Columbia is known for its rich polymetallic deposits, including galena (lead), sphalerite (zinc), and other minerals.
• Kidd Creek Mine, Canada: Another Canadian mine that produces a variety of metals, including lead (from galena) and zinc.

Historical mining area

Lead mining has a history in many regions around the world, with galena being the primary source. While some of these mines are no longer in operation, they remain historically important sources of lead. For example:

• Peak District, UK: The region has a long history of lead mining dating back to Roman times, with galena being the main ore.
• Missouri, USA: Missouri, particularly the Viburnum Trend, has been an important historical source of lead (primarily galena).

Secondary Sources

In some cases, galena is recovered as a by-product of other mineral mining operations. For example, when mining zinc, copper, or silver, galena may be present as a secondary ore mineral that can be extracted along with the primary target mineral.

It's important to note that mining activities and locations can change over time due to market demand, economic factors, and technological advancements. Furthermore, environmental regulations and sustainability concerns have impacted the mining industry, leading to changes in mining practices and sparking exploration for new sources of lead and other metals. Therefore, the specific locations of galena can vary across regions and time periods.

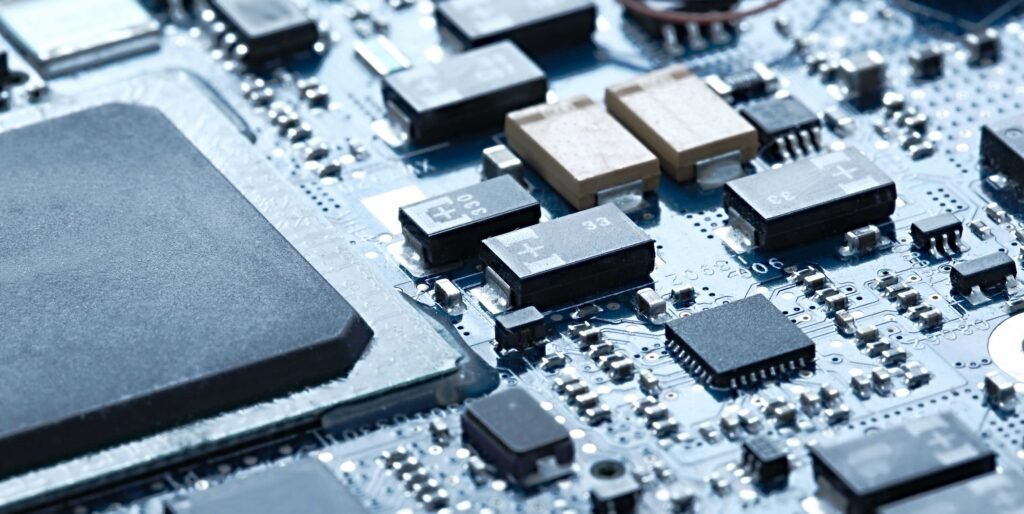

Galena Applications and Uses

The applications and uses of galena (lead sulfide, PbS) have evolved over time and can be categorized into historical and modern applications. It is worth noting that many of galena's traditional uses have declined and its scope has been limited due to health and environmental concerns associated with lead. The following are some of the historical and modern applications of galena:

Historical Applications

• Metal Smelting: Galena has been an important source of lead since ancient times. It is primarily used to extract lead through smelting processes. Lead is essential for the manufacture of pipes, coins, and various other metal products.
• Lead-acid batteries: Historically, galena was used in the production of lead-acid batteries, which are commonly used in vehicles and industrial applications. However, due to technological advances, modern lead-acid batteries are typically produced using lead dioxide and sponge lead instead of galena.
• Pigments: Lead-based pigments, such as white lead (basic lead carbonate) and lead-tin yellow, are made from lead extracted from galena. These pigments were once used in painting, ceramics, and cosmetics. However, their use has declined due to concerns about lead toxicity.
• Ammunition: Lead obtained from galena was historically used to make bullets and cartridges for guns and ammunition.

Modern applications

• Semiconductor Materials: Galena is a naturally occurring semiconductor material, but its use in modern electronics has been limited due to the development of more efficient synthetic semiconductor materials. Historically, it was used in early crystal radios.
• Mineral Specimens: Galena's distinctive cubic crystals and metallic luster make it a popular mineral specimen among collectors and for educational purposes.
• Radiation shielding: Lead, including lead extracted from galena, is still used to make shielding materials to protect against ionizing radiation in applications such as medical facilities, nuclear reactors, and industrial radiography.
• Historical artifacts: Galena may still be found in historical and antique jewelry, lead statues, decorative items, etc. However, these artifacts are generally considered collector's items or historical curiosities rather than everyday items.
• Lead-acid batteries: About 80% of the world's lead is used to manufacture lead-acid batteries for automobiles, uninterruptible power supplies (UPS), etc. This is the largest use of galena.
• Solders and alloys: used to manufacture lead-tin solder, lead type alloys, bearing alloys, etc.
• Chemical products: used to produce pigments and chemicals such as lead white, red lead, and yellow lead (however, due to toxicity, this use has been greatly reduced)
• By-product silver: Silver is extracted from silver-containing galena concentrate and has extremely high economic value.

It’s worth highlighting that the use of galena in many traditional applications has been significantly reduced due to the well-documented health risks associated with lead exposure. Lead is toxic to both humans and the environment, and its use in products such as paint, gasoline, and plumbing has been strictly regulated or phased out in many regions of the world.

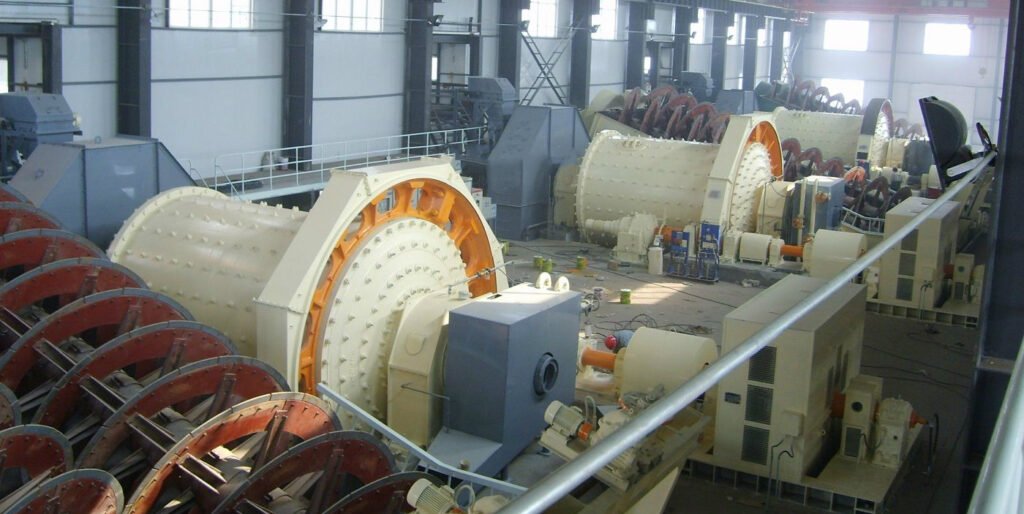

Galena ore dressing and smelting

Galena mining involves a process called hard rock mining. This involves using heavy machinery to extract exposed galena deposits from tunnels dug from the surface. The mined ore is then transported to processing plants, where it is crushed and refined to extract the lead.

Galena is a lead sulfide mineral that is typically mined for its lead content. The mining process for galena typically involves the following steps:

• Exploration: The first step in galena mining is to identify potential mineral sites. This may involve geological surveys, drilling test holes, and analyzing rock samples to determine the quality and quantity of the galena deposit.
• Mining: Once a potential mining site has been identified, the next step is to extract the galena from the ground. This is typically done using open-pit or underground mining techniques. Open-pit mining involves removing overburden and other layers of soil to access the galena deposit. Underground mining involves digging underground tunnels to reach the galena deposit.
• Crushing and Grinding: Once galena is mined, it is typically crushed by cone crusher and ground into a fine powder by vrm mill. This is done to increase the surface area of the galena particles, making it easier to extract lead from the mineral.
• Flotation: The next step in the process is to separate the lead from other minerals and impurities in the galena. This is typically accomplished using a process called flotation. During flotation, crushed galena is mixed with water and chemicals such as frothers and collectors. Air is then introduced into the mixture, causing the galena particles to float to the surface and form a froth. The froth is then skimmed off, separating the lead from other minerals and impurities.
• Refining: After the lead has been separated from other minerals, it is usually refined to remove any remaining impurities. This may involve processes such as smelting, where the lead is heated to high temperatures to separate it from any remaining sulfur or other impurities.

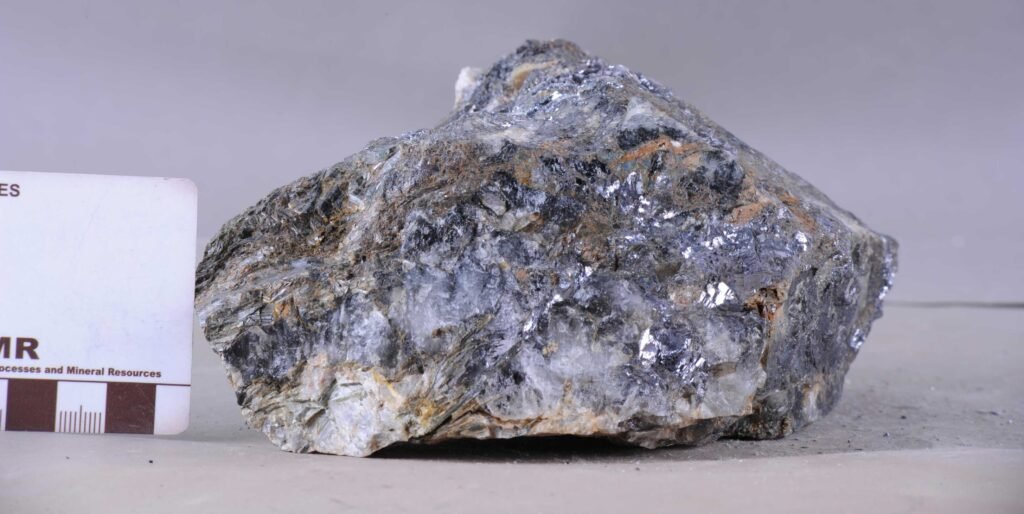

Is galena toxic or dangerous?

Lead is a heavy metal that is highly toxic to humans and ecosystems. It negatively impacts human life and production. Excessive lead dust can lead to lead poisoning, harming organs and tissues such as the heart, bones, intestines, kidneys, reproductive system, and nervous system. Improper management of the mining, beneficiation, and smelting processes of galena can lead to serious environmental problems:

• Dust pollution: Lead-containing dust generated during ore crushing and transportation can cause air pollution.
• Wastewater pollution: Mineral processing wastewater contains heavy metal ions, which will pollute surface water and groundwater if discharged directly.
• Waste residue pollution: Residual lead in tailings ponds and smelting waste residues can seep into the soil and groundwater after being leached by rainwater, causing long-term and hidden pollution.

Therefore, modern galena mining and utilization must follow strict environmental protection standards, including:

• Carry out anti-seepage treatment and ecological restoration of tailings ponds and waste rock dumps.
• The mineral processing wastewater is recycled and treated to meet the standards.
• Advanced clean production technology and efficient flue gas purification system are adopted in the smelting process.
• Conduct comprehensive environmental assessment and remediation of decommissioned mining areas.

Conclusion

Galena, an ancient and vital mineral resource, is easily identified by its unique crystal structure and physical properties. Its stable symbiotic relationship with sphalerite and other minerals provides important clues for mineral exploration. As a major source of lead metal, it continues to support the development of key industries worldwide, such as batteries and radiation protection. Although galena itself has limited applications in modern industry, it remains a hot topic in scientific and mineralogical research. Researchers studying the crystallographic properties of galena have important implications for materials science and mineralogy. Furthermore, some regions with historical lead mining may still consider galena part of their geological and cultural heritage. Galena does not exist in isolation; its close symbiotic association with sphalerite, pyrite, and other minerals constitutes a core economic element in globally important mineral deposits, including medium- and low-temperature hydrothermal vein-type, skarn-type, SEDEX, and MVT-type deposits. Galena is a strategic resource for the acquisition of key metals such as lead, zinc, and even silver and germanium. However, its mining and utilization are notable for the fact that the high toxicity of lead poses a serious challenge to ecosystems and public health. Historically, poor management has led to soil and water pollution, providing valuable lessons. Therefore, future research and application of lead ore should deepen theoretical exploration of the mineralization patterns of deep, rich ore bodies to guide green exploration, develop new technologies for integrated beneficiation and smelting that are efficient, low-cost, and environmentally friendly, and strengthen innovation and implementation of pollution control and ecological restoration technologies in historical mining areas.
